Description
DESCRIPTION
8/25

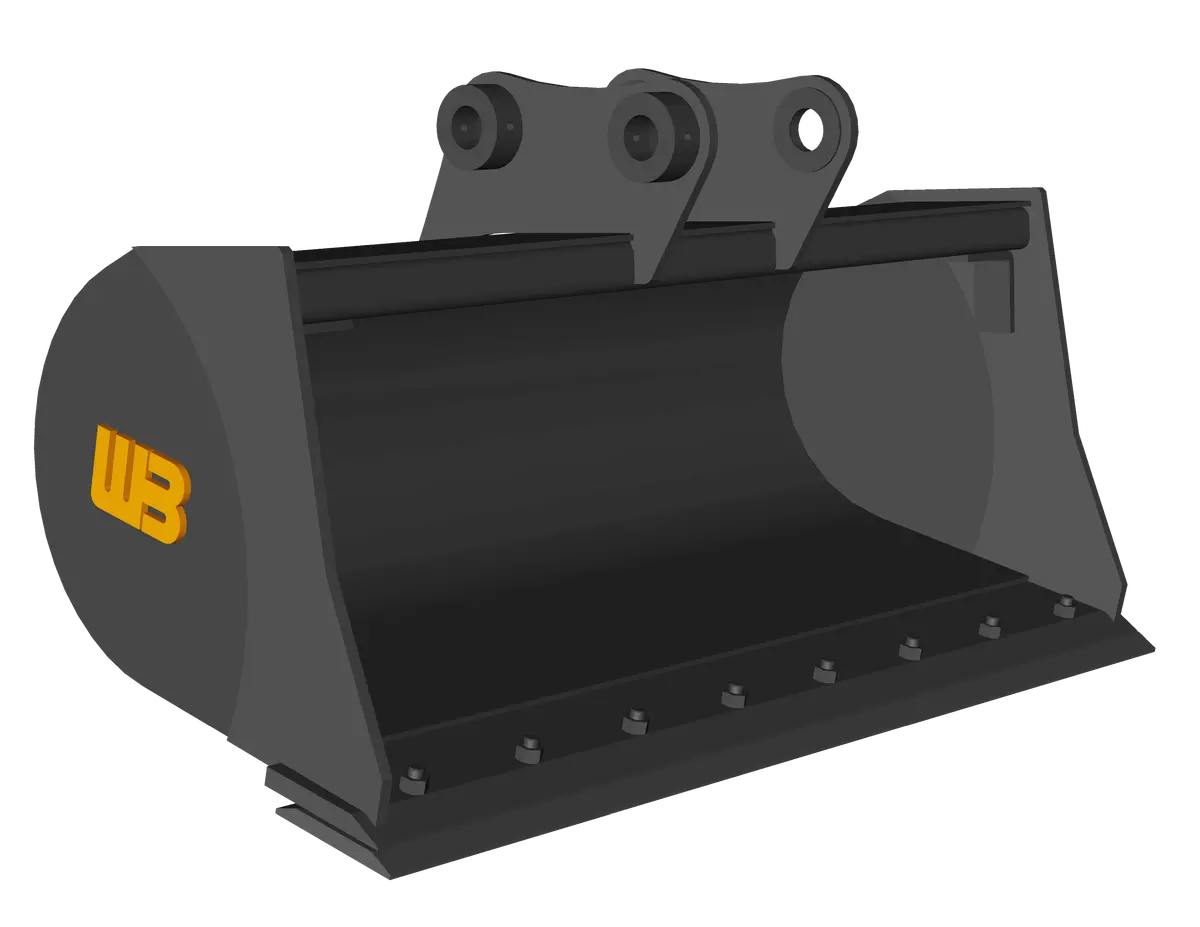

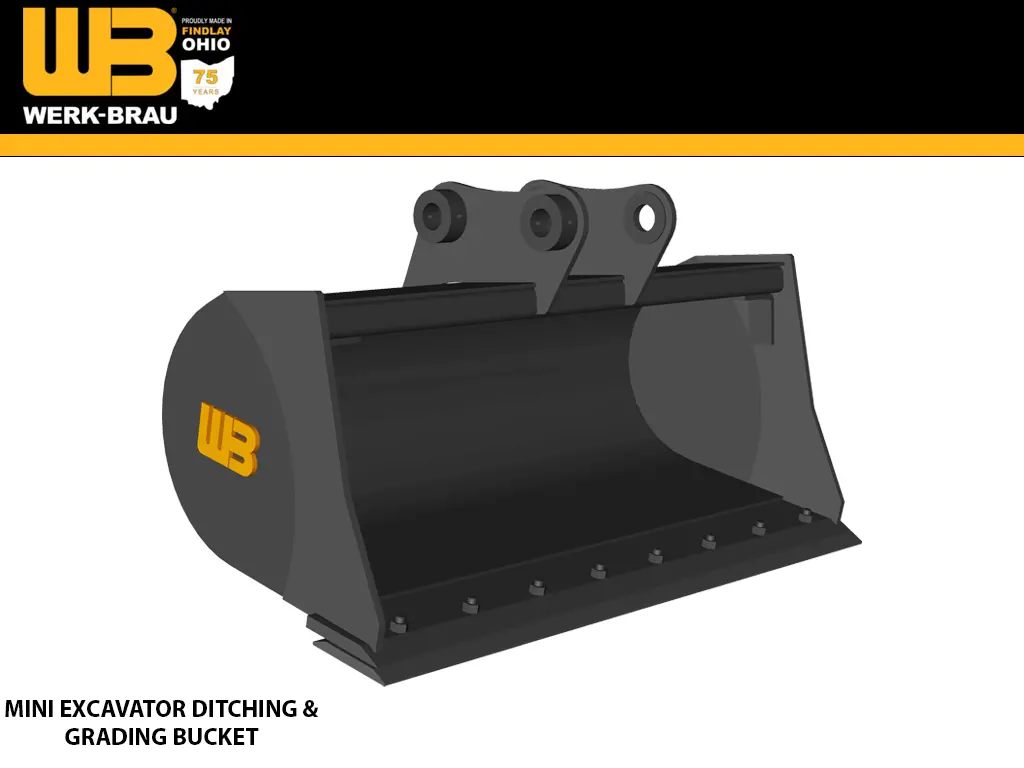

WERK-BRAU DITCHING & GRADING BUCKETS
Recommended Applications
Werk-Brau’s ditching and grading bucket is specifically engineered for ditch maintenance, grading, slope work, and construction. This bucket is not designed for tough digging applications.
Quality Construction
High quality T-1 steel is utilized in all high wear components. A rigid top section assures structural stability in the wider sizes Bottom wear straps provide extra reinforcing. Each bucket is designed with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping. Bucket comes with optional suction relief holes to allow easy dumping of sticky soils found in ditch maintenance.
Cutting Equipment Options
Teeth are not used on these buckets due to the application.
Standard Sizes
Standard widths range from 30″ – 84″, and capacities of .13 cu. yd. – 4.0 cu. yd.
Additional Features
Werk-Brau recommends a bolt-on cutting edge to extend and protect the bucket edge for extended hours of operation. Additional drainage holes are available. For aquatic applications Werk-Brau offers an Aquatic Ditching Bucket. Special designs and capacities are available, please request a quote from your local dealer.
SPECIFICATIONS
| PART # | WIDTH | CAPACITY | LIP SIZE | WEIGHT |
| 4MDCG36 | 36″ | 9.80 | 1″ x 6″ | 664 |
| 4MDCG42 | 42″ | 11.30 | 1″ x 6″ | 692 |
| 4MDCG48 | 48″ | 13.00 | 1″ x 6″ | 734 |
| 4MDCG54 | 54″ | 14.50 | 1″ x 6″ | 764 |
| 4MDCG60 | 60″ | 15.80 | 1″ x 6″ | 805 |
FITS
MINI 4
| MAKE / WEIGHT CLASS | MINI 4 (14,000 – 16,000 LBS.) |
| BOBCAT | |
| CASE | CX75, CX80 |
| CAT | 307.5, 308CR, 308CRVAB, 309CR, 309CRVAB |
| DOOSAN | DX85SR-3 |
| DITCH WITCH | |
| GEHL | |
| HITACHI | ZX75, ZX80 |
| HYUNDAI | R80 |
| IHI | |
| JCB | 8080 |
| JOHN DEERE | 75G, 85G |
| KOBELCO | 70SR, 75SR, 80CS, SK85 |
| KOMATSU | |
| KUBOTA | KX080 |
| LINK BELT | 75, 80 |
| MUSTANG | |
| NEW HOLLAND | E70, E80 |
| SANY | SY75, SY80 |
| TAKEUCHI | TB070, TB175, TB180FR, TB285, TB290 |
| VOLVO | EC70, ECR88 |
| YANMAR | SV100, Vio-70, Vio75-a, Vio-80, B7-5A |
| WACKER NEUSON |
