DESCRIPTION

9/25

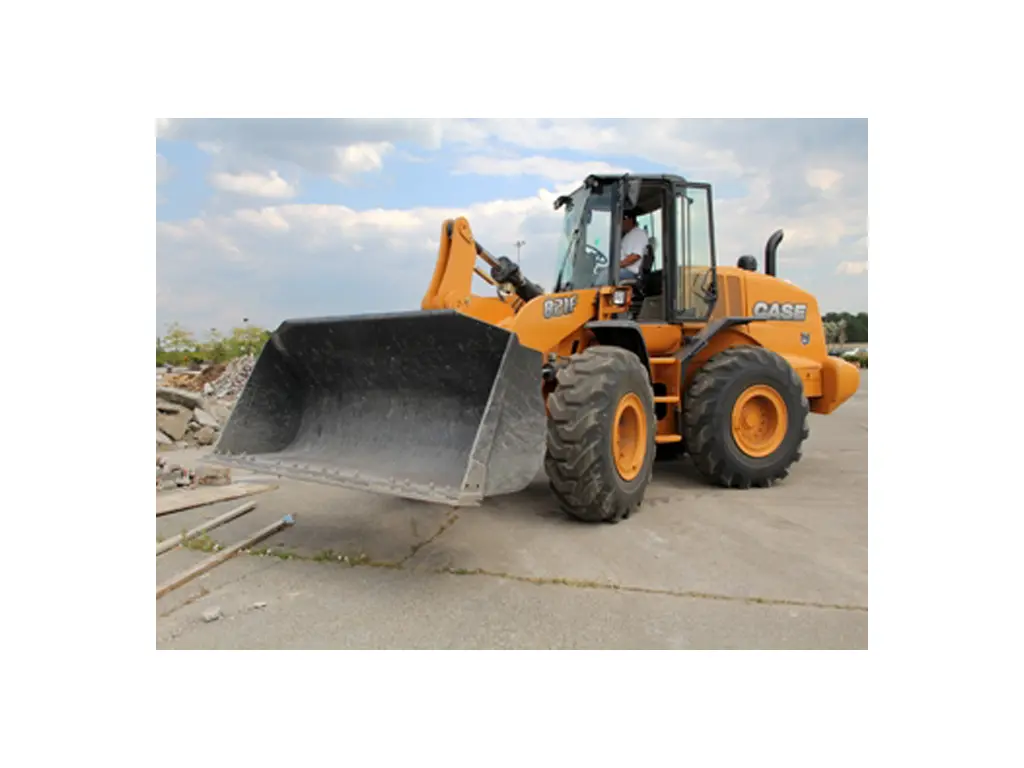

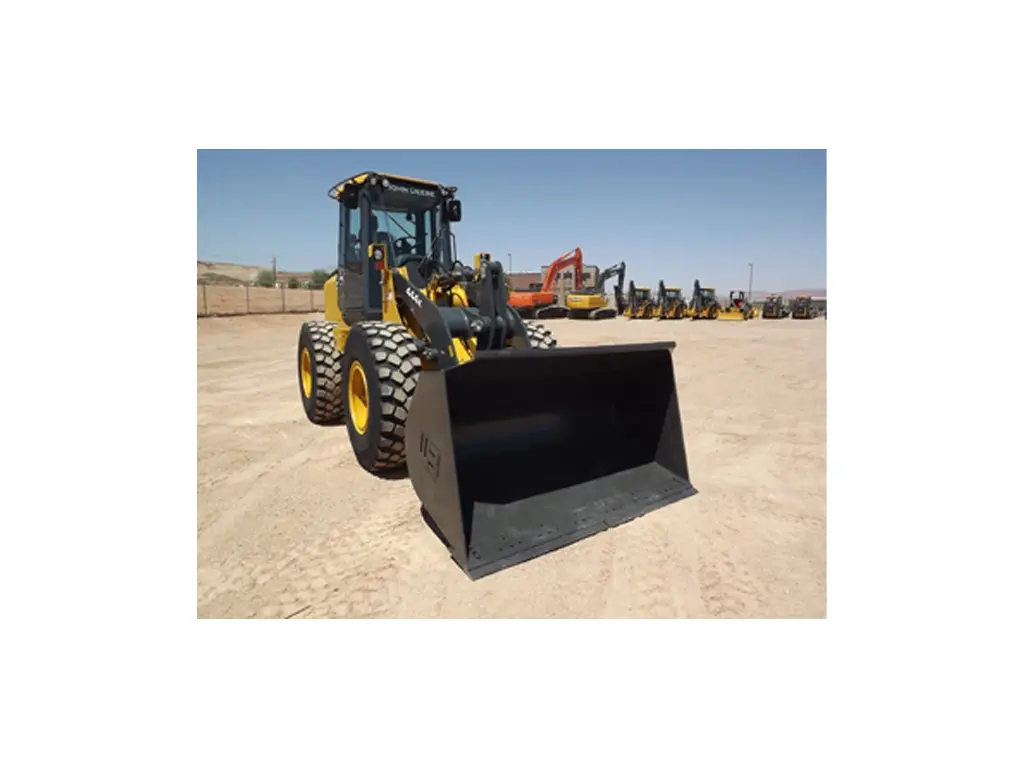

GENERAL PURPOSE BUCKETS

Recommended Applications

Designed to dig in virgin soil and handle material up to 3,200 lbs./cu. yard in density.

Quality Construction

High-strength, abrasion-resistant steel is utilized in all critical components. Additional reinforcing ensures longer life in more rugged conditions. All seams are welded solid. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Auxiliary edge and teeth are available upon request.

Standard Sizes

3/4 cu. yd. to 8.0 cu. yds. of various widths are available. Special designs and capacities are available upon request.

Features

• Enhanced High performance Profile
• Designed for general purpose applications with material densities up to 3,200 lb/cy
• Performance side plates & increased roll back angle allow for greater material retention
• 5%+ greater material retention
• Tapered side plates to reduce wear & easier dumping
• integrated spill guard

SPECIFICATIONS

PART #	WIDTH	CAPACITY	WEIGHT
LHG3100250	100″	2.50	2040
LHG3100275	100″	2.75	2175
LHG3100300	100″	3.00	2270

FITS

CLASS 3

CLASS 3 (26,000 – 30,000 LBS)	MODEL
CASE	621G
CAT	935, 936
DEVELON	DL220-5, DL220-7
HITACHI	ZW150
HYUNDAI	HL750
JCB	426, 427
JOHN DEERE	524, 544
KOMATSU	WA250, WA270
KUBOTA
LIEBHERR	L538
LINK-BELT	L140
NEW HOLLAND	LW130
SANY	SW305
TAKEUCHI
VOLVO	L70
WACKER NEUSON
YANMAR
