DESCRIPTION

9/25

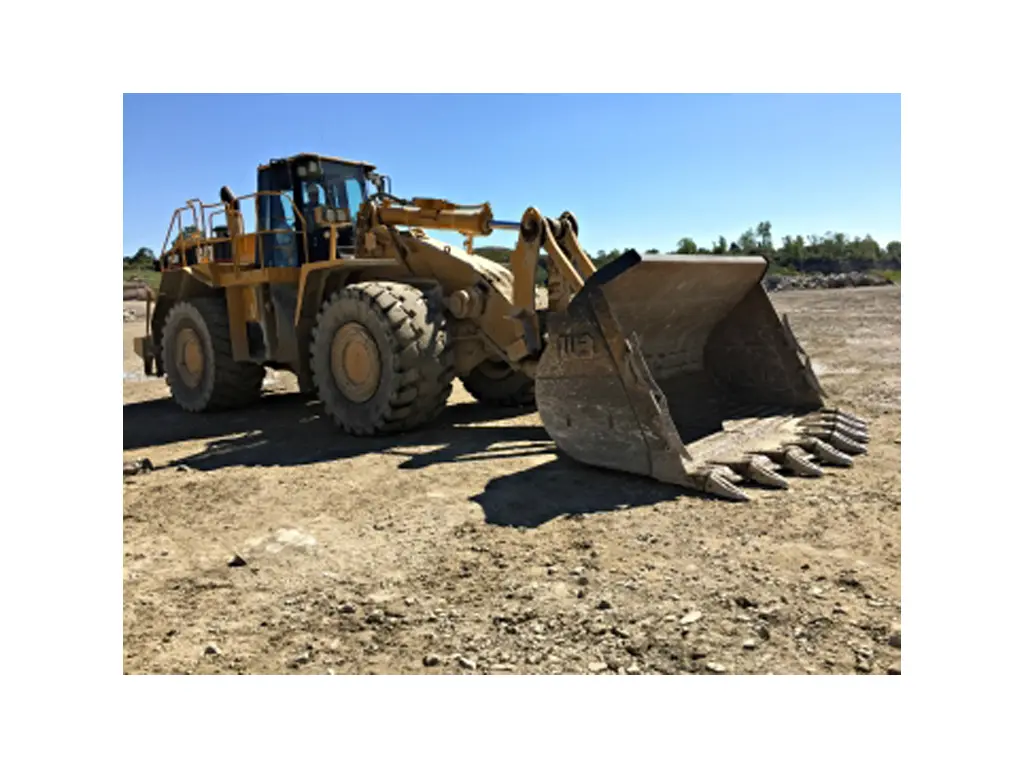

SEVERE DUTY ROCK BUCKET

Recommended Applications

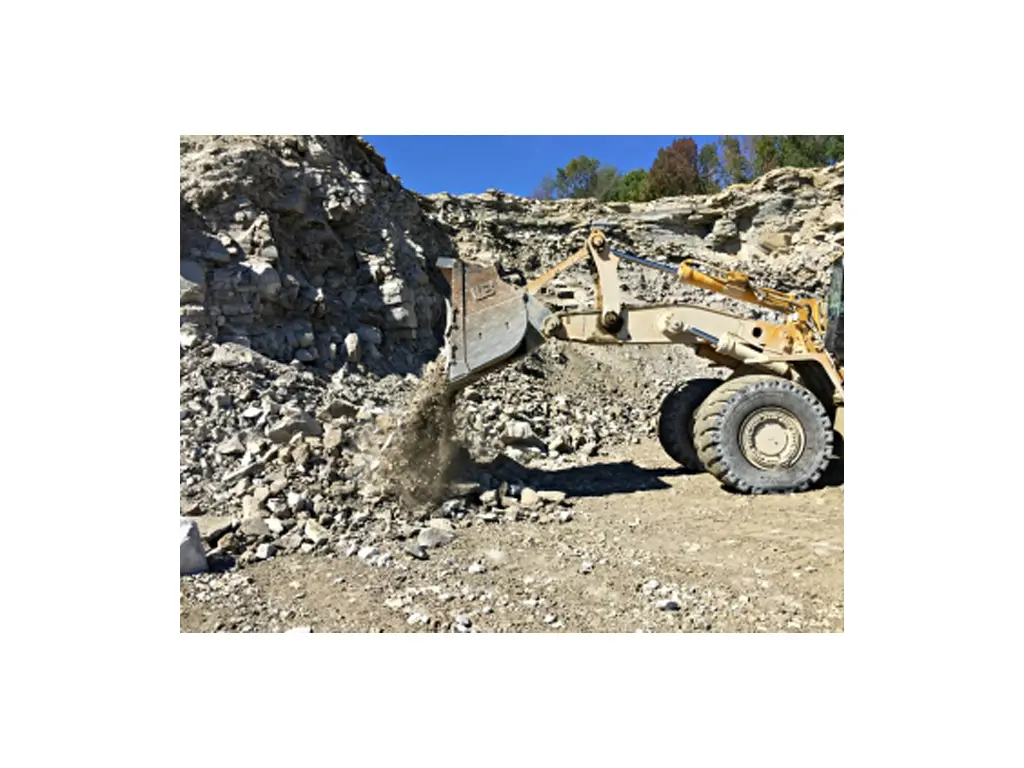

Specifically designed to penetrate severe digging applications or re-handle loose rock.

Quality Construction

High strength, T-1 steel is utilized in all critical wear points of the bucket. Abrasion-resistant steel is used in wear-straps to reinforce bottom of bucket. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Standard Sizes

2.00 cu. yd to 10.00 cu. yd. Widths range from 100″ – 144″. Other capacities and widths are available upon quotation. Available in spade nose or straight edge options.

Additional Features

Available with replaceable bolt-on cutting edge upon request. Weld-on teeth are standard equipment. Other tooth selections available. Easily mounts up to Werk-Brau front coupler or available with pin-up connection. Special designs and capacities are available.

• Internal double bottom
• Lifting loops
• Bolt on side cutters standard
• Slotted spill guard for better vision
• Standard with weld on teeth, shrouds and segments
•  Bolt on cutting edge optional replacement

SPECIFICATIONS

PART #	WIDTH	# OF TEETH	CAPACITY	WEIGHT
WL1R100-2.00	100″	7	2.00	2,500
WL1R100-2.00SP	100″	7	2.00	2,800
WL1R100-2.50	100″	7	2.50	2,700
WL1R100-2.50SP	100″	7	2.50	3000

FITS

CLASS 1

CLASS 1 (14,000-19,000 LBS)	MODEL
CASE	321G
CAT	914
DEVELON	160
HITACHI	ZW120
HYUNDAI	HL720
JCB	217-3//S-3, 408, 409B ZX, 411
JOHN DEERE	710, 244, 304, 324, 344
KOMATSU	WA70, WA80, WA100
KUBOTA	R430, R530, R630
LIEBHERR	L509, L514, L518
LINK-BELT	L125
NEW HOLLAND
SANY
TAKEUCHI	TW80
VOLVO	L45G, L50G
WACKER NEUSON
YANMAR
