DESCRIPTION

7/25

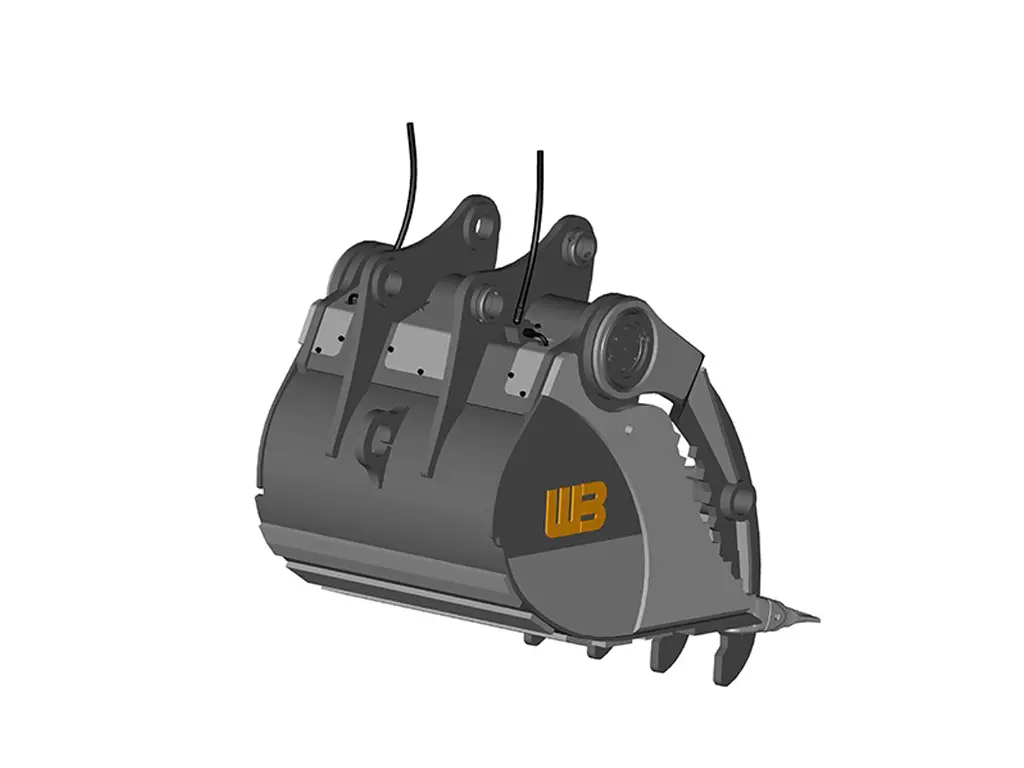

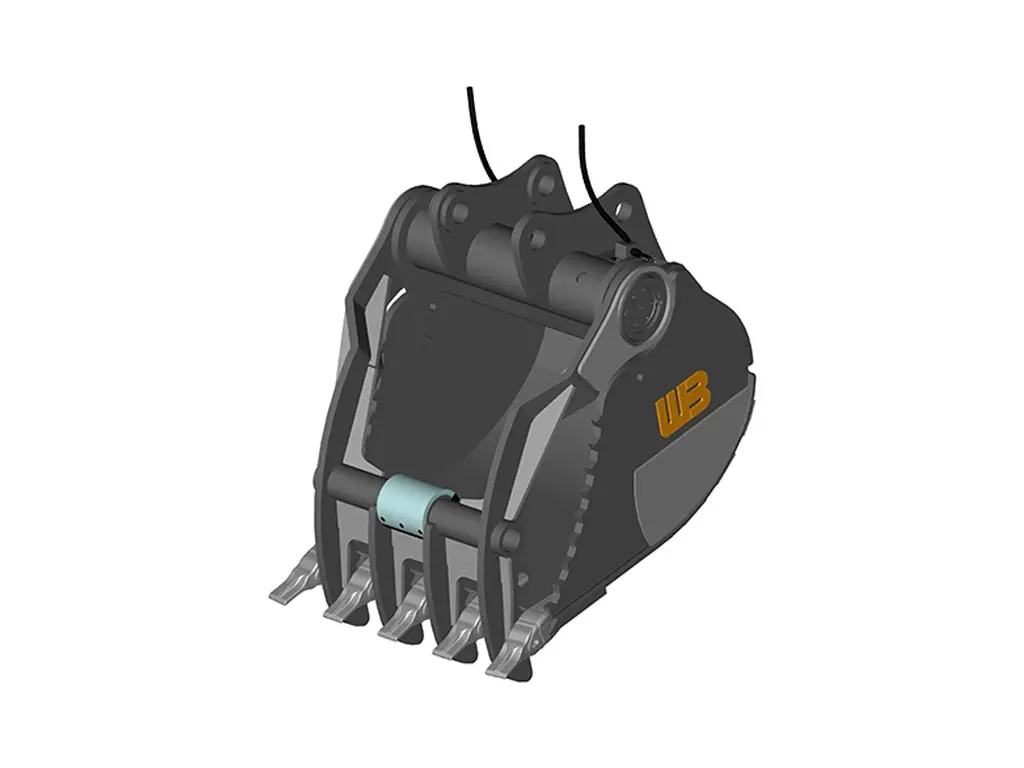

Hydra-Clamp bucket & rake

Recommended Applications

Confidently handle heavy, awkward loads, grab buckets of debris and clear away brush with the Hydra-clamp Bucket and Rake. The built-on rotary actuated thumb provides improved flexibility and precision by maintaining consistent clamping force on the load throughout the entire bucket rotation. The heavy duty design makes it perfect for demolition, picking/sorting applications and land clearing.

Quality Construction

Made of high quality T-1 and AR400 materials in all high stress & wear areas. Includes a plastic covering on thumb to protect the stick.

Additional Features

Easy, low cost installation. Nothing needs welded to the stick. Easily transferrable from machine to machine making it the perfect attachment for a rental fleet. It is powered by a fully enclosed rotary actuator. It has increased holding strength maintaining strong grip on material throughout rotation, versus the standard thumb and bucket. Operator can use 100% of excavator reach making it easier than ever to load trucks. The attachment requires very little maintenance requiring just two auxiliary maintenance lines.

Features

• incorporated actuator; no exposed cylinders
• more clamping force than any bucket-thumb combo
• reduced overall weight compared to bucket-thumb combo
• consistent clamping force throughout full rotation
• Abrasion & wear resistant steel used throughout
• severe duty set up
• does not include jumper hose kit

SPECIFICATIONS

PART #	TYPE	WIDTH	# OF TEETH	WEIGHT
E40GC2B54	BUCKET	54″	5	7150
E40GC2R54	RAKE	54″	5	7150
E40GC2B60	BUCKET	60″	5	7500
E40GC2R60	RAKE	60″	5	7500

 MACHINE FITS

40MT

MAKE / WEIGHT CLASS	30MT (59,500 – 68,000 LBS.)
CASE	CX470, CX490
CAT	349F, TB-LINKAGE
DOOSAN	DX480DX, DX490LC-5
HITACHI	ZX450, ZX470, ZX490
HYUNDAI	HX480
JOHN DEERE	470G, 470P
KOBELCO	SK480, SK485, SK500, SK520
KOMATSU	PC400, PC450, PC490
LIEBHERR	R944
LINK BELT	460, 470, 490X4
SANY	SY500
TAKEUCHI
VOLVO	EC460, EC480
