DESCRIPTION

10/25

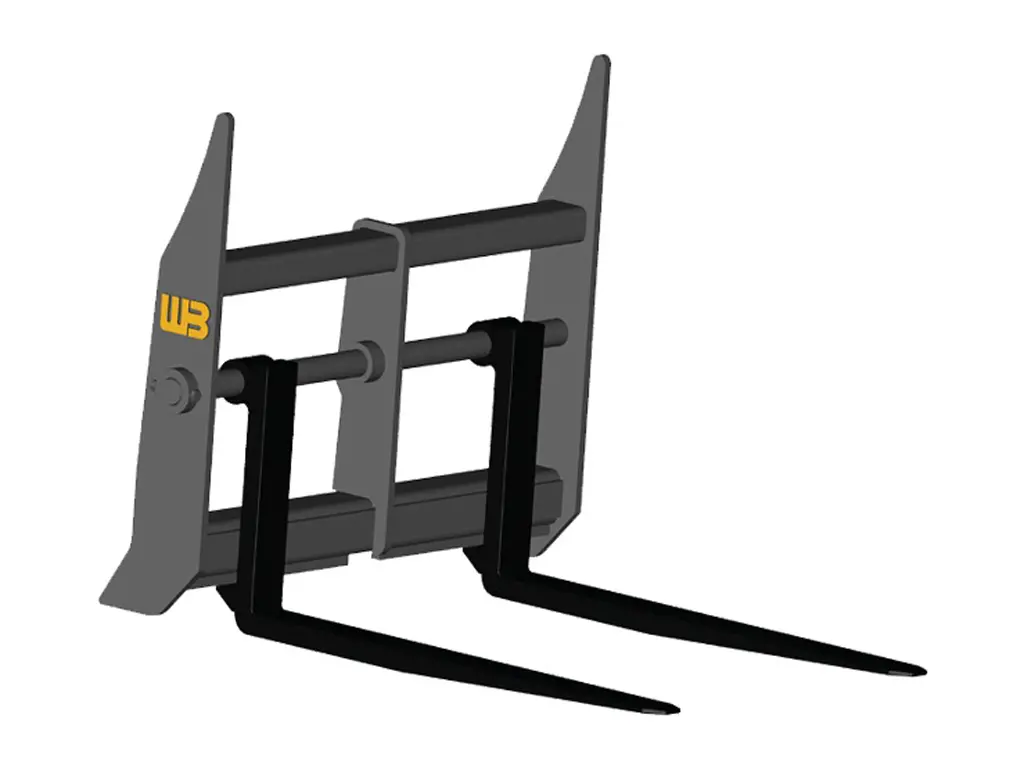

MANUAL ADJUSTABLE FORKS

Recommended Applications

For the removal or displacement of palletized material and/or pipe.

Quality Construction

High strength steel construction with high tensile strength forged forks for long wear. Tines are tapered to prevent wedging.

Standard Sizes

Tine lengths range from 48″-96″ — Tine width placements range from 12″-96″

Additional Features

Available with Werk-Brau front coupler or pin-up connection. For carriage information, see chart blow or call and speak to a sales rep. Anti-swing is standard, see chart below or call to speak to a sales representative. Special designs and capacities are available

• Tines are manually adjustable
• Anti-swing (standard)
• Forks exceed ISO 2330 and ASME standards
• Tapered tines for easier loading
• Lock out position bolt standard

SPECIFICATIONS

Carriage

PART #	WIDTH	BAR DIAMETER	WEIGHT
WBLCF5-96-ST	96″	4.0″	1500
WBLCF5-105-ST	105″	4.0″	1650

Forks

PART #	TINE LENGTH	TINE THICKNESS	TINE WIDTH	BAR DIA	BACK HEIGHT	WEIGHT PER/TOTAL	CAP @ 24″	CAP @ 36″	CAP @ 48″
WLCF5-FK-72	72″	3.5″	8.0″	4.00″	36.0″	750/1500	54,600	36,400	27,200
WLCF-FK-96	72″	3.5″	8.0″	4.00″	36.0″	940/1880	54,600	36,400	27,200

FITS

CLASS 5 (43,000 – 51,000 LBS)	MODEL
CASE	1021G, 1121G
CAT	966, 970
DEVELON	DL420-5, DL420-7, DL450-5, DL450-7
HITACHI	ZW310, ZX330
HYUNDAI	HL970, HL770
JCB
JOHN DEERE	744, 824
KOMATSU	WA470, WA480
KUBOTA
LIEBHERR	L566X
LINK-BELT
NEW HOLLAND	LW230
SANY
TAKEUCHI
VOLVO	L150
WACKER NEUSON
YANMAR



CLASS 6 (51,000 – 68,000 LBS)	MODEL
CASE	1221
CAT	972, 980
DEVELON	DL480-7, DL550-5, DL550-7
HITACHI	ZW370
HYUNDAI	HL780
JCB
JOHN DEERE	844
KOMATSU	WA500
KUBOTA
LIEBHERR	L576X, L580X, L586X
LINK-BELT
NEW HOLLAND
SANY
TAKEUCHI
VOLVO	L180, L220
WACKER NEUSON
YANMAR
