Description

DESCRIPTION

7/25

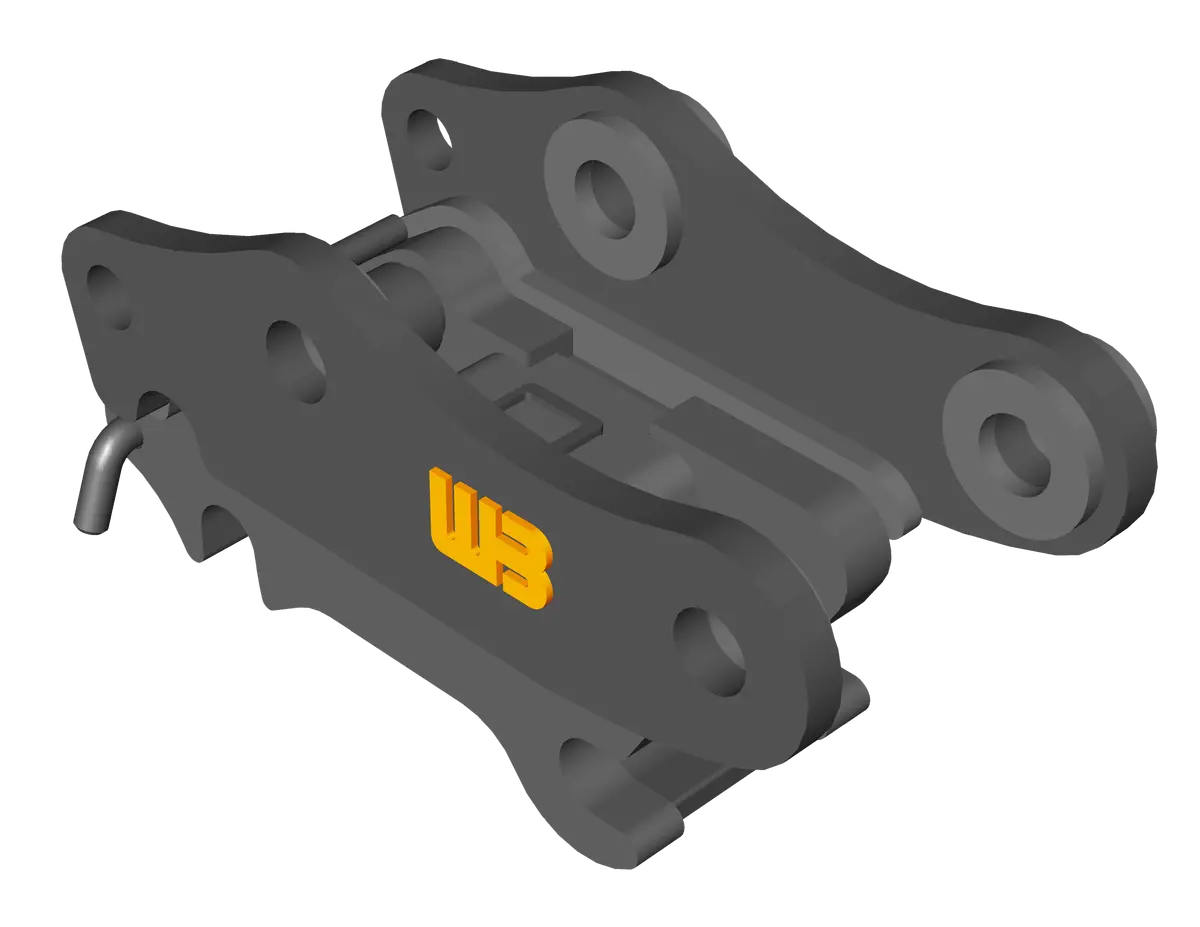

SPRING LOADED MANUAL COUPLER

Recommended Applications

Werk-Brau offers a complete range of manual couplers for all major brands and most machines. Werk-Brau’s couplers are known for their tough build, versatility for pairing with any brand of attachments, safety features, tight lock, and ease of operator use. The Werk-Brau spring loaded manual coupler will work with any attachment from any manufacturer meeting OEM fit-up specifications. Each coupler features a heavy duty lift loop on the top hangers.

Quality Construction

Werk-Brau manufactures the coupler using the highest quality T-1 steel in all critical or high wear components to ensure that this coupler has a long operating life. Werk-Brau’s couplers are constructed using a solid one piece, front cross member which provides more wear service than most other competitive couplers available. A heavy duty lift loop is featured on the top hangers. Spring loaded manual couplers feature adjustable springs.

Safety Pin Notice

Never operate a Werk-Brau coupler without it’s approved safety pin in place. For additional information, please review the owners installation manual for this coupler. Additional, or replacement safety pins maybe ordered through a Werk-Brau Dealer.

Definition

• Straight Coupler option. The top and bottom of the coupler mount will match to the OEM excavator make and model of the machine it is being mounted on.
• Combo Coupler option. The top mount will match the the OEM excavator make and model of the machine it is being mounted on. The Bottom mount will match the determined OEM make and model of the bucket you want to pick up. The buckets you want to pick up should be in the same machine class size. Example: You own a Case CX57C and the top mount will be set up for a Case CX57C. The buckets you own are for a CAT 305.5E2CR and the bottom mount will match those buckets.

 SPECS

HEAVY DUTY

PART #	TYPE	STYLE	WEIGHT
SQC-EX12	Striaght	Spring Loaded	500
SQX-EX12C	Combo	Spring Loaded	500

FITS

MAKE / WEIGHT CLASS	12MT (24,000 – 33,000 LBS.)
CASE	CX130, CX145D, CX140E
CAT	311, 313, 314F, 315F (A-Linkage)
DOOSAN	DX140LC-5, DX140LCR-5, DX140W-5
HITACHI	ZX130
HYUNDAI	HX140, HX145, HX220 LR
JOHN DEERE	130G, 135G, 130P
KOBELCO	SK140, ED160
KOMATSU	PC138
LIEBHERR
LINK BELT	130X4, 145X4, 210X4 LR
SANY	SY135, SY235 LR, SY265 LR
TAKEUCHI	TB1140, TB2150
VOLVO	EW140, EC140, ECR145
