Description

DESCRIPTION

9/25

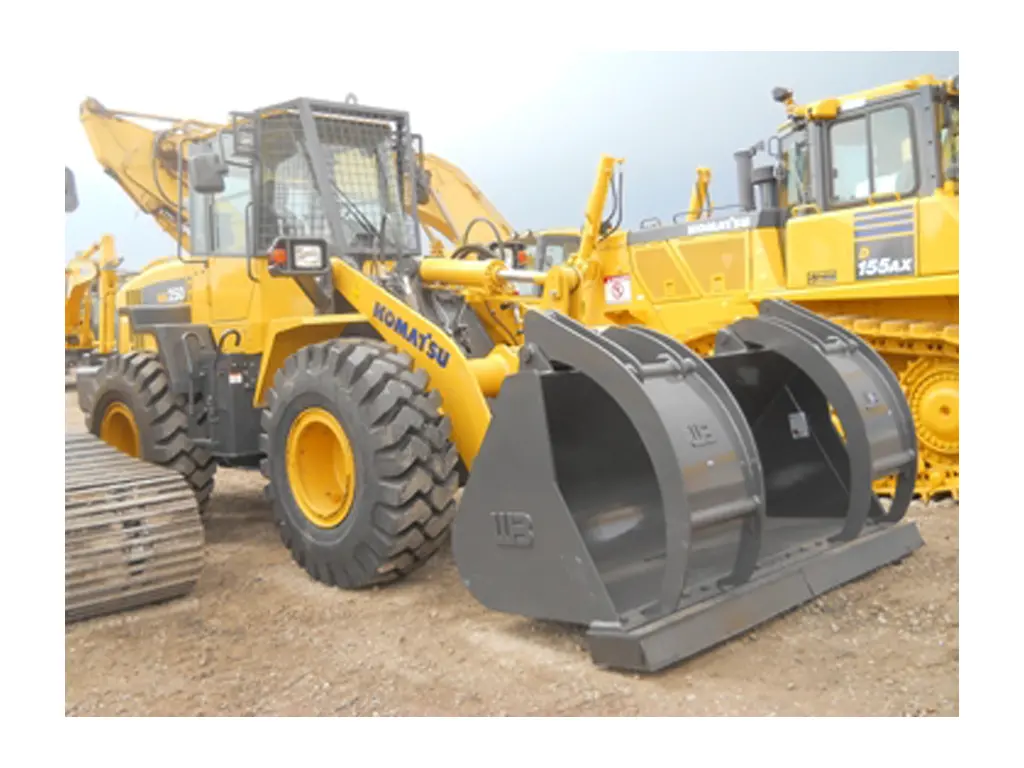

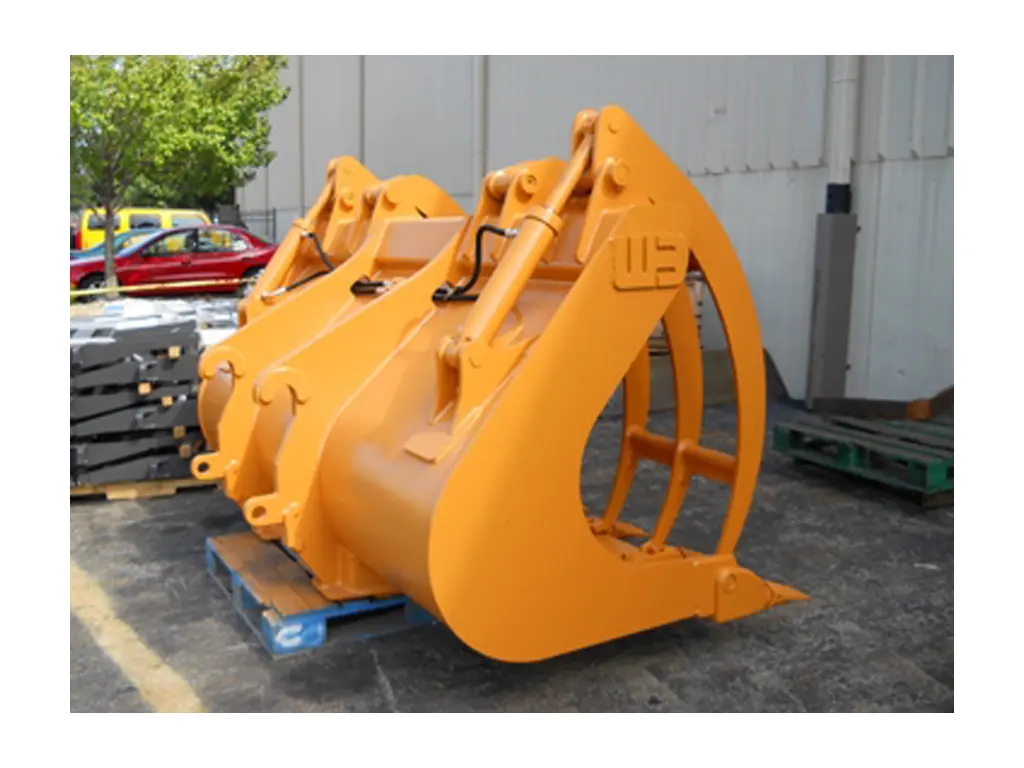

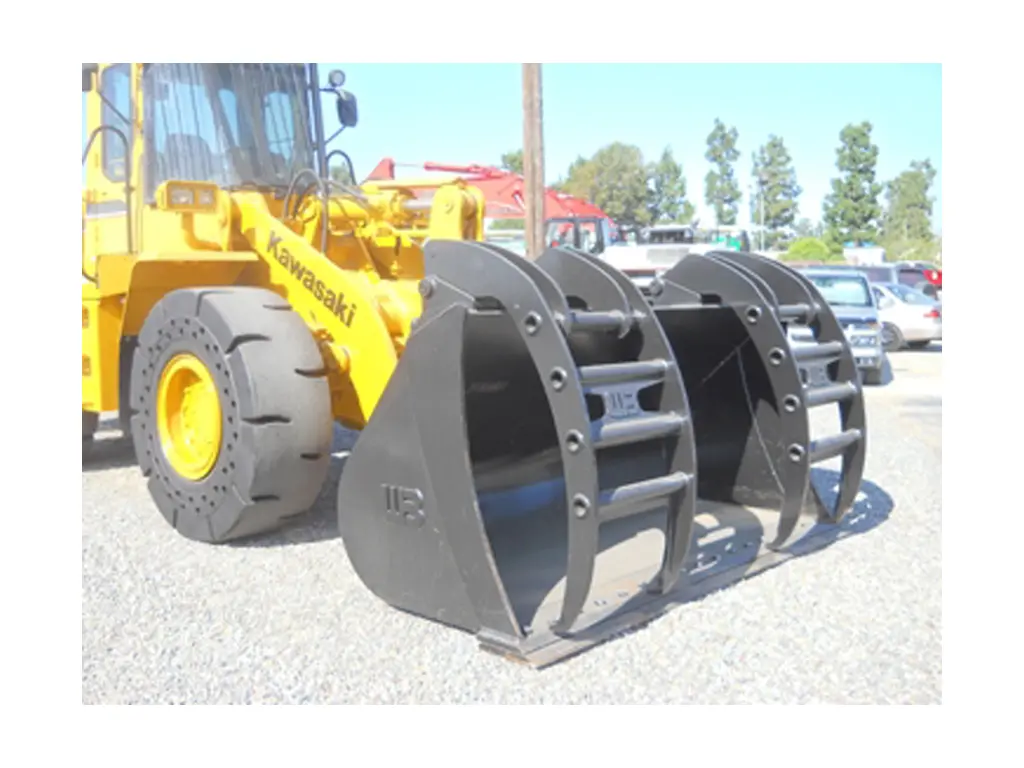

GRAPPLE BUCKET

Recommended Applications

Excellent attachment for use of metal scrap removal, brush, refuse and other light cumbersome material requiring the action of clamping for purposes of removal.

Quality Construction

Grapple arms are hydraulically operated and constructed of high tensile strength steel. High-strength, abrasion resistant steel is utilized in all critical components. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Standard Sizes

2.0 cu. yd. to 5.0 cu. yd. All makes and models.

Additional Features

Available with Werk-Brau front coupler or pin-up connection. Bolt on cutting edge optional. Optional tines.

• Dual tine grapple standard (shown), other options available at an upcharge
• High quality cylinders used
• includes bolt on cutting edge
• does not include hose kit

SPECIFICATIONS

PART #	WIDTH	CAPACITY	WEIGHT
WL05GB66-.75	66″	0.75	900
WL05GB78-1.00	78″	1.00	950
WL05GB78-1.20	78″	1.20	980
WL05GB78-1.50	78″	1.50	1,020

FITS

CLASS: MINI (6,000-10,000 LBS)	MODEL
CASE	21, 121
CAT	902, 904
DEVELON
HITACHI
HYUNDAI
JCB	407B
JOHN DEERE
KOMATSU	WA30, WA50, WA65
KUBOTA
LIEBHERR	L506, L507, L508
LINK-BELT
NEW HOLLAND	LW50, LW60
SANY
TAKEUCHI	TW50, TW65
VOLVO	L20F, L30G, L35G
WACKER NEUSON	WL30, WL36, WL37, WL50, WL60, WL70
YANMAR	V3-3(-5), V4-3(-5)
