DESCRIPTION

8/25

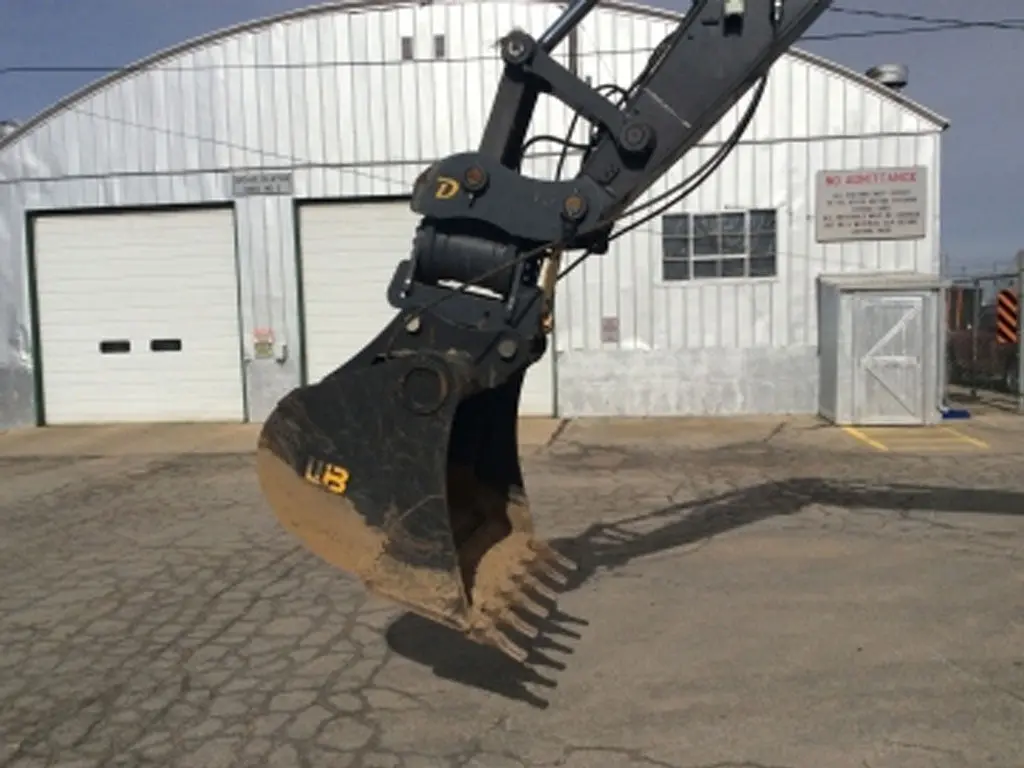

PowerGrip Bucket

Recommended Applications

Specifically designed to enhance a machines grading, trenching, or clamshell capabilities with precise control. Capable of 120 degrees of jaw movement.

Quality Construction

High strength steel is used throughout the weldment. Hardened greaseable bushings are utilized at all pivot points. High quality actuator used inside cross tube with no exposed cylinders. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping. Includes a holding force of approximately 3x clamping force, while maintaining constant operating speed.

Standard Sizes

Widths range from 24″ and 30″ pending machine class. Capacities range from 4.50 cu ft. up to 9.40 cu ft. Additional sizes are available for quotation.

Additional Features

Eliminates the need for any additional attachment and can be utilized along with a mechanical or hydraulic coupler, also available.

5 Attachment Versatility

• General excavating
• Trenching
• Grading
• Clamshell
• Grapple / hydraulic thumb

The PowerGrip is a multi-purpose bucket that eliminates the need for additional attachments. Specifically designed to enhance a machine’s grading, trenching, or clamshell capabilities with precise control and can be utilized with a mechanical or hydraulic coupler

Features

• Enclosed rotary actuator hinge in cross-tube
• No obstruction in jaw or bucket shell
• No exposed cylinders or other external moving parts
• 120° of jaw movement
• Consistent clamping force through jaw’s full range of motion
• Equal force exerted at both sides prevents jaw twisting
• Standard OEM lugging
• Quick-coupler compatible
• Uses existing auxiliary hydraulic circuit
• Clamping force approximately 3x of standard thumb

SPECS

Part Number	Bucket width	Rated Capacity	# of Teeth	Weight
PG06-24-9T	24″	7.50	5	700
PG06-30-9T	30″	9.40	5	850

FITS

(7,500 – 11,000 lbs.)

CAT	416F, 420F, 426F, 430F, 436
John Deere	310E, 310G, 310J, 310K, 310L, 310P
JCB	214, 215, 3CX, 4CX
komatsu	WB140-2, WB140-PS-2, WB150-2, WB150PS-2

(11,000 – 14,000 lbs.)

CASE	480, 570MXT, 580, 590, 680
CAT	416B, 416C, 426B, 426C. 428B, 428C, 428D, 436B, 436C, 438
FORD	455, 555, 575, 655, 675
JCB	1400, 1500, 217-3/S-3
JOHN DEERE	310A/B, 310C/D, 310SE/410E, 310SG-SL, 410G-L, 320P
NEW HOLLAND	LB75/ .B, 555E, 575E, LB90, LB110, 655E, 675E, 115, 115B, B95, LV80
TEREX	TX750, TX760, TX860
VOLVO	BL70, BL71, BL60
