Description

DESCRIPTION

7/25

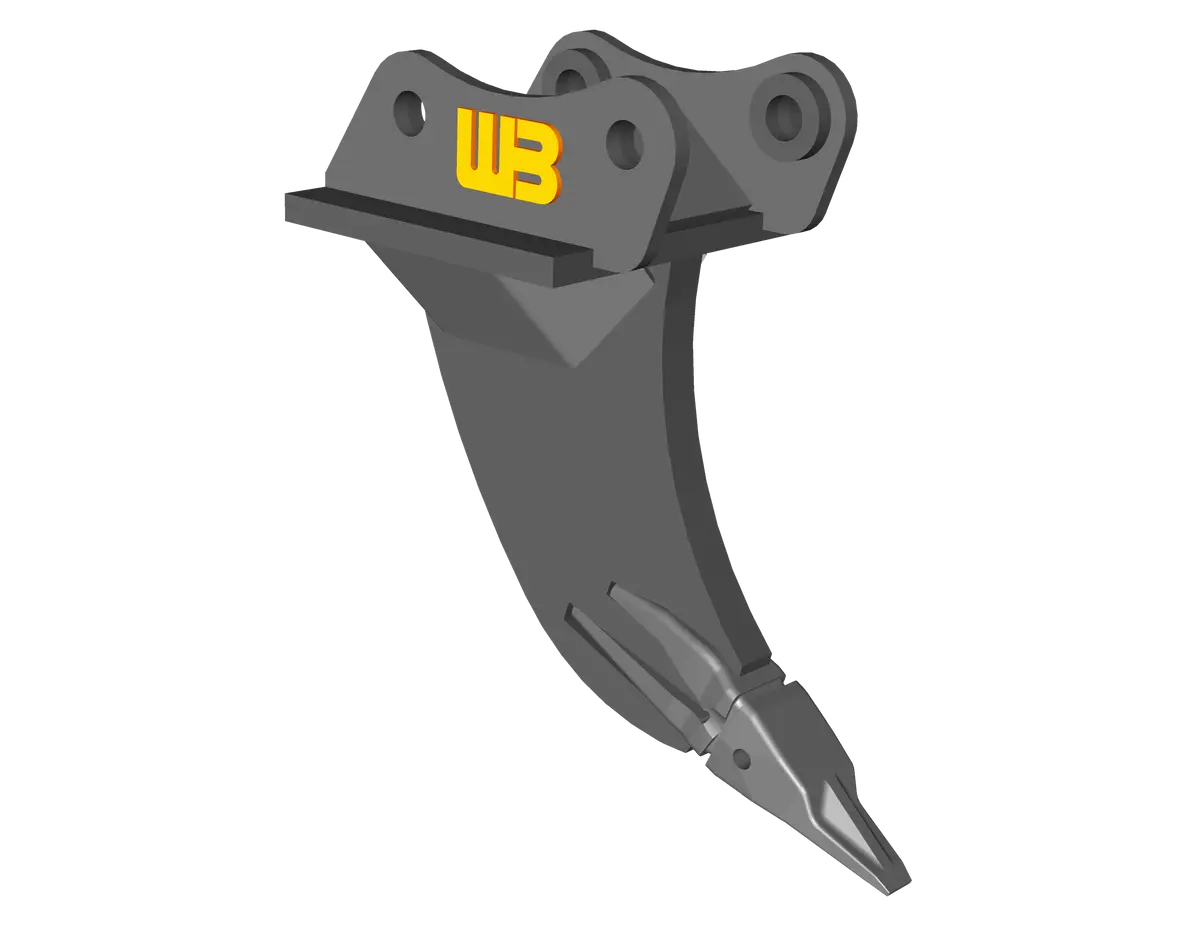

FROST & ROCK RIPPERS

Recommended Applications

Werk-Brau’s Ripper is specifically engineered to pre-rip frozen ground, pavement, or other tough soil that exceeds a bucket’s recommended duty. The Ripper is highly versatile attachment. The Ripper’s single point tooth style is ideal for penetration of various tough environments.

Quality Construction

Werk-Brau uses T-1 steel in all critical or high wear components to ensure that the ripper has a long operation life. The ripper body is supported by rigid gussets for extra rugged applications. The upper gussets, and shank are designed for heavy duty applications in tough working conditions.

Cutting Equipment Options

A single point tooth is used to maximize the machine’s penetrating power. A selection of high quality brands are available to choose from.

Standard Sizes

A selection of sizes are available to match each machine.

Features

• heavy duty ripper shank
• extra heavy duty upper channel
• optimized arc for best rip
• CAT tooth installed standard

SPECIFICATION

PART #	LENGTH	WIDTH	TOOTH	APPROX WEIGHT
WBRT5	54″	5″	717609	3,300

FITS

60MT

MAKE / WEIGHT CLASS	60MT (125,000 – 150,000 LBS.)
CASE
CAT	365, 345 UHD
DOOSAN
HITACHI
HYUNDAI
JOHN DEERE	670G LC
KOBELCO
KOMATSU	PC650
LIEBHERR	R 954, R966
LINK BELT
SANY
TAKEUCHI
VOLVO

70MT

MAKE / WEIGHT CLASS	70MT (154,000 – 180,000 LBS.)
CASE	CX700, CX750,
CAT	390
DOOSAN
HITACHI	ZX690
HYUNDAI	R800, R850
JOHN DEERE
KOBELCO	SK850
KOMATSU	PC800
LIEBHERR	R 970, R 974
LINK BELT	LX 700, 750X4
SANY
TAKEUCHI
VOLVO	EC700, EC750
