Description

DESCRIPTION

9/25

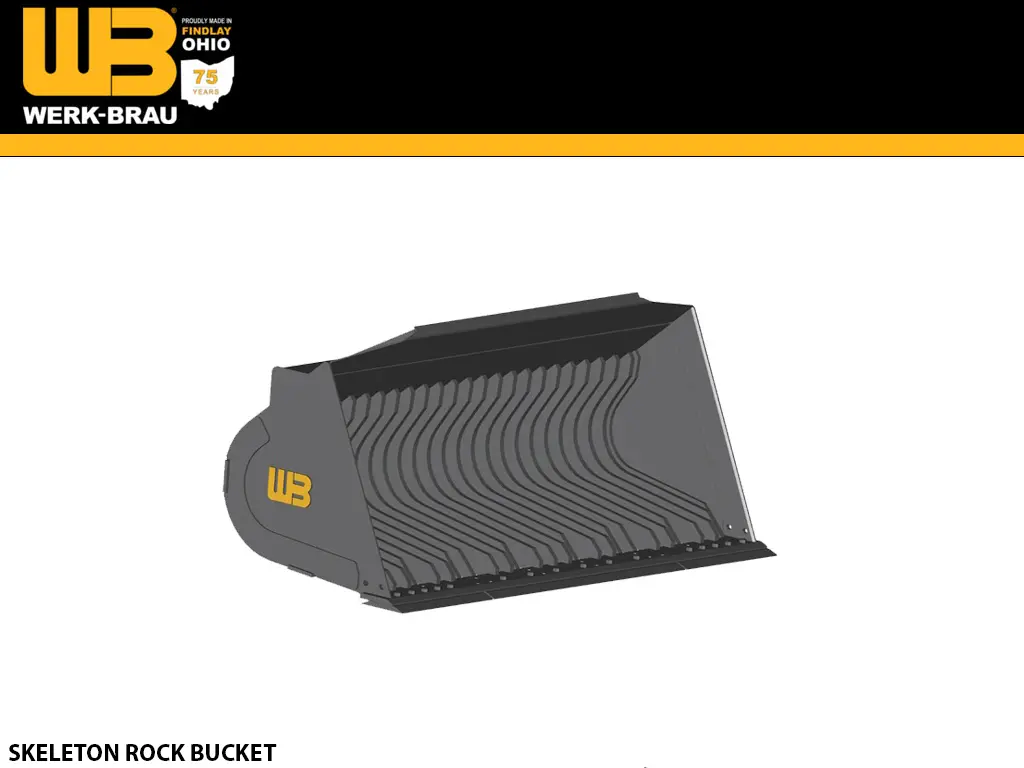

SKELETON ROCK BUCKET

Recommended Applications

Excellent for quarry work, design allows for sifting of loose debris to fall through to keep material load to minimum.

Quality Construction

High strength steel construction for durability and long wear. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Standard Sizes

2.75 cu. yd. to 7.0 cu. yd. of various widths available. Special designs or desired tine spacing is available upon request.

Additional Features

Available with Werk-Brau front coupler or pin-up connection. Special designs and capacities are available

Features

• Engineered to handle loose rock and sift larger debris from loose materials like sand
• Abrasion-resistant steel used in wear straps to reinforce bucket bottom
• includes bolt on cutting edge
• commonly used for scraping, cleanup, concrete recycling and beach reclamation

SPECIFICATIONS

PART #	WIDTH	RIB SPACING	CAPACITY	WEIGHT
WL3.5SKL105-3.50	105″	5″	3.50	3,600

FITS

CLASS 3.5

CLASS 3.5 (30,000 – 33,000 LBS)	MODEL
CASE	721G
CAT	938, IT38
DEVELON	DL250-7, DL280-7
HITACHI	ZW180
HYUNDAI	HL955, HL757
JCB	436, 437
JOHN DEERE	624
KOMATSU	WA320
KUBOTA
LIEBHERR	L546, L550X
LINK-BELT
NEW HOLLAND	LW170
SANY
TAKEUCHI
VOLVO	L90
WACKER NEUSON
YANMAR
