DESCRIPTION

8/25

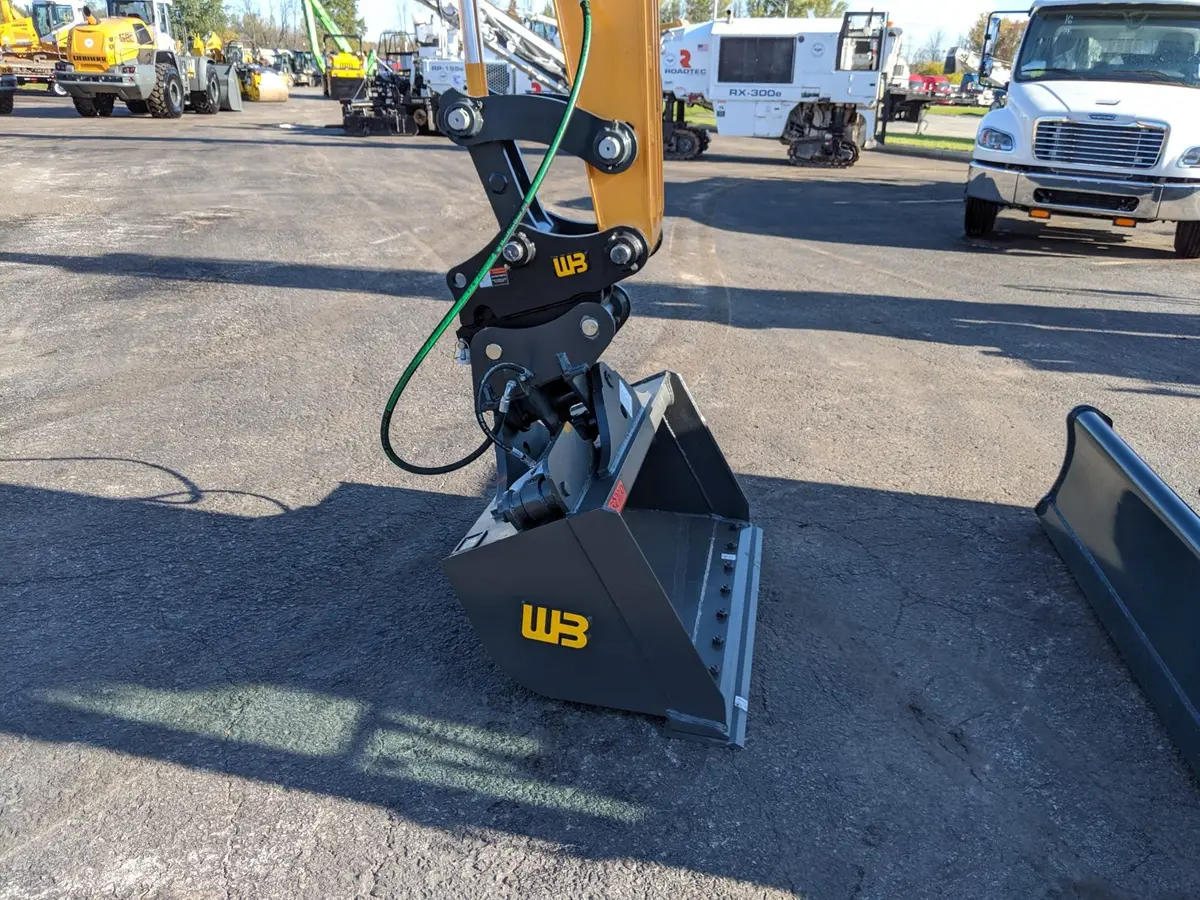

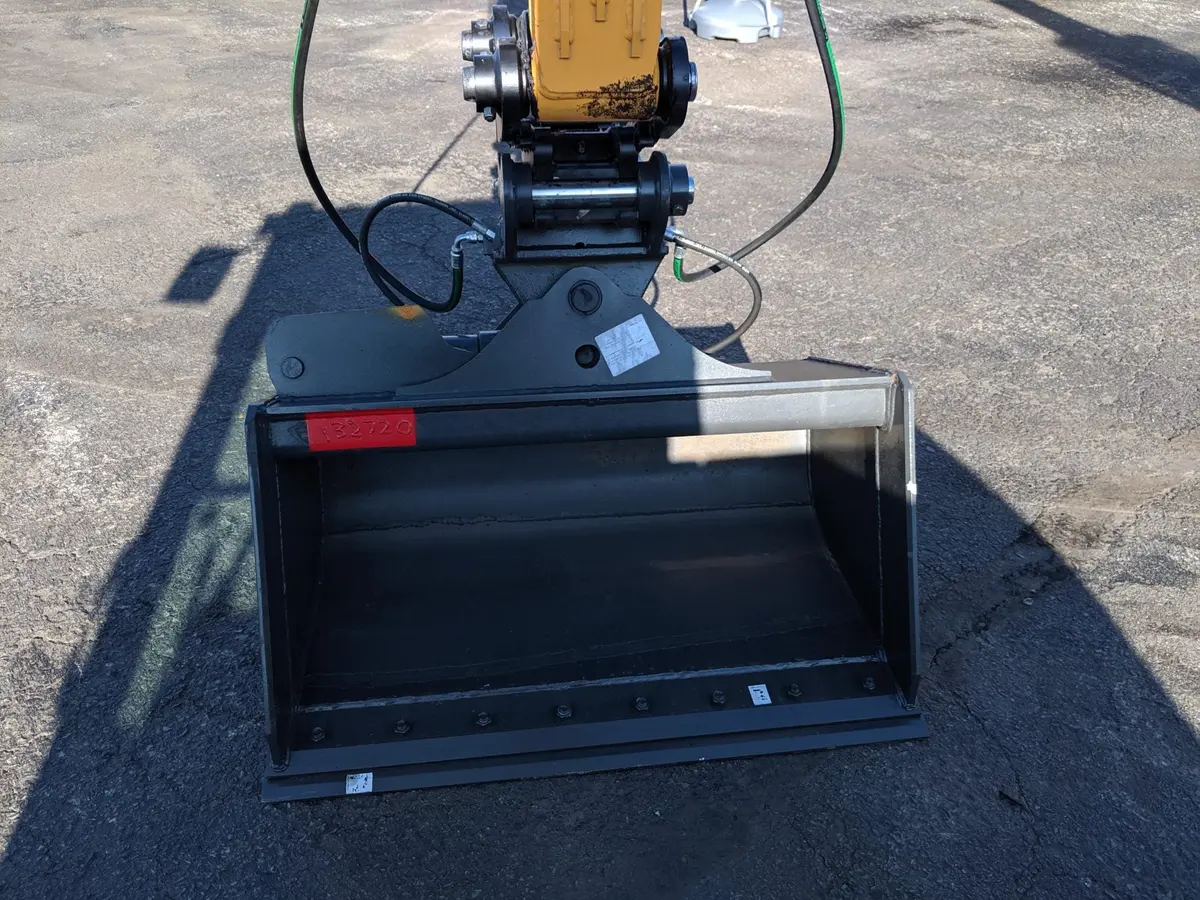

WERK-BRAU TILT BUCKETS

Recommended Applications

Specifically designed to enhance a machines grading capabilities in ditch cleaning and/or sloping applications. Capable of tilting 45 degrees in either direction to increase productivity and eliminate the need for a separate tilting attachment.

Quality Construction

High strength steel is used throughout the weldment. Hardened greasable bushings are utilized at all pivot points. High quality cylinders complement the attachments rugged design. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Replaceable bolt-on edge is optional equipment on bucket.

Standard Sizes

Widths range from 36″ up to 60″. Capacities range from 3.45 cu ft. up to 15.7 cu ft. Additional sizes are available for quotation.

Additional Features

Eliminates the need for any additional attachment and can be utilized along with a mechanical or hydraulic coupler, also available. Special designs and capacities are available, please request a quote from your local dealer.

 SPECIFICATIONS

PART #	WIDTH	CAPACITY	WEIGHT
WTB5-48	48″	10.00	934
WTB5-54	54″	11.20	994
WTB5-60	60″	12.50	1105

FITS

MINI 4

MAKE / WEIGHT CLASS	MINI 4 (14,000 – 16,000 LBS.)
BOBCAT
CASE	CX75, CX80
CAT	307.5, 308CR, 308CRVAB, 309CR, 309CRVAB
DOOSAN	DX85SR-3
DITCH WITCH
GEHL
HITACHI	ZX75, ZX80
HYUNDAI	R80
IHI
JCB	8080
JOHN DEERE	75G, 85G
KOBELCO	70SR, 75SR, 80CS, SK85
KOMATSU
KUBOTA	KX080
LINK BELT	75, 80
MUSTANG
NEW HOLLAND	E70, E80
SANY	SY75, SY80
TAKEUCHI	TB070, TB175, TB180FR, TB285, TB290
VOLVO	EC70, ECR88
YANMAR	SV100, Vio-70, Vio75-a, Vio-80, B7-5A
WACKER NEUSON

MINI 5

MAKE / WEIGHT CLASS	MINI 5 (16,000 – 25,000 LBS.)
BOBCAT	7X125
CASE
CAT	310
DOOSAN
DITCH WITCH
GEHL	GE1202
HITACHI	ZX90, ZX100
HYUNDAI
IHI
JCB
JOHN DEERE
KOBELCO
KOMATSU
KUBOTA
LINK BELT
MUSTANG	ME12002
NEW HOLLAND	E90
SANY
TAKEUCHI
VOLVO
YANMAR
WACKER NEUSON
