Description

DESCRIPTION

7/25

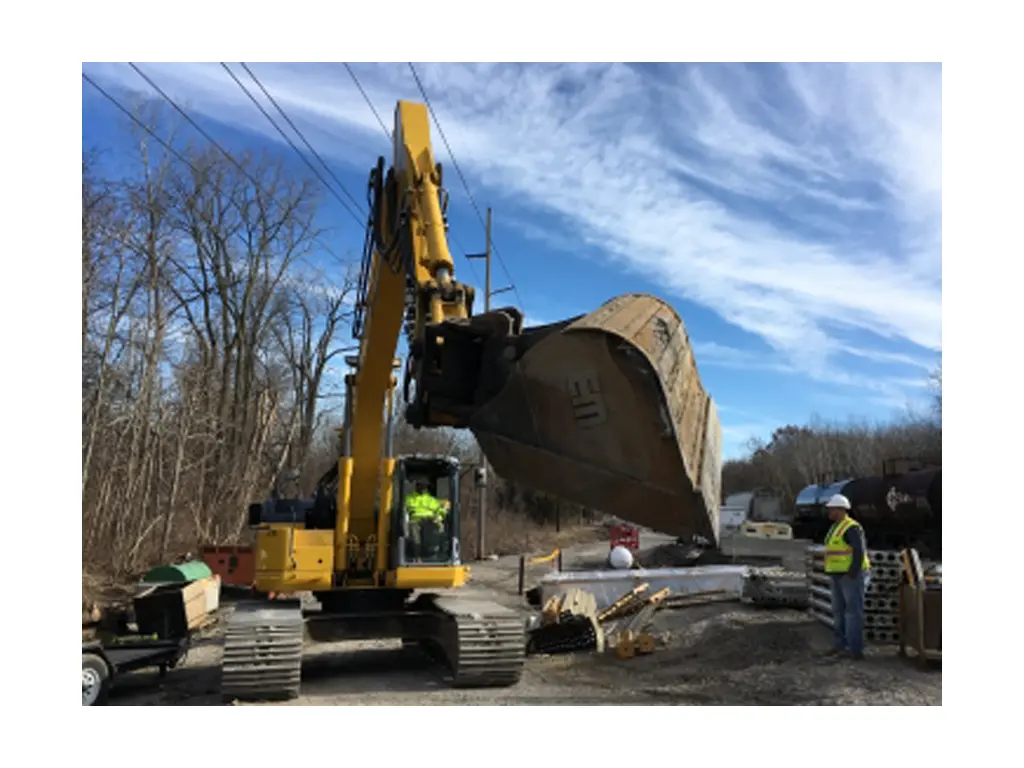

D-Lock Hydraulic tilt coupler

Available For

Werk-Brau manufactures all attachments to O.E.M. specs for all makes and models of excavators, mini-excavators, and backhoes.

Features

• Automatic front lock – Locks the front pin in the event the rear pin is not secured
• Multi-pin centers, picks up all attachments in the same weight class with the same pin diameter
• Highly visible front lock indicator
• Triple sealed actuator
• Safety system does not rely on gravity
• Dual pin lock – Locks both front and rear pins in the event of loss of engagement force
• Unlock process is designed to release only when the operator intends to do so, in a controlled and safe manner
• Simple yet safe unlock procedure eliminates accidental releases
• Compact design – Improving machine performance
• No greasing or lubrication required
• Only requires four hydraulic lines
• Up to 180 degrees of tilt
• Fully guarded hoses

 Spring Loaded Tilt Coupler

Available For

Werk-Brau manufactures all attachments to O.E.M. specs for all makes and models of excavators, mini-excavators, and backhoes.

Features

• Triple sealed actuator
• Safety system does not rely on gravity
• Spring Loaded manual locking mechanism
• Simple, yet safe unlock procedure eliminates accidental releases
• No greasing or lubrication required
• Only requires two hydraulic lines
• Up to 180 degrees of tilt

 SPECIFICATIONS

HEAVY DUTY

PART #	PIN DIAMETER	STYLE	PIN SPREAD RANGE	WEIGHT
TD140-65-60	60-65	D-Lock	340-412 345-435	680
TSC140	TBD	Spring Loaded	Dedicated	680
TPP140	TBD	Pull-pin	Dedicated	650

FITS

MAKE / WEIGHT CLASS	12MT (24,000 – 33,000 LBS.)
CASE	CX130, CX145D, CX140E
CAT	311, 313, 314F, 315F (A-Linkage)
DOOSAN	DX140LC-5, DX140LCR-5, DX140W-5
HITACHI	ZX130
HYUNDAI	HX140, HX145, HX220 LR
JOHN DEERE	130G, 135G, 130P
KOBELCO	SK140, ED160
KOMATSU	PC138
LIEBHERR
LINK BELT	130X4, 145X4, 210X4 LR
SANY	SY135, SY235 LR, SY265 LR
TAKEUCHI	TB1140, TB2150
VOLVO	EW140, EC140, ECR145
