DESCRIPTION

9/25

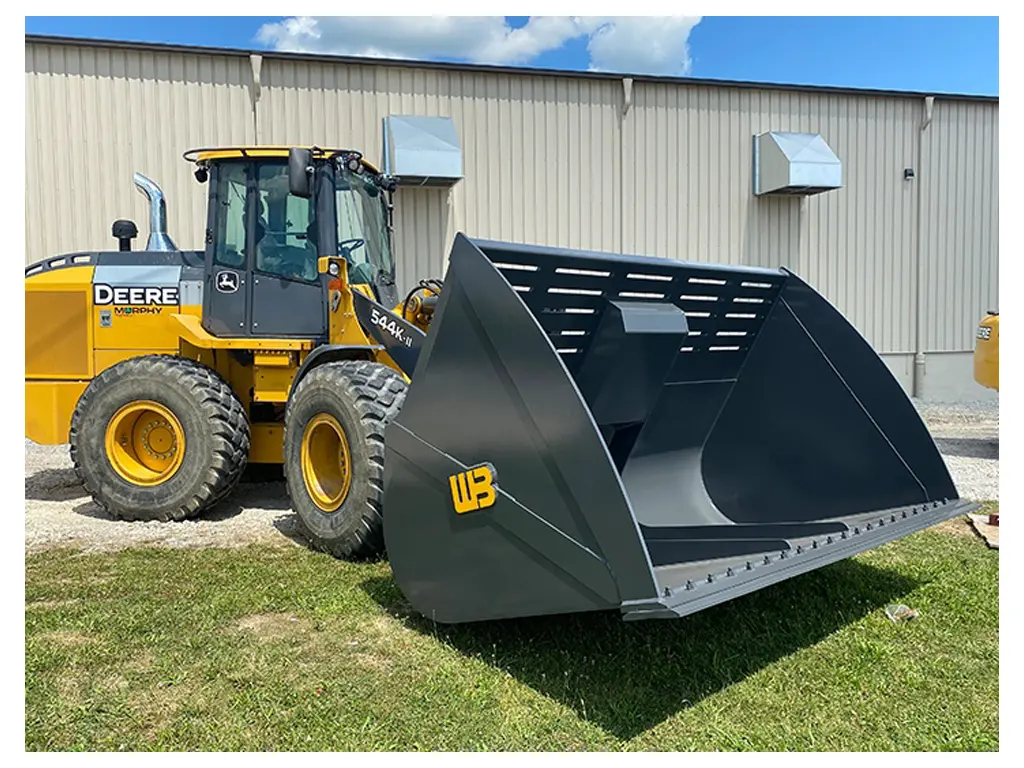

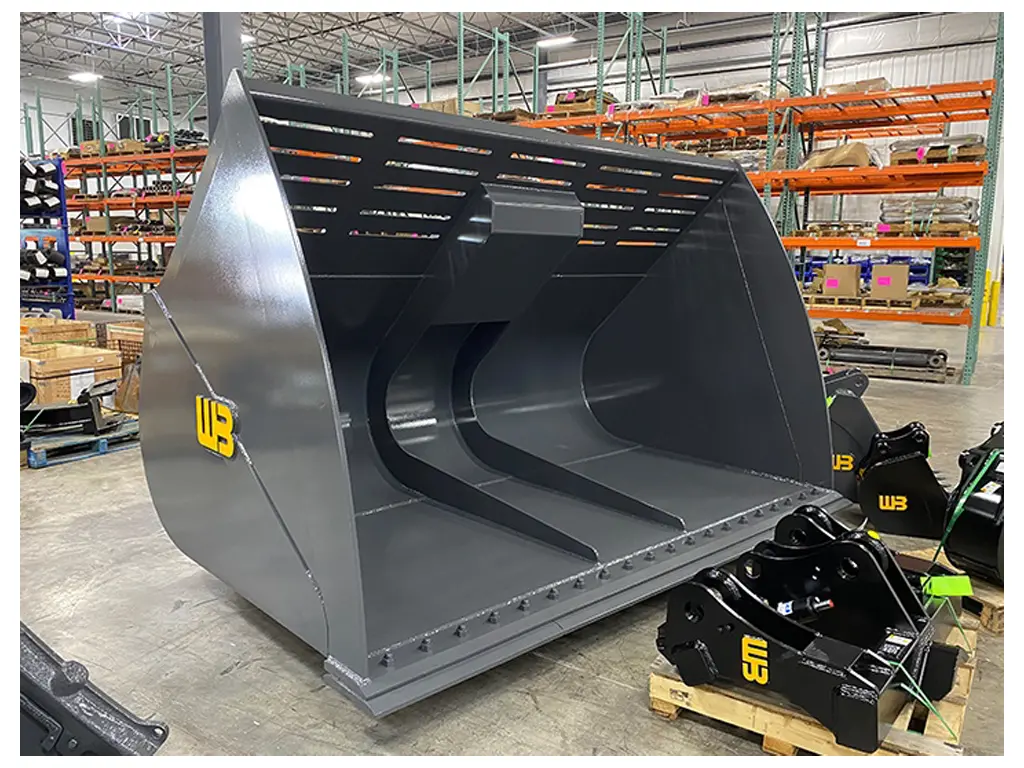

LIGHT MATERIAL WOOD CHIP LOADER BUCKETS

Recommended Applications

Specifically designed for extra light material up to 1,200 lbs and 15 cubic yard capacity (Class 5.0-7.0YD loader).

Additional Features

Bucket design incorporates curved performance side plates and visibility slots in side guard. Attachment comes standards with large center ribs, side plate brace, and Z-bar linkage / bell crank cut out.

Features

• Designed for extra light material < 1,200 lbs.
• Curved performance side plates
• Visibility slots in spill guard
• Large center ribs and side plate brace
• Z-bar linkage / bell crank cut out standard
• Up to 15 cu yd capacity (class 5.0-7.0 yd loader)

SPECIFICATIONS

PART #	WIDTH	CAPACITY	WEIGHT
WL2WC105-7.00	105″	7.00	4,000
WL2WC105-8.00	105″	8.00	4,400

FITS

CLASS 2

CLASS 2 (20,000 – 26,000 LBS)	MODEL
CASE	521G
CAT	924, 928, 930, IT24-28
DEVELON	DL200-5, DL200TC-5, DL200-7
HITACHI	ZW140
HYUNDAI	HL730, HL740, HL940
JCB	416
JOHN DEERE	444
KOMATSU	WA150, WA200
KUBOTA
LIEBHERR	L526
LINK-BELT
NEW HOLLAND	LW110
SANY
TAKEUCHI
VOLVO	L60
WACKER NEUSON
YANMAR
