Description
Upgrade your 2005-Present Ford F450, F550, or F600 dual rear wheel truck with this complete 24×8.25 forged aluminum dually wheel conversion kit. Designed specifically for factory 10x225mm bolt pattern applications, this system converts your OEM 10-lug configuration to a commercial-grade 10×285.75mm hub-piloted setup.
This allows installation of true 24” semi-style forged aluminum wheels while maintaining proper load support, drivability, and commercial-level durability.
At the center of this kit are six Northstar 24×8.25 forged aluminum wheels featuring the aggressive Big Hand Hole design. The large open hand holes improve brake cooling, allow easy inspection, and deliver bold commercial truck styling.
These are true forged 24” wheels — not machined from 24.5”. Each wheel is forged from high-strength 6061 aluminum and mirror polished on both sides for maximum structural integrity and a premium, show-quality finish.
The included precision-machined 10-to-10 lug steel adapters convert the factory 10×225 pattern to the commercial 10×285.75 hub-pilot configuration for proper wheel mounting and load distribution.
🚛 What’s Included

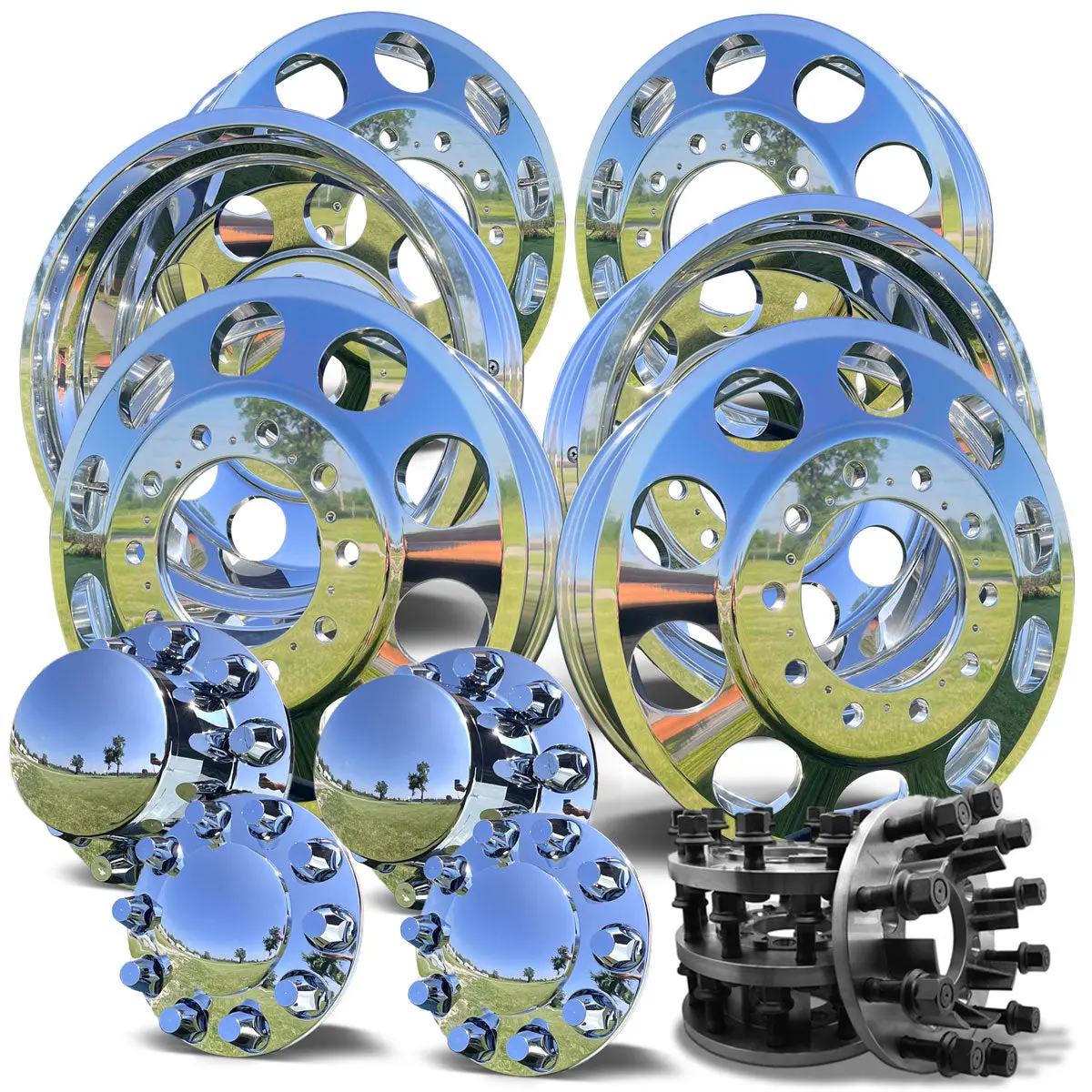

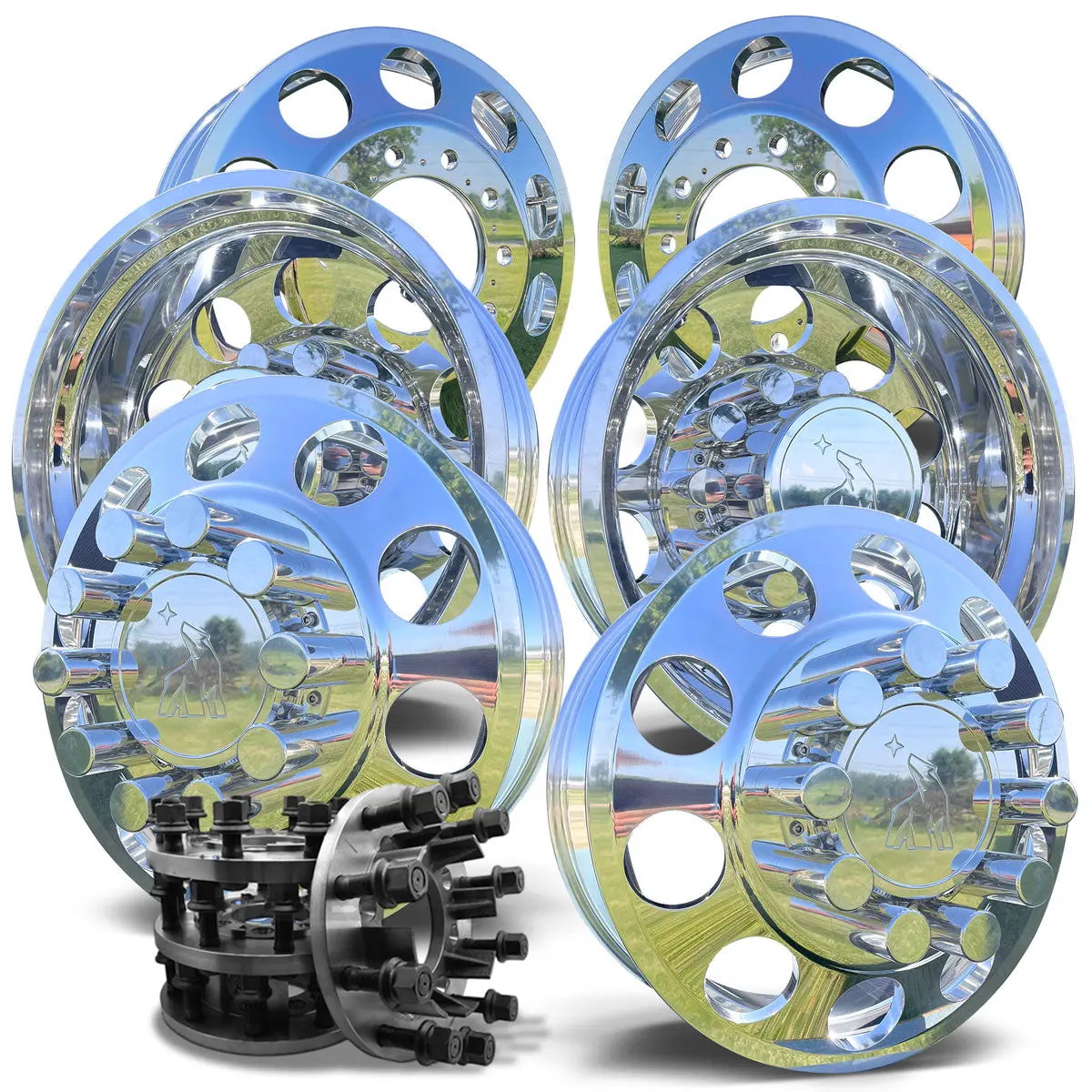

✔ (6) 24×8.25 Forged Aluminum Wheels
✔ Mirror polished finish (both sides)
✔ Big Hand Hole design
✔ (4) 10×225 to 10×285.75 Hub-Centric Steel Adapters
✔ Installation hardware included
✔ Red Loctite included
✔ Chrome hub cover options (select at checkout)
• Pointed caps with spiked nut covers
• Rounded caps with standard nut covers
⚙️ Installation Requirements
⚠ Factory wheel studs must be trimmed to ensure proper adapter and wheel clearance.
⚠ Inner adapter nuts must be torqued to manufacturer specifications.
⚠ Professional installation strongly recommended.
Stud trimming is standard for this 10-lug to 10-lug conversion and ensures proper hub-centric seating of the adapters and forged wheels
🔧 Wheel Specifications
Size: 24×8.25
Material: Forged 6061 Aluminum
Finish: Mirror Polished (Both Sides)
Final Bolt Pattern: 10×285.75mm (Hub-Piloted)
Bolt Hole Diameter: 26mm
Outset: 167mm
Max Load Rating: 4,400 lbs per wheel
Style: Big Hand Hole (Large/Open Design)
🔧 Vehicle Fitment
2005-Present Ford F450 DRW
2005-Present Ford F550 DRW
2005-Present Ford F600 DRW
Factory 10×225 bolt pattern applications only.
Dual rear wheel trucks only.
