Alcoa 22.5-Inch Aluminum Wheels with Adjustable 8- to 10-Lug Bolt Pattern Adapter Kit — Compatible with Chevrolet and GMC 3500 Dual Rear Wheel Trucks (1977–2000)

Description

This Polished Aluminum Wheel Kit has Alcoa’s exclusive High Polish Both Sides Finish and comes with everything you need to turn your Chevy / GMC 3500 into the heavy hauling machine you’re looking for. This kit comes with the heavy duty adapter kit that fits any 1977 – 2000 Chevy / GMC 3500 DRW. The adapter kit will take your standard 8 on 6.5″ bolt patterns to the larger 10 on 285mm so you can fit larger 22.5″ commercial wheels on your truck.

Kit Includes:

Wheel & Adapters:

• 6 Alcoa 22.5″ High Polish Wheels (882677)
• 1 Arrowcraft 8 to 10 Lug Adapter Kit (MAX-CDRUM)

Hub Cover Options:

• Pointed Caps Spiked Nut Covers (THUB-PS-SRA)
• Alcoa Multi Piece Caps (07×188-SRA)

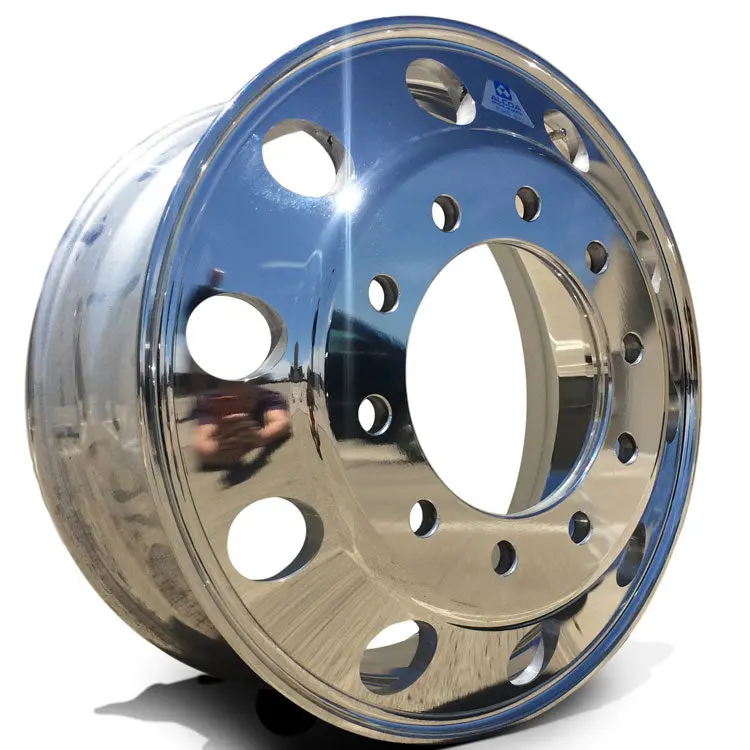

Wheel Specs:

Material: 6061 Fully Forged Aluminum
Finish: High Polished Both Sides
Position: All Position Wheel (Front, Rear, or Trailer)
Mounting Set Up: Hub Pilot Dual-Mounting
Wheel Size: 22.5″ x 8.25″
Bolt Pattern: 10×285
Hub Bore Diameter: 220mm
Hand/Vent Holes: 10 @ 2.5″
Wheel Offset: 6.60″
Backspacing: 10.675″
Disc Thickness: .81″
Weight: 45 lbs
Max Load & Inflation: 7400 lbs @ 130 psi
Installed Valve Stem: TR545D

Additional Information:

Fits These Trucks:

• 1977 Chevy Silverado 3500 DRW
• 1978 Chevy Silverado 3500 DRW
• 1979 Chevy Silverado 3500 DRW
• 1980 Chevy Silverado 3500 DRW
• 1981 Chevy Silverado 3500 DRW
• 1982 Chevy Silverado 3500 DRW
• 1983 Chevy Silverado 3500 DRW
• 1984 Chevy Silverado 3500 DRW

• 1985 Chevy Silverado 3500 DRW
• 1986 Chevy Silverado 3500 DRW
• 1987 Chevy Silverado 3500 DRW
• 1988 Chevy Silverado 3500 DRW
• 1989 Chevy Silverado 3500 DRW
• 1990 Chevy Silverado 3500 DRW
• 1991 Chevy Silverado 3500 DRW
• 1992 Chevy Silverado 3500 DRW

• 1993 Chevy Silverado 3500 DRW
• 1994 Chevy Silverado 3500 DRW
• 1995 Chevy Silverado 3500 DRW
• 1996 Chevy Silverado 3500 DRW
• 1997 Chevy Silverado 3500 DRW
• 1998 Chevy Silverado 3500 DRW
• 1999 Chevy Silverado 3500 DRW
• 2000 Chevy Silverado 3500 DRW

• 1977 GMC Sierra 3500 DRW
• 1978 GMC Sierra 3500 DRW
• 1979 GMC Sierra 3500 DRW
• 1980 GMC Sierra 3500 DRW
• 1981 GMC Sierra 3500 DRW
• 1982 GMC Sierra 3500 DRW
• 1983 GMC Sierra 3500 DRW
• 1984 GMC Sierra 3500 DRW

• 1985 GMC Sierra 3500 DRW
• 1986 GMC Sierra 3500 DRW
• 1987 GMC Sierra 3500 DRW
• 1988 GMC Sierra 3500 DRW
• 1989 GMC Sierra 3500 DRW
• 1990 GMC Sierra 3500 DRW
• 1991 GMC Sierra 3500 DRW
• 1992 GMC Sierra 3500 DRW

• 1993 GMC Sierra 3500 DRW
• 1994 GMC Sierra 3500 DRW
• 1995 GMC Sierra 3500 DRW
• 1996 GMC Sierra 3500 DRW
• 1997 GMC Sierra 3500 DRW
• 1998 GMC Sierra 3500 DRW
• 1999 GMC Sierra 3500 DRW
• 2000 GMC Sierra 3500 DRW

Approved Tire Sizes:

• 255/70R22.5
• 265/75R22.5
• 275/80R22.5
• 295/75R22.5
• 305/75R22.5
• 315/80R22.5
• 10R22.5
• 11R22.5
• 12R22.5

Warranty Info: Click Here to Read the Warranty for Alcoa Wheels
To File a Claim: Call 800-242-9898 Option #1 or Click Here
