Alcoa 22.5-Inch Wheels with Adjustable 8- to 10-Lug Adapter Kit for Chevrolet and GMC 3500 DRW Trucks (2001–2010)

Description

This Polished Aluminum Wheel Kit has Alcoa’s exclusive High Polish Both Sides Finish and comes with everything you need to turn your Chevy / GMC 3500 into the heavy hauling machine you’re looking for. This kit comes with the heavy duty adapter kit that fits any 2001 – 2010 Chevy / GMC 3500 DRW. The adapter kit will take your standard 8 on 6.5″ bolt patterns to the larger 10 on 285mm so you can fit larger 22.5″ commercial wheels on your truck.

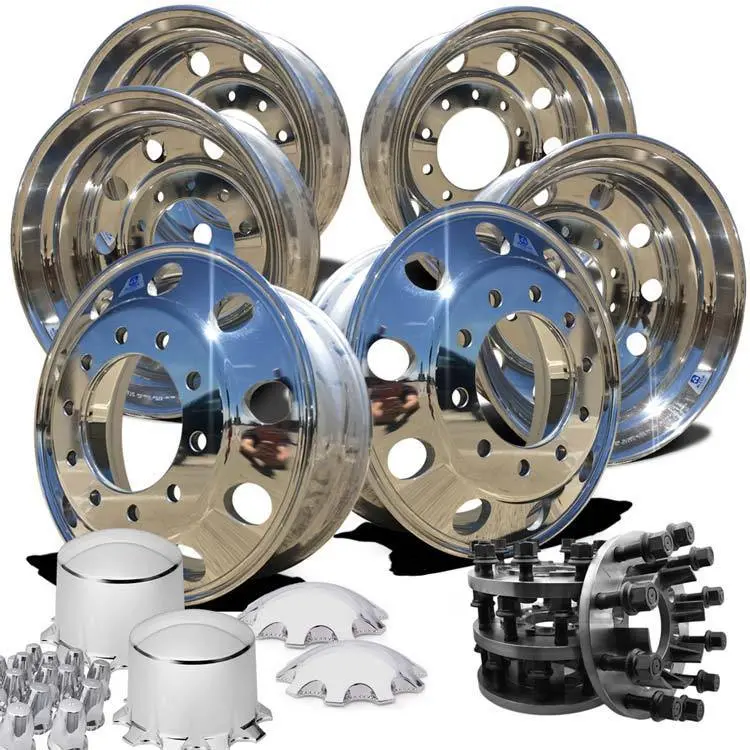

Kit Includes:

Wheel & Adapters:

• 6 Alcoa 22.5″ High Polish Wheels (882677)
• 1 Arrowcraft 8 to 10 Lug Adapter Kit (MAX-CDISC)

Hub Cover Options:

• Pointed Caps Spiked Nut Covers (THUB-PS-SRA)
• Alcoa Multi Piece Caps (07×188-SRA)

Wheel Specs:

Material: 6061 Fully Forged Aluminum
Finish: High Polished Both Sides
Position: All Position Wheel (Front, Rear, or Trailer)
Mounting Set Up: Hub Pilot Dual-Mounting
Wheel Size: 22.5″ x 8.25″
Bolt Pattern: 10×285
Hub Bore Diameter: 220mm
Hand/Vent Holes: 10 @ 2.5″
Wheel Offset: 6.60″
Backspacing: 10.675″
Disc Thickness: .81″
Weight: 45 lbs
Max Load & Inflation: 7400 lbs @ 130 psi
Installed Valve Stem: TR545D

Additional Information:

Fits These Trucks:

• 2001 Chevrolet 3500 DRW
• 2002 Chevrolet 3500 DRW
• 2003 Chevrolet 3500 DRW
• 2004 Chevrolet 3500 DRW
• 2005 Chevrolet 3500 DRW
• 2006 Chevrolet 3500 DRW
• 2007 Chevrolet 3500 DRW
• 2008 Chevrolet 3500 DRW
• 2009 Chevrolet 3500 DRW
• 2010 Chevrolet 3500 DRW

• 2001 GMC 3500 DRW
• 2002 GMC 3500 DRW
• 2003 GMC 3500 DRW
• 2004 GMC 3500 DRW
• 2005 GMC 3500 DRW
• 2006 GMC 3500 DRW
• 2007 GMC 3500 DRW
• 2008 GMC 3500 DRW
• 2009 GMC 3500 DRW
• 2010 GMC 3500 DRW

Approved Tire Sizes:

• 255/70R22.5
• 265/75R22.5
• 275/80R22.5
• 295/75R22.5
• 305/75R22.5
• 315/80R22.5
• 10R22.5
• 11R22.5
• 12R22.5

Warranty Info: Click Here to Read the Warranty for Alcoa Wheels
To File a Claim: Call 800-242-9898 Option #1 or Click Here
