DESCRIPTION
2/26

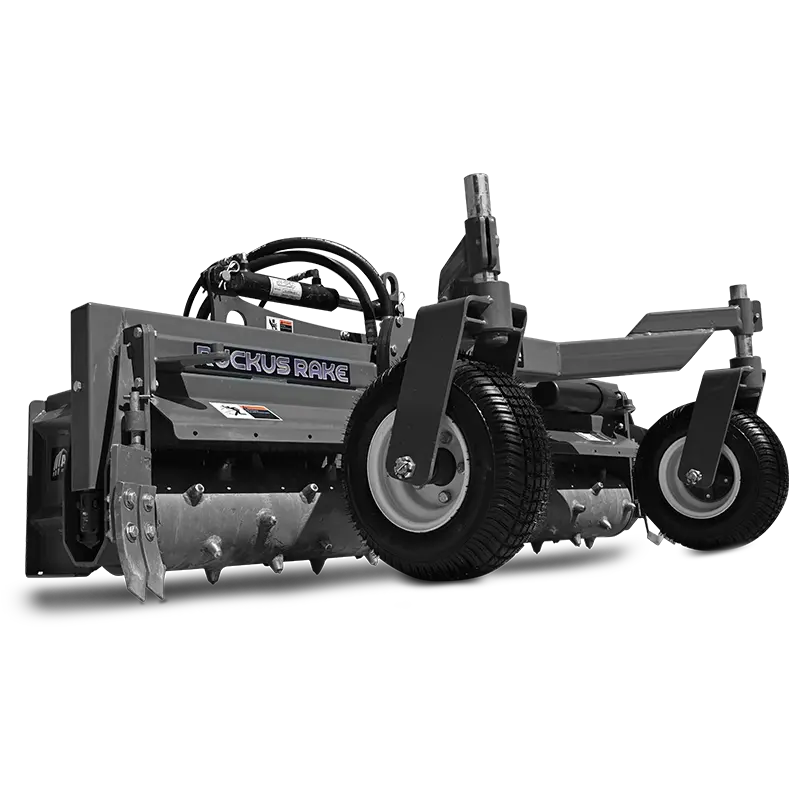

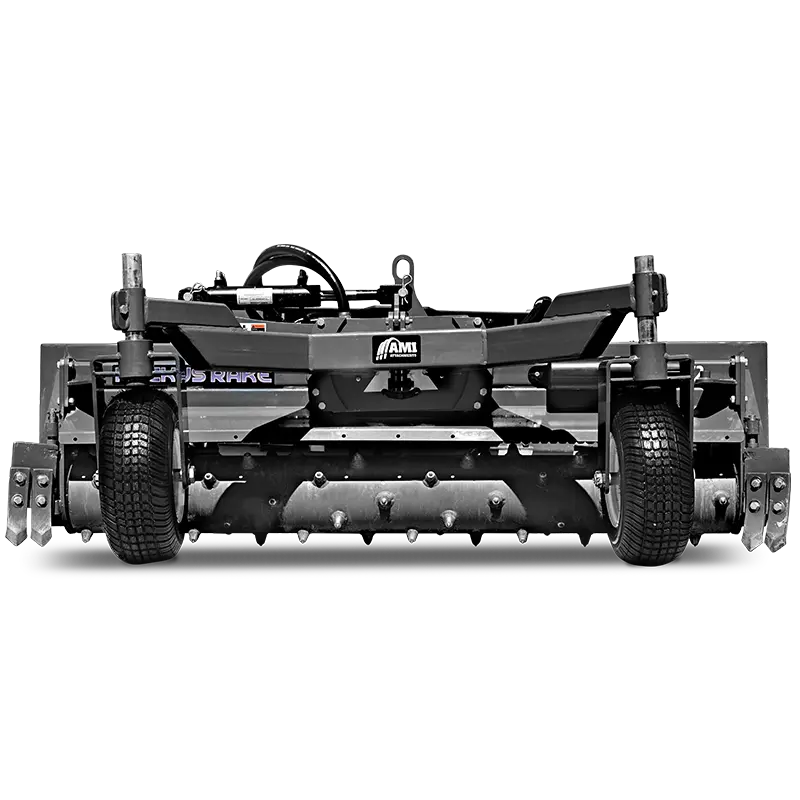

The Ruckus Rake Power Box Rake is a bi-directional, hydraulically powered skid steer power rake attachment engineered for professional landscaping and site prep. Designed for maximum control, this advanced rotary box rake features up to 25° angling left or right and 28° tilt up or down, allowing operators to pulverize soil, level topsoil or gravel, remove rocks and debris, and even cut ditches and swales with precision.
Dual hydraulic motors deliver up to 40% more torque, while the unique floating rotor drive system increases rotational speed and eliminates chains and rotor bearings for reduced maintenance. Tungsten carbide road planning teeth are welded directly to the rotor for long-lasting wear and superior soil pulverizing performance.
Key Features
-

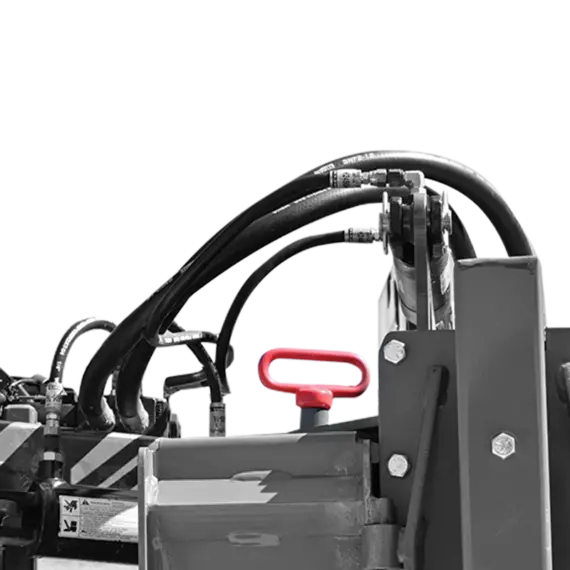

Electric-over-hydraulic control valve with relief protection
-
25° hydraulic angle & 28° hydraulic tilt
-

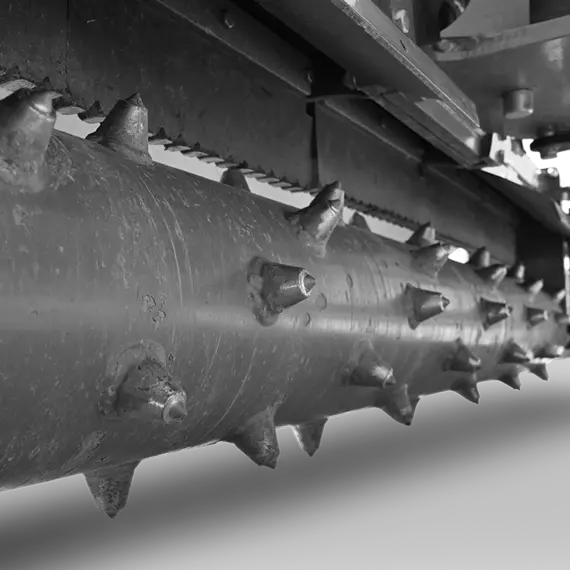

Floating rotor design (no chains or rotor bearings)
-
Tungsten carbide road planning teeth
-

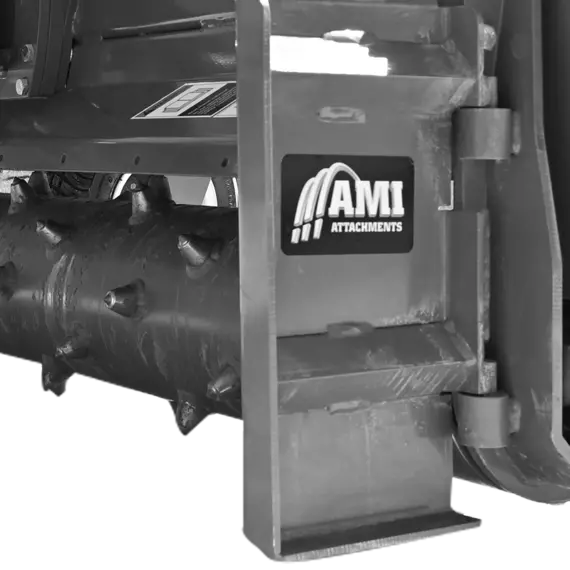

Adjustable side shields for box grading or clean swath
-

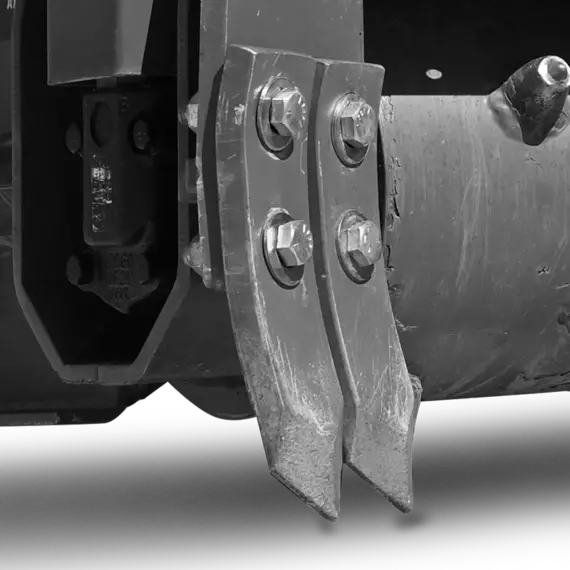

Integrated ditch cutters for extended reach
-
Built-in electronic in-cab controls
-

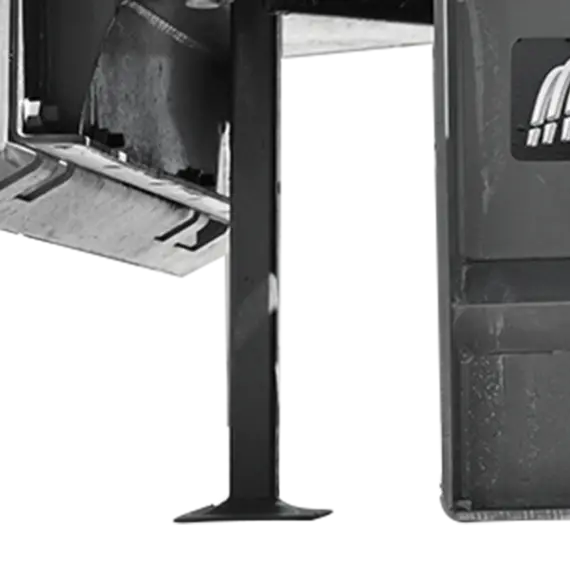

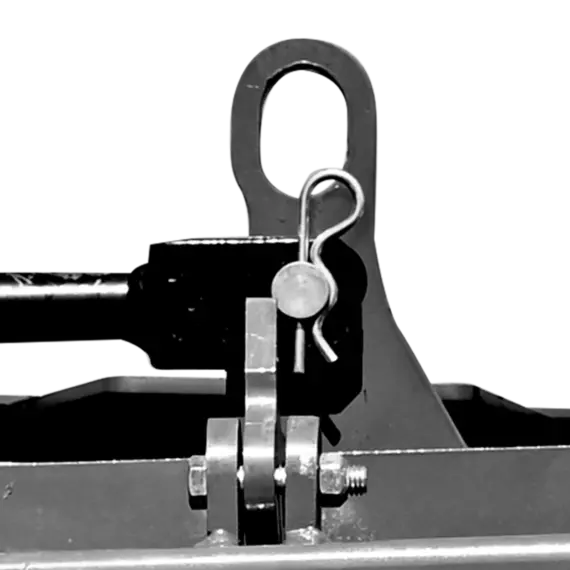

Heavy-duty construction with lifting lug & jack stand
Ideal Applications
-
Gravel driveway grading
-
Topsoil leveling
-
Landscape prep & seedbed preparation
-
Rock and debris removal
-
Ditch and swale creation
-
Construction site finishing
Keywords: skid steer power box rake, rotary rake attachment, hydraulic box grader, landscape grading attachment, gravel driveway rake, soil pulverizer attachment, ditch cutting skid steer attachment
SPECS
| FastTrack | Category | Model | Machine Class | Width | Description |
|---|---|---|---|---|---|
| Skid steer | RR60G2HT | Default | 60 “ | Hydraulic Tilt & Hydraulic Angle | |
| Skid steer | RR72G2HT | Default | 72 “ | Hydraulic Tilt & Hydraulic Angle | |
| Skid steer | RR84G2HT | Default | 84 “ | Hydraulic Tilt & Hydraulic Angle | |
| Skid steer | RR96G2HT | Default | 96 “ | Hydraulic Tilt & Hydraulic Angle |
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
| SPECS | |||
| MODEL | RR60 | RR72 | RR84 |
| Working Width | 60″ | 72″ | 84″ |
| Dimensions (W × L × H) | 69 in × 63 in × 34 in | 81 in × 63 in × 34 in | 93 in × 63 in × 34 in |
| Weight (lbs) | 1150 | 1220 | 1280 |
| Continuous PSI | 3000 Max | 3000 Max | 3000 Max |
| Rotor Speed | 230–450 RPM | 230–450 RPM | 230–450 RPM |
| Hydraulic Flow Range | 18–30 GPM | 18–30 GPM | 18–30 GPM |
| Rotor Torque @ 2500 PSI | 550 ft-lbs | 550 ft-lbs | 550 ft-lbs |
| Mount Type | Standard Skid Steer | Standard Skid Steer | Standard Skid Steer |
| Gauge Wheels Included | 2 | 2 | 2 |
| Tilt | 28° Manual or Hydraulic | 28° Manual or Hydraulic | 28° Manual or Hydraulic |
| Angle | 25° Manual or Hydraulic | 25° Manual or Hydraulic | 25° Manual or Hydraulic |
