DESCRIPTION

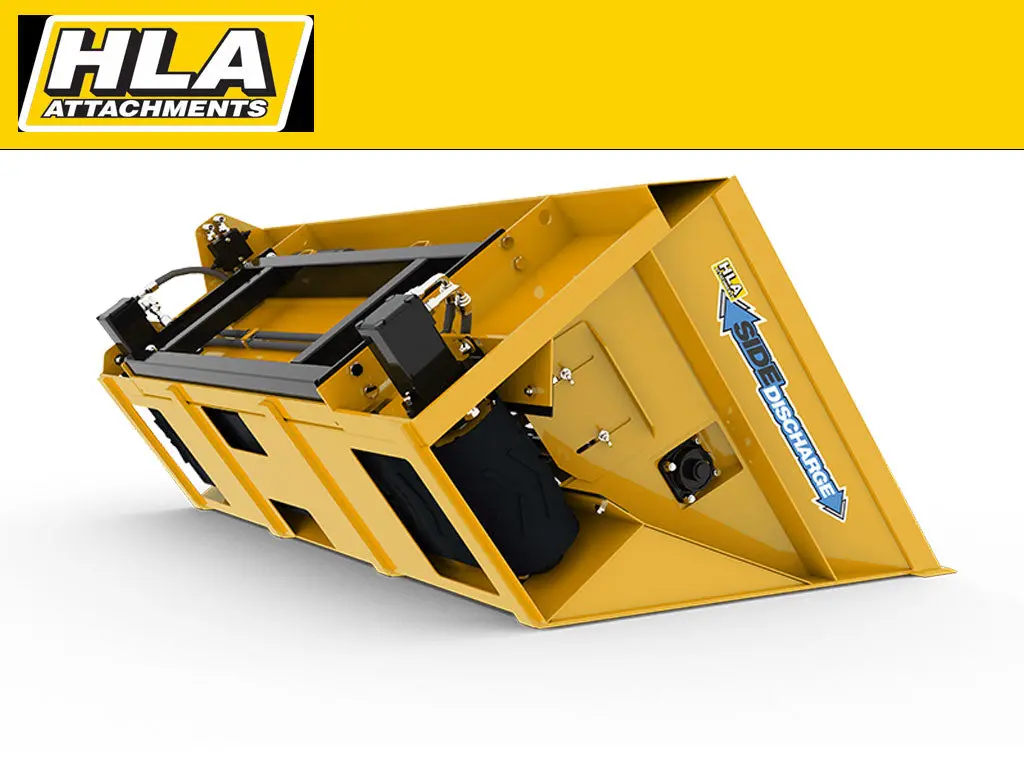

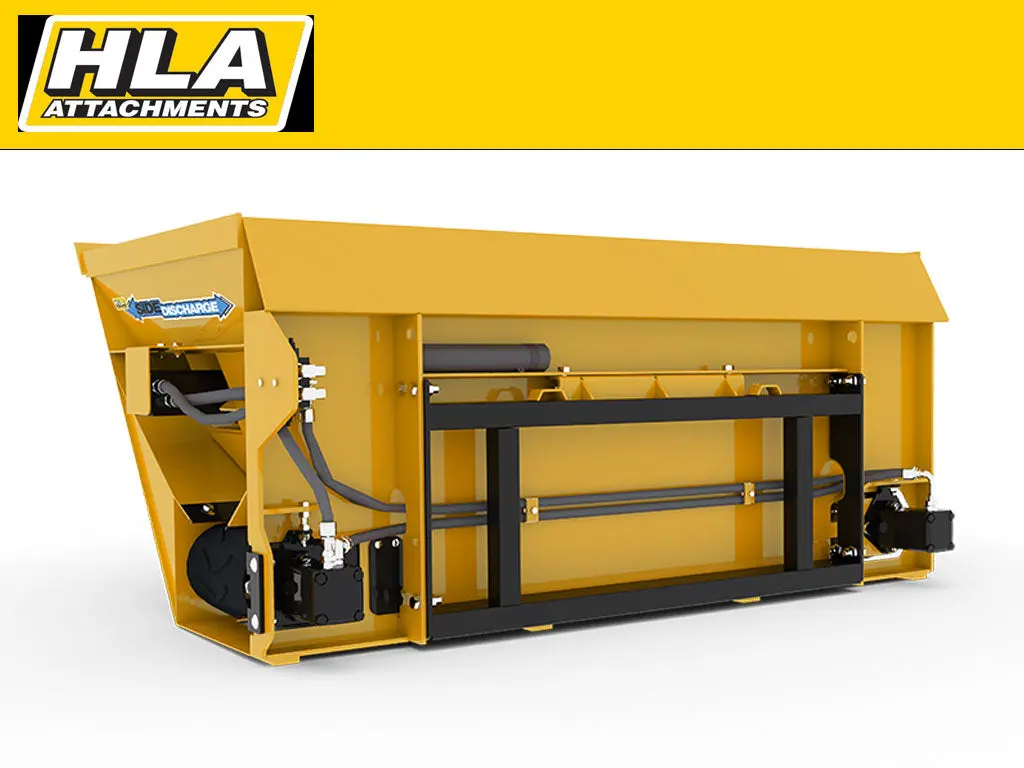

Side Discharge Sand Bucket
- Minimum 12 GPM required
- Made of same material as sawdust bucket
- Baffle brace and beater to improve flow and keep weight off belt
- 34″H x 50″L outside dimensions
- Two hydraulic motors on discharge belt (72″, 84″ & 96″ only)
- Bolted adaptation for loader quick-tach. Easily convert to most loaders
- For Outside Width add 2-1/2″ to Inside Width dimension.
SPECS
| Part Number | Description | INSIDE WIDTH INCHES |
HEAPED CAP. CU. YD. |
APPROX. WEIGHT LBS. |
|---|---|---|---|---|
| SSB60 | 60″ Side Discharge – Sand | 60 | 2/3 | 1000 |
| SSB72 | 72″ Side Discharge – Sand | 72 | 1 | 1085 |
| SSB84 | 84″ Side Discharge – Sand | 84 | 1 1/3 | 1175 |
| SSB96 | 96″ Side Discharge – Sand | 96 | 1 2/3 | 1510 |
| LP102468 | Optional Agitator Speed Control Valve – Factory Installed Only | |||
| HK90 | Optional 90″ Hose Kit c/w Flat Faced Couplers | |||
| HK9090 | Optional 90″ Hose Kit c/w 90° Flat Faced Couplers | |||
| SHMK | Optional Spring Hose Mount Kit | |||
| Optional CAT 2 Three Point Hitch Mount c/w Tilting Cylinder |
