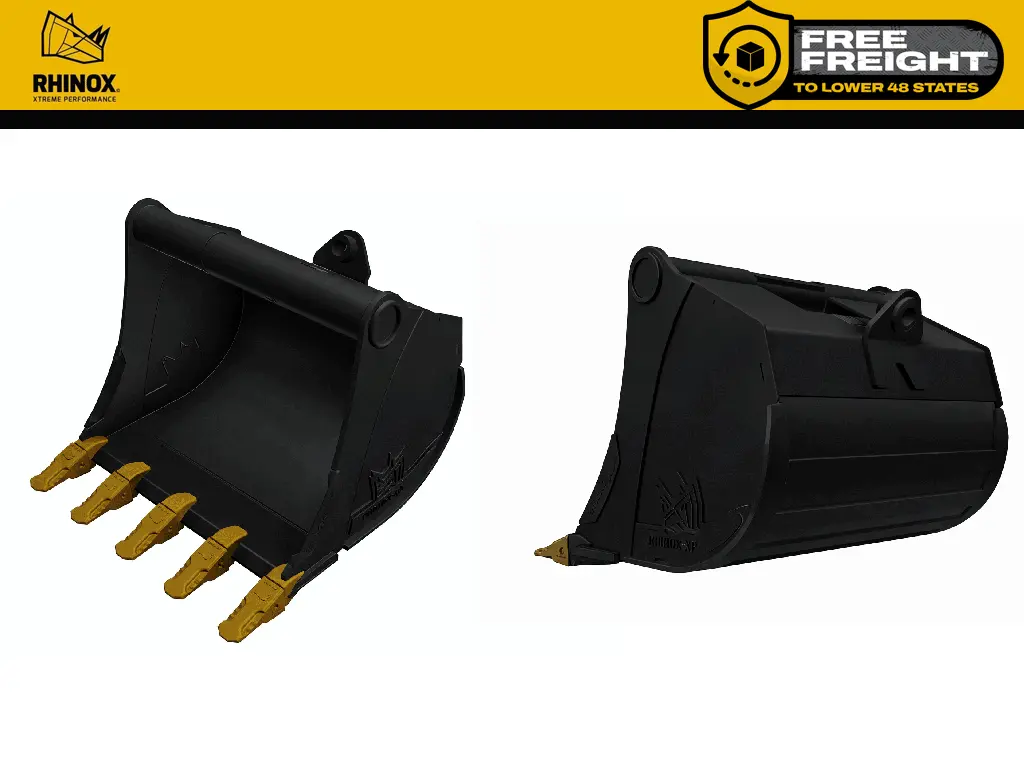

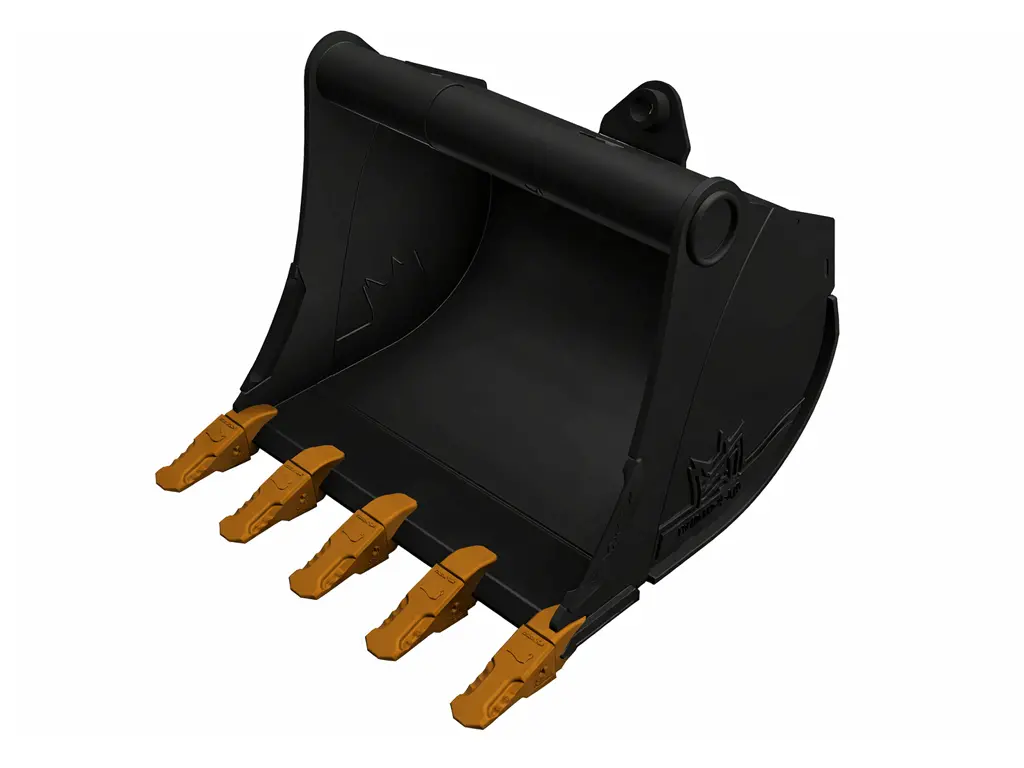

RHINOX TAG / CP / WAIN-ROY QUICK HITCH DIRT BUCKET
7–9 TON EXCAVATORS (14,000–18,000 LBS) – 1.75″ T-PIN
Built for serious digging performance, the Rhinox Quick Hitch Dirt Bucket is engineered for 7–9 ton excavators running TAG, CP, and Wain-Roy pin & hook style couplers. Designed with premium materials and reinforced wear protection, this bucket delivers maximum strength, reduced drag, and extended service life in demanding construction, utility, and excavation applications.
Whether you’re trenching, loading, or grading, this bucket is built to handle tough ground conditions while maintaining efficiency and durability.
🔧 COMPATIBILITY
EXCAVATOR CLASS: 7–9 Ton (14,000–18,000 lbs)
COUPLER STYLE:
- TAG Quick Hitch Couplers with 1.75″ T-Pin
- CP Quick Hitch Couplers with 1.75″ T-Pin
- Wain-Roy Original and XLS Coupler Systems with 1.75″ T-Pin
💪 BUILT FOR PERFORMANCE
- HB400 Cutting Edge (25 x 200mm)
High-strength, wear-resistant edge for long-lasting cutting performance in abrasive materials. - Dual Radius Shell (6mm Thick)
Improves material flow while reducing resistance and wear during digging. - Heavy-Duty Side Plates
- 15mm Front Side Plate with cutout for weld-on side cutters
- Reinforced rear side plates (5mm upper / 10mm lower)
- Wear Protection Where It Matters
- (6) Horizontal wear bars (12mm x 55mm)
- 12mm side wear runners for extended bucket life
- CAT J250 Tooth System (205 Series)
Industry-standard teeth for aggressive penetration and easy replacement. - Cast Weld-On Side Cutters
Added protection and cutting width for improved productivity.
🏗️ HEAVY-DUTY CONSTRUCTION
- 8mm Under Shell for increased structural integrity
- 15mm Rear Locking Plate with Boss for secure coupler engagement
- Machined Top Tube (120mm OD / 90mm ID) ensures tight, reliable fit
- Rhinox Branded Side Badges (5mm Steel) for durability and clean finish
⚙️ ENGINEERED FOR EFFICIENCY
The dual-radius bucket profile reduces drag, allowing your machine to dig faster with less fuel consumption. Combined with optimized wear protection and premium materials, this bucket is built to maximize uptime and minimize maintenance costs.
📦 ORDER INCLUDES
- Rhinox Quick Hitch Dirt Bucket
- CAT J250 Tooth System Installed
- Cast Weld-On Side Cutters
- Pre-configured for TAG / CP / Wain-Roy Couplers
🚧 IDEAL APPLICATIONS
- General excavation
- Trenching
- Utility work
- Site prep & grading
- Construction & landscaping
⭐ WHY CHOOSE RHINOX?
Rhinox buckets are known for precision engineering, heavy-duty materials, and long service life. Designed to meet the demands of contractors and operators, this bucket delivers reliable performance day after day.
🔥 KEY FEATURES AT A GLANCE
- Fits TAG / CP / Wain-Roy Quick Couplers
- 1.75″ T-Pin Configuration
- HB400 Cutting Edge
- CAT J250 Tooth System
- Reinforced Wear Bars & Side Runners
- Dual Radius Shell for Easier Digging
- Heavy-Duty Plate Construction Throughout
Upgrade your excavator with a Rhinox Quick Hitch Dirt Bucket built for durability and performance.
Contact LEC – Langefels Equipment Co. today for availability, sizing, and shipping options nationwide.

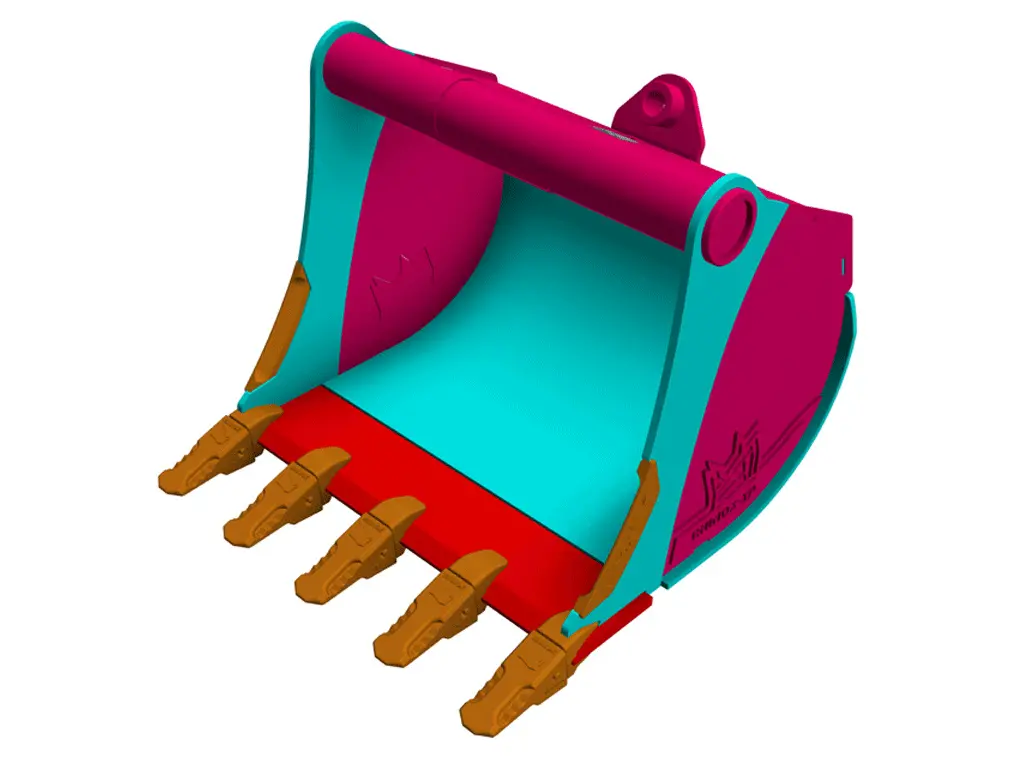

SPECS
- 1 – HB400 CUTTING EDGE
- 2 – DUAL RADIUS SHELL
- 3 – FRONT SIDE PLATE
- 5 – UPPER REAR SIDE PLATE
- 6 – LOWER REAR SIDE PLATE
- 9 – HORIZONTAL WEAR BARS
- 10 – WEAR RUNNER
- 11 – CAT STYLE TEETH
- 16 – SIDE CUTTER
- 17 – TOP ROUND TUBE
- 18 – SIDE BADGES
- 19 – UNDER SHELL
- 95 – REAR LOCKING PIN
FITS
HERE ARE SOME MODELS THIS CAN FIT (QUESTIONS PLEASE CALL)
| EXCAVATOR | |
| MAKE | MODEL 12000 TO 16000 LB |
| BOBCAT | E63,E80,E85,442, |
| CASE |
9007,CX75,CX80 |
| CAT |
307C,308C CR,E70B |
| DAEWOO | |
| DEERE |
70, 70D, 80, 75G, 75P, 85G, 85P |
| DOOSAN | S75-V, S70-III, SOLAR75-V |
| FORD | |
| GEHL | |
| HYUNDAI | R75-7, R80-7 |
| IHI / KATO | 65VX, 80VX, 55N, 65NX, 80NX |
| JCB | 8085, JS70 |
| HITACHI | Z80L, Z75US, ZX75, ZX85 |
| KOBELCO | SK70SR, 80CS |
| KOMATSU |
PC60 ,PC75R-2, PC78 |
| KUBOTA | |
| LINK BELT | 75, 80, 1600Q |
| NAGANO | |
| NEW HOLLAND |
LB75, LB115, LB90, LB110 |
| TAKEUCHI | TB290, TB280FR, TB285, TB180FR, TB175 |
| TEREX | HR32, TC75 |
| THOMAS | |
| VOLVO | ECR88, BL60, BL70 |
| WACKER | |
| YANMAR | VIO75,VIO70, B7, B7-5A |
| BACKHOE | |
| MAKE | MODEL 12000 TO 16000 LB |
| CASE |
580, 590 |
| CAT |
416C, 420D, 428F, 432F, 434F |
| DEERE |
310K, 310SK, 410K 310J, 310SJ, 410J 310G, 310SG, 410G, 510 |
| FORD |
455, 555, 655 555E, 655E, 675E |
| HYUNDAI | |
| JCB | 214, 3CX, 4CX |
| KOMATSU |
WB146-5/156-5, WB140/150 |
| KUBOTA | |
| NEW HOLLAND |
LB75, LB115, LB90, LB110 |
| TEREX | |
| VOLVO | BL60, BL70 |
| WACKER | |
| YANMAR |
