HEAVY-DUTY GRADING PERFORMANCE

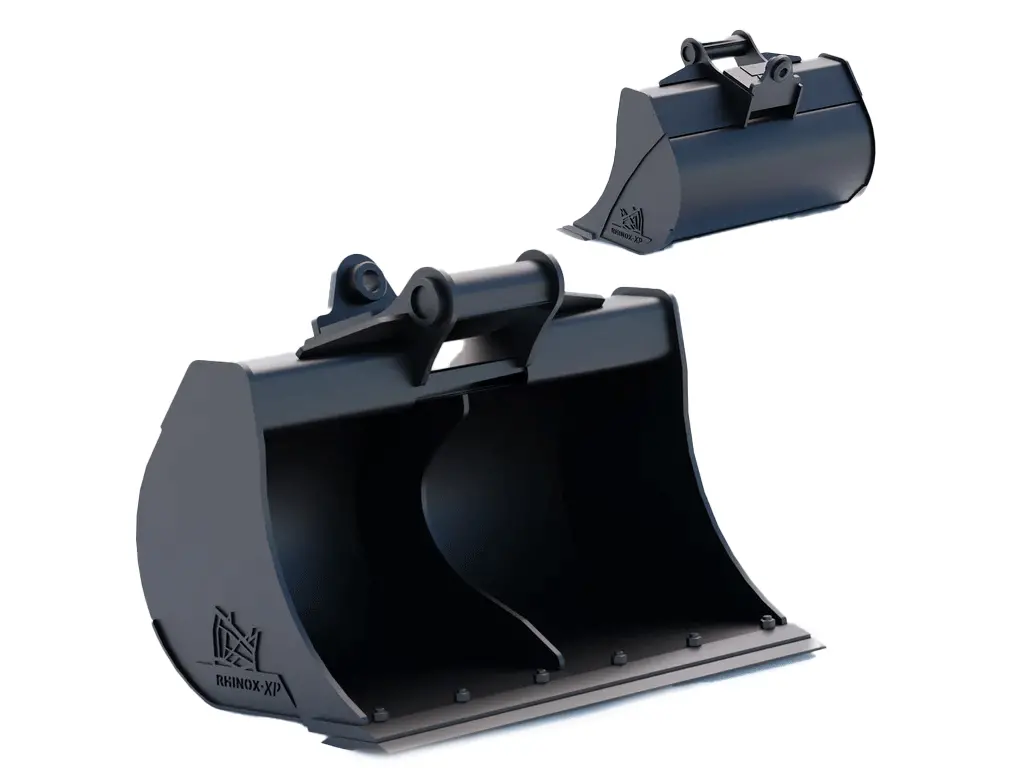

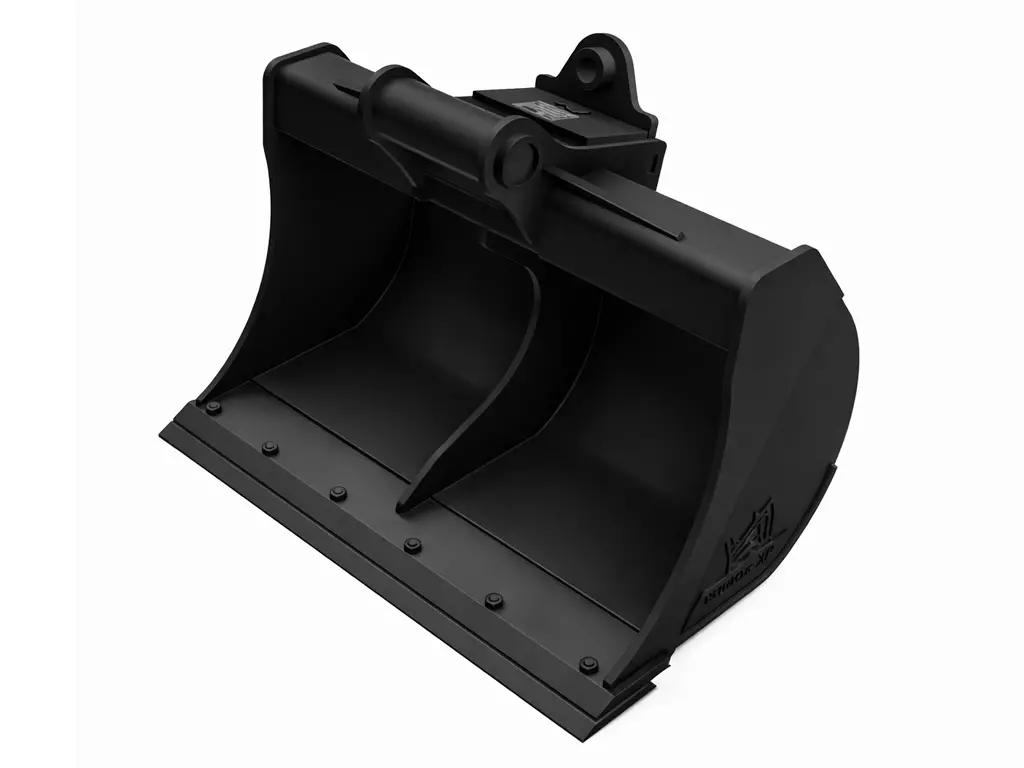

The RHINOX Ditch Bucket for 4,000–8,000 lb excavators is built for contractors who need maximum strength, clean grading performance, and long service life. Designed to fit Tag, CP, and Wain-Roy couplers with a 1.25″ T-Pin, this bucket delivers precision results for ditch cleaning, shaping, and finish work.
With upgraded steel thickness and reinforced wear components, this is a true PRO / Heavy-Duty ditching bucket made for daily jobsite demands.
BUILT FOR 2–4 TON MINI EXCAVATORS
Ideal for compact excavators in the 4K–8K lb class, this bucket excels in:
- Finish grading and contouring
- Ditch cleaning and maintenance
- Backfilling trenches
- Landscaping and site development
- Utility and drainage work
REINFORCED RHINOX CONSTRUCTION
This model features increased material thickness and wear protection in all critical areas, giving you longer life in abrasive conditions.
KEY FEATURES & BUILD SPECS:
- HB250 Cutting Edge – 0.787″ x 5.906″ (20 x 150mm) for superior wear life
- 0.630″ x 5.906″ HB250 Under Blade – Replaceable with M14 x 50 countersunk bolts
- 0.197″ (5mm) Shell – Stronger shell for improved durability
- 0.472″ (12mm) Front Side Plates – Heavy-duty impact resistance
- 0.197″ (5mm) Rear Side Plates – Balanced strength and weight
- 10mm Front Hanger Gussets (Qty 2) – Reinforced mounting structure
- Wear-Resistant Horizontal Bars (Qty 3) – 6mm x 50mm for extended bucket life
- Side Wear Runners – 6mm x 40mm for added protection along bucket edges
- Dual 6mm Top Tube Plates – Increased rigidity and structural integrity
- 10mm Center Rib – Maximum strength through the bucket floor
- Rhinox Side Badges (4mm) – Added side protection and durability
COUPLER COMPATIBILITY
Engineered for versatility across multiple coupler systems:
- Tag Style Quick Hitch Couplers (QC27)
- CP (Center Pin) Couplers
- Wain-Roy Pin & Hook Couplers
- 1.25″ (Ø1-1/4”) T-Pin Setup with Retaining Pin
✔ Fast attachment changes
✔ Secure fitment across common systems
✔ Ideal for mixed equipment fleets
SMOOTH EDGE FOR CLEAN FINISH WORK
This ditch bucket features a smooth cutting edge and under blade, making it perfect for:
- Clean trench bottoms
- Final grading passes
- Shaping slopes and ditches
- Minimizing material disturbance
PRO / HEAVY DUTY QUALITY
Built for contractors who expect more from their attachments:
- ✔ Best Value – Heavy-duty performance at a competitive price
- ✔ Contractor Grade – Designed for everyday use
- ✔ Enhanced wear protection in high-abrasion environments
- ✔ Optimized strength-to-weight ratio for machine efficiency
APPLICATION PERFORMANCE
- Dirt / Soil ★★★★★
- Clay ★★★★★
- Gravel ★★★★☆
- Light Rock ★★★☆☆
- Finish Grading ★★★★★
WHY CHOOSE RHINOX?
Rhinox attachments are built with precision engineering and high-grade materials, giving operators confidence in performance and durability. With reinforced wear points and smart structural design, this ditch bucket is made to handle real-world jobsite abuse.
GET THE JOB DONE RIGHT
For clean finishes, extended wear life, and heavy-duty reliability, the RHINOX 1.25″ T-Pin Ditch Bucket is the perfect addition to your mini excavator.
Stronger build. Smoother finish. Built to last.
SPECS
- 1 – HB250 CUTTING EDGE
- 2 – SHELL
- 3 – FRONT SIDE PLATE
- 5 – REAR SIDE PLATE
- 7 – HANGER KIT
- 8 – FRONT HANGER GUSSETS
- 9 – HORIZONTAL WEAR BARS
- 10 – WEAR RUNNERS
- 11 – UNDER BLADE
- 16 – SIDE CUTTER
- 17 – TOP ROUND TUBE
- 18 – SIDE BADGES
- 22 – CENTER RIB
FITS
This is a guide
| BRAND | MODELS |
| BOBCAT |
E26, E32, E35, 331, 334, 430 |
| CASE | CX27B, CX31B, CX36B, CX25, CX27, CX31, CX36 |
| CAT |
302.5C, 303.5CCR, 303CCR |
| DEERE | 26G, 35G, 27D, 35D, 110, 27C, 35C |
| DOOSAN |
SOLAR 030, SOLAR 035 |
| GEHL |
303, 353, 373, 383Z, ME3003 |
| HITACHI |
ZX27U-2, ZX35U-2, EX27U, EX30 |
| HYUNDAI | R28-7, R35-7, R36N-7 |
| IHI | 24V4, 30V4, 35V4, 25NX, 28N, 30NX, 35N, 35NX |
| JCB | 803, 8025, 8030, 8035 |
| KOBELCO |
27SR-3, 30SR-3, 35SR-3, SK25, SK27, SK30, SK35 |
| KOMATSU | PC27Mr-2, PC35Mr-2 |
| KUBOTA |
KX61-3, KX71, KX91-3, KX121-3 U25, U35, L39, KX040 |
| MUSTANG |
3003, 3503, 3703, 3803 |
| NEW HOLLAND |
E27, E30, E35, EC25, EH35 |
| TAKEUCHI | TB125, TB135, TB138FR, TB240, TB228, TB230, TB235 |
| TEREX |
HR14/TC29 |
| VOLVO |
EC25, EC30, EC35, ECR28, ECR38 |
| WACKER |
28Z3, 3503, 38Z3 |
| YANMAR | Vio27-3, Vio35-3, CBL40 |
