Description
DESCRIPTION

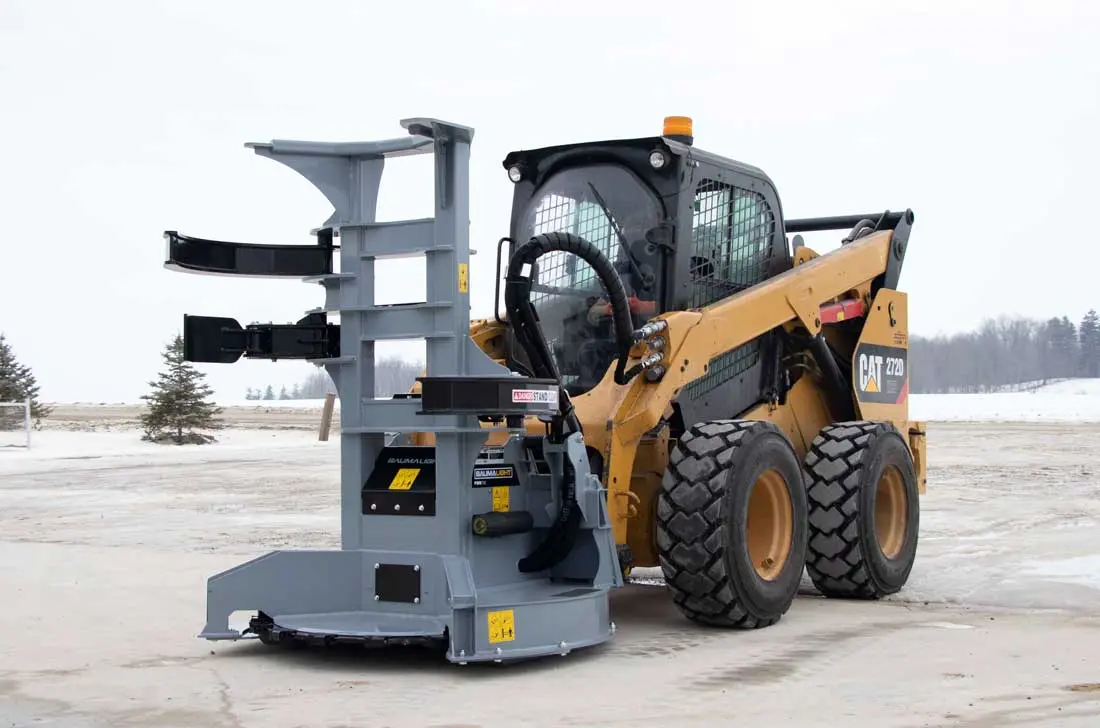

BAUMALIGHT FELLER BUNCHER
The FBS752 Skidsteer Mounted Feller Buncher we designed features a 52” cutting disc that can take up to 20” trees and is equipped with 18 Beaver cutting teeth. The tower is build with 4×4 tubing to allow more visibility for the operator and high stress areas use AR400 steel for added strength. It has an electric-over-hydraulic system which operates efficiently on hydraulic flows as little as 25 gpm and is powered by a bent axis piston motor. Only one set of remote hydraulics is required to operate all functions if you have an AUX electrical connection.
Special Features
- D004956 OPTIONAL HAND CONTROL
- SERVICE AND INSTRUCTIONAL VIDEOS & RIGHT TO REPAIR
- AUX ELECTRICAL CONNECTION FOR IN-CAB CONTROL
- 36″ THROAT OPENING
- OPEN FRAME FOR BETTER VISIBILITY
- BENT AXIS PISTON MOTOR
- HEAVY DUTY FRAME
- BLADE MOUNTED ON HEAVY DUTY BEARING SUPPORT
- SAW BLADE SHIELDING
- CLEAN CUTS WITH B8000 BEAVER TEETH
- POWDERED COATED
- HOSE SUPPORT MOUNTED LEFT OR RIGHT
- SPRING LOADED HOSE SUPPORT
- CURVED HOSE BRACKET
- ARMOURED AND SLEEVED HOSES
- ROUND EDGES
- ROUNDED EDGES ON PUSH BAR/FELLER HOOK
- PRESSURE GAUGE
- 6 FREE TEETH
- GRABBER ARMS
- BUNCHER ARM
- BOLT-ON SKIS
- SERVICE ACCESS
- GREASEABLE PINS
- HARDENED STEEL BUSHING
SPECS
| FBS752 |
| Skidsteer Mounted |
| Fixed Horizontal Blade |
| Universal Skidsteer Adaptor |
| 4000 PSI |
| Requires Case Drain |
| Requires 12V Electric |
| Four 12V positive switchable signals required |
| Wire Supplied to AUX |
| Hoses Included Couplers NOT Included |
| 52″ Diameter Blade |
| 20″ Max Cut |
| 3/4″ Steel Blade |
| 1 5/8″ Cutt Thickness |
| 4 Edges Per Tooth |
| 18 Teeth |
| B8000 Beaver Teeth |
| Throat Opening at teeth: 36″ |
| MOTOR | MOTOR TYPE |
CC | CASE DRAIN |
IDEAL RPM |
20 GPM |
25 GPM |
30 GPM |
35 GPM |
40 GPM |
45 GPM |
| T590 | Bent Axis Piston | 108 | Yes | 800-1400 | – | 700 RPM | 900 RPM | 1050 RPM | 1230 RPM | 1400 RPM |
