DESCRIPTION
Revised 1/24

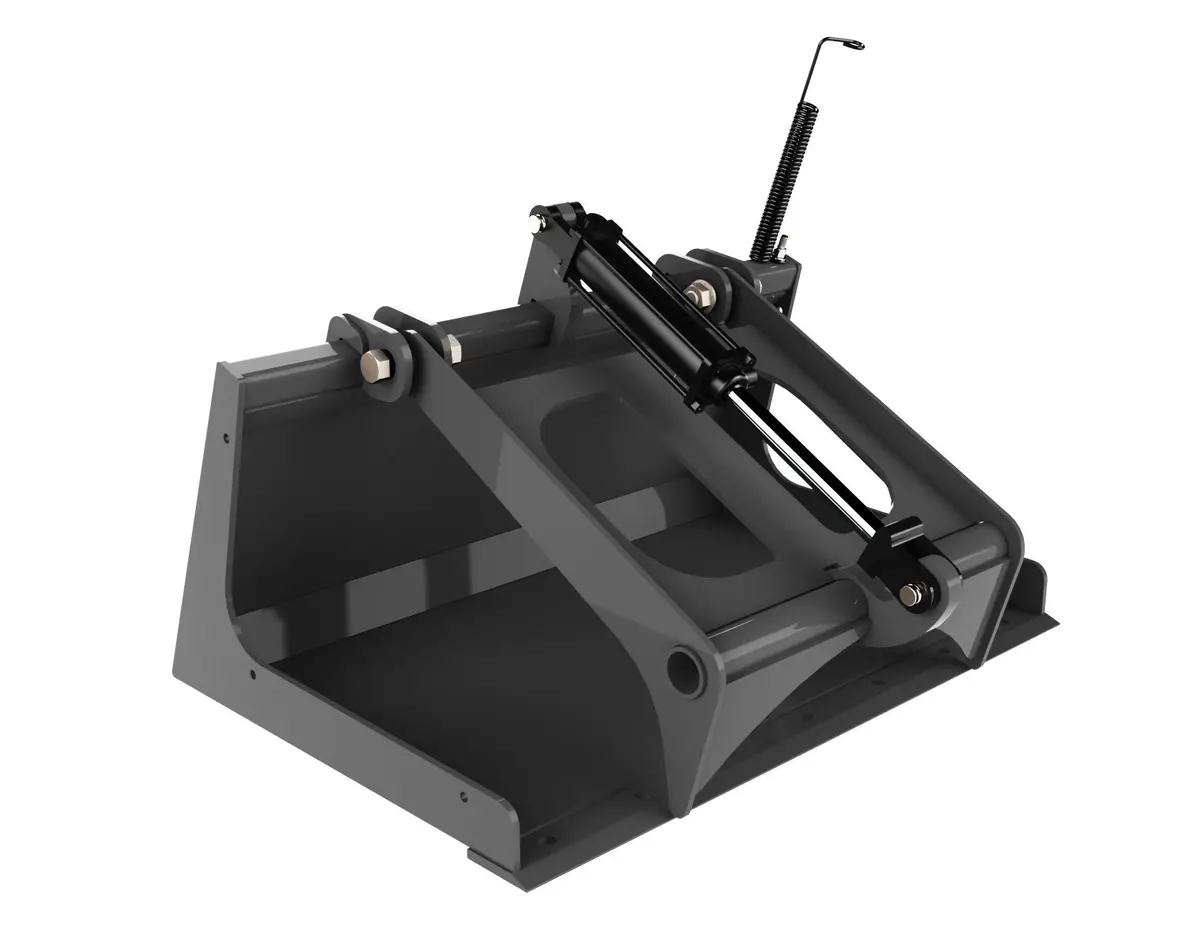

Mini Grapple Bucket
Berlon’s Mini Grapple Bucket is ideal for todays mini loaders. The extended floor is ideal for picking up scrap.
Common uses include: Landscaping
- Includes needle valve, hose saver spring, hoses and couplers
- Optional Bolt-On Cutting Edge
- Optional Bolt-On Ends
SPECIFICATIONS
| B SERIES | INSIDE DIMENSION | OUTSIDE DIMENSION | “A” HEIGHT | “B” DEPTH | “C” ANGLE | “D” GRAPPLE OPENING | LBS |
| MIGR-36 | 36.0″ | 37.5″ | 33.0″ | 18.0″ | 65° | 36.0″ | 260 |
| MIGR-42 | 42.0″ | 43.5″ | 33.0″ | 18.0″ | 65° | 36.0″ | 303 |
| MIGR-48 | 48.0″ | 49.5″ | 33.0″ | 18.0″ | 65° | 36.0″ | 351 |
