DESCRIPTION
Revised 1/24

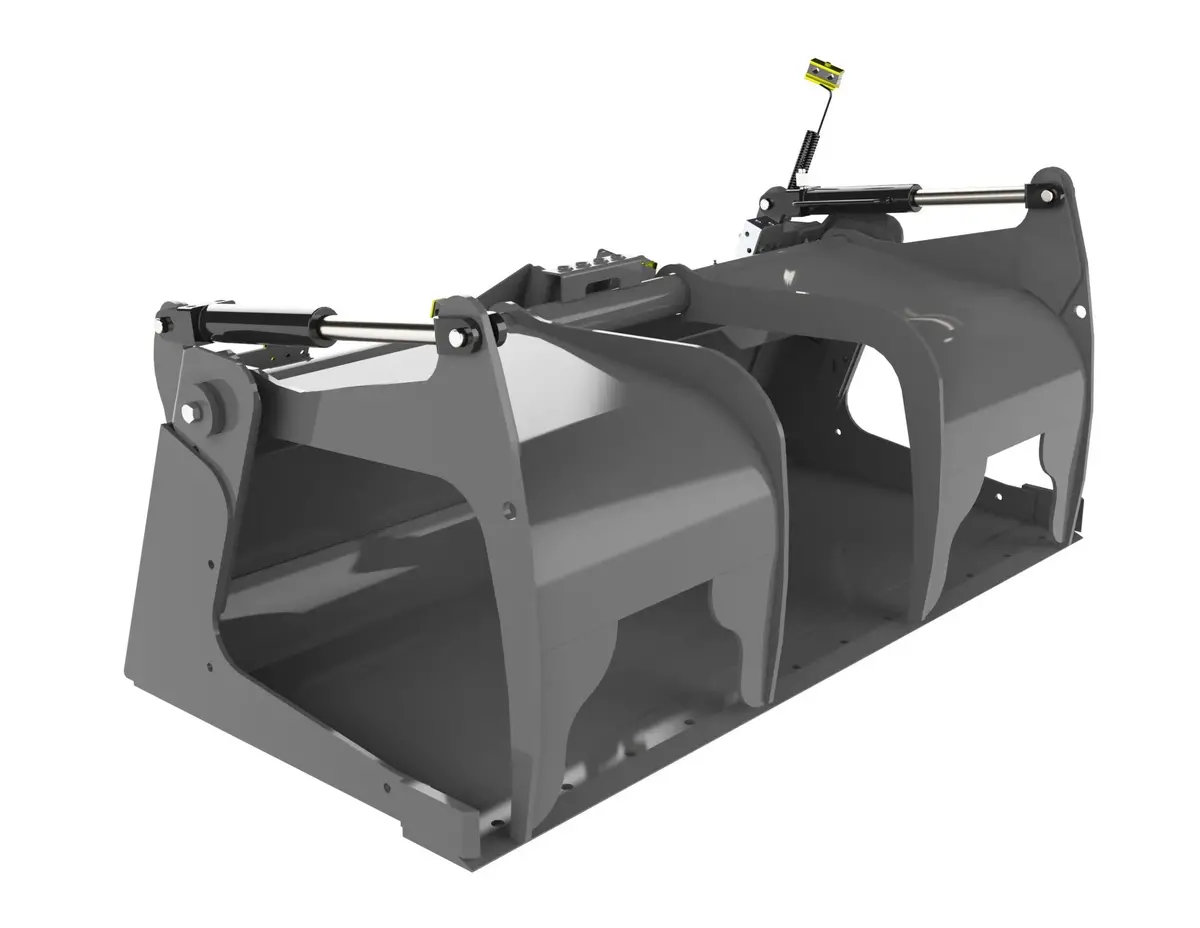

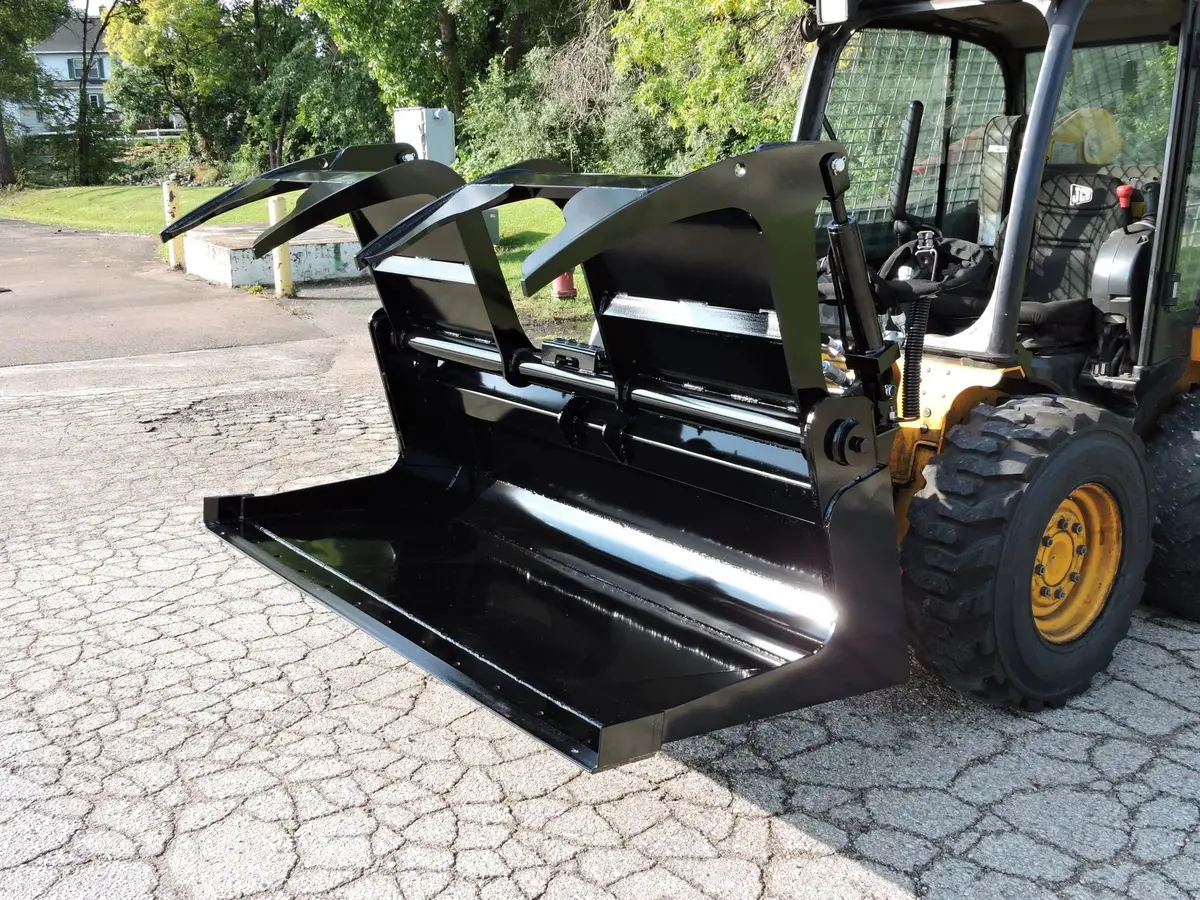

Extended Lip Grapple
Berlon’s Extended Lip Grapple bucket has claws that operate independently to accommodate a variety of material shapes and sizes.
Common uses include: Demolition, scrap yard, and other general clean-up applications.
- 3/16” thick steel body
- Reinforcement tube across back of bucket
- 3/4” x 6” weld-on cutting edge with holes
- Dual, independent claws
- Cylinders – 3,000 lb., 2.5” bore
- Scrap ends, hose & couplers, hose saver and needle valve included
- Extended floor for greater cutting edge visibility
- Bucket bottom includes a heavy-duty dimple plate *A Berlon Exclusive*
- Radius kick-out plate for added strength & easy clean-out
SPECIFICATIONS
| B SERIES | INSIDE DIMENSION | OUTSIDE DIMENSION | “A” HEIGHT | “B” DEPTH | “C” ANGLE | “D” GRAPPLE OPENING | LBS |
| BELGR-72 | 72.0″ | 73.5″ | 21.0″ | 36.0″ | 70° | 34.25″ | 1027 |
| BELGR-78 | 78.0″ | 79.5″ | 21.0″ | 36.0″ | 70° | 34.25″ | 1057 |
