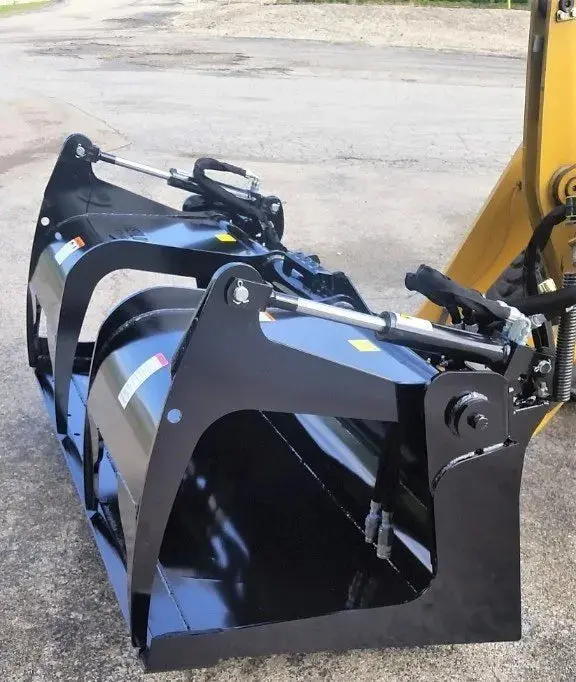

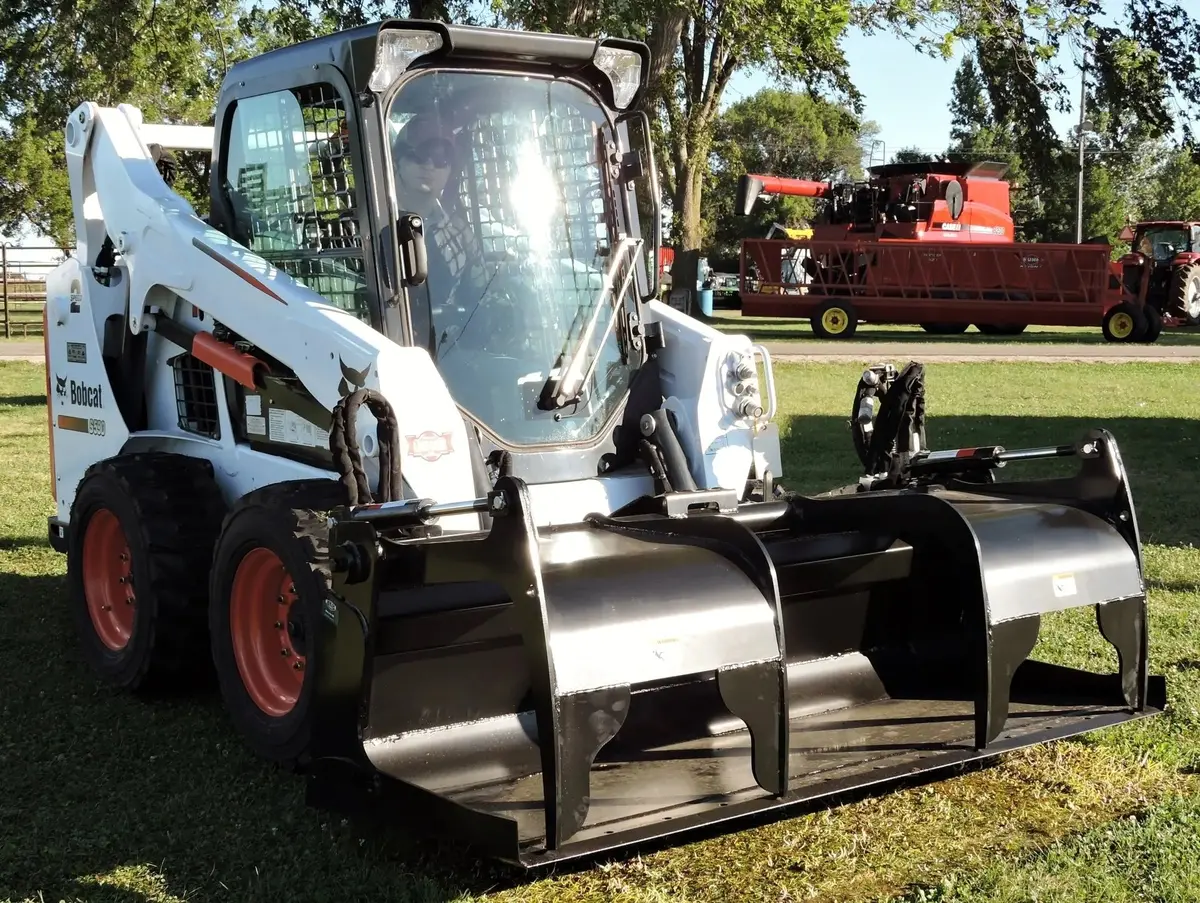

Extended Lip Heavy Duty Grapple
Berlon’s Extended Lip Heavy Duty Grapple has claws that operate independently to accommodate a variety of material shapes and sizes.
Common uses include: Demolition, scrap yard, and other general clean-up applications.
- 1/4” thick steel body
- Double reinforcement tube across back of bucket
- 3/4” x 6” weld-on cutting edge with holes
- Dual, independent claws
- Cylinders – 3,000 lb., 2.5” bore
- Scrap ends, hose & couplers, hose saver and needle valve included
-
Bucket bottom includes a heavy-duty dimple plate *A Berlon Exclusive*
SPECIFICATIONS
| B SERIES | INSIDE DIMENSION | OUTSIDE DIMENSION | “A” HEIGHT | “B” DEPTH | “C” ANGLE | “D” GRAPPLE OPENING | LBS |
| BELHDGR-78 | 78.0″ | 79.5″ | 23.5″ | 36.0″ | 70° | 34.25″ | 1384 |
| BELHDGR-84 | 84.0″ | 85.5″ | 23.5″ | 36.0″ | 70° | 34.25″ | 1452 |
| BELHDGR-90 | 90.0″ | 91.5″ | 23.5″ | 36.0″ | 70° | 34.25″ | 1530 |
