Description
DESCRIPTION
Revised 1/24

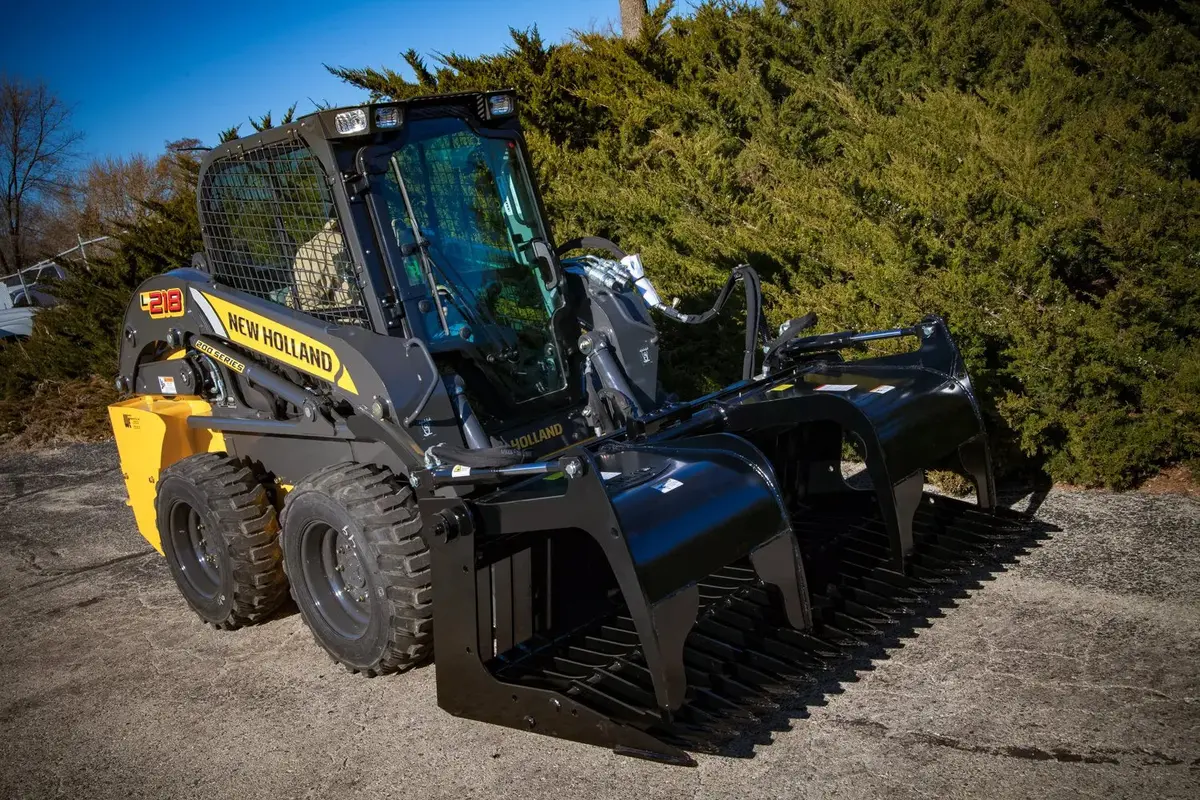

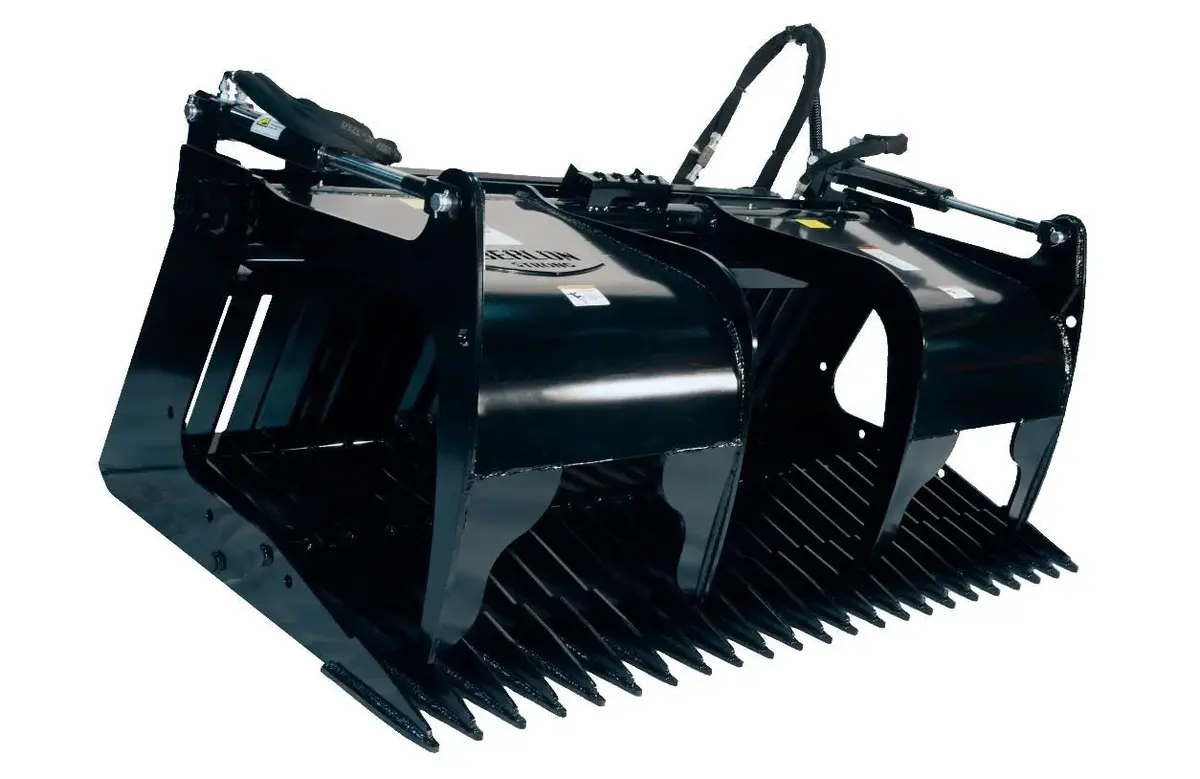

Skeleton Rock Grapple
Berlon’s Skeleton Rock Grapple has dual independent claws for complete clamping down on awkward loads. This bucket will take years of extreme use.
Common uses include: Bucket is ideal for rock picking, clearing fence lines, construction, scrap metal and other clean-up applications.
- 3/8” thick ribs spaced 3” apart, are fully welded on both sides
- Fully welded leading edge
- (2) 1-1/4” solid steel rods run through the ribs and are welded for greater structural integrity
- Dual, independent claws
- Cylinders – 3,000 lb., 2.5” bore
- Scrap ends, hose & couplers, hose saver and needle valve included
- Deep-well rock dam keeps material in place while your are transporting or picking up more material
SPECIFICATIONS
| B SERIES | INSIDE DIMENSION | OUTSIDE DIMENSION | “A” HEIGHT | “B” DEPTH | “C” ANGLE | “D” GRAPPLE OPENING | LBS |
| SKLGR-72 | 72.0″ | 73.5″ | 21.0″ | 42.0″ | 70° | 34.5″ | 1221 |
| SKLGR-78 | 78.0″ | 79.5″ | 21.0″ | 42.0″ | 70° | 34.5″ | 1452 |
| SKLGR-84 | 84.0″ | 85.5″ | 21.0″ | 42.0″ | 70° | 34.5″ | 1530 |
