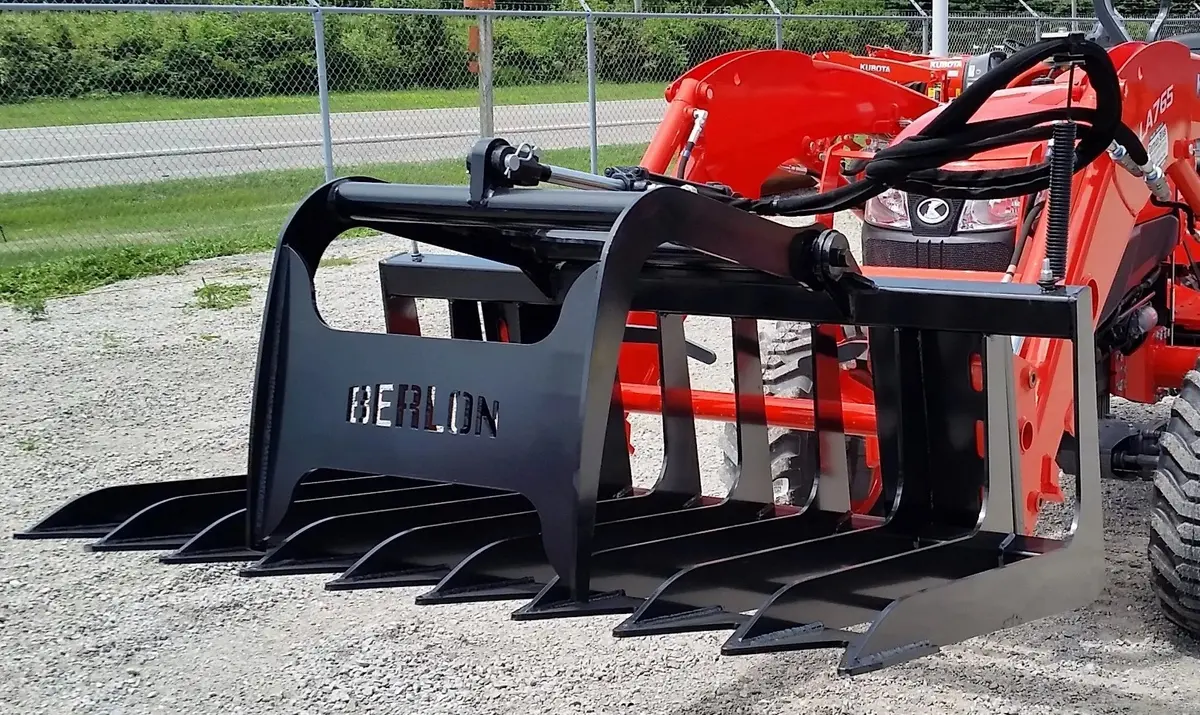

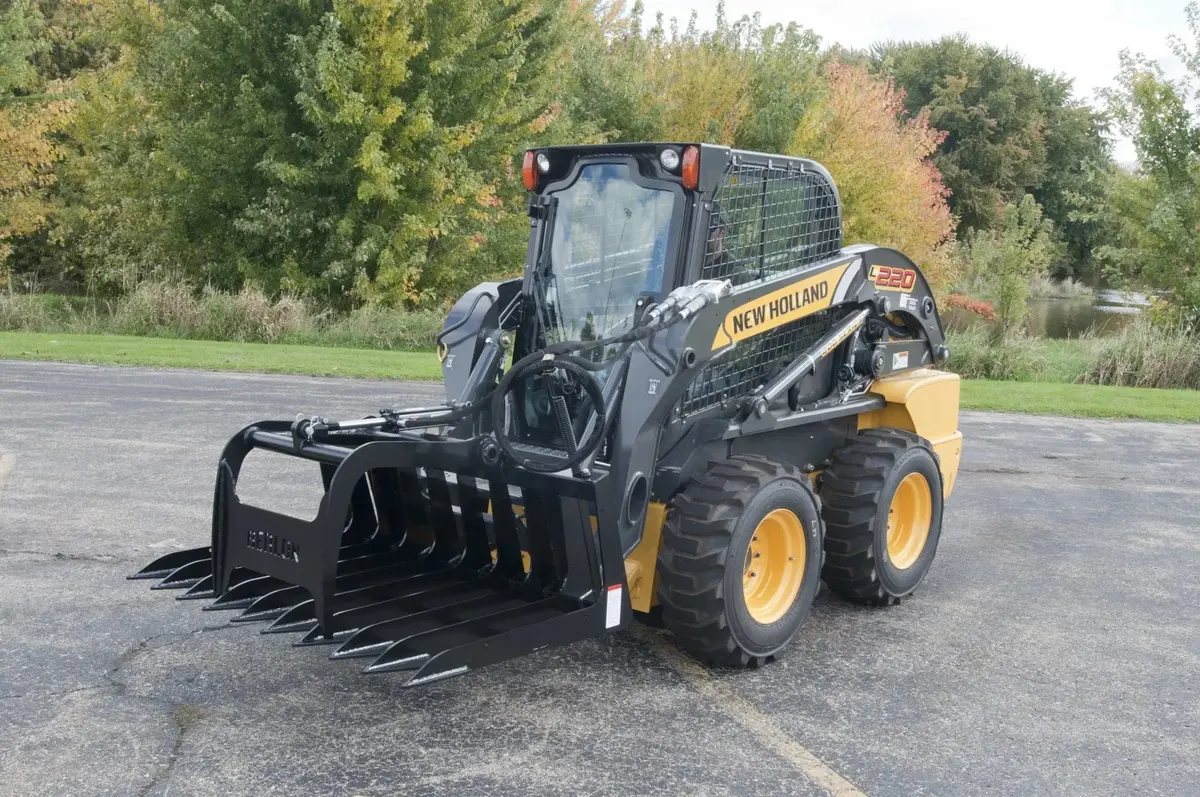

Light Duty Grapple
Berlon’s Light Duty Grapple is ideal for today’s compact tractors and small skid loaders. It is recommended for machines with 50HP or less.
Common uses include: Brush clean up
- Cylinder – 3,000 lb., 2.5” bore
- Fully welded leading edge
- Hydraulics based on single cylinder
- Scrap ends, hose & couplers, hose saver and needle valve included
SPECIFICATIONS
| B SERIES | INSIDE DIMENSION | OUTSIDE DIMENSION | “A” HEIGHT | “B” DEPTH | “C” ANGLE | “D” GRAPPLE OPENING | LBS |
| LDGR-54 | 54.0″ | 55.5″ | 21.5″ | 40.0″ | 70° | 41.0″ | 491 |
| LDGR-60 | 60.0″ | 61.5″ | 21.5″ | 40.0″ | 70° | 41.0″ | 524 |
| LDGR-66 | 66.0″ | 67.5″ | 21.5″ | 40.0″ | 70° | 41.0″ | 557 |
