DESCRIPTION
Revised 1/24

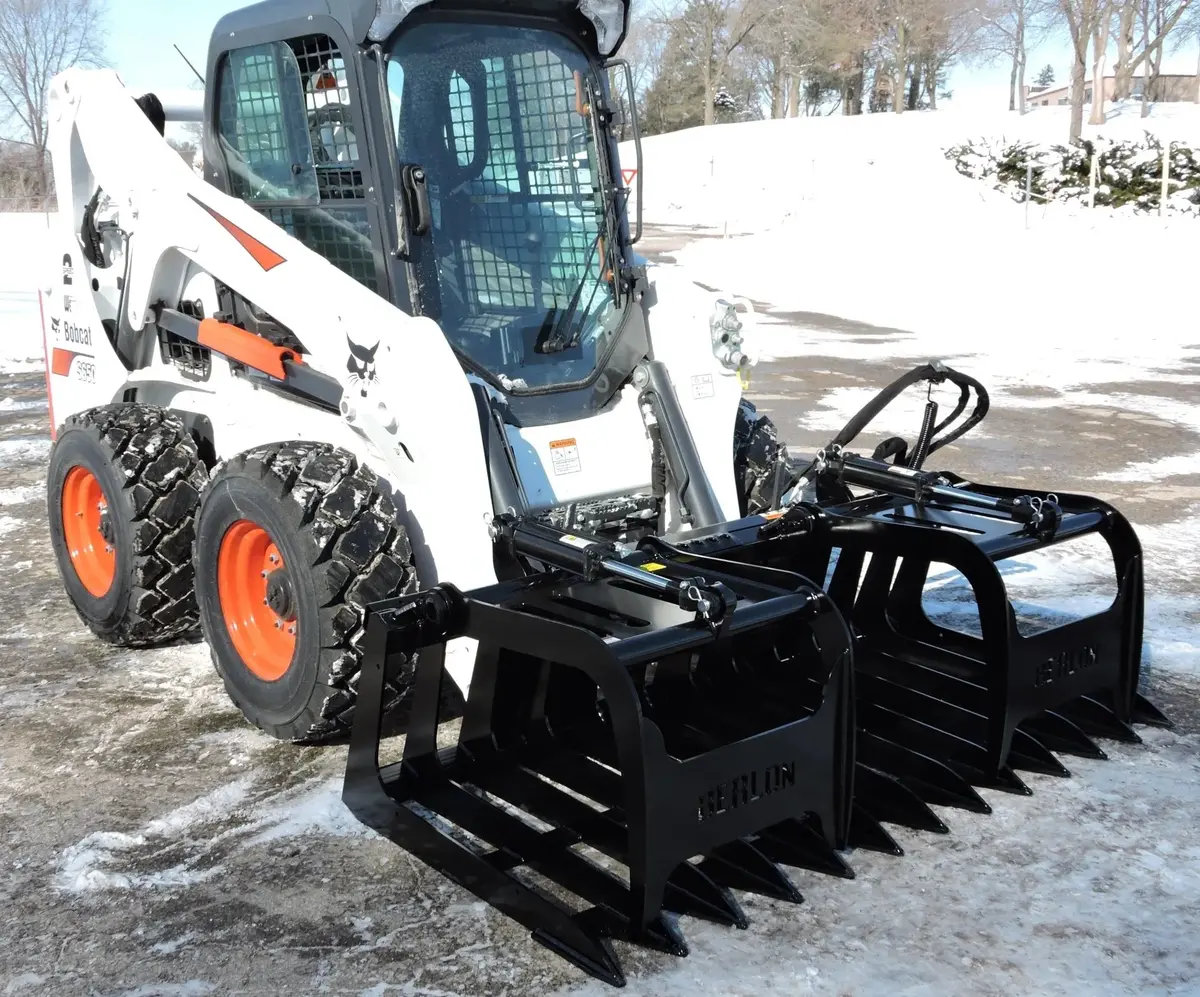

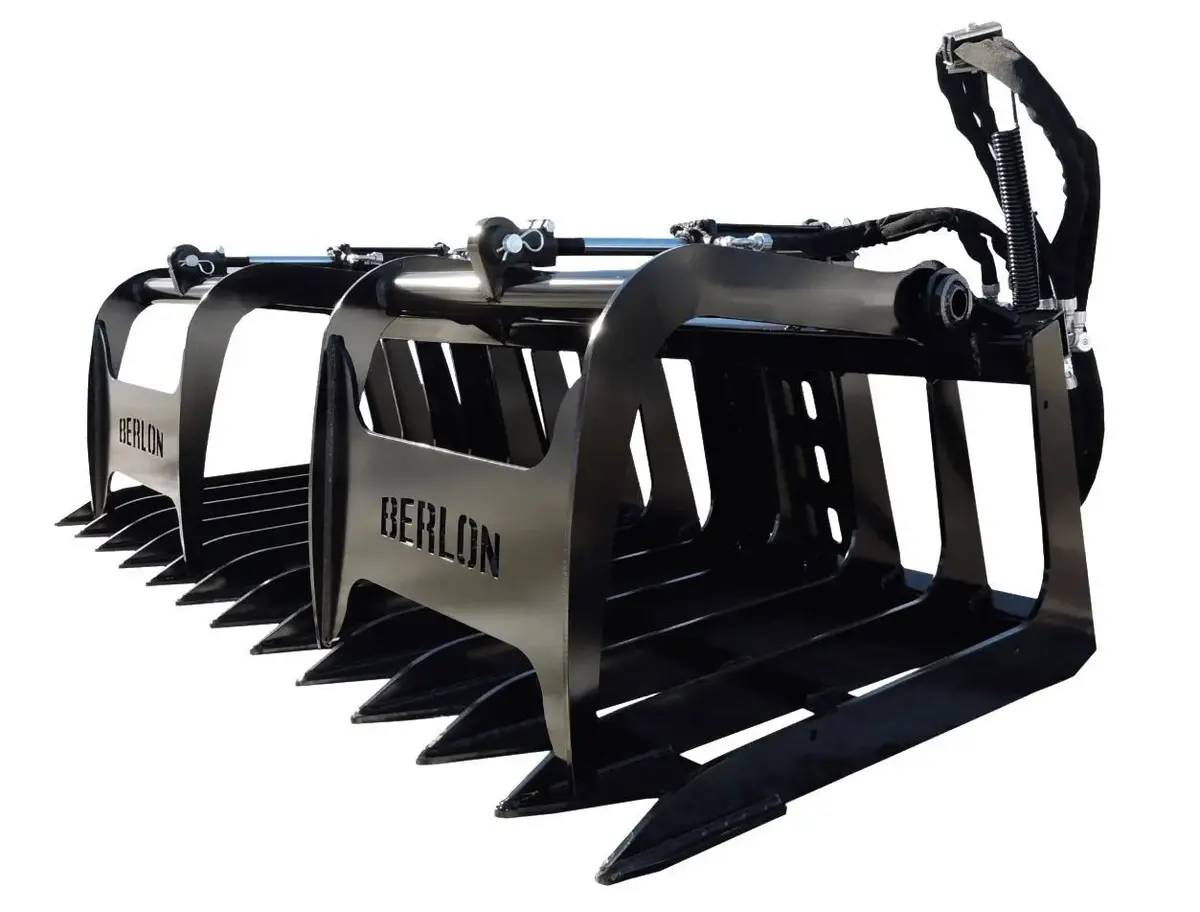

Medium Duty Grapple
Berlon’s Medium Duty Grapple is designed for moving brush, logs, rocks, and clearing fence lines. It is the ideal attachment for machines between 50-75HP
Common uses include: Brush clean up
- Cylinder – 3,000 lb., 2.5” bore
- Fully welded leading edge
- Dual, independent claws
- Scrap ends, hose & couplers, hose saver and needle valve included
SPECIFICATIONS
| B SERIES | INSIDE DIMENSION | OUTSIDE DIMENSION | “A” HEIGHT | “B” DEPTH | “C” ANGLE | “D” GRAPPLE OPENING | LBS |
| MDGR-66 | 66.0″ | 67.5″ | 21.5″ | 40.0″ | 70° | 41.0″ | 735 |
| MDGR-72 | 72.0″ | 73.5″ | 21.5″ | 40.0″ | 70° | 41.0″ | 770 |
| MDGR-78 | 78.0″ | 79.5″ | 21.5″ | 40.0″ | 70° | 41.0″ | 810 |
