DESCRIPTION

Revised 1/24

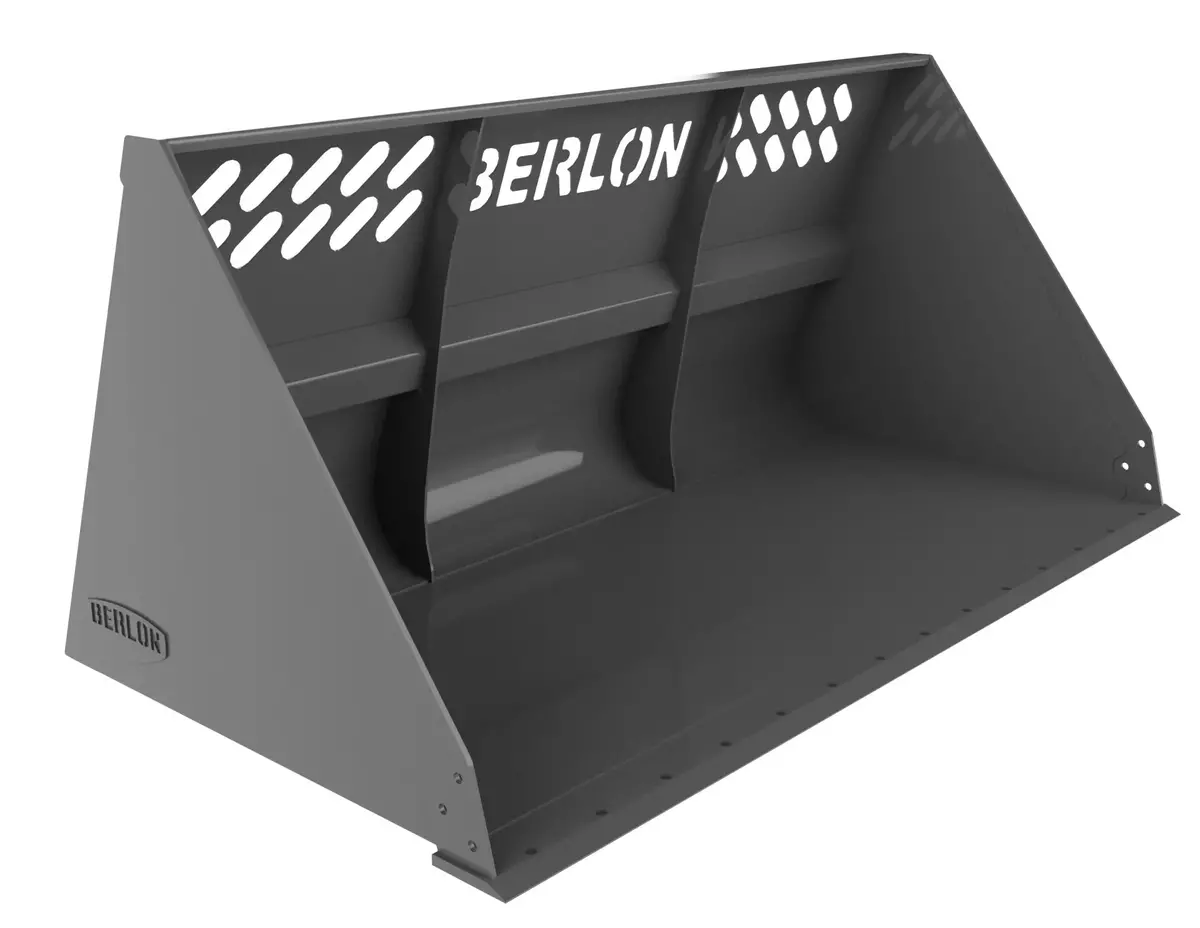

Super Capacity Snow Bucket

Berlon’s Super Capacity Snow Bucket is ideal for loading and handling large volumes of snow and other materials. Viewing slots for greater visibility.

 Common uses include: Snow and other Material

• Fully welded body
• Radius kick-out plate for added strength & easy clean out
• 1/2″ x 3″ wearbars
• Reinforcement tube in line with the top of the mounting plate
• 3/4″ x 6″ cutting edge with holes
• Additional reinforcement tube above standard rein

SPECIFICATIONS

B SERIES	INSIDE DIMENSION (IN.)	OUTSIDE DIMENSION	“A” HEIGHT	“B” DEPTH	“C” ANGLE	LBS
SCSB-78	78.0″	79.5″	41.0″	46.0″	70°	854
SCSB-84	84.0″	85.5″	41.0″	46.0″	70°	976
SCSB-96	96.0″	97.5″	41.0″	46.0″	70°	1037

How to Determine Bucket Capacity

The amount of material a bucket can carry is determined as struck (level) capacity and heaped capacity. The heaped capacity is the actual cubic feet. The following formulas are used to determine capacities and will help you compare the capacity of various buckets.

To calculate cubic feet of a bucket:

1: Measure from the top of the bucket straight down to the bottom in inches = Height

2: Measure from the front of the floor to the back in inches = Depth

3: Height x Depth ÷ 2 x Width = Cubic Inches ÷ 1,728 = Struck Capacity (Cubic Feet)

To calculate heaped capacity of a bucket:

For B, BEL, BELHD, UT, CCT, BEC, MIB, & MIBEL series buckets: Cubic Feet ÷ 3 = Heaped Amount + Cubic Feet = Heaped Capacity

For UTHB, FMX, HCSB, HVMB, CAL, & MISLMB series buckets: Cubic Feet ÷ 2.5 = Heaped Amount + Cubic Feet = Heaped Capacity
