Description

DESCRIPTION

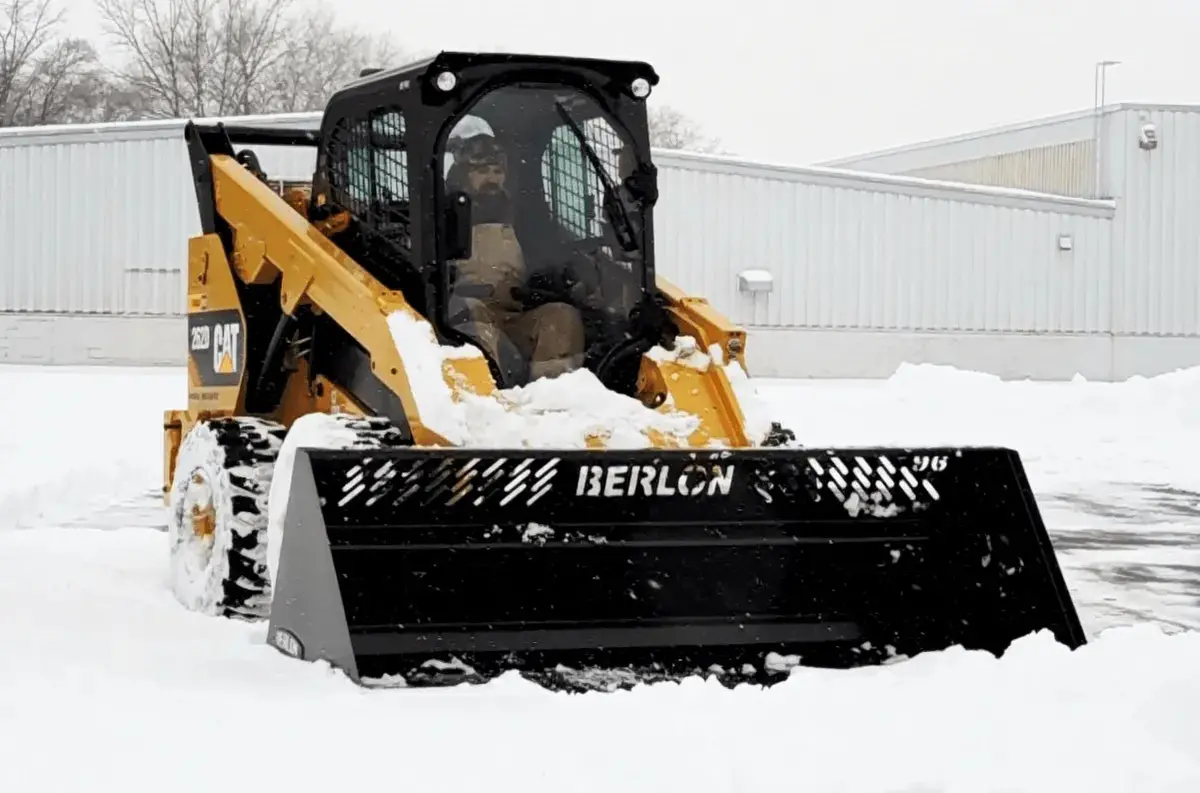

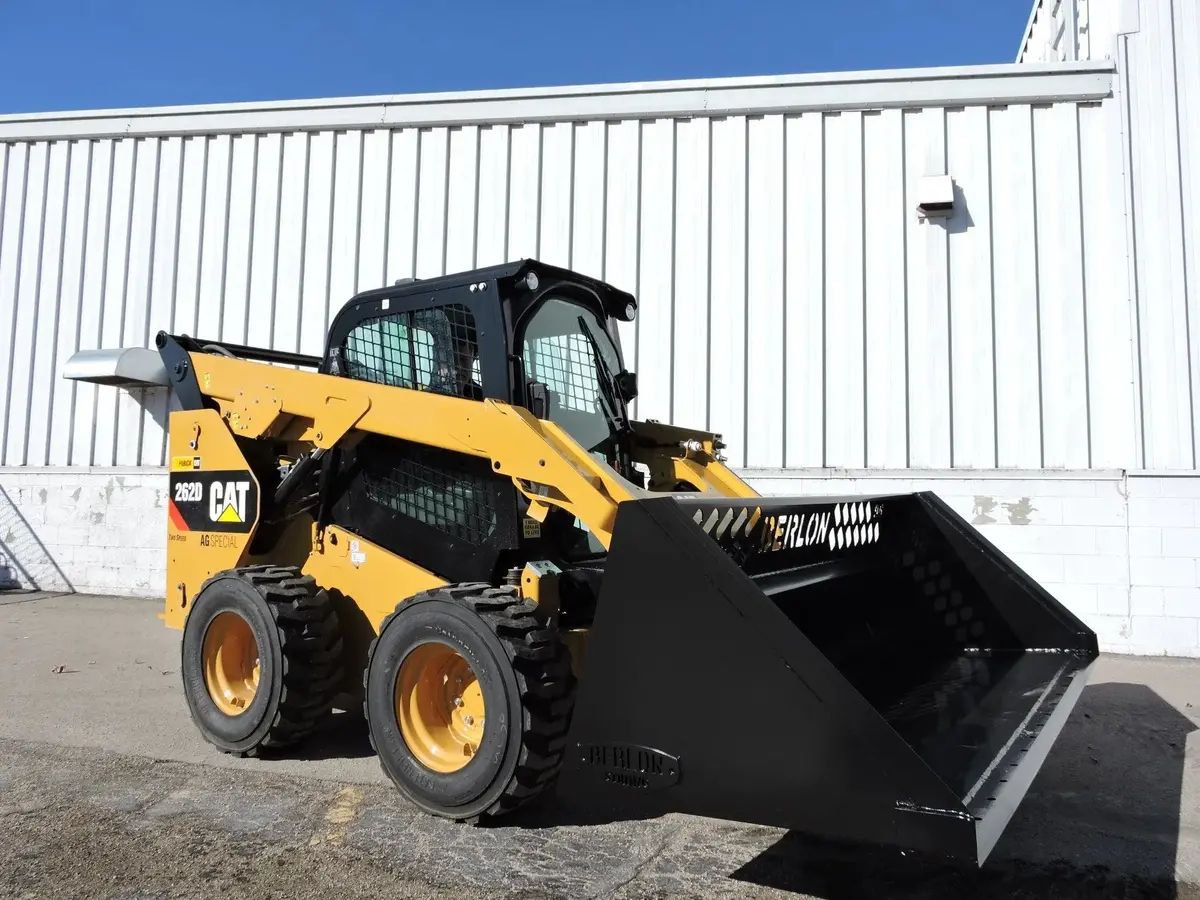

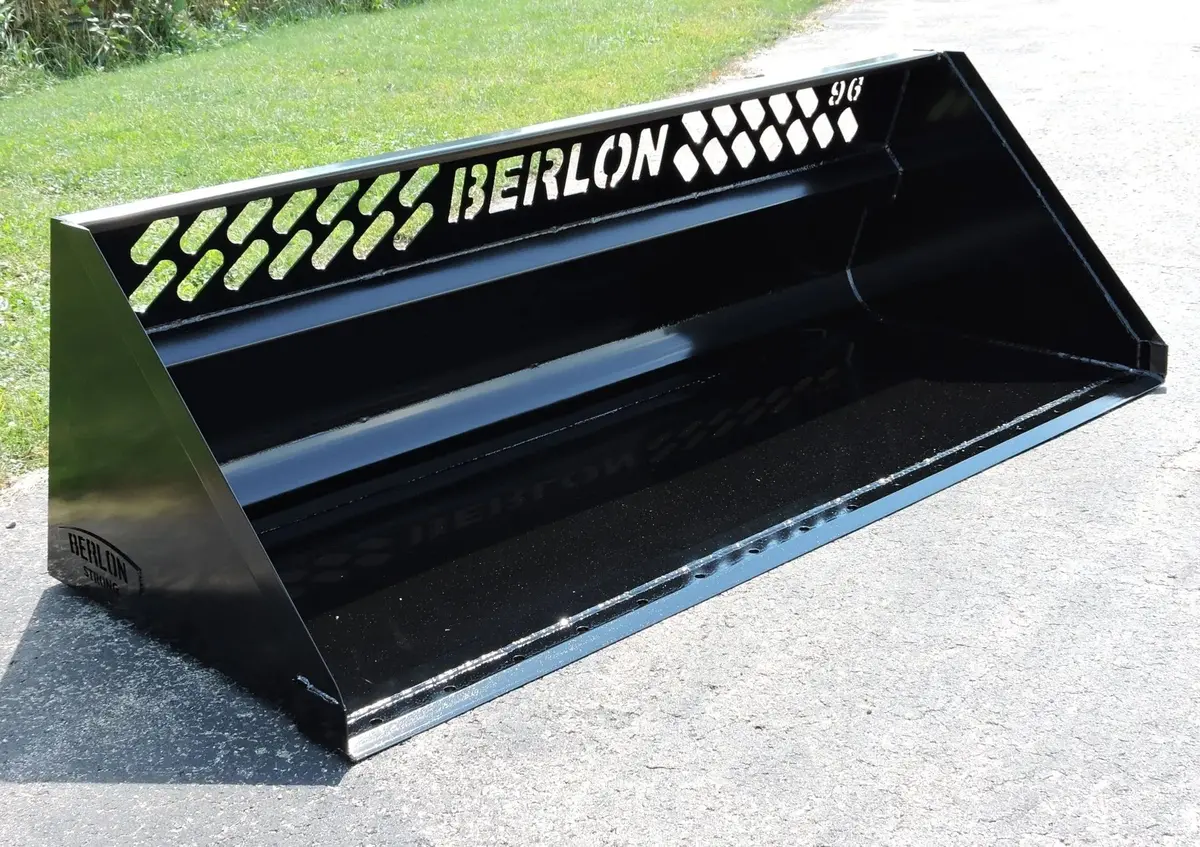

High Capacity Snow Bucket

Berlon’s High Capacity Snow bucket is ideal for loading and handling snow and other materials. This bucket offers viewing slots for greater cutting edge visibility.

 Common uses include: Snow and other Material

• 3/16” thick steel body
• Radius kick-out plate for added strength and easy clean-out
• 3/4” x 6” weld-on cutting edge with holes
• Reinforcement tube across back of bucket for added strength
• 2” x 4-1/2” viewing slots for greater visibility

SPECIFICATIONS

B SERIES	INSIDE DIMENSION (IN.)	OUTSIDE DIMENSION	“A” HEIGHT	“B” DEPTH	“C” ANGLE	LBS
HCSB-72	72.0″	73.5″	31.0″	41.0″	70°	592
HCSB-78	78.0″	79.5″	31.0″	41.0″	70°	641
HCSB-84	84.0″	85.5″	31.0″	41.0″	70°	690
HCSB-96	96.0″	97.5″	31.0″	41.0″	70°	789
HCSB-102	102.0″	103.5″	31.0″	41.0″	70°	838

How to Determine Bucket Capacity

The amount of material a bucket can carry is determined as struck (level) capacity and heaped capacity. The heaped capacity is the actual cubic feet. The following formulas are used to determine capacities and will help you compare the capacity of various buckets.

To calculate cubic feet of a bucket:

1: Measure from the top of the bucket straight down to the bottom in inches = Height

2: Measure from the front of the floor to the back in inches = Depth

3: Height x Depth ÷ 2 x Width = Cubic Inches ÷ 1,728 = Struck Capacity (Cubic Feet)

To calculate heaped capacity of a bucket:

For B, BEL, BELHD, UT, CCT, BEC, MIB, & MIBEL series buckets: Cubic Feet ÷ 3 = Heaped Amount + Cubic Feet = Heaped Capacity

For UTHB, FMX, HCSB, HVMB, CAL, & MISLMB series buckets: Cubic Feet ÷ 2.5 = Heaped Amount + Cubic Feet = Heaped Capacity
