DESCRIPTION

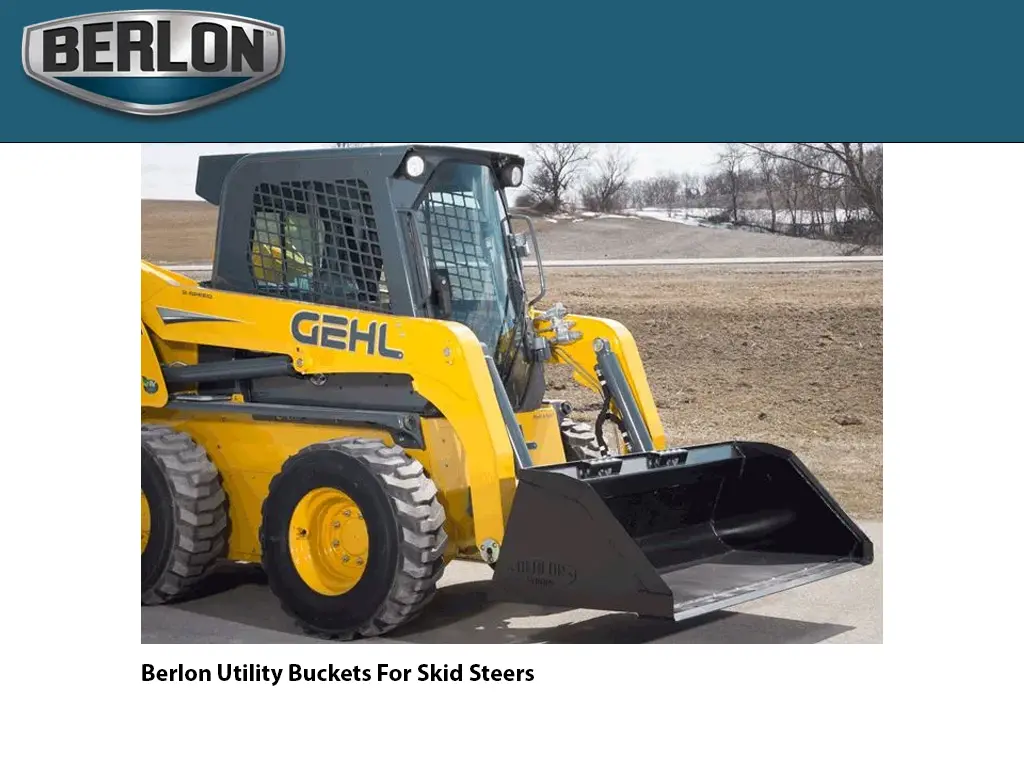

Utility High-Back Bucket

Berlon’s Utility High-Back bucket is a great choice when

additional capacity is needed.

 Common uses include: Manure, slurry, and bulky material.

• 3/16” thick steel body
• Radius kick-out plate for added strength and easy clean-out
• 3/4” x 6” weld-on cutting edge with holes
• Reinforcement tube across back of bucket for added strength

SPECIFICATIONS

B SERIES	INSIDE DIMENSION (IN.)	OUTSIDE DIMENSION	“A” HEIGHT	“B” DEPTH	“C” ANGLE	LBS
UTHB-60	60.0″	61.5″	25.0″	36.0″	70°	462
UTHB-66	66.0″	67.5″	25.0″	36.0″	70°	498
UTHB-72	72.0″	73.5″	25.0″	36.0″	70°	532
UTHB-78	78.0″	79.5″	25.0″	36.0″	70°	579
UTHB-84	84.0″	85.5″	25.0″	36.0″	70°	611

How to Determine Bucket Capacity

The amount of material a bucket can carry is determined as struck (level) capacity and heaped capacity. The heaped capacity is the actual cubic feet. The following formulas are used to determine capacities and will help you compare the capacity of various buckets.

To calculate cubic feet of a bucket:

1: Measure from the top of the bucket straight down to the bottom in inches = Height

2: Measure from the front of the floor to the back in inches = Depth

3: Height x Depth ÷ 2 x Width = Cubic Inches ÷ 1,728 = Struck Capacity (Cubic Feet)

To calculate heaped capacity of a bucket:

For B, BEL, BELHD, UT, CCT, BEC, MIB, & MIBEL series buckets: Cubic Feet ÷ 3 = Heaped Amount + Cubic Feet = Heaped Capacity

For UTHB, FMX, HCSB, HVMB, CAL, & MISLMB series buckets: Cubic Feet ÷ 2.5 = Heaped Amount + Cubic Feet = Heaped Capacity
