Description

DESCRIPTION

Revised 1/24

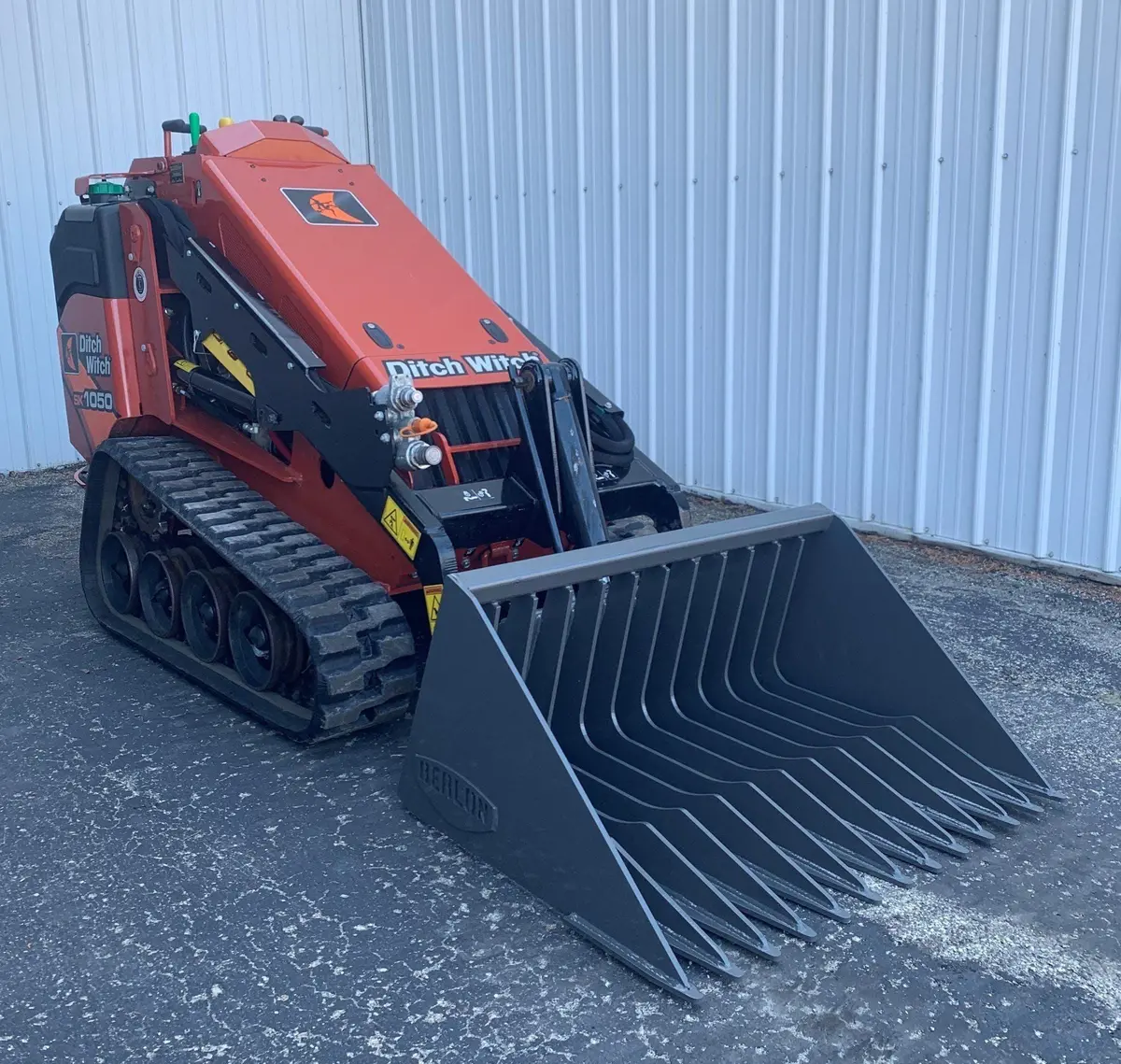

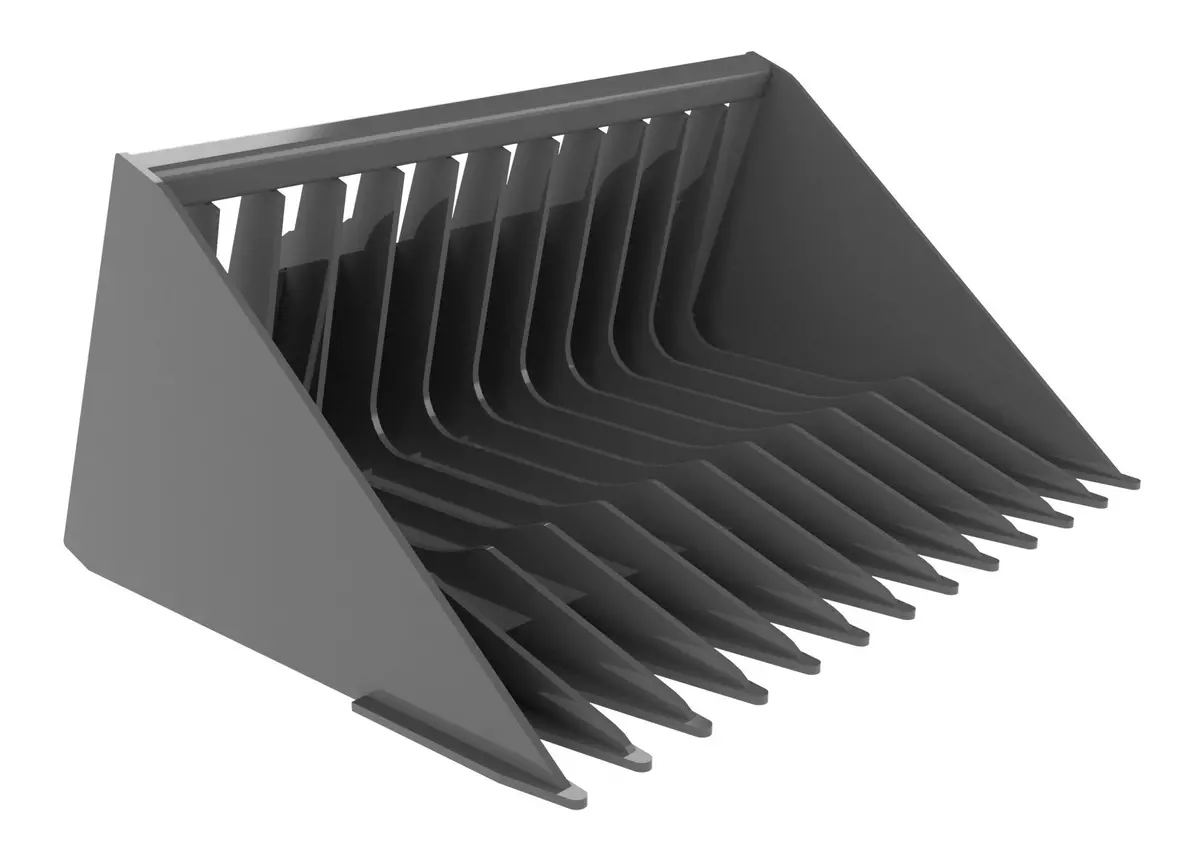

Mini Skeleton

Berlon’s Mini Skeleton bucket is ideal for todays mini loaders. A rock dam and 3” tine spacing makes it a great addition for landscapers

Common uses include: Rock moving

• 3/8” Tine Thickness
• 3” Space Between Tines

SPECIFICATIONS

B SERIES	INSIDE DIMENSION	OUTSIDE DIMENSION	“A” HEIGHT	“B” DEPTH	“C” ANGLE	LBS
MISKL-42	39.2″	43.5″	18.0″	30.0″	60°	300
MISKL-48	45.7″	49.5″	18.0″	30.0″	60°	338
MISKL-54	52.2″	53.7	18.0″	30.0″	60°	376

How to Determine Bucket Capacity

The amount of material a bucket can carry is determined as struck (level) capacity and heaped capacity. The heaped capacity is the actual cubic feet. The following formulas are used to determine capacities and will help you compare the capacity of various buckets.

To calculate cubic feet of a bucket:

1: Measure from the top of the bucket straight down to the bottom in inches = Height

2: Measure from the front of the floor to the back in inches = Depth

3: Height x Depth ÷ 2 x Width = Cubic Inches ÷ 1,728 = Struck Capacity (Cubic Feet)

To calculate heaped capacity of a bucket:

For B, BEL, BELHD, UT, CCT, BEC, MIB, & MIBEL series buckets: Cubic Feet ÷ 3 = Heaped Amount + Cubic Feet = Heaped Capacity

For UTHB, FMX, HCSB, HVMB, CAL, & MISLMB series buckets: Cubic Feet ÷ 2.5 = Heaped Amount + Cubic Feet = Heaped Capacity
