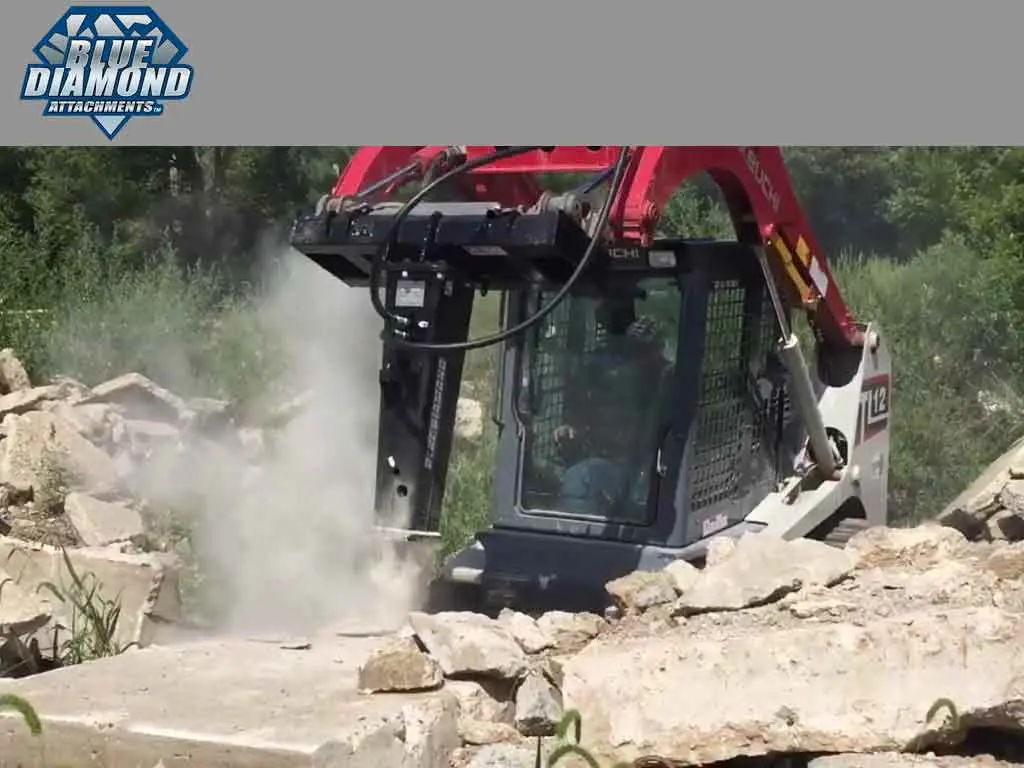

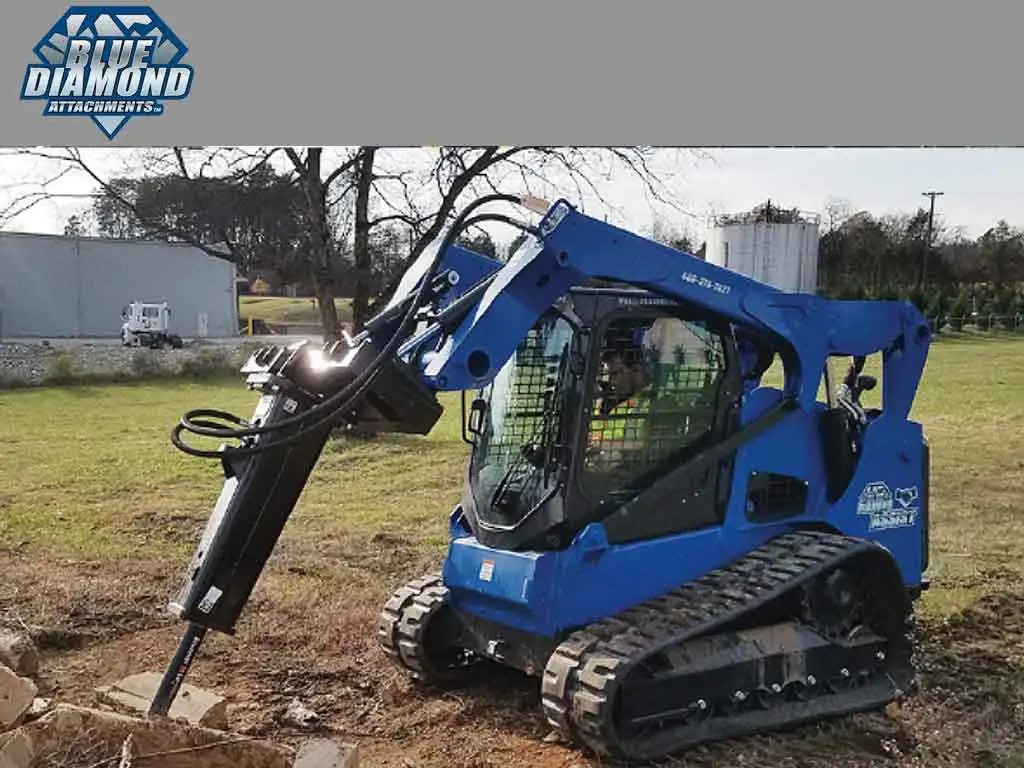

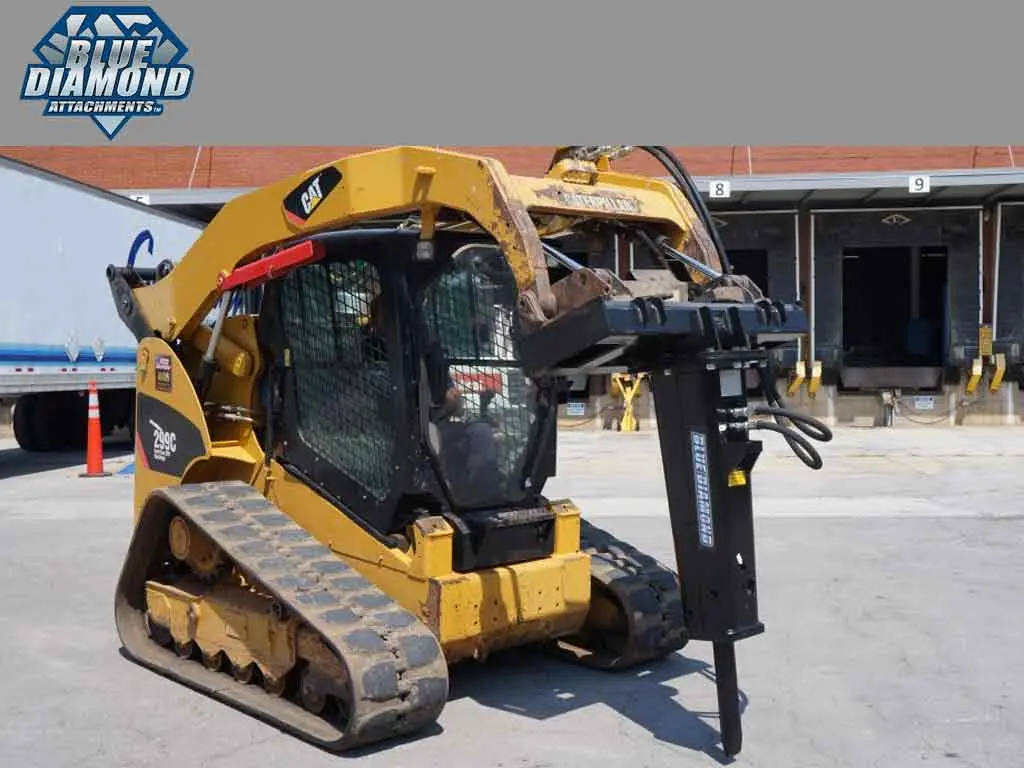

SKID STEER MOUNT HYDRAULIC BREAKER
Absolute superiority is the only way to describe this breaker!
Our 5 year quest to develop a superior hydraulic breaker is now available from Blue Diamond®. This “hammer” design offers technology, simplicity, reliability, ease of setup, and service support. No more downtime, get started on your demolition, construction, and quarry jobs now.

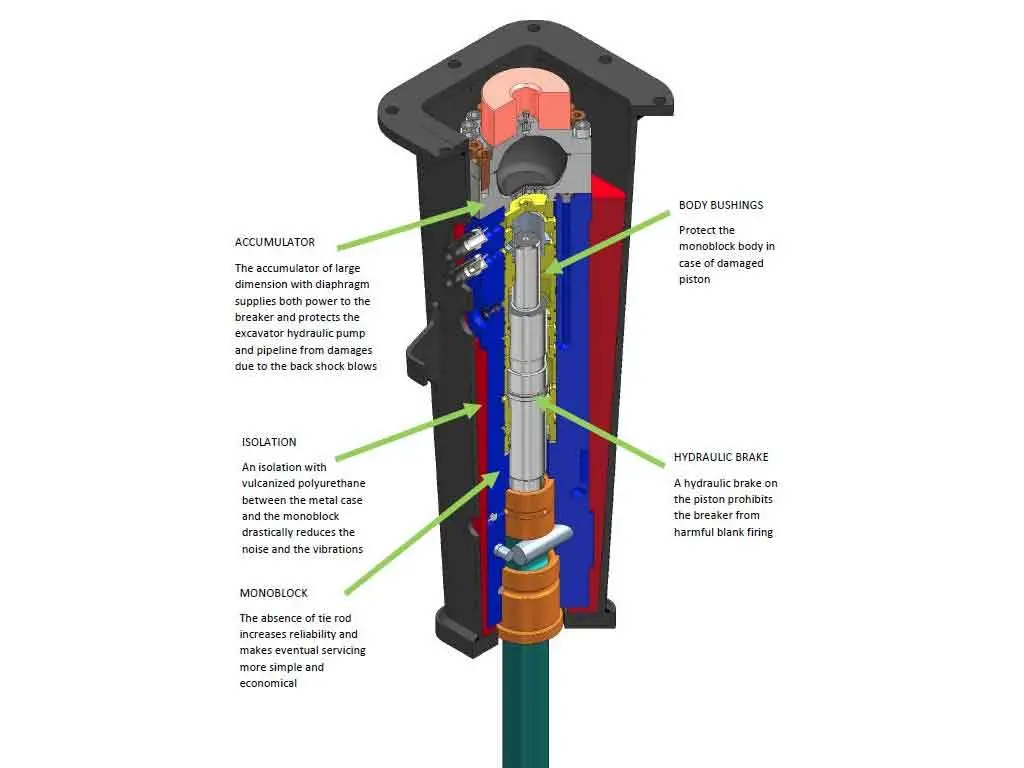

FEATURES INCLUDE:
- 3 year warranty
- Mono-block design / no tie rods
- Anti-blank firing system hydraulic brake
- No re-gassing needed
- Only 2 internal moving parts
- 2 speed control / variable stroke
- Quiet Operation
- Self-regulating
- Body bushings around piston
- HOSE KIT
SPECS
| PART NUMBER | MODEL | WORKING PRESSURE | MAX OIL FLOW | FREQUENCY (BPM) | OPERATING WEIGHT | TOOL DIAMETER | ENERGY CLASS | CARRIER WEIGHT | (PSI) BACK PRESSURE |
|---|---|---|---|---|---|---|---|---|---|
| 335009 | HB95 | 1,750 | 11 | 1,200 | 355 LBS | 1.8 | 200 | 2,650-4,000 LBS | 290-360 |
| 335016 | HB165 | 1,750 | 13 | 1,200 | 498 LBS | 2.2 | 400 | 4,000-6,600 LBS | 290-360 |
| 335021 | HB210 | 1,750 | 16 | 1,100 | 598 LBS | 2.5 | 500 | 6,100-9,900 LBS | 290-360 |
| 335030 | HB300 | 1,750 | 21.2 | 1,100 | 921 LBS | 2.9 | 700 | 8,800-15,500 LBS | 290-360 |
| 335040 | HB400 | 1,750 | 29.2 | 900 | 1,139 LBS | 3.1 | 1,000 | 13,500-20,900 LBS | 363 |
| 335053 | HB530 | 1,750 | 32 | 900 | 1,404 LBS | 3.3 | 1,200 | 17,650-25,350 LBS | 363 |
