Brush Wolf 60X Mini Excavator Brush Cutter – Standard-Duty Attachment

Description

DESCRIPTION

STANDARD-DUTY X-SERIES

MINI EXCAVATOR

3600X | 4200X | 4800X LF | 4800X SF | 4800X HF

These bulletproof little machines are packed with power and are perfect
for clearing steep hillsides, ditches, and tree lines. Our first-generation
rotary brush cutters for diggers feature a simplistic design that makes
them easy to own and operate. The 3600X and 4200X are made for
compact excavators and backhoes to fit flawlessly in tight places. While
the 4800X models fit either compact or mid-size excavators/backhoes
and off er a 48” cutting width.

FEATURES

• Long-Lasting Blades

  The Brush Wolf industrial-strength blades are heat treated, have a milled edge, and are Supertuf coated to stand the test of time.

• Premium Hydraulic Motor

  We paired the top-of-the-line Eaton® Geroler-style hydraulic motor with the most dependable right-angle Omni® gearbox to achieve maximum torque and ideal blade tip speed. This easy-to-maintain and tried-and-true pairing will survive the years of abuse it will see in the field.

• Motor Protection

  Pressure Relief Valves: Added pressure relief valves safeguard your motor from pressure spikes and allow for a faster shutdown.

  Grade-2 Shear Bolt: protects the gearbox and driveline from damage.

• Gearbox Seal Protection

  A welded seal guard collar prevents wire, twine, and vegetation from wrapping around and damaging the gearbox.

• Ultra-Rugged Deck Frame

  Here’s why our brush cutters last for life. We build each deck frame from a single piece of formed heavy-duty steel, never pieced together. This means our frames are consistently better made and more durable, with the elimination of construction errors and frame failure. One-piece frames will always provide superior strength.

• Seam Welding

  Unlike our competitors, Brush Wolf’s deck and frame construction is fully boxed and continuously welded across each seam for an indestructible, rust-proof support structure.

• Reinforced Gussets

  We went above and beyond to make sure our cutters are crazy strong by adding boxed-in gusset reinforcements, extra bracing, and supports.

• Powder-Coated Tough

  Protected with the most durable finishing process, we powder coat every part to minimize rust, resist scratches, and prevent fading, so you get more life out of your brush cutter.

• Blade Access Cover

  Easy access to the blade bolts for quick blade replacement.

• Plug + Play Ready

  Everything is ready to go upon delivery with the included quick-connect couplers, 90″ hydraulic hoses encased in protective wrap, and dust caps to prevent line contamination.

• Chain Curtains

  5/16” replaceable safety chains on two sides contain flying debris to protect you and your cutter and aid in mulching.

• Pilot Guard

  We took safety to the next level by welding a reinforced plate “pilot guard” to the underside of the cutter deck to protect you from flying objects.

MOTOR TYPE
Eaton® Geroler-style hydraulic motor
DRIVE TYPE
Right-angle Omni Gear® gearbox
MOTOR PROTECTION
Pressure relief valves, GRD-2 shear bolt
MAX PSI (CONT./INT.)
3,000/3,500; 3,000-4,100 (4800X HF)

DECK THICKNESS
3600X & 4200X: 10-ga | 4800X: 7-ga
HOOD/MOTOR GUARD
12-ga motor guard
CHAIN CURTAIN
Both sides
HOSES + DUST CAPS
90” hydraulic hoses encased in
protective wrap, quick-connect
couplers, and dust caps included

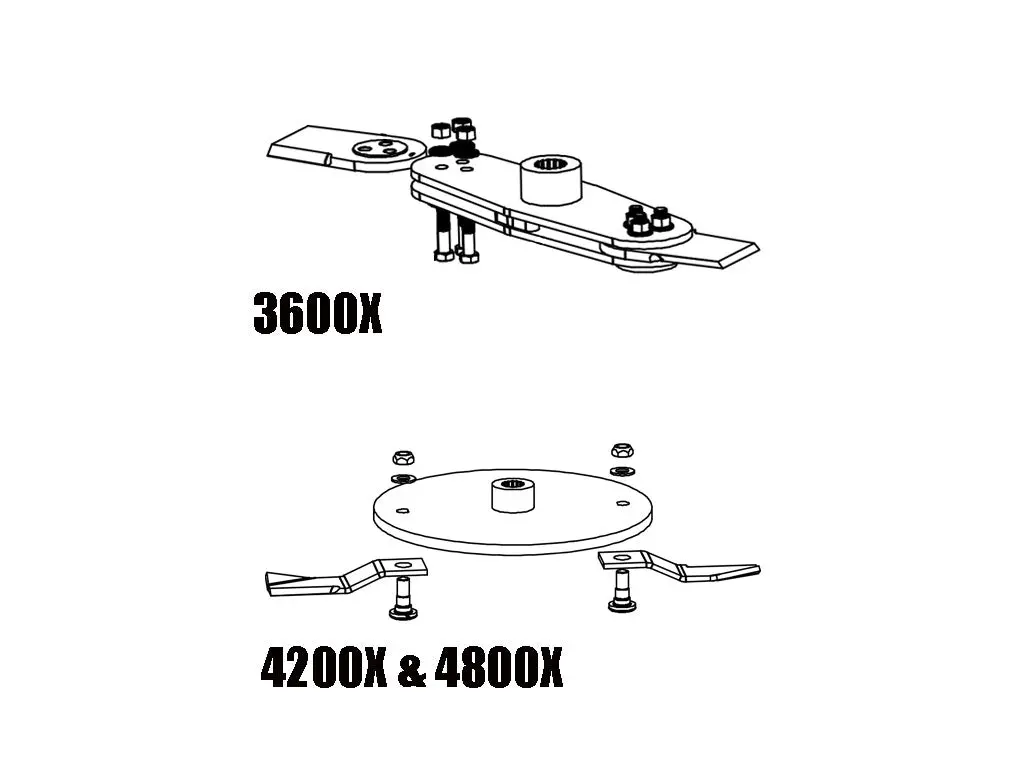

BLADES & BLADE CARRIER
3600X: Two 1/2” steel bars with 2
Hardox® 500 fl at blades; non-updraft to
cut and discharge material quickly
4200X | 4800X: 1” GRD-50 bar with 2
heat-treated, Super tuff coated dropdown blades; updraft for lift and
mulching action
BLADE ROTATION
Counterclockwise

• ALWAYS PROTECT THE OPERATOR AND PEOPLE WORKING AROUND THIS ATTACHMENT
• IF YOU DON’T SEE YOUR MOUNTING PLEASE CONTACT US 513-777-6666

SPECS

Duty Rating	Standard-Duty
Cutting Width	36″, 42″, 48″
Hydraulic Flow Range	8-40 GPM
Max Cutting Diameter	up to 3″, up to 4″, up to 5″
Motor Style	Geroler-style hydraulic motor; right-angle gearbox

Model Options

Models	3600X	4200X	4800 X LF	4800 X SF	4800 X HF
	Low Flow	Low Flow	Low Flow	Standard Flow	High Flow
Cutting Width	36 in	42 in	48 in	48 in	48 in
Hydraulic Flow Range	8-20 GPM	8-20 GPM	8-15 GPM	16-25 GPM	26-40 GPM
Max Cutting Diameter	3 in	3 in	3 in	4 in	5 in
Tip Speed	5,500-13,750 ft/min	6,500-16,200 ft/min	7,500-14,000 ft/min	11,750-18,400 ft/min	7,500-11,600 ft/min
Overall Width	39 in	45.13 in	51.13 in	51.13 in	51.13 in
Overall Length	50 in	56.80 in	62.80 in	62.80 in	62.80 in
Weight	550 lbs	690 lbs	860 lbs	860 lbs	890 lbs
