DESCRIPTION
6/25

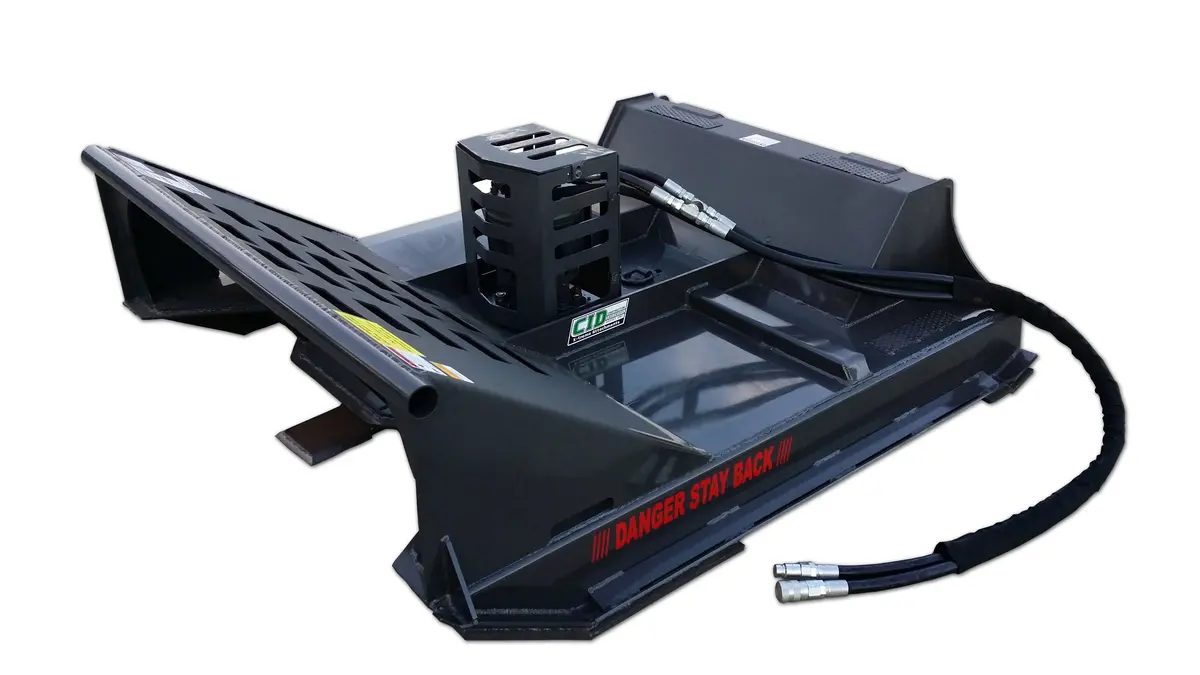

X-treme Duty Piston Motor Brush Cutter
The X-treme Duty Brush Cutter attachment is ideal for the toughest land clearing jobs. It was built to outperform in the most severe environments.
This brush cutter comes standard with a bearing housing and a high torque piston motor. There are three models to choose from:
- 17-27 GPM
- 27-35 GPM
- 30-48 GPM
All of the x-treme duty piston motor brush cutter models come with three bi-directional cutting blades attached to a double clover leaf shaped blade holder. Each model offers a 7 inch cutting capacity.
Model Comparisons & Specifications
27-35 GPM & 30 -48 GPM Model Series
- 7’’ cutting capacity.
- 1/4’’ deck with sides reinforced with 3/8’’ AR400.
- Direct drive piston motor.
- 3 bidirectional blades made with 5/8” AR400.
- Requires a case drain.
- Available in 60”, 72”, 78″ or 84″ cutting width.
- 1/2″ Double clover leaf shaped blade holder.
- Optional mulching teeth.
17 GPM- 27 GPM Model Series
- 7’’ cutting capacity.
- 3/16’’ deck with sides reinforced.
- 3 bidirectional blades made with 5/8” AR400.
- Requires a case drain.
- Direct drive piston motor.
- Available in 60”, 72”, 78″ or 84″ cutting width.
- 3/8″ Double clover leaf shaped blade holder.
- 3/4″ hoses.
- Optional mulching teeth.
The X-treme Duty Brush Cutter Is Built To Outperform In The Most Severe Environments!
The X-treme Duty Brush Cutters have durable powder coat finishes and sleeve protected hydraulic hose lines to outperform in the most severe conditions. All CID attachments are warranted to be free from defects in materials and workmanship for a period of 12 months. This warranty starts from the initial sale, lease or rental date.
SPECIFICATIONS
XBC1730-72MT
| Product Family | X-Treme Duty Piston Cutter |
| Product | XBC1730-72MT |
| Description | X-TREME 17-27 GPM BRUSH CUTTER W/MULCHING TEETH 72” |
| Weight (lbs) | 1602 |
XBC1730-78MT
| Product Family | X-Treme Duty Piston Cutter |
| Product | XBC1730-78MT |
| Description | X-TREME 17-27 GPM BRUSH CUTTER W/MULCHING TEETH 78” |
| Weight (lbs) | 1726 |
XBC1730-60MT
| Product Family | X-Treme Duty Piston Cutter |
| Product | XBC1730-60MT |
| Description | X-TREME 17-27 GPM BRUSH CUTTER W/MULCHING TEETH 60” |
| Weight (lbs) | 1450 |
XBC1730-84MT
| Product Family | X-Treme Duty Piston Cutter |
| Product | XBC1730-84MT |
| Description | X-TREME 17-27 GPM BRUSH CUTTER W/MULCHING TEETH 84” |
| Weight (lbs) | 1879 |
XBC2735-72MT
| Product Family | X-Treme Duty Piston Cutter |
| Product | XBC2735-72MT |
| Description | X-TREME 27-35 GPM BRUSH CUTTER W/MULCHING TEETH, 72” ¼” DECK INCLUDED |
| Weight (lbs) | 1968 |
XBC2735-60MT
| Product Family | X-Treme Duty Piston Cutter |
| Product | XBC2735-60MT |
| Description | X-TREME 27-35 GPM BRUSH CUTTER W/MULCHING TEETH, 60” ¼” DECK INCLUDED |
| Weight (lbs) | 1525 |
XBC2735-84MT
| Product Family | X-Treme Duty Piston Cutter |
| Product | XBC2735-84MT |
| Description | X-TREME 27-35 GPM BRUSH CUTTER W/MULCHING TEETH, 84” ¼” DECK INCLUDED |
| Weight (lbs) | 2370 |
XBC2735-78MT
| Product Family | X-Treme Duty Piston Cutter |
| Product | XBC2735-78MT |
| Description | X-TREME 27-35 GPM BRUSH CUTTER W/MULCHING TEETH, 78” ¼” DECK INCLUDED |
| Weight (lbs) | 1976 |
XBC173060
| Product Family | X-Treme Duty Piston Cutter |
| Product | XBC173060 |
| Description | X-TREME 17-27 GPM BRUSH CUTTER, 60” |
| Motor | Piston Motor Direct Drive |
| Case Drain | Required |
| Flow Requirement (GPM) | 17-27 GPM |
| Hoses | 3/4″ hoses |
| Working Width | 60″ |
| # of Blades | 3 |
| Weight (lbs) | 1315 |
| Cutting Capacity | 7″ |
| Deck Thickness | 3/16″ deck w/ reinforced sides |
| Blade Holder | 3/8″ Double clover leaf shaped blade holder |
| Blades | 5/8″ AR400 |
XBC173072
| Product Family | X-Treme Duty Piston Cutter |
| Product | XBC173072 |
| Description | X-TREME 17-27 GPM BRUSH CUTTER, 72” |
| Motor | Piston Motor Direct Drive |
| Case Drain | Required |
| Flow Requirement (GPM) | 17-27 GPM |
| Hoses | 3/4″ hoses |
| Working Width | 72″ |
| # of Blades | 3 |
| Weight (lbs) | 1575 |
| Cutting Capacity | 7″ |
| Deck Thickness | 3/16″ deck w/ reinforced sides |
| Blade Holder | 3/8″ Double clover leaf shaped blade holder |
| Blades | 5/8″ AR400 |
XBC173078
| Product Family | X-Treme Duty Piston Cutter |
| Product | XBC173078 |
| Description | X-TREME 17-27 GPM BRUSH CUTTER, 78” |
| Motor | Piston Motor Direct Drive |
| Case Drain | Required |
| Flow Requirement (GPM) | 17-27 GPM |
| Hoses | 3/4″ hoses |
| Working Width | 78″ |
| # of Blades | 3 |
| Weight (lbs) | 1660 |
| Cutting Capacity | 7″ |
| Deck Thickness | 3/16″ deck w/ reinforced sides |
| Blade Holder | 3/8″ Double clover leaf shaped blade holder |
| Blades | 5/8″ AR400 |
XBC173084
| Product Family | X-Treme Duty Piston Cutter |
| Product | XBC173084 |
| Description | X-TREME 17-27 GPM BRUSH CUTTER, 84” |
| Motor | Piston Motor Direct Drive |
| Case Drain | Required |
| Flow Requirement (GPM) | 17-27 GPM |
| Hoses | 3/4″ hoses |
| Working Width | 84″ |
| # of Blades | 3 |
| Weight (lbs) | 1785 |
| Cutting Capacity | 7″ |
| Deck Thickness | 3/16″ deck w/ reinforced sides |
| Blade Holder | 3/8″ Double clover leaf shaped blade holder |
| Blades | 5/8″ AR400 |
XBC273560
| Product Family | X-Treme Duty Piston Cutter |
| Product | XBC273560 |
| Description | X-TREME 27-35 GPM BRUSH CUTTER, 60” ¼” DECK INCLUDED |
| Motor | Piston Motor Direct Drive |
| Case Drain | Required |
| Flow Requirement (GPM) | 27-35 GPM |
| Working Width | 60″ |
| # of Blades | 3 |
| Weight (lbs) | 1740 |
| Cutting Capacity | 7″ |
| Deck Thickness | 1/4″ deck with 3/8″ AR400 reinforced sides |
| Blade Holder | 1/2″ Double clover leaf shaped blade holder |
| Blades | 5/8″ AR400 |
XBC273572
| Product Family | X-Treme Duty Piston Cutter |
| Product | XBC273572 |
| Description | X-TREME 27-35 GPM BRUSH CUTTER, 72” ¼” DECK INCLUDED |
| Motor | Piston Motor Direct Drive |
| Case Drain | Required |
| Flow Requirement (GPM) | 27-35 GPM |
| Working Width | 72″ |
| # of Blades | 3 |
| Weight (lbs) | 1851 |
| Cutting Capacity | 7″ |
| Deck Thickness | 1/4″ deck with 3/8″ AR400 reinforced sides |
| Blade Holder | 1/2″ Double clover leaf shaped blade holder |
| Blades | 5/8″ AR400 |
XBC273578
| Product Family | X-Treme Duty Piston Cutter |
| Product | XBC273578 |
| Description | X-TREME 27-35 GPM BRUSH CUTTER, 78” ¼” DECK INCLUDED |
| Motor | Piston Motor Direct Drive |
| Case Drain | Required |
| Flow Requirement (GPM) | 27-35 GPM |
| Working Width | 78″ |
| # of Blades | 3 |
| Weight (lbs) | 1964 |
| Cutting Capacity | 7″ |
| Deck Thickness | 1/4″ deck with 3/8″ AR400 reinforced sides |
| Blade Holder | 1/2″ Double clover leaf shaped blade holder |
| Blades | 5/8″ AR400 |
XBC273584
| Product Family | X-Treme Duty Piston Cutter |
| Product | XBC273578 |
| Description | X-TREME 27-35 GPM BRUSH CUTTER, 78” ¼” DECK INCLUDED |
| Motor | Piston Motor Direct Drive |
| Case Drain | Required |
| Flow Requirement (GPM) | 27-35 GPM |
| Working Width | 78″ |
| # of Blades | 3 |
| Weight (lbs) | 1964 |
| Cutting Capacity | 7″ |
| Deck Thickness | 1/4″ deck with 3/8″ AR400 reinforced sides |
| Blade Holder | 1/2″ Double clover leaf shaped blade holder |
| Blades | 5/8″ AR400 |
XBC304860
| Product Family | X-Treme Duty Piston Cutter |
| Product | XBC304860 |
| Description | X-TREME 30-48 GPM BRUSH CUTTER, 60”, ¼” DECK INCLUDED |
| Motor | Piston Motor Direct Drive |
| Case Drain | Required |
| Flow Requirement (GPM) | 30-48 GPM |
| Working Width | 60″ |
| # of Blades | 3 |
| Weight (lbs) | 1588 |
| Cutting Capacity | 7″ |
| Deck Thickness | 1/4″ deck with 3/8″ AR400 reinforced sides |
| Blade Holder | 1/2″ Double clover leaf shaped blade holder |
| Blades | 5/8″ AR400 |
XBC304872
| Product Family | X-Treme Duty Piston Cutter |
| Product | XBC304872 |
| Description | X-TREME 30-48 GPM BRUSH CUTTER, 72”, ¼” DECK INCLUDED |
| Motor | Piston Motor Direct Drive |
| Case Drain | Required |
| Flow Requirement (GPM) | 30-48 GPM |
| Working Width | 72″ |
| # of Blades | 3 |
| Weight (lbs) | 1900 |
| Cutting Capacity | 7″ |
| Deck Thickness | 1/4″ deck with 3/8″ AR400 reinforced sides |
| Blade Holder | 1/2″ Double clover leaf shaped blade holder |
| Blades | 5/8″ AR400 |
XBC304878
| Product Family | X-Treme Duty Piston Cutter |
| Product | XBC304878 |
| Description | X-TREME 30-48 GPM BRUSH CUTTER, 78”, ¼” DECK INCLUDED |
| Motor | Piston Motor Direct Drive |
| Case Drain | Required |
| Flow Requirement (GPM) | 30-48 GPM |
| Working Width | 78″ |
| # of Blades | 3 |
| Weight (lbs) | 2024 |
| Cutting Capacity | 7″ |
| Deck Thickness | 1/4″ deck with 3/8″ AR400 reinforced sides |
| Blade Holder | 1/2″ Double clover leaf shaped blade holder |
| Blades | 5/8″ AR400 |
XBC304884
| Product Family | X-Treme Duty Piston Cutter |
| Product | XBC304884 |
| Description | X-TREME 30-48 GPM BRUSH CUTTER, 84” ¼” DECK INCLUDED |
| Motor | Piston Motor Direct Drive |
| Case Drain | Required |
| Flow Requirement (GPM) | 30-48 GPM |
| Working Width | 84″ |
| # of Blades | 3 |
| Weight (lbs) | 2241 |
| Cutting Capacity | 7″ |
| Deck Thickness | 1/4″ deck with 3/8″ AR400 reinforced sides |
| Blade Holder | 1/2″ Double clover leaf shaped blade holder |
| Blades | 5/8″ AR400 |
XC3048-72MT
| Product Family | X-Treme Duty Piston Cutter |
| Product | XC3048-72MT |
| Description | X-TREME 30-48 GPM BRUSH CUTTER W/MULCHING TEETH, 72” ¼” DECK INCLUDED |
| Weight (lbs) | 1896 |
XC3048-84MT
| Product Family | X-Treme Duty Piston Cutter |
| Product | XC3048-84MT |
| Description | X-TREME 30-48 GPM BRUSH CUTTER W/MULCHING TEETH, 84” ¼” DECK INCLUDED |
| Weight (lbs) | 2500 |
XC3048-78MT
| Product Family | X-Treme Duty Piston Cutter |
| Product | XC3048-78MT |
| Description | X-TREME 30-48 GPM BRUSH CUTTER W/MULCHING TEETH, 78” ¼” DECK INCLUDED |
| Weight (lbs) | 2176 |
XC3048-60MT
| Product Family | X-Treme Duty Piston Cutter |
| Product | XC3048-60MT |
| Description | X-TREME 30-48 GPM BRUSH CUTTER W/MULCHING TEETH, 60” ¼” DECK INCLUDED |
| Weight (lbs) | 1692 |
