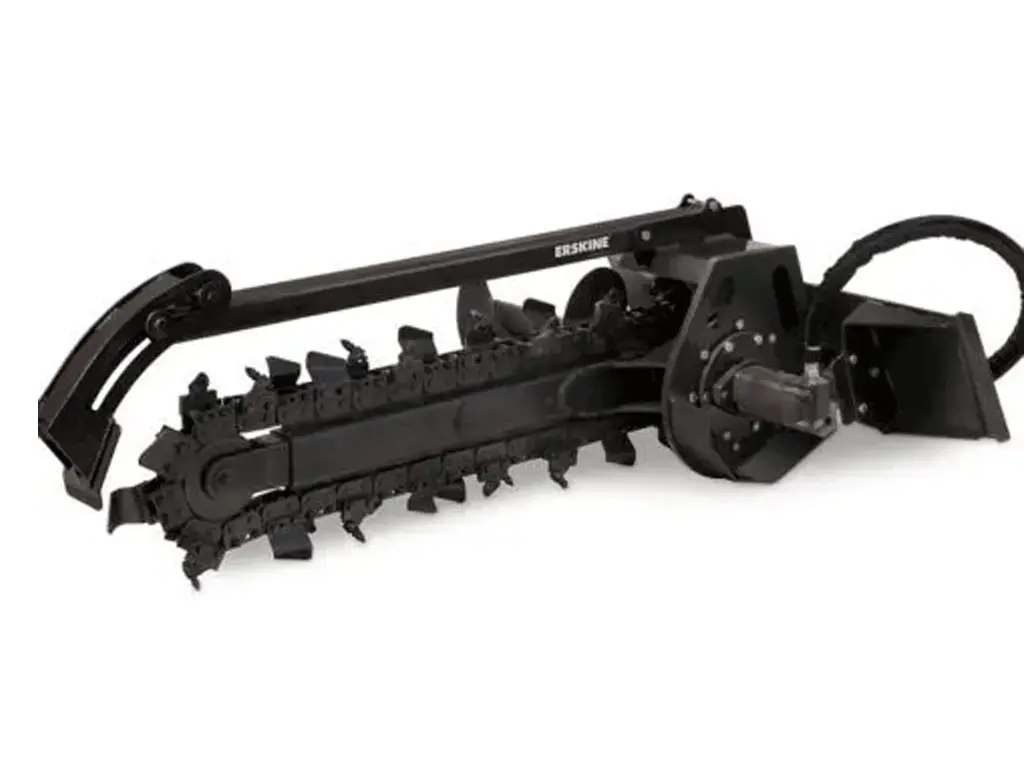

Mini Trencher

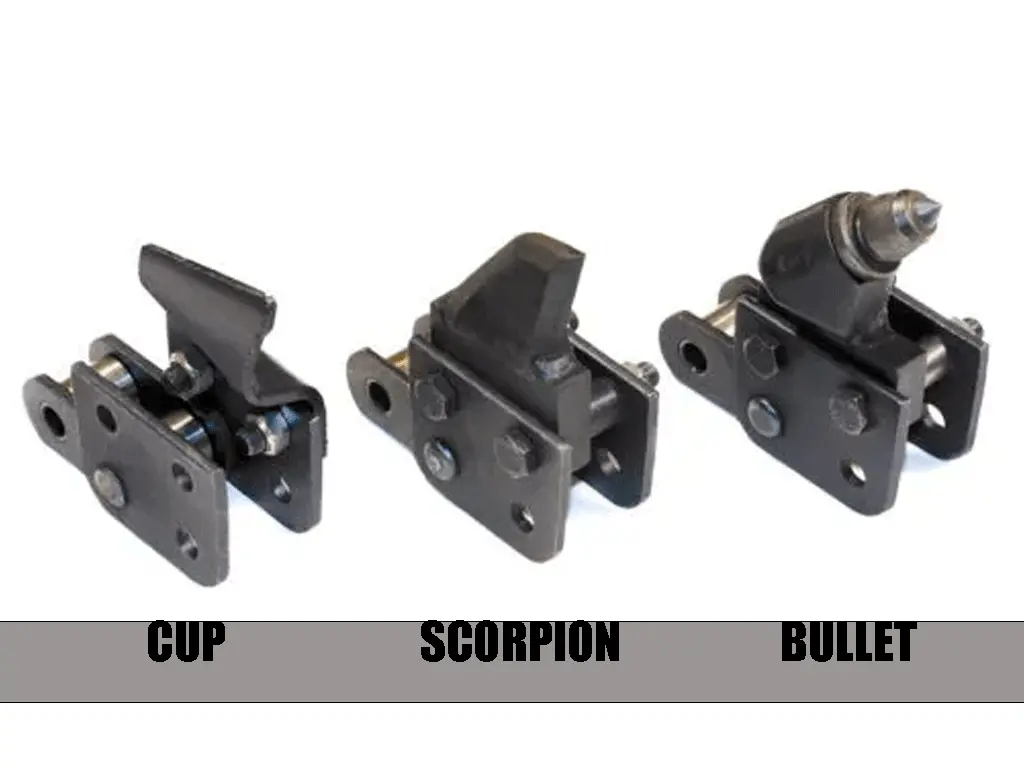

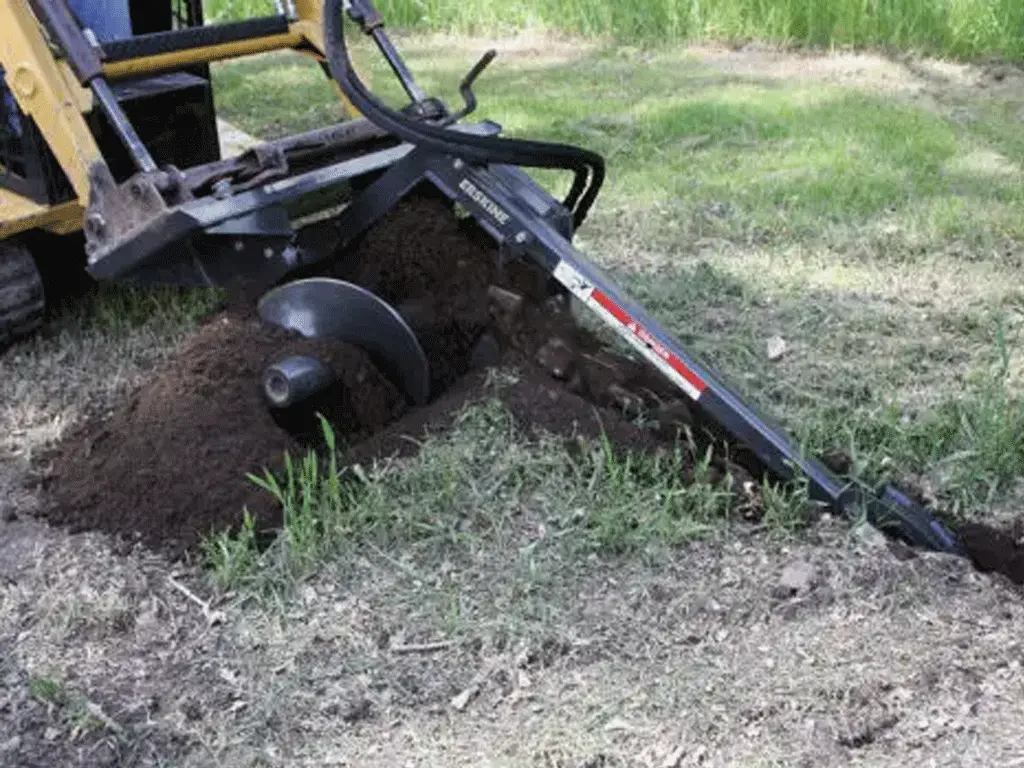

The Mini Trencher is the perfect trench digging solution for your mini skid steer or walk behind machine. Cut through the toughest earth with ease with available bullet and scorpion tooth chains. Built-in skid shoe provides proper auger depth control for a smooth cut and faster digging. The spoil auger is also removable allowing you to get right up to the side of a structure or other obstacle. The 3’ boom digs deep while the heavy-duty crumber shoe removes loose material. For tough to tackle trenching jobs, our unit provides the perfect solution.
Features
- Direct-drive design
- 3’ boom with crumber shoe that is removable
- 12” spoil auger that is removable
SPECS
| Model | Trencher Mini |
| Overall Width | 40.38” |
| Overall Height | 24” |
| Overall Length | 79.38” |
| Trenching Depth @ 60° | 38” |
| Operating psi | 2,000 – 3,000 psi |
| Rated Flow | 7-16 GPM |
| Shaft Speed | 85-185 RPM |
| Weight (3’ x 6” Double Chain) | 600 lb. |
| Mounting Kit Configurations | ASV/Terex (RC/PT30) |
| Bobcat (MT-52/55, 463/S70) | |
| Toro / Vermeer / Boxer / Ditch Witch / Ramrod / Kanga / Cormidi | |
| Universal Mounting Plate (up to 1,000 lb. ROC and within rated flow) | |
| Options | |
| Factory Installed Couplers | |
| Models | |
| 6” Cup | 901036 |
| 6” 50/50 Cup with Bullet | 901037 |
| 6” 50/50 Cup with Scorpion | 901038 |
| 8” Cup | 901039 |
| 8” 50/50 Cup with Bullet | 901040 |
| 8” 50/50 Cup with Scorpion | 901041 |
