DESCRIPTION

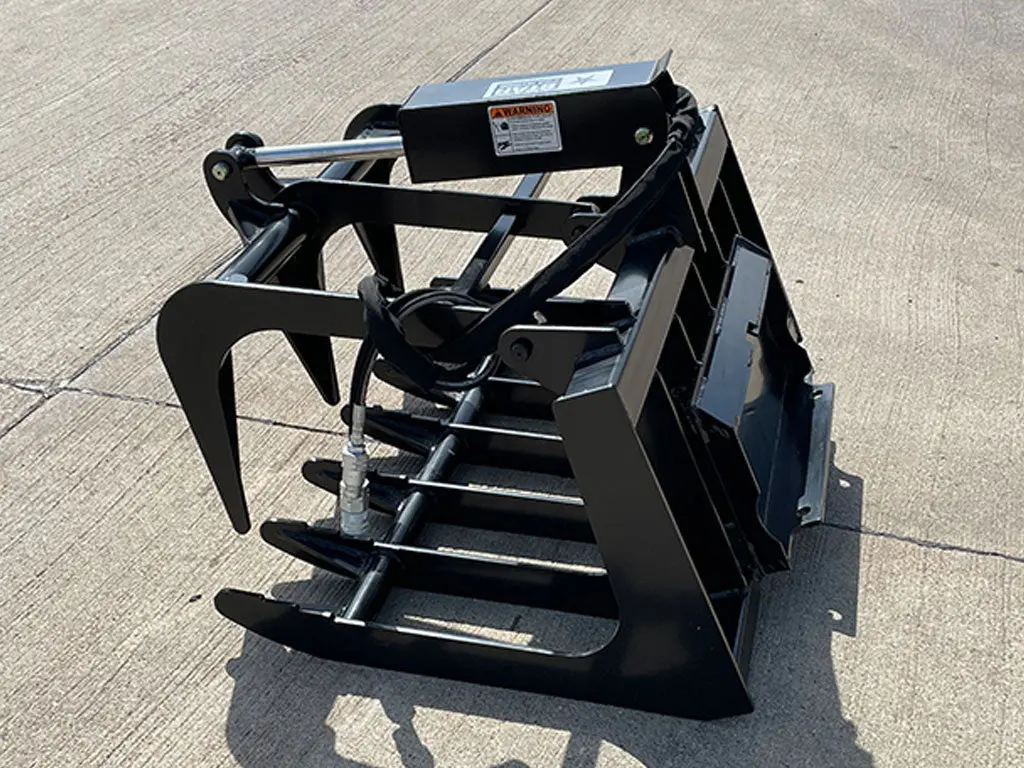

Mini Root Grapple Buckets
Move bulky, hard-to-handle materials like brush and logs easily with a Star Industries Mini Root Grapple. The root grapples lets dirt sift out when loading large rocks and trash making it the perfect attachment of debris clean up. Grapple opens extra wide for a full load.
- Made for Dingo, Ditchwitch, Vermeer, Boxer, Ramrod and Bobcat Mini Skid-Steers
- Protective sleeves on all hydraulic lines
SPECIFICATIONS
Mini Root Grapple
| Model | 170-MI-44 | 170-MIBC-44 |
|---|---|---|
| Fits | Dingo, Ditchwitch, Vermeer, Boxer and Ramrod | Bobcat |
| Empty Weight | 245 lbs | 245 lbs |
Specifications
| Measurements | Root Grapple |
|---|---|
| Width | 44” O.D. |
| Hyd. Cylinder | 2” Bore by 10” Stroke |
| Grapple Tines | 5/16” thick |
| Grapple Max Opening | 30” |
| Overall Depth | 35 ½” |
| Overall Height | 26” |
| Bucket Height | 20” |
| Bucket Depth | Does not apply |
| Pivot Pins | 1” DIA: Grease fittings on all pivot points |
| Hyd. Hoses | Protective sleeves on all hydraulic lines |
| Hyd. Quick-Disconnects | ½” flat body couplers included |
