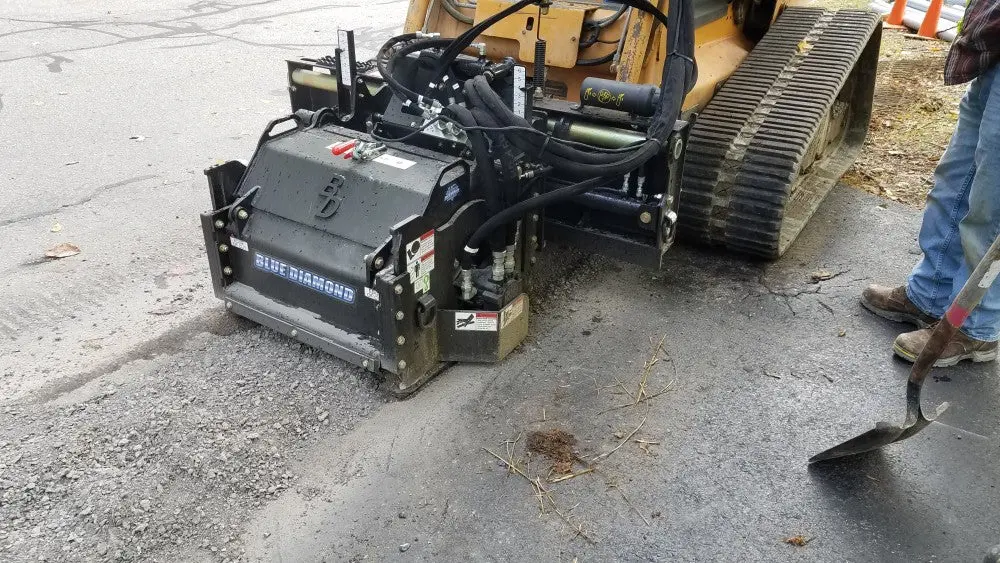

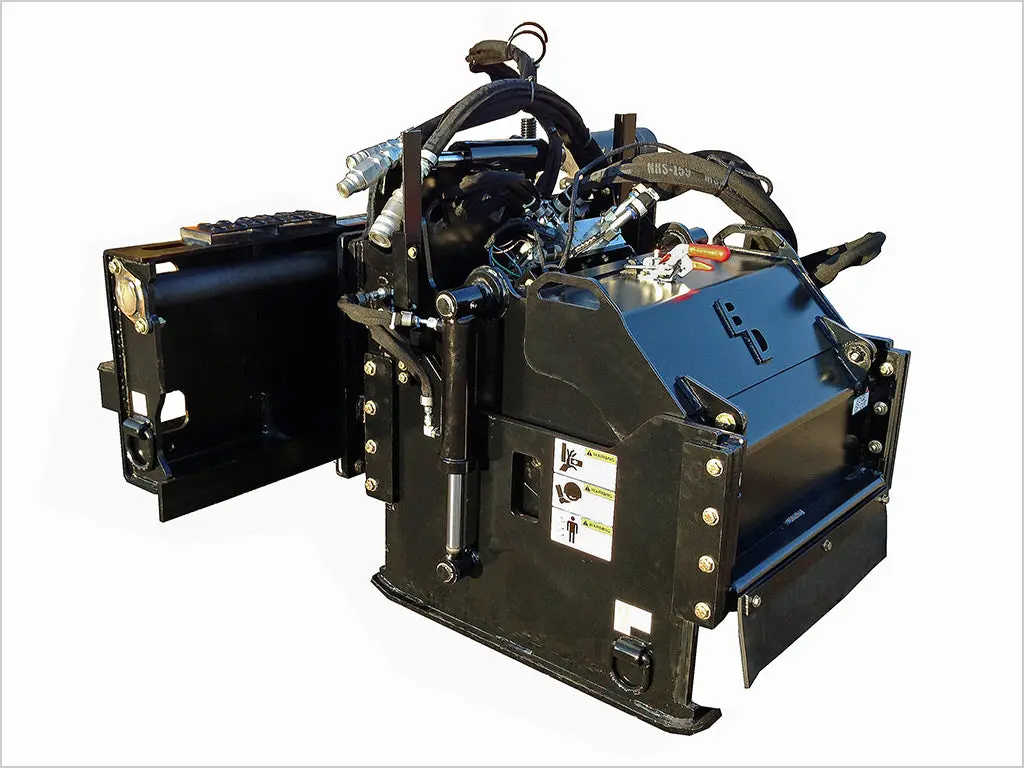

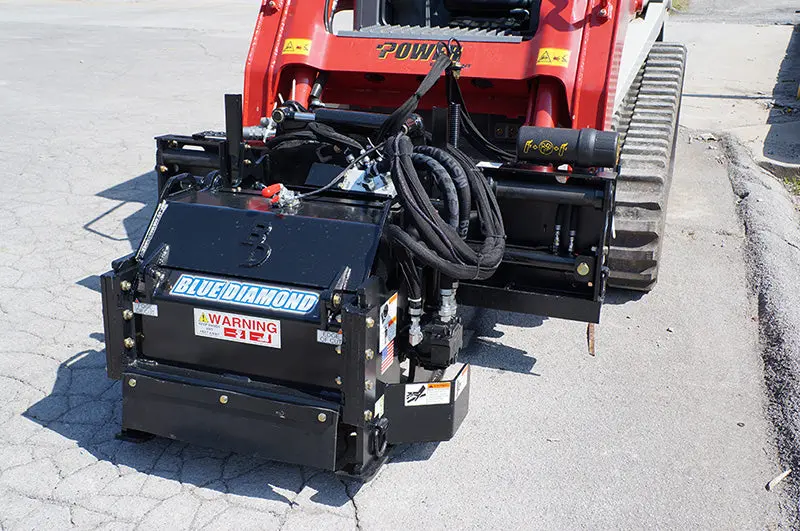

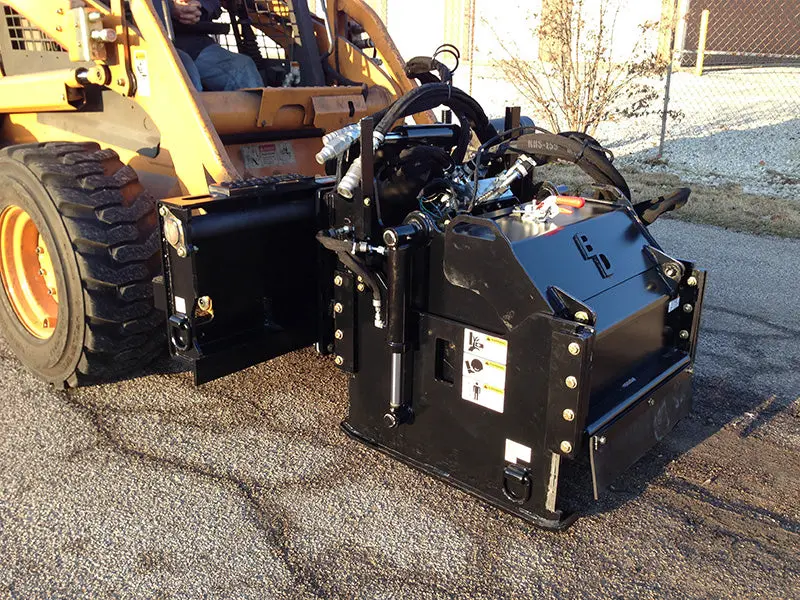

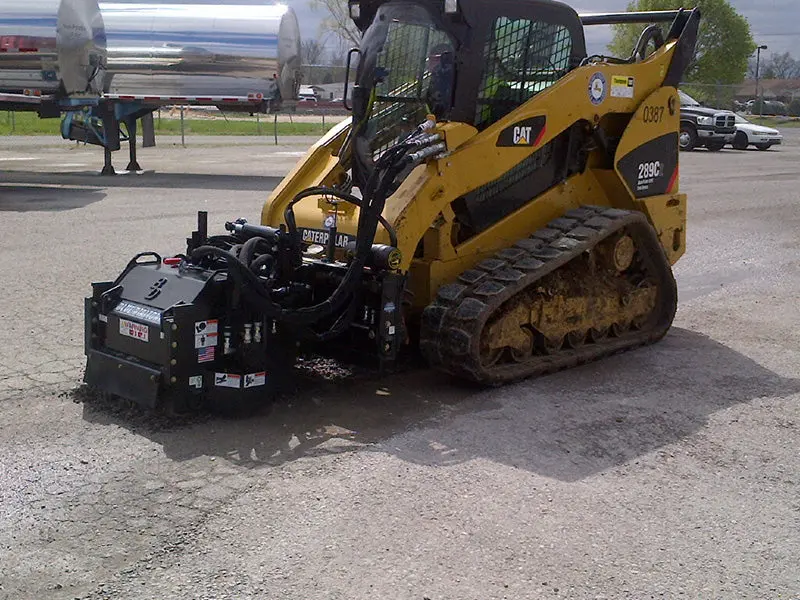

Blue Diamond Severe-Duty Cold Planer – High-Flow Hydraulic Model

Description

DESCRIPTION

Revised 5/24

4/24

COLD PLANER SEVERE DUTY HIGH-FLOW

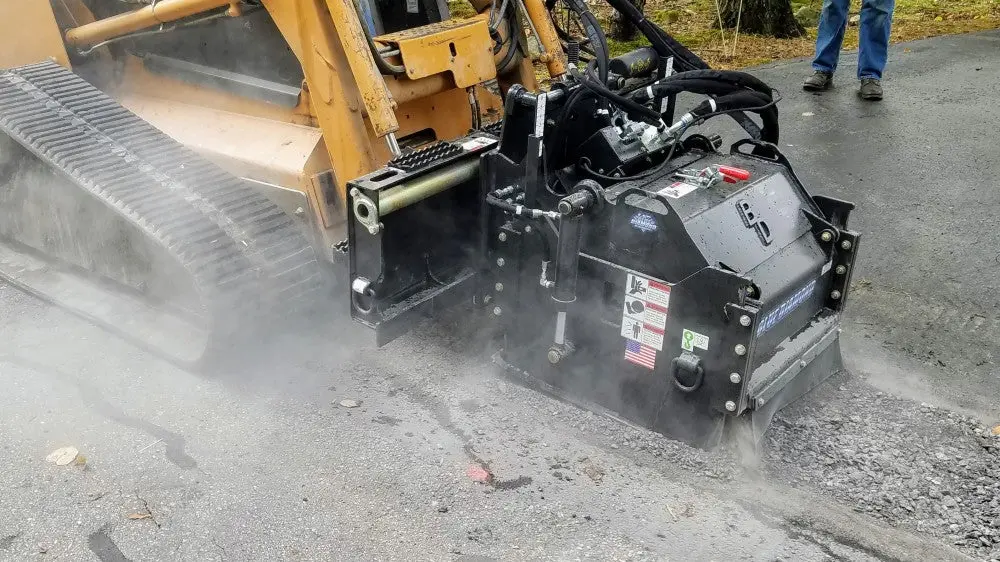

The Blue Diamond® Severe Duty High Flow Cold Planer uses the most trusted components in the industry, from the Sauer piston motor to the Fairfield planetary hub featured in the high-flow models, such as this one. These high-end components, combined with the highly engineered design, makes this one of the most reliable units available for a skid steer attachment. Rental Recommended.

FEATURES

• Hydraulic adjustment controls
• Hydraulic side shift
• High-torque, planetary drive
• High drum weight = less vibration
• 1 1/2″ thick drum tube

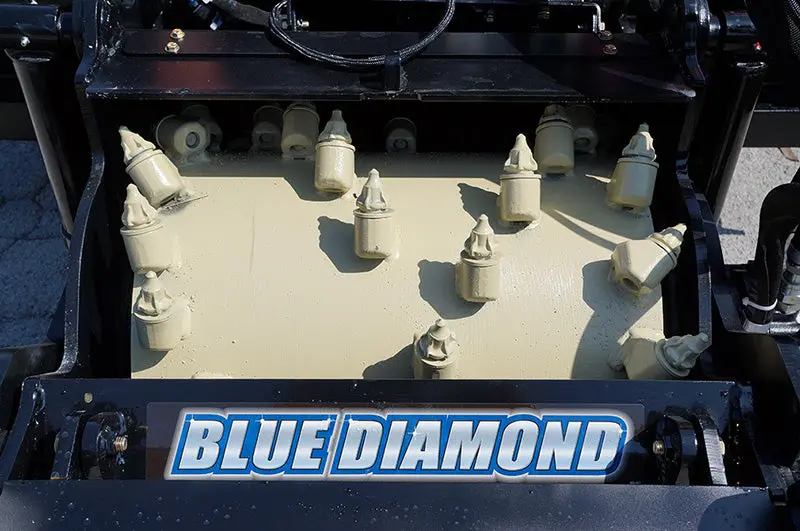

• Easy access tooth replacement
• Water kit available

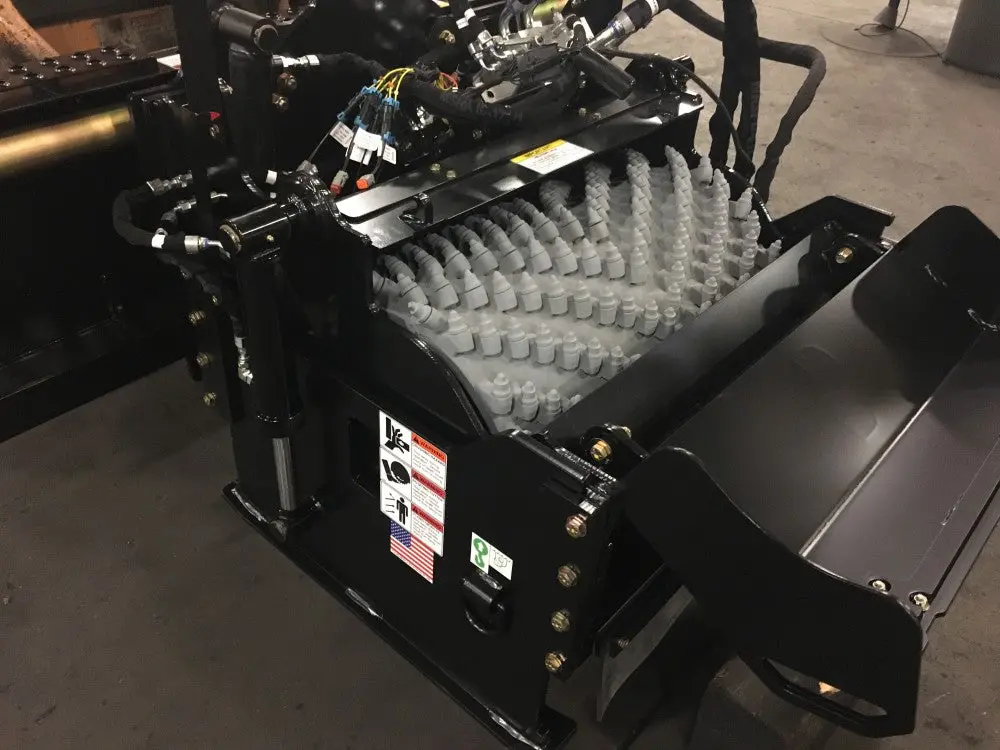

• Fine-cut drum available
• Hard facing & stand-off blocks
• Up to 8″ cutting depth

APPLICATION INCLUDE:

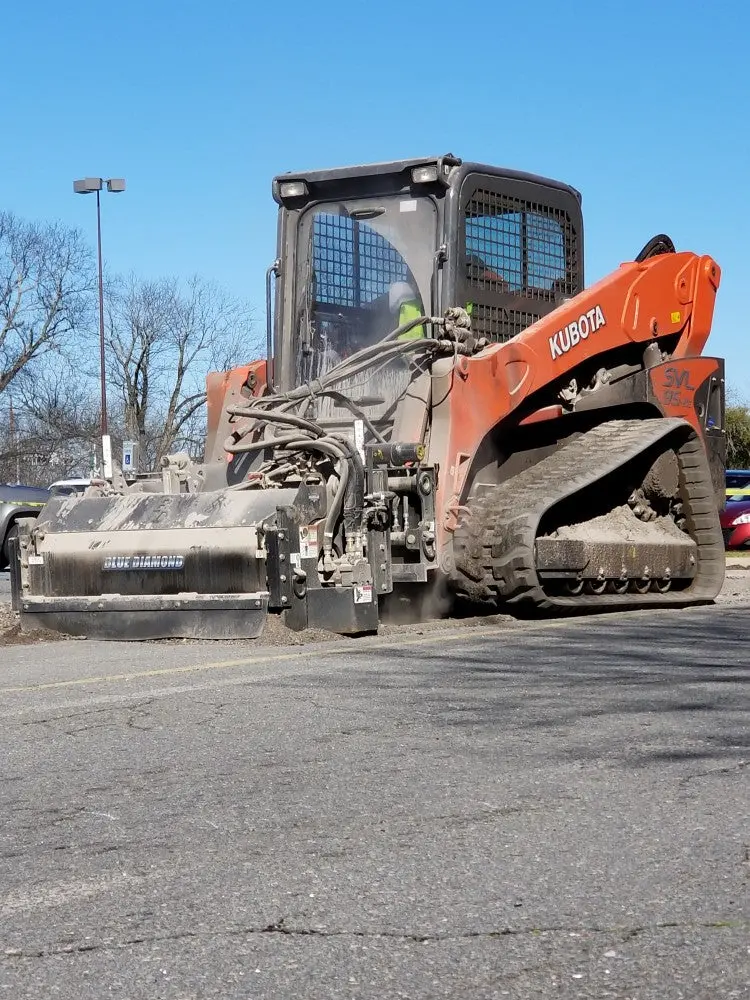

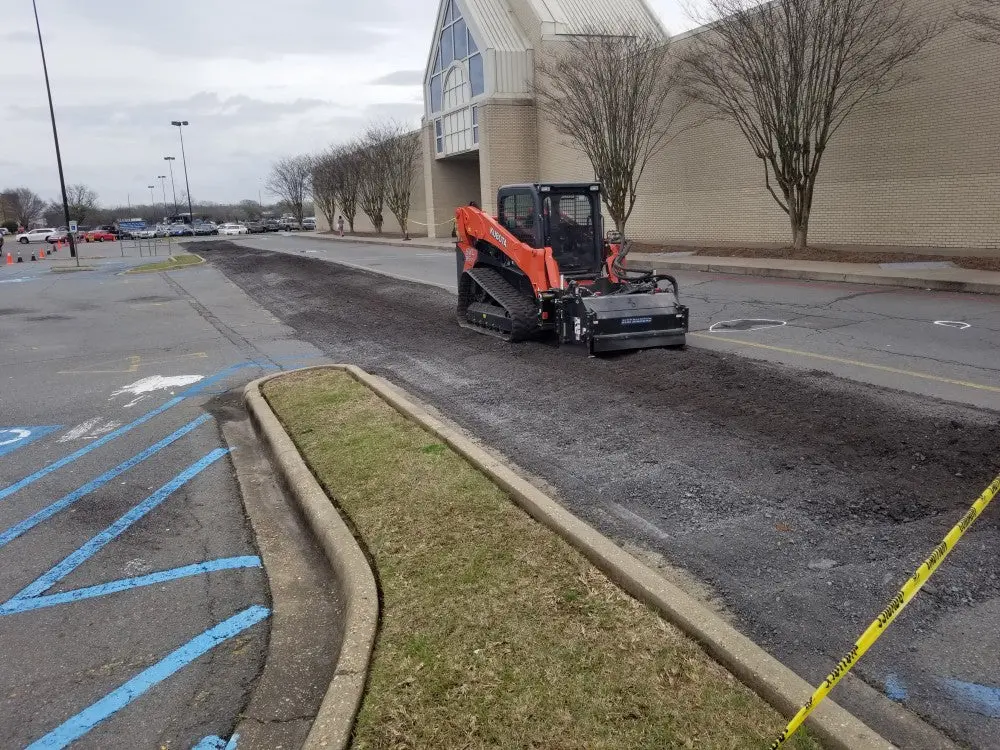

• Removing asphalt surfaces prior to overlay
• Widening shoulders
• Repairing potholes
• Restoring drainage lines
• Mixing stabilizing agents into base for a more durable repair

SPECS

Part Number	Model	Number of Teeth	Mix-Max Flow	Mix-Max Pressure	Weight
160810-HP	18″ Severe Duty	46	30-45 GPM	3000-5000 PSI	2,050 lbs
160815-HP	24″ Severe Duty	56	30-45 GPM	3000-5000 PSI	2,300 lbs
160820	30″ Severe Duty	66	30-45 GPM	2000-3500 PSI	2,770 lbs
160820-HP	30″ Severe Duty	66	30-45 GPM	3000-5000 PSI	2,550 lbs
160825	40″ Severe Duty	76	30-45 GPM	3000-5000 PSI	2,975 lbs
160825-HP	40″ Severe Duty	76	30-45 GPM	3000-5000 PSI	3,000 lbs
160830-HP	40″ Severe Duty	106	30-45 GPM	3250-5000 PSI	3,200 lbs

CONTROL TYPES

WE WILL NEED TO KNOW YOUR MAKE AND MODEL OF MACHINE AND THE HYDRAULIC CONTROL TYPE YOU HAVE.

• BOBCAT (3) LINE – MOST COMMON
• BOBCAT (5) LINE
• CASE (3) LINE
• CASE (5) LINE XT SERIES
• CAT (5) LINE A,B,C-SERIES
• CAT (3) LINE D-SERIES
• DEERE (3) LINE D-SERIES
• DEERE (5) LINE
• JCB (3) LINE
• NEW HOLLAND (3) LINE
• VOLVO (3) LINE
