Description

DESCRIPTION

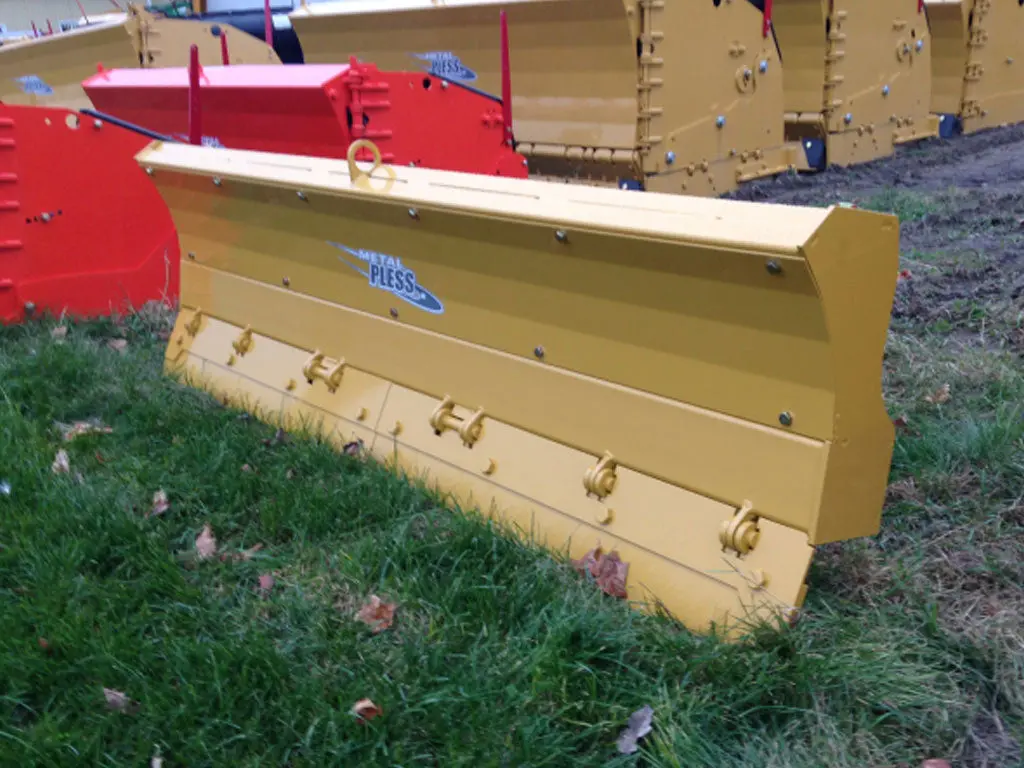

SNOW PLOW

PLOWMAXX JR

Snow plow with hydraulic angle. The PlowMaxx JR can be installed on a skid steer, backhoe or wheel loader.

FEATURES – Plowmaxx JR

• Adjustable angulation of the blade
• “Heavy duty” CHT400 steel cutting edge ½’’ x 6’’ (Std)
• Full tripping system of the blade (PLjr models, Std)
• “Heavy duty” multi-section mechanical trip edge ½’’ x 6″ (PLSO models, Std)
• SOFT drive mechanical steel trip edge, “Heavy duty” multi-section ½” x 6″ (HD)
• Mobile steel trip edge following the imperfection of roads, exclusive Metal Pless system, reduces up to 50% the use of salt and abrasives (LE)
• Carbide cutting edge (LE)
• Adjustable crossover relief valve for hydraulic protection
• Lateral floating of the blade
• Baked powder paint
• This system requires 1 set of oil outlets

AVAILABLE OPTIONS – Plowmaxx JR

• Teflon cutting edge ¾’’ x 6’’
• Carbide cutting edge
• Non standard color
• Quick attach

SPECS

Model	Width	Height	Application	Approx. weight
PLJR 527	5′	27″	30 – 40 HP	460 lbs
PLJR 627	6′	27″	30 – 50 HP	500 lbs
PLJR 727	7′	27″	40 – 60 HP	560 lbs
PLJR 827	8′	27″	50 – 70 HP	635 lbs
PLSO 730	7′	30″	60 – 70 HP	925 lbs
PLSO 830	8′	30″	70 – 80 HP	975 lbs
PLSO 930	9′	30″	80 – 90 HP	1025 lbs
PLSO 1036	10′	36″	80 – 100 HP	1650 lbs
PLSO 1236	12′	36″	100 HP and up	1950 lbs
PLSO 1242	12′	42″	125 HP and up	2375 lbs
