Description
DESCRIPTION
Revised 1/24
SNOW PLOW
LIVEBOXX

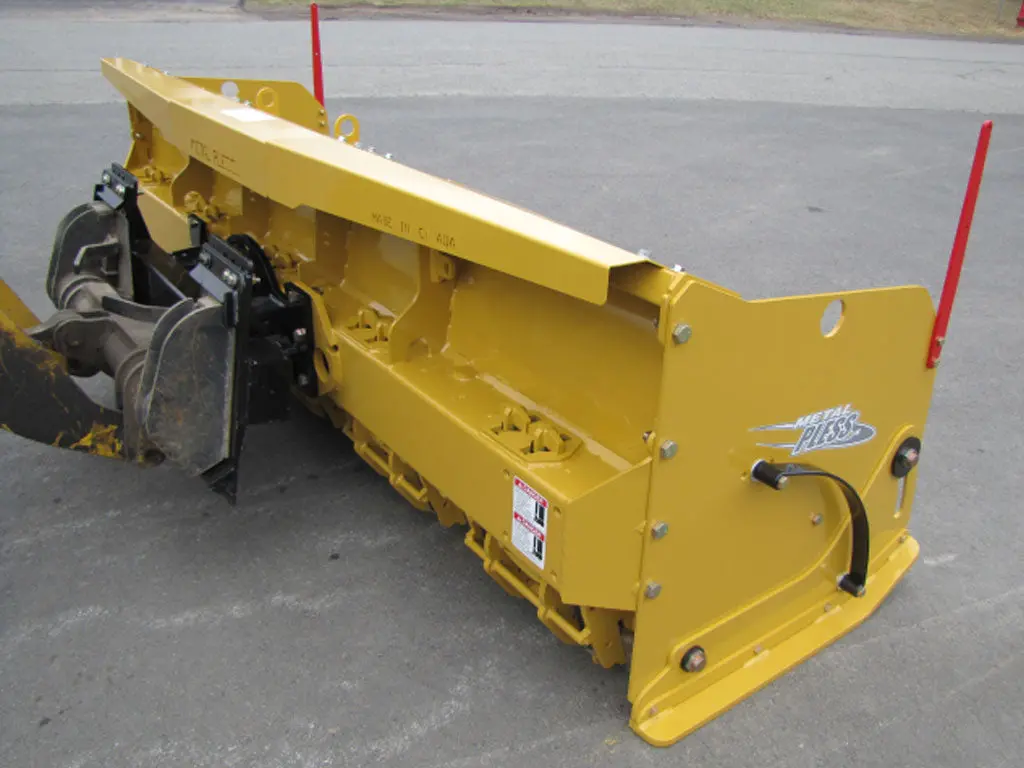

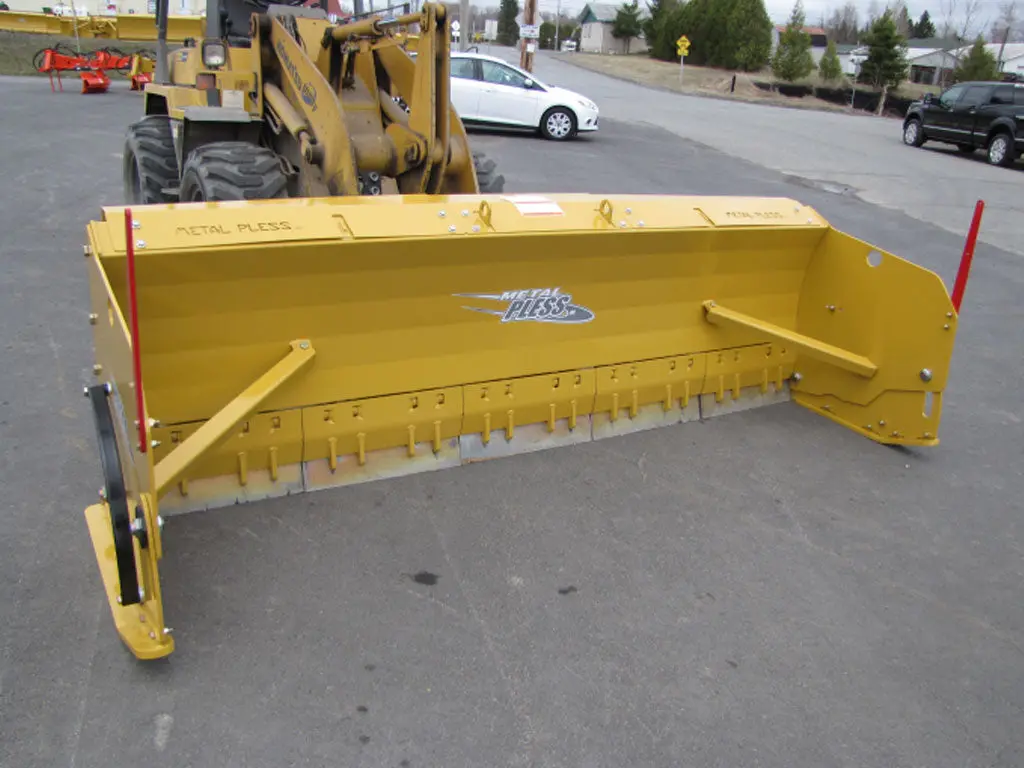

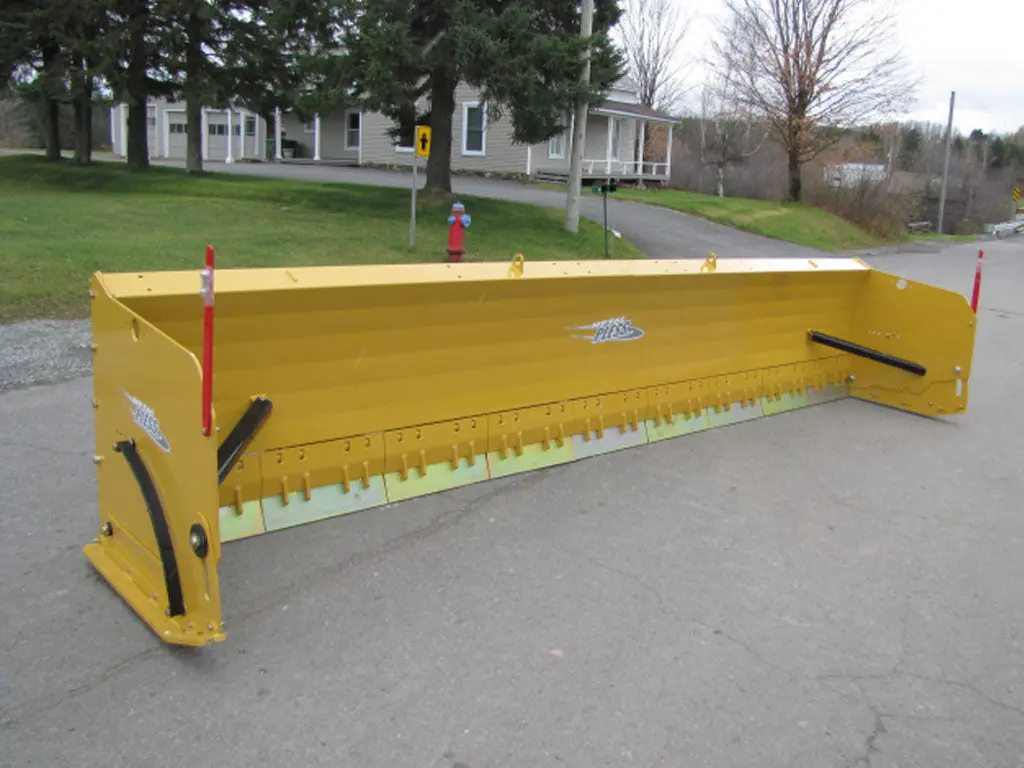

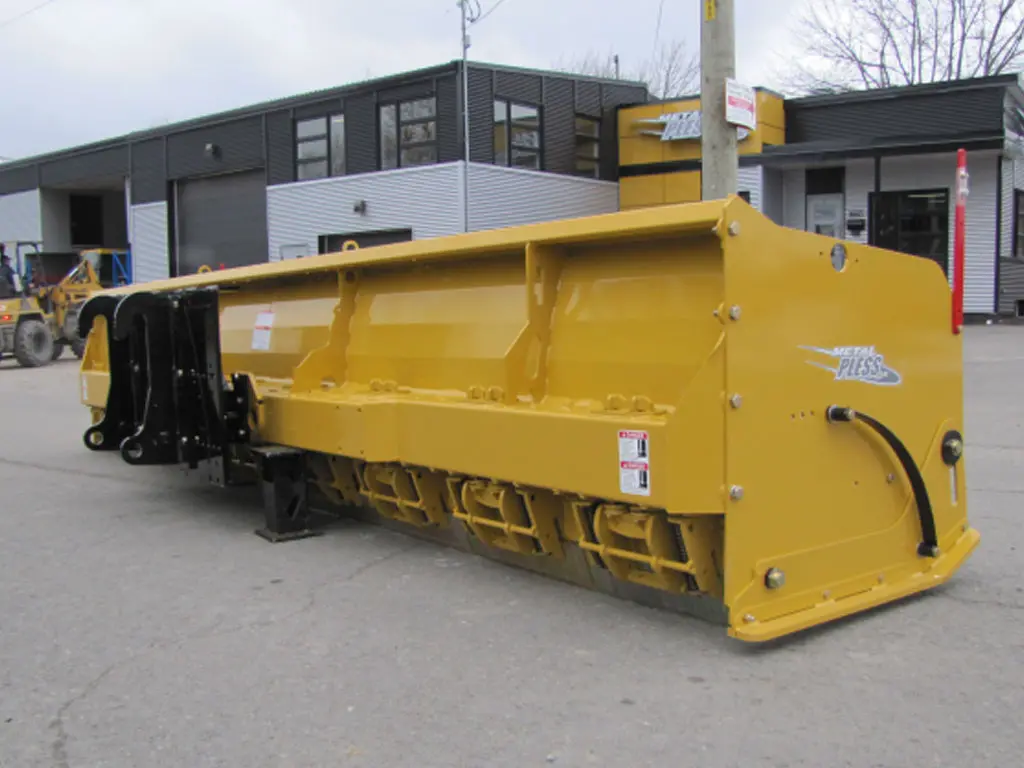

Box plow with fixed wings and “Live Edge” trip system. LiveBoxx pusher is installed on a skid steer, backhoe or wheel loader.
FEATURES – Liveboxx

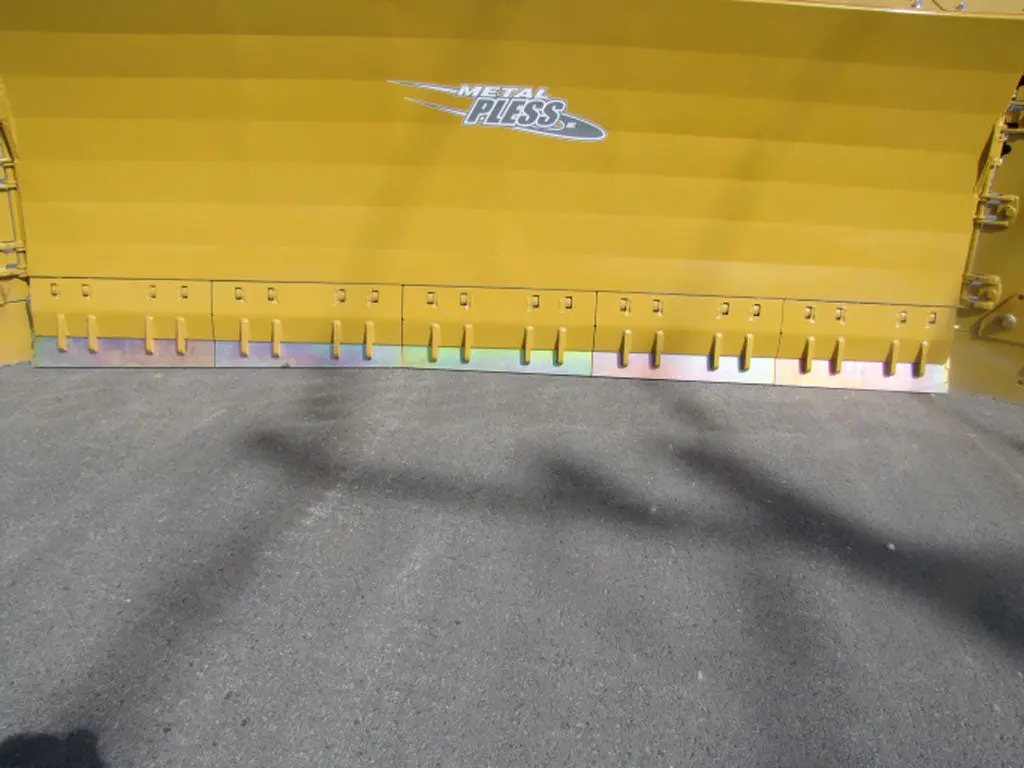

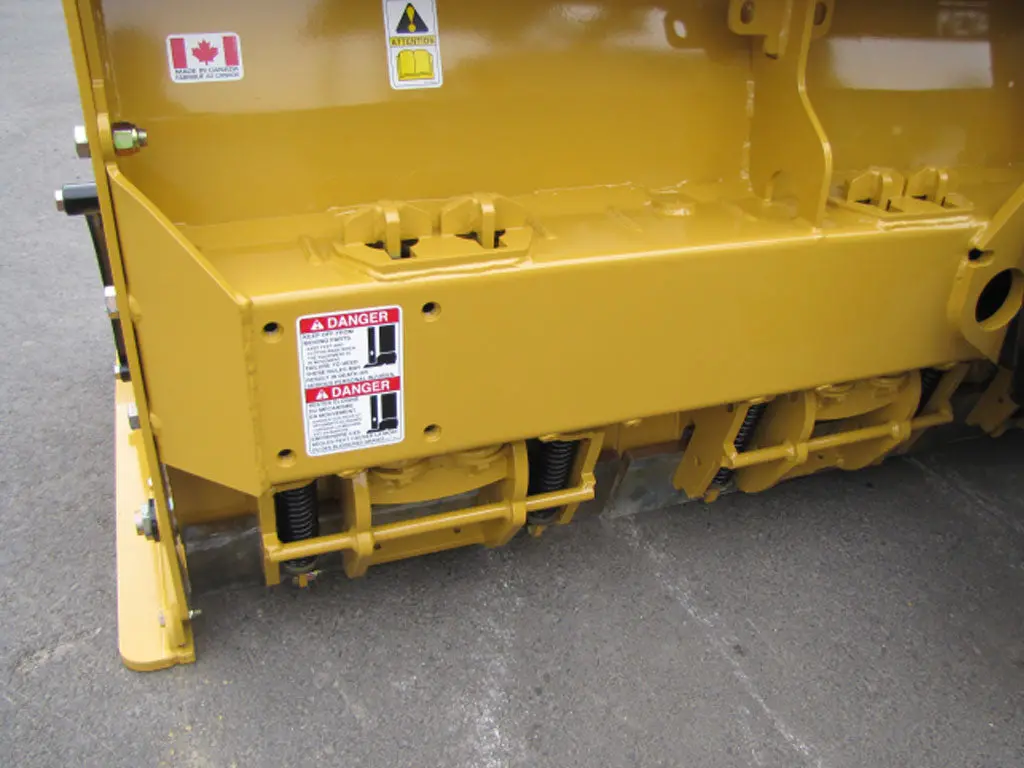

- “LiveEdge” soft drive mechanical steel trip edge heavy duty multi-section 6″ x ¾” x 24″
- Mobile steel trip edge following the imperfection of roads, exclusive Metal Pless system, reduces up to 50% the use of salt and abrasives
- Carbide cutting edge on main mouldboard only
- Bolt-on fixed side wings
- Wings have self-leveling abrasion shoes
- Lateral floating of the blade
- Wear plate welded to the skid shoes
- Heavy duty braces bolted to the mouldboard and to the side wings
- Baked powder paint
- Bucket mount or adaptor plate
AVAILABLE OPTIONS – Liveboxx
- Quick attach
- Non standard color
SPECS
| Model | Blade position & width | Approx. weight | ||
| Width | Height | Depth | ||
| LBX0832 | 8′ | 32″ | 36″ | 1345 lbs |
| LBX1032 | 10′ | 32″ | 36″ | 1550 lbs |
| LBX1232 | 12′ | 32″ | 36″ | 1760 lbs |
| LBX1236 | 12′ | 36″ | 36″ | 1935 lbs |
| LBX1042 | 10′ | 42″ | 42″ | 2250 lbs |
| LBX1242 | 12′ | 42″ | 42″ | 2565 lbs |
| LBX1442 | 14′ | 42″ | 42″ | 2805 lbs |
| LBX1642 | 16′ | 42″ | 42″ | 3045 lbs |
| LBX1842 | 18′ | 42″ | 42″ | 3285 lbs |
| LBX2042 | 20′ | 42″ | 42″ | 3525 lbs |
| LBX1248 | 12′ | 48″ | 48″ | 2615 lbs |
| LBX1448 | 14′ | 48″ | 48″ | 3305 lbs |
| LBX1648 | 16′ | 48″ | 48″ | 3545 lbs |
| LBX1848 | 18′ | 48″ | 48″ | 3785 lbs |
| LBX2048 | 20′ | 48″ | 48″ | 4025 lbs |
