TRACTOR

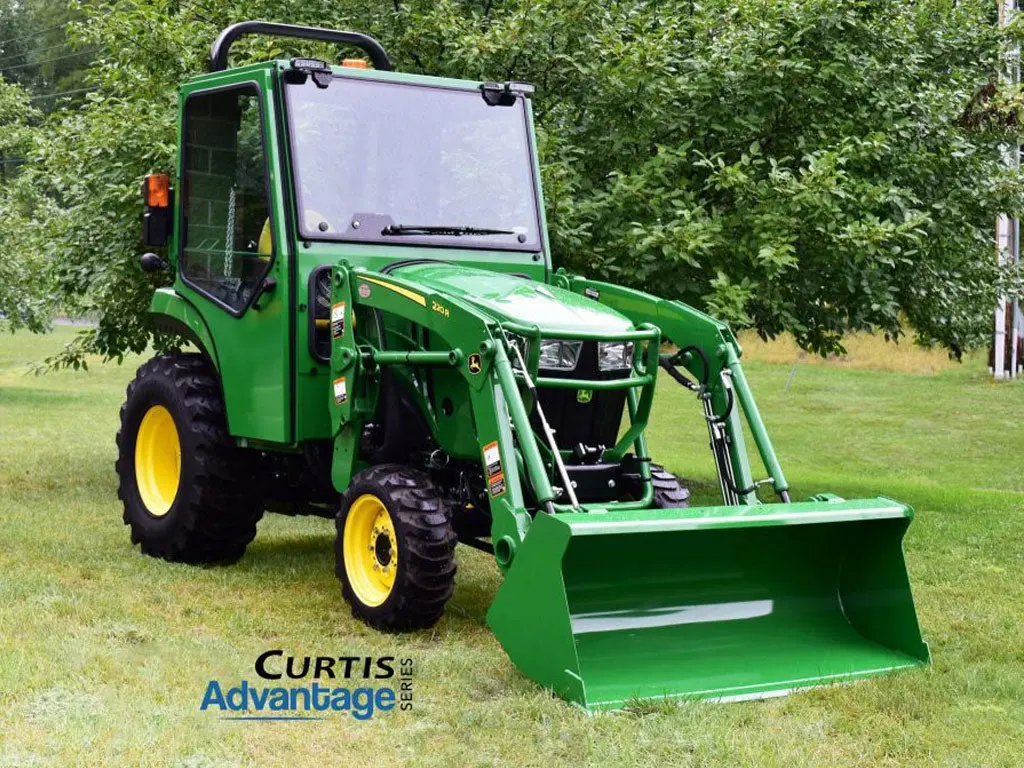

Advantage Cab for John Deere 2032R | 2038R (2017+)
Includes cab heater and front windshield wiper.
**Cab may be shown with optional accessories
Curtis Advantage Cabs offers maximum protection from winter weather and features lockable steel doors with large windows and a glass rear panel window. Both the doors and rear panel window feature easy toolless removal. Fully enclosed with an additional seal kit for full protection from the winter weather, vent the front windshield and rear panel for comfort in the spring and fall seasons, and remove the doors and rear window during the heat of summer, for full four-season comfort.
John Deere 2032R | 2038R Advantage Cab fits John Deere models 2032R and 2038R (2017 – current).
FEATURES
- Corrosion-resistant powder coat finish
- The cab matches John Deere green to complement the vehicle
- Steel roof with acoustical headliner and tapered drip edge
- Venting glass windshield
- Venting/removable rear glass panel; locks open to vent or lifts out in seconds
- Pin-hinged doors and rear panel for easy removal
- Large, clear glass windows and rear panel provide distortion-free visibility
- Easily relocate factory fender lights to the cab side frame for front or rear illumination
- Locking doors
- Backhoe compatible
SPECS
- Shipping dimensions: 76 x 16 x 70 inches
- Shipping weight: 437 lbs.
- Cab weight: 328 lbs.
- Height above floorboard: 60 inches floorboard to roof
- Width: 53.25 inches
- Backhoe compatible: Yes
- Heater: Hot water heater with adjustable vents
- Front wiper: 12-volt heavy-duty, 110-degree sweep
- Windshield: Glass
- Door windows: Glass
- Rear panel: Glass
- Roof: Steel with acoustical headliner
- Pre-drilled holes for optional side mirrors
- Installation Manual
OPTIONS
- Curtis Cab Door Storage Bracket Kit (1CDSB-B | 1CDSB-W)
- Single Point Hydraulic Connector (SPHC) Relocation Bracket (1JD2FSPHRB)
- Rear wiper (9PWKRP2F)
- 3-inch round work lights (9LEDW3)
- 3 x 6-inch oval work lights (9LEDW2)
- 2 x 6-inch low-profile work lights (9LEDW4)
- Side mirrors (9PM5)
- Rearview mirror: (9PM3)
- Seal kit (9JD2FSK)*
- Strobe light (9LEDS2)
- Dome light (9LEDD10)
- Sure Step Kit (9CST)
*We recommend the optional seal kit (9JD2FSK) for improved draft and dust protection.
