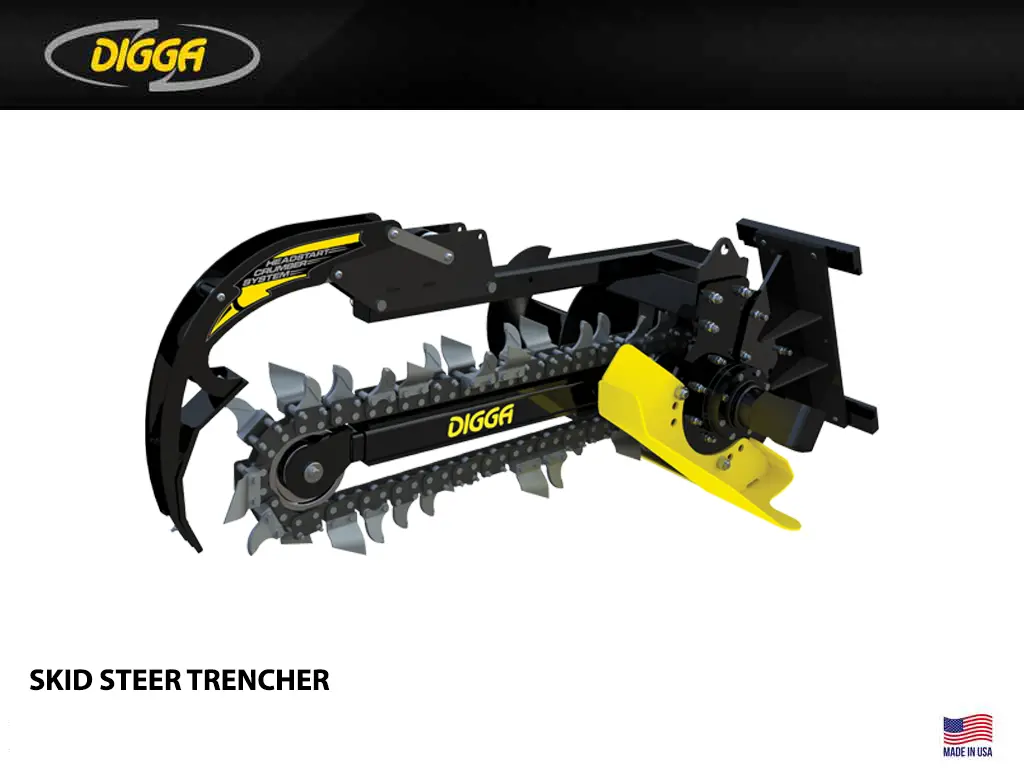

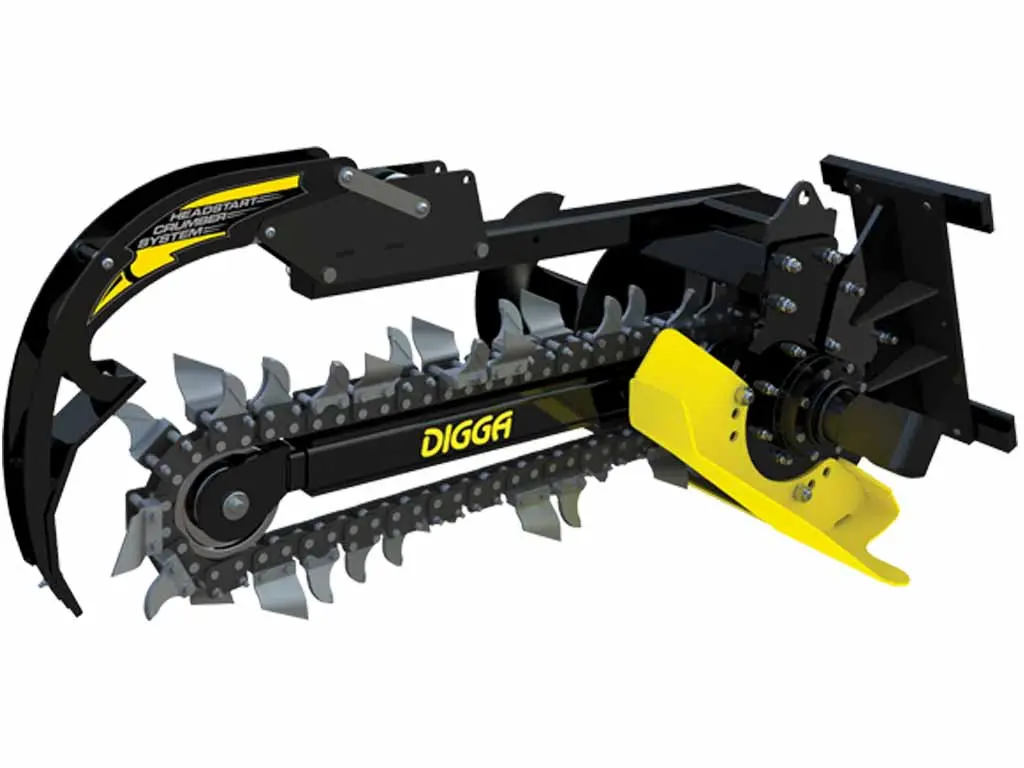

Digga 4.5″ Bigfoot Skid Steer Trencher – 16–30 GPM Hydraulic Flow

Description

DESCRIPTION

1/26

Digga Bigfoot Trenchers for Skid Steer Loaders

Precision Trenching. Maximum Productivity. Built Digga Tough.

Digga Bigfoot Trenchers are engineered to deliver fast, accurate, and efficient trenching for skid steer loaders across a wide range of ground conditions. Designed and manufactured in-house to Digga’s exacting quality standards, the Bigfoot series combines operator-friendly controls, heavy-duty construction, and industry-leading innovation to help you trench cleaner, straighter, and faster—job after job.

At the core of the Bigfoot trencher is Digga’s adjustable depth control skid foot, which allows operators to maintain a consistent trench depth without constant adjustments. The skid foot is clearly visible from the cab, giving operators confidence that the trencher is set correctly before engaging the cut.

Digga’s Headstart Crumber System (patent pending) further sets the Bigfoot apart. This system allows the crumber bar to start directly in the trench, eliminating the need to exit the machine to reset it—saving time, reducing fatigue, and increasing overall productivity.

With multiple chain options available, Bigfoot Trenchers are capable of cutting through everything from clean soil to rock, asphalt, concrete, and frozen ground. Whether you’re laying irrigation pipe, installing underground utilities, or handling general construction work, the Digga Bigfoot delivers a complete trenching solution with clean spoil removal and superior control.

---

Key Features

• Headstart Crumber System (Patent Pending) – Crumber bar starts in the trench for faster operation

• Adjustable Skid Foot – Maintains consistent trench depth

• Skid Foot Visible from Cab – Improved operator accuracy and safety

• Side-Shift Frame – Dig close to buildings, curbs, and permanent structures

• Multiple Chain Options – Earth, Combo, and Diggatac chains for varying ground conditions

• Heavy-Duty In-House Manufacturing – Built for reliability and long service life

• Industry-Leading Warranty – Confidence backed by Digga quality

---

Ideal Applications

• Irrigation and water line installation

• Underground power and communication lines

• Road and infrastructure repairs

• General construction and utility trenching

---

Specifications

Digga Bigfoot Trencher Models

XD 900

• Cutting Depth: Up to 36″

• Cutting Widths: 6″, 8″, 10″, 12″

• Foot Depth Presets: 18″, 24″, 30″, 36″

• Length: 76″

• Horizontal Height: 26″

• Width: 48″

• Weight: 575 lbs

XD 1200

• Cutting Depth: Up to 48″

• Cutting Widths: 6″, 8″, 10″, 12″

• Foot Depth Presets: 24″, 32″, 40″, 48″

• Length: 100″

• Horizontal Height: 31″

• Width: 48″

• Weight: 855 lbs

Hydraulic Requirements

• Recommended Flow: 16–30 GPM

• Motor Type: 2K Bell Eaton

• Max Pressure: 3,500 PSI @ 16 GPM

• Max Flow: 25 GPM @ 2,900 PSI

• Max Continuous Power: 34 HP

---

Chain Options

Earth Chain

• Cup tooth on every second station

• Best for clean ground with minimal roots or debris

Combo Chain

• Combination of tungsten and earth teeth

• Cuts through hard soil, roots, shale, and rocky ground

Diggatac Chain

• Full tungsten teeth on every station

• Ideal for hard shale, asphalt, concrete, and rocky terrain

Available in 36″ and 48″ cutting depths with 6″, 8″, 10″, and 12″ widths to match your application needs.

---

Why Choose the Digga Bigfoot Trencher?

The Digga Bigfoot Trencher is built for contractors who demand precision, durability, and efficiency. With innovative features that reduce downtime and improve trench quality, it’s one of the most user-friendly and versatile skid steer trenchers on the market today.

SPECS

SPECS	XD 900	XD 1200
CUTTING DEPTH	UP TO 36″	UP TO 48″
CUTTING WIDTHS	6″/8″/10″/12″	6″/8″/10″/12″
FOOT DEPTH PRESETS	18″/24″/30″/36″	24″/32″/40″/48″
RECOMMENDED FLOW	16-30 GPM
MOTOR TYPE	2K BELL EATON
MAX PRESSURE – DO NOT EXCEED	3500 PSI @ 16 GPM
MAX FLOW – DO NOT EXCEED	25 GPM @ 2900 PSI
MAX CONTINUOUS POWER	34 HP
LENGTH	76”	100”
HORIZONTAL HEIGHT	26″	31”
WIDTH	48″	48″
WEIGHT	575 LBS	855 LBS

36 in. CUT DEPTH 2″ PITCH CHAIN	(16 – 30 GPM)
STYLE	DESCRIPTION	ORDER #
Earth	3 ft. cut depth / 6″ Earth Chain	BFT2-000023
Earth	3 ft. cut depth / 8″ Earth Chain	BFT2-000027
Earth	3 ft. cut depth / 10″ Earth Chain	BFT2-000031
Earth	3 ft. cut depth / 12″ Earth Chain	BFT2-000035
Combo	3 ft. cut depth / 6″ Combo Chain	BFT2-000021
Combo	3 ft. cut depth / 8″ Combo Chain	BFT2-000025
Combo	3 ft. cut depth / 10″ Combo Chain	BFT2-000029
Combo	3 ft. cut depth / 12″ Combo Chain	BFT2-000033
Diggatac	3ft. cut depth / 6″ Diggatac Chain	BFT2-000022
Diggatac	3 ft. cut depth / 8″ Diggatac Chain	BFT2-000026
Diggatac	3ft. cut depth / 10″ Diggatac Chain	BFT2-000030
Diggatac	3ft. cut depth / 12″ Diggatac Chain	BFT2-000034

48 in. CUT DEPTH 2″ PITCH CHAIN	(16-30 GPM)
STYLE	DESCRIPTION	ORDER #
Earth	4 ft. cut depth / 6″ Earth Chain	BFT2-000003
Earth	4 ft. cut depth / 8″ Earth Chain	BFT2-000007
Earth	4 ft. cut depth / 10″ Earth Chain	BFT2-000011
Earth	4 ft. cut depth / 12″ Earth Chain	BFT2-000015
Combo	4 ft. cut depth / 6″ Combo Chain	BFT2-000001
Combo	4 ft. cut depth / 8″ Combo Chain	BFT2-000005
Combo	4 ft. cut depth / 10″ Combo Chain	BFT2-000009
Combo	4 ft. cut depth / 12″ Combo Chain	BFT2-000013
Diggatac	4 ft. cut depth / 6″ Diggatac Chain	BFT2-000002
Diggatac	4 ft. cut depth / 8″ Diggatac Chain	BFT2-000006
Diggatac	4 ft. cut depth / 10″ Diggatac Chain	BFT2-000010
Diggatac	4 ft. cut depth / 12″ Diggatac Chain	BFT2-000014

CHAINS

CHAIN	DESCRIPTION
EARTH CHAIN	CUP TOOTH ON EVERY SECOND STATION BEST FOR CLEAN GROUND WITH NO FLOATERS OR TREE ROOTS
COMBO CHAIN	COMBINATION OF TUNGSTEN AND EARTH TEETH CUTS THROUGH HARD SOIL, ROOTS, SHALE AND ROCK GROUND
DIGGATAC CHAIN	FULL TUNGSTEN TEETH ON EVERY STATION BEST FOR HARD SHALE, ASPHALT AND ROCKY GROUND
