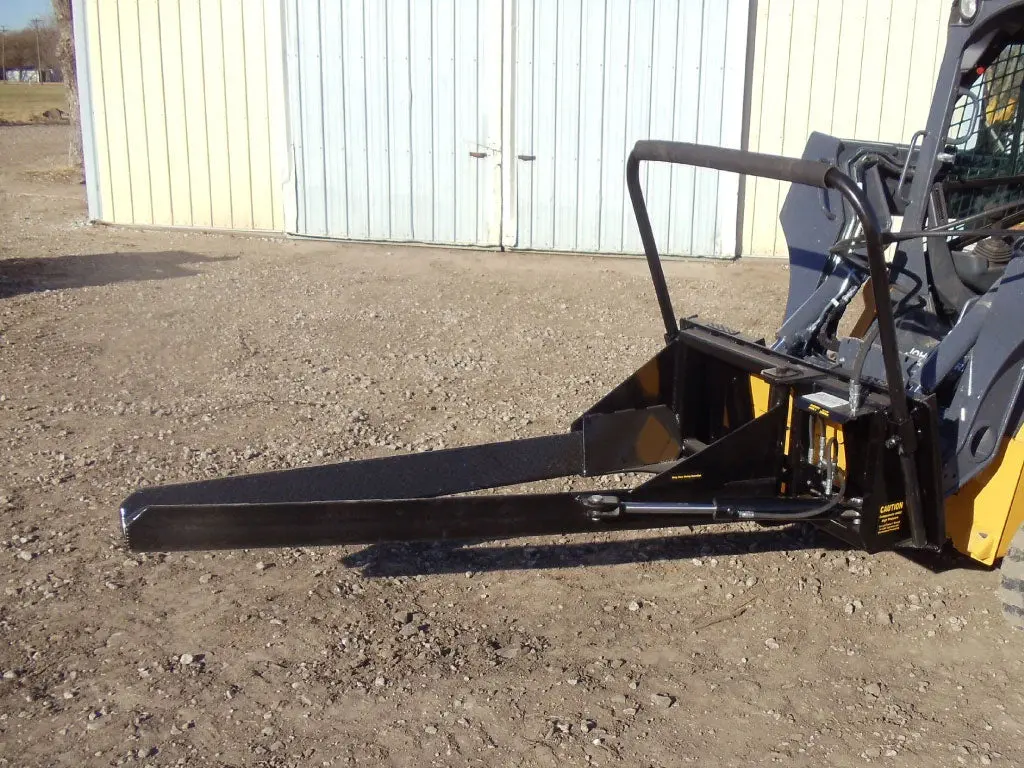

NURSERY JAWS 1 – NEW STYLE
SKID STEER
Extreme Durability.
The New Style Nursery Jaws® 1 is built rugged featuring a fixed pivot point. Built DPM tough, the New Style Nursery Jaws® 1 works equally well for the nurseryman or landscaper. Now you can handle multiple B&B, containers, boxes and boulders. The New Style Nursery Jaws® 1 features extremely durable construction to handle the hard usage that today’s business demands.
FEATURES

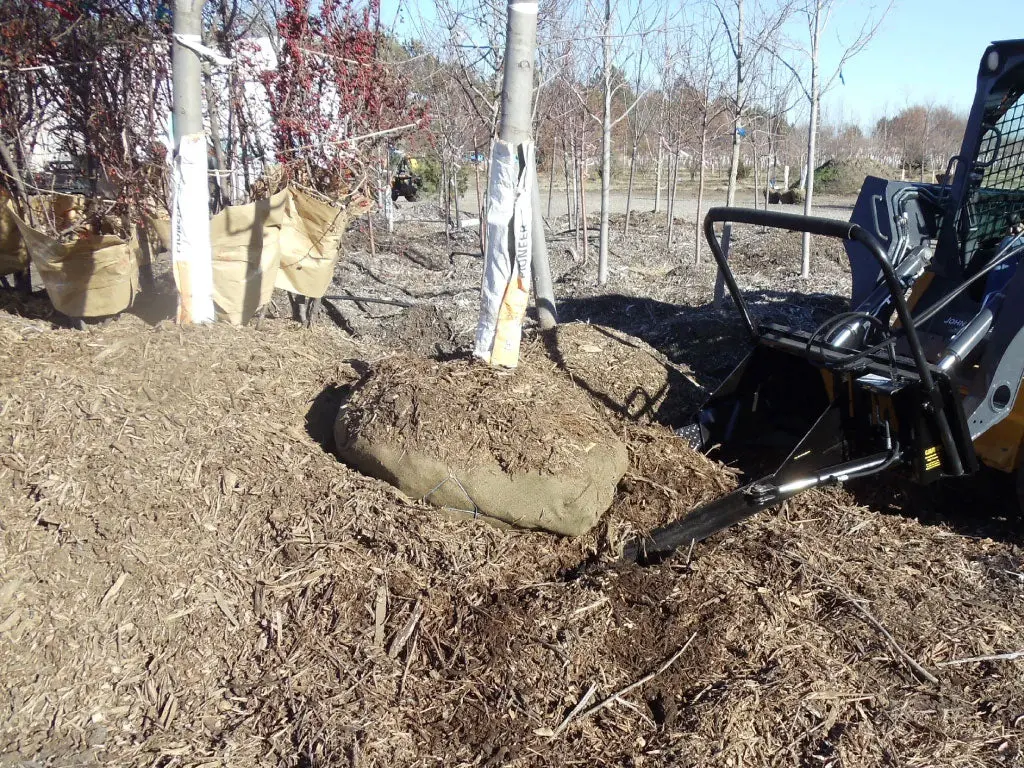

- Remove trees from mulch
- Move up to 44″ B&B trees

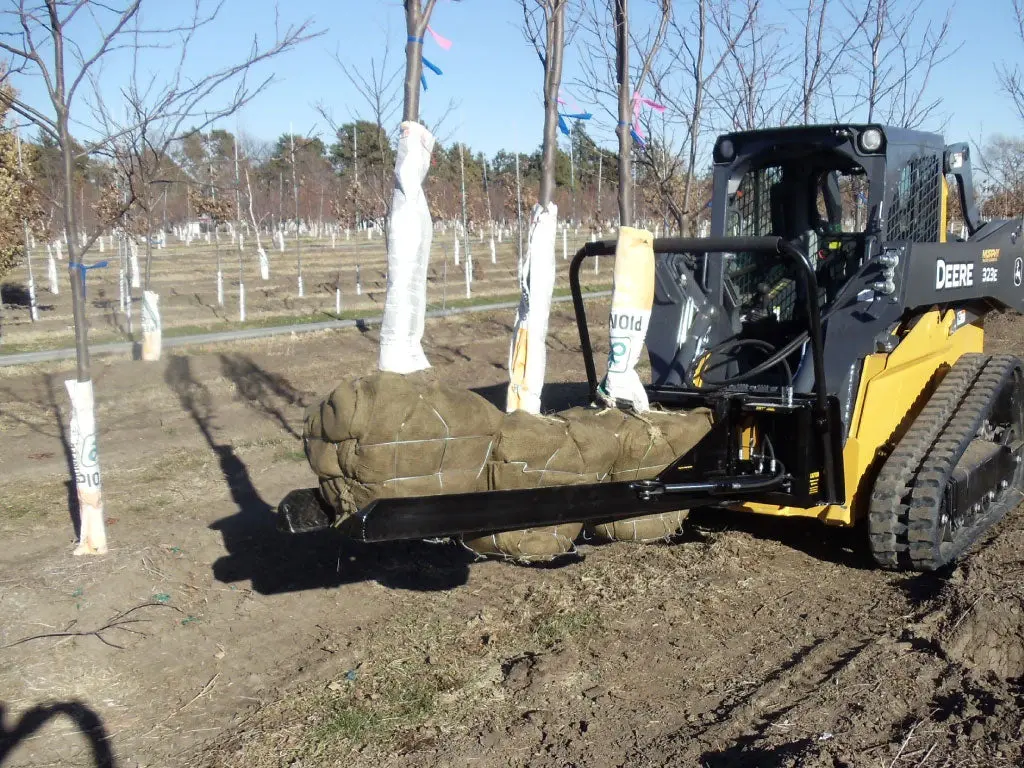

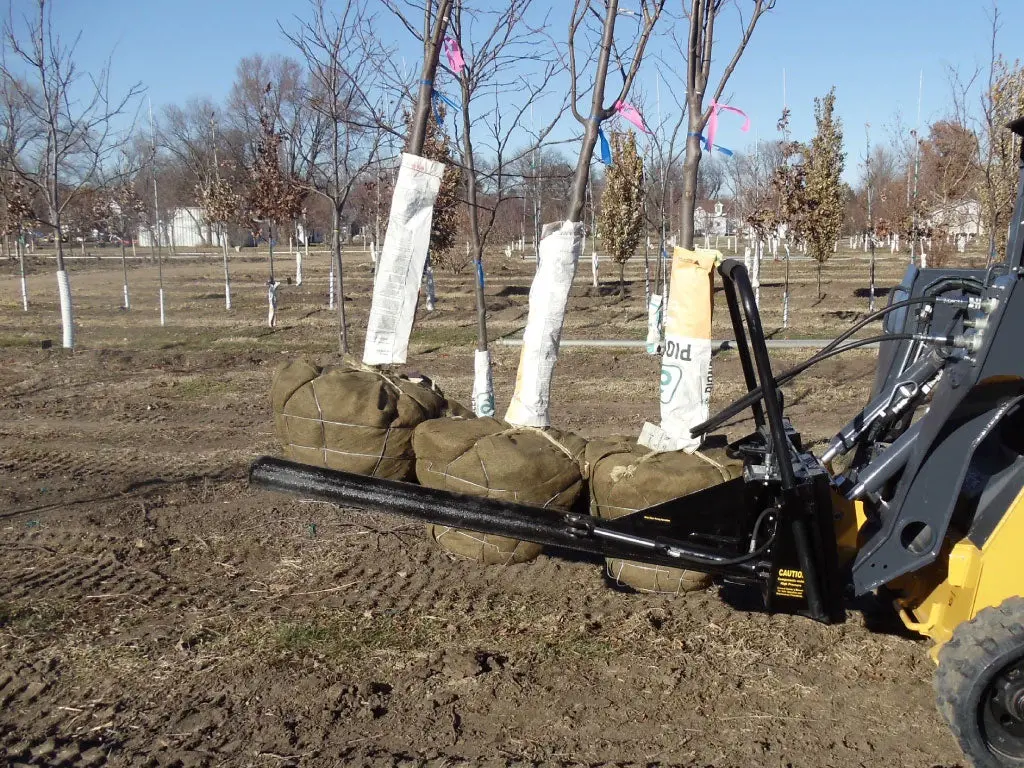

- Move multiple B&B trees (Up to 3-28″ balls with 72″ Forks)
- Move up to 24″ boxes or containers
- Load, unload and double stack
- Transport and plant nursery stock

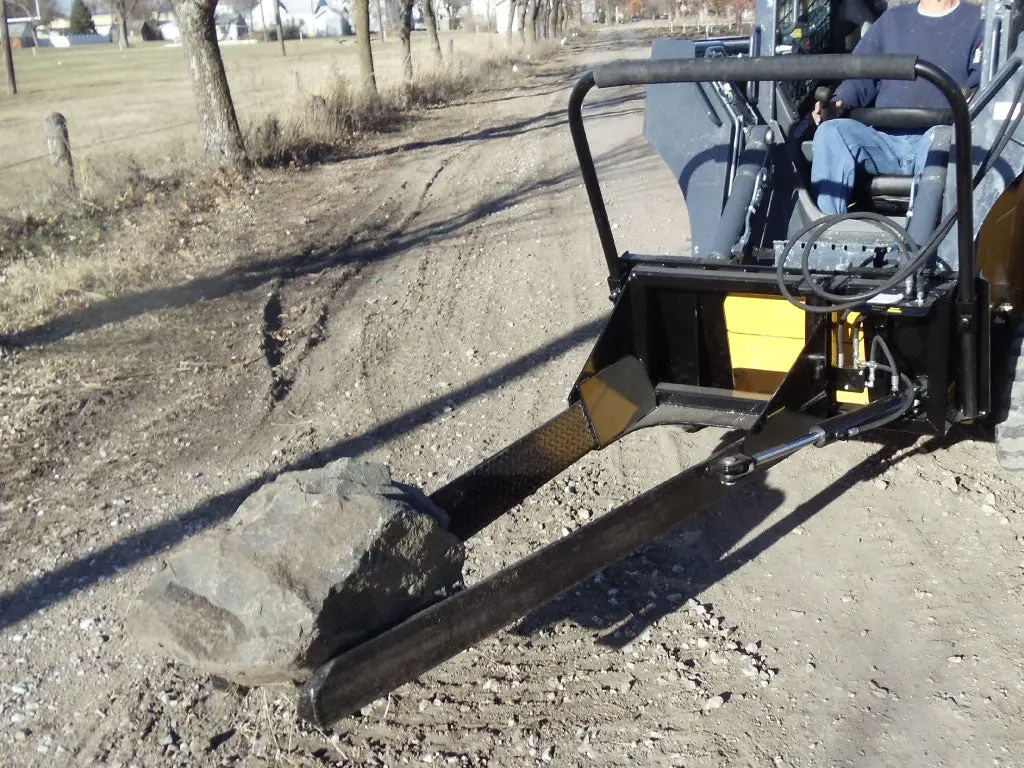

- Move and place boulders
- Simple to use
- Carry loads up to 3000 lbs.
Options:
- (2) DIFFERENT SIZE PADDLES 66″x5″, & 72″X5″
- UPGRADDED PREASURE RELIEF COUPLERS -ALLOWS EASIER CONNECTION TO MACHINE
- FLOW CONTROL – ALLOWS YOU TO CONTROL SPEED OF PADDLE MOVEMENT
- BOX PADDLES – PADDLES MADE A 9 DEGREE ANGLE FOR LOADING BOXED MATERIALS
** Paddle length is the total length, and does not reflect the total usable length.
SPECS
| FORK LENGTHS | 66″, 72″ |
| FORK ANGLE | 22 DEGREES |
| FORK MATERIAL | 5″ TREAD PLATE |
| SPREAD OF FORKS | 21″ |
| OPEN AT TIPS | 65″-80″ |
| WEIGHT | 600 LB |
| CARRYING CAPACITY | 3000 LB |
| HYDRAULICS | 3000 PSI |
| ROOTBALL CAPACITY | 44″ |
BIG DAVE
How To Determine Which Model of Nursery Jaws To Choose
By asking the right questions, you can easily determine which Nursery Jaws best fit your operation. For example, a small landscaper with a 1200lb lift capacity loader does not need a Nursery Jaws 2. Conversely, a large wholesaler with a 3000 lbs. capacity loader should not have a Nursery Jaws Jr. There are a few exceptions to every rule, but here are a few guidelines to follow.
Nursery Jaws 1-New Style…
- What material s will the NJ 1 handle? Up to 44″ B&B, 24″ boxes, plastic containers, grow bags, small rocks and boulders.
- Loader requirements? 1500-3000 lbs. rated capacity
- Characteristics of the Nursery Jaws 1? Simple to use, durable, same side loading and unloading (66″ or 72″ forks), double stacking and planting.
