HYBRID – NURSERY JAWS
SKID STEER
Increased Versatility
The Nursery Jaws® Hybrid features a manually adjustable pivot point that allows you to handle a variety of material. The Nursery Jaws® Hybrid incorporates the rugged simplicity of the Nursery Jaws® 1 with the increased versatility of the Nursery Jaws® 2 into one attachment. This new design combines greater carrying capacity with lighter weight. The Nursery Jaws® Hybrid is one durable and versatile partner for your business.
FEATURES
- Remove trees from mulch

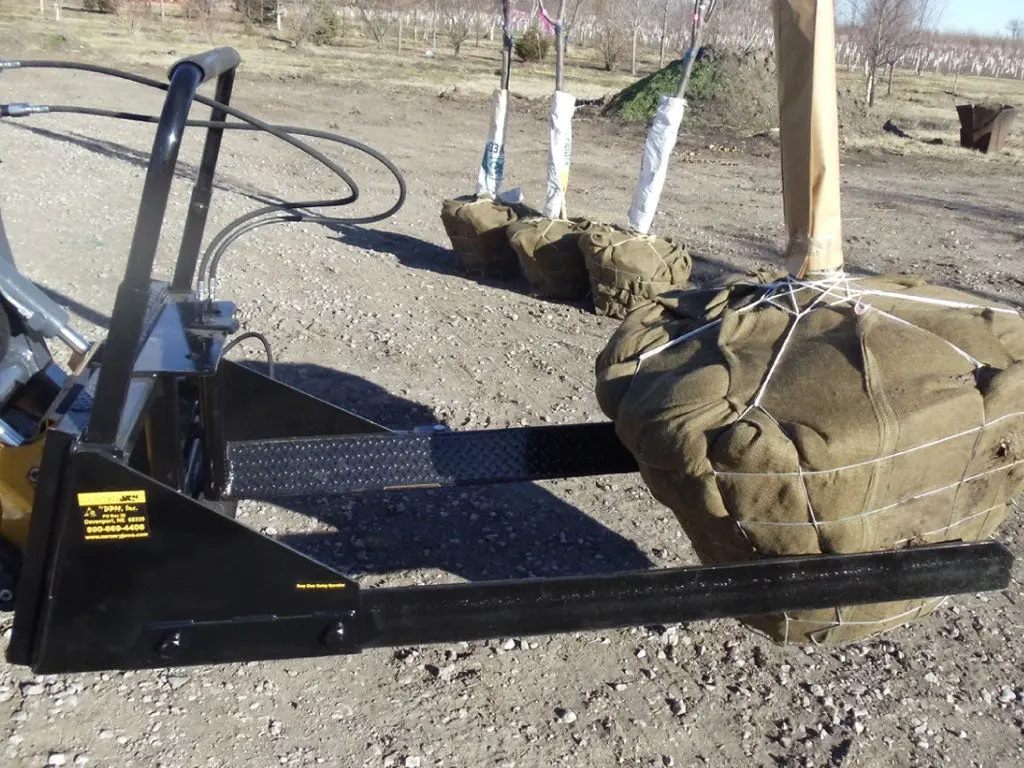

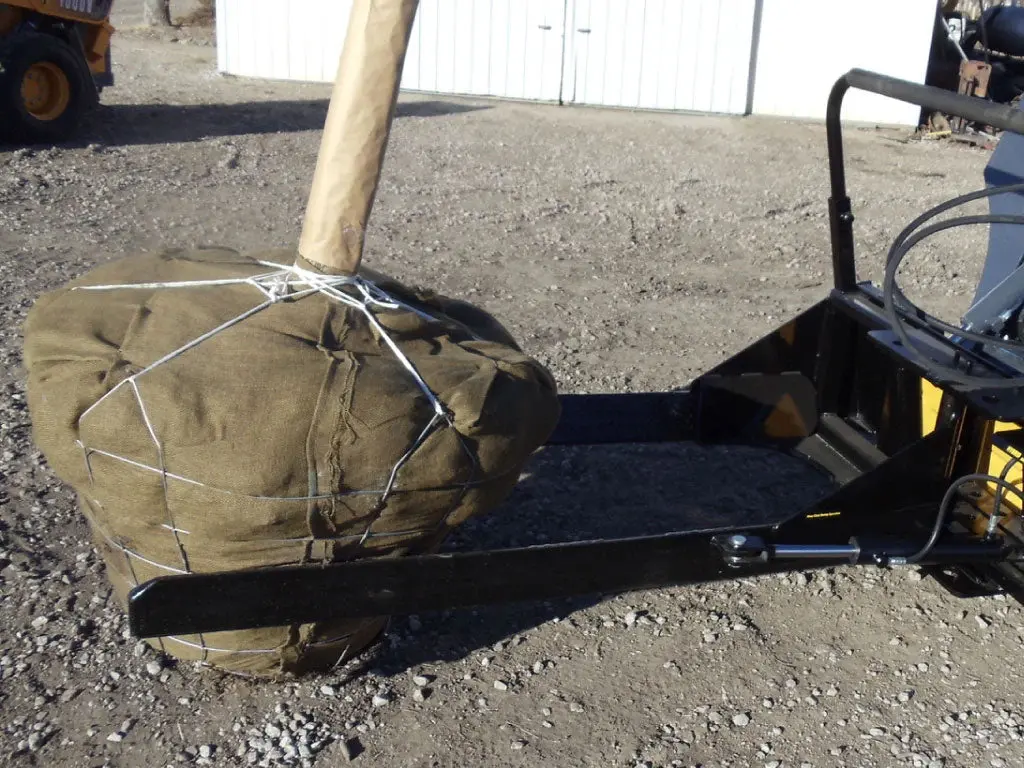

- Move up to 60″ B&B trees
- Move up to 36″ boxes or container
- Move up to 65 gallon pots
- Move growbags
- Load, unload and double stack

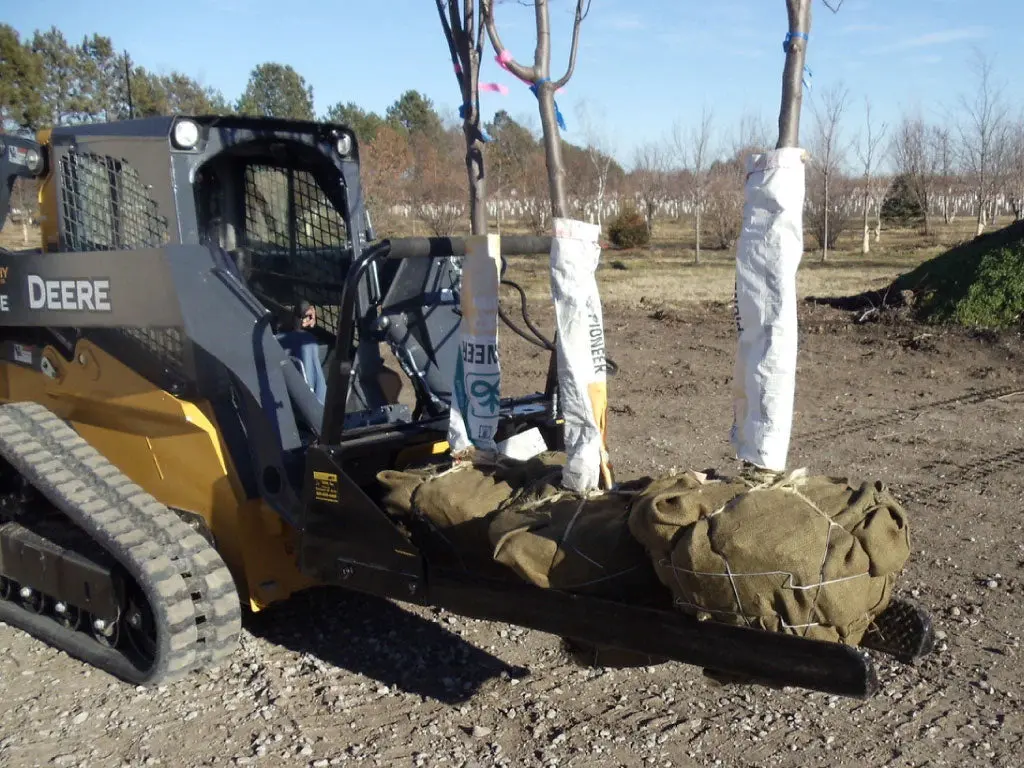

- Transport and plant nursery stock

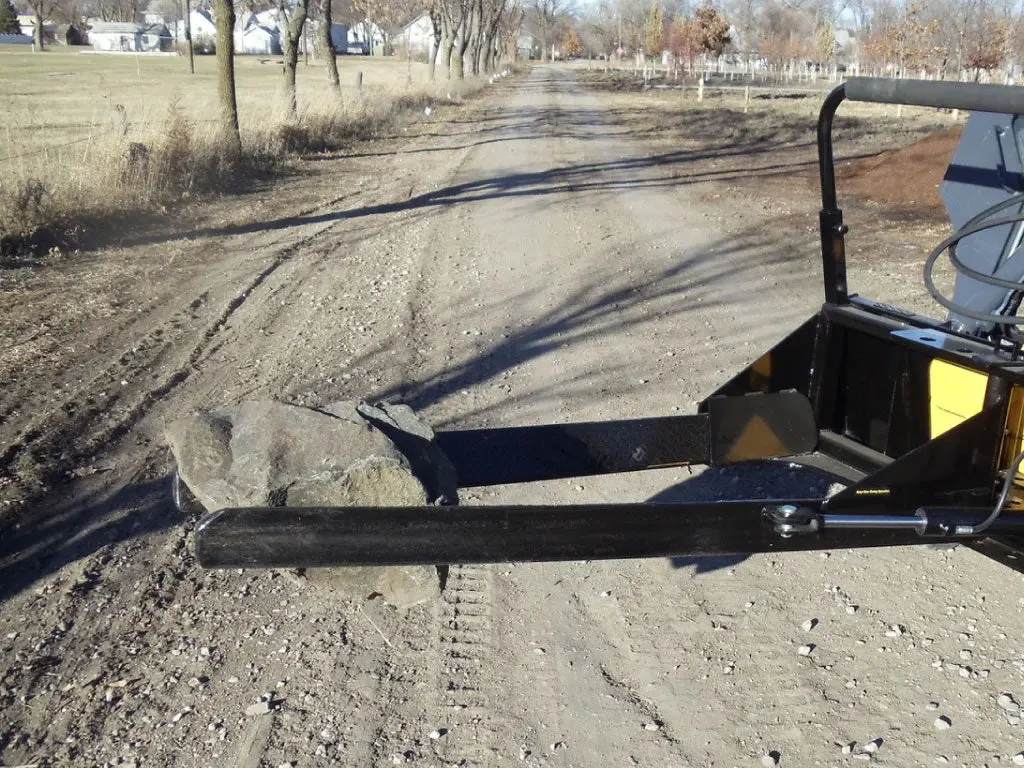

- Move and place boulders
- Simple to use
- Carry loads up to 3000 lbs.
Options:
- (2) DIFFERENT SIZE PADDLES 66″x5″ & 72″X5″
- UPGRADDED PREASURE RELIEF COUPLERS -ALLOWS EASIER CONNECTION TO MACHINE
- FLOW CONTROL – ALLOWS YOU TO CONTROL SPEED OF PADDLE MOVEMENT
- BOX PADDLES – PADDLES MADE A 9 DEGREE ANGLE FOR LOADING BOXED MATERIALS
** Paddle length is the total length, and does not reflect the total usable length.
SPECS
| FORK LENGTHS | 66″, 72″ |
| FORK ANGLE | 22 DEGREES |
| FORK MATERIAL | 5″ TREAD PLATE |
| SPREAD OF FORKS | 15″-34″ |
| OPEN AT TIPS | 65″-80″ |
| WEIGHT | 650 LB |
| CARRYING CAPACITY | 3000 LB |
| HYDRAULICS | 3000 PSI |
| ROOTBALL CAPACITY | 60″ |
BIG DAVE
How To Determine Which Model of Nursery Jaws To Choose
By asking the right questions, you can easily determine which Nursery Jaws best fit your operation. For example, a small landscaper with a 1200lb lift capacity loader does not need a Nursery Jaws 2. Conversely, a large wholesaler with a 3000 lbs. capacity loader should not have a Nursery Jaws Jr. There are a few exceptions to every rule, but here are a few guidelines to follow.
Nursery Jaws Hybrid …
- What material s will the NJ Hybrid handle? Up to 60″ B&B, 32″ boxes, plastic containers, grow-bags and boulders.
- Loader requirements? 1500-3000lbs rated capacity

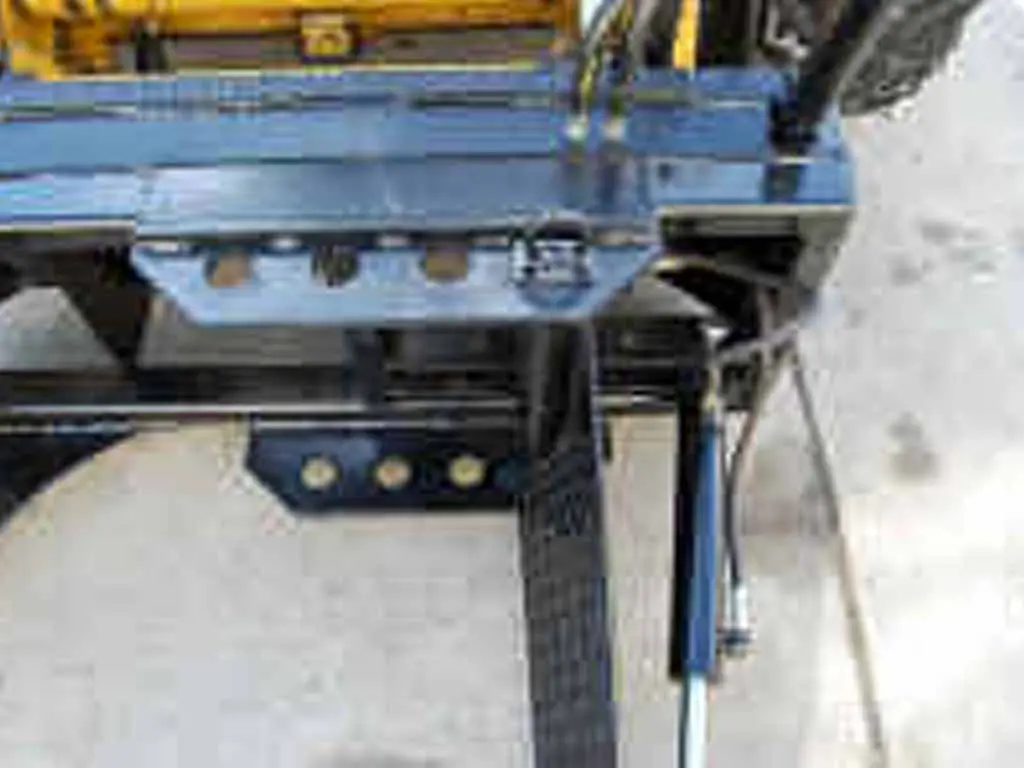

- Characteristics of the NJ Hybrid? Load, move and plant B&B, boxed and container trees, boulders and move pallets. Manually adjustable pivot point allows for wider and narrower parallel spacing than the Nursery Jaws 2.
-
Do I need to upgrade to pressure relief fittings? My opinion is yes. Attachments can build pressure from the machines they are on or weather from sitting. With a standard fitting the only way to release pressure is to crack a hydraulic line. This can hurt someone or create a mess that can damage vegetation.
- Do I need flow control or a manual valve? In most cases no. You add this option if you are worried that your operators will crush the products by not controlling the speed of the attachment.
- Do I need a Box style paddle? In most cases no. You only add this option if the material you handle are contained in boxes. This is mostly done in CA.
