Description
DESCRIPTION
10/25

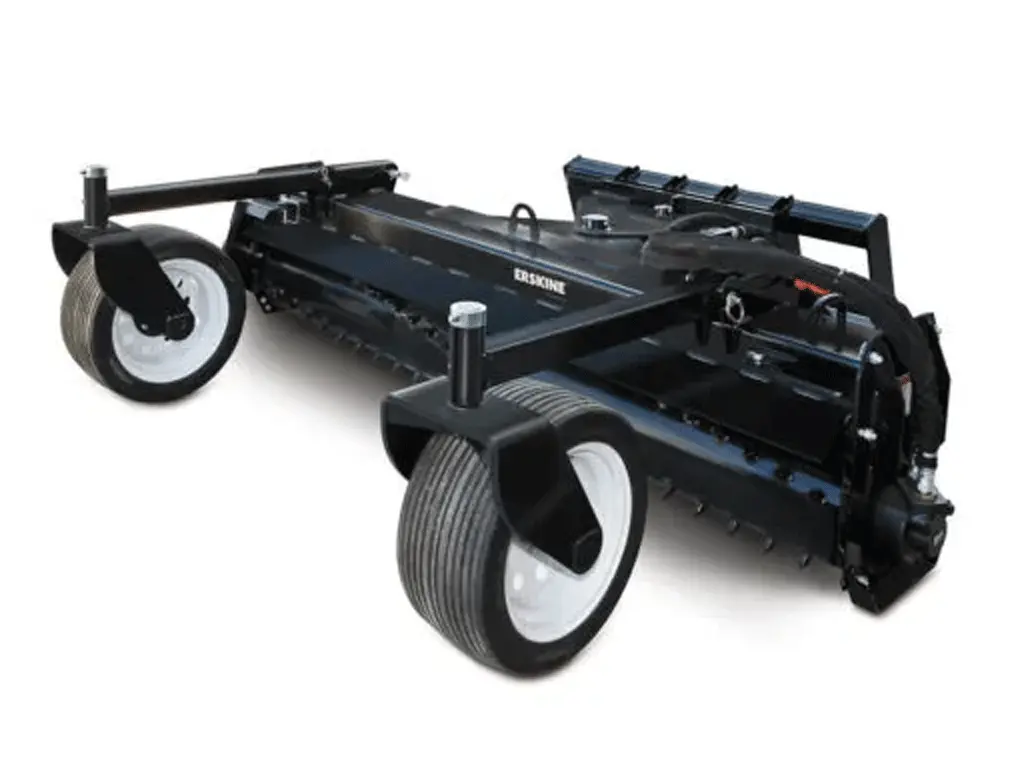

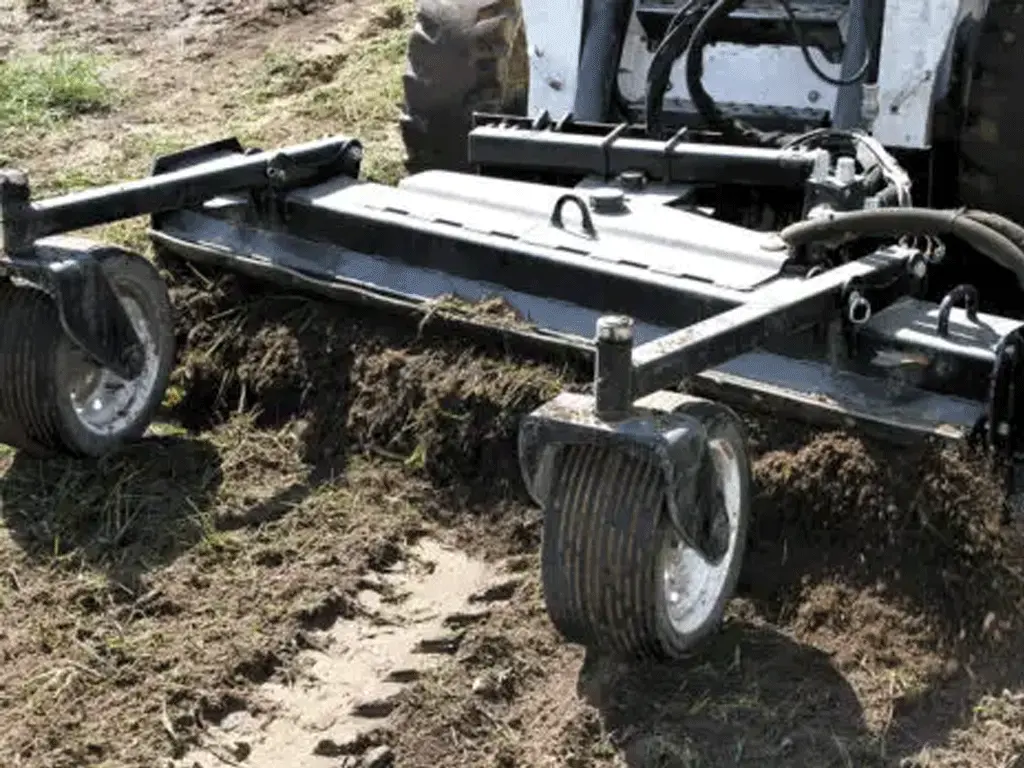

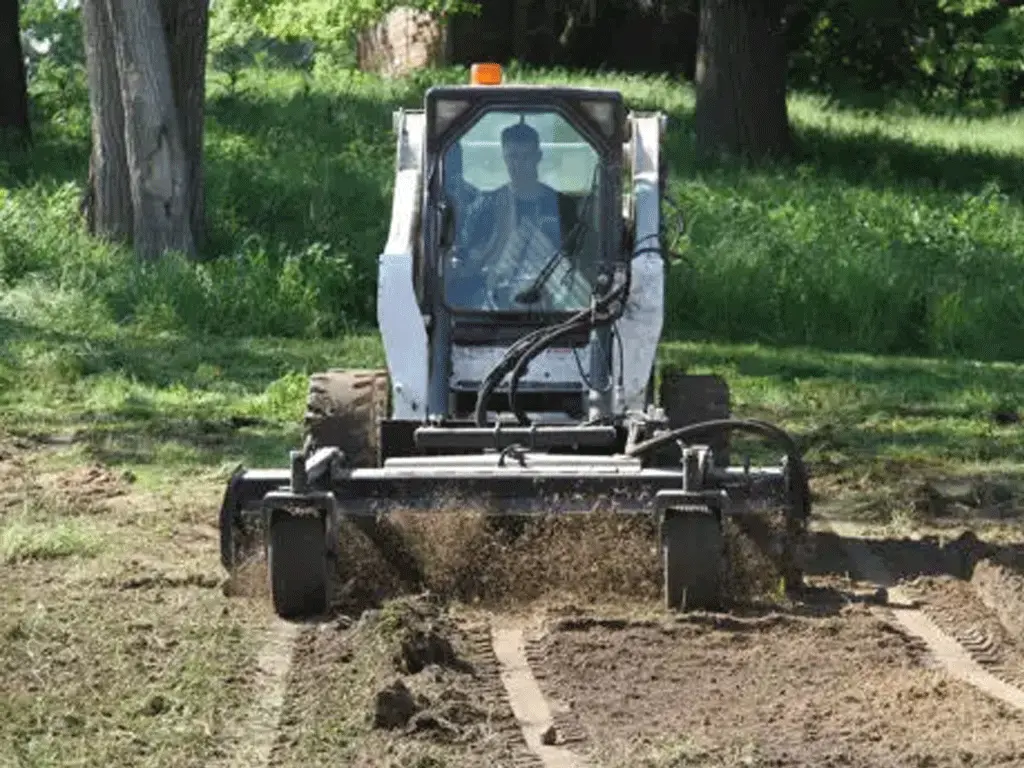

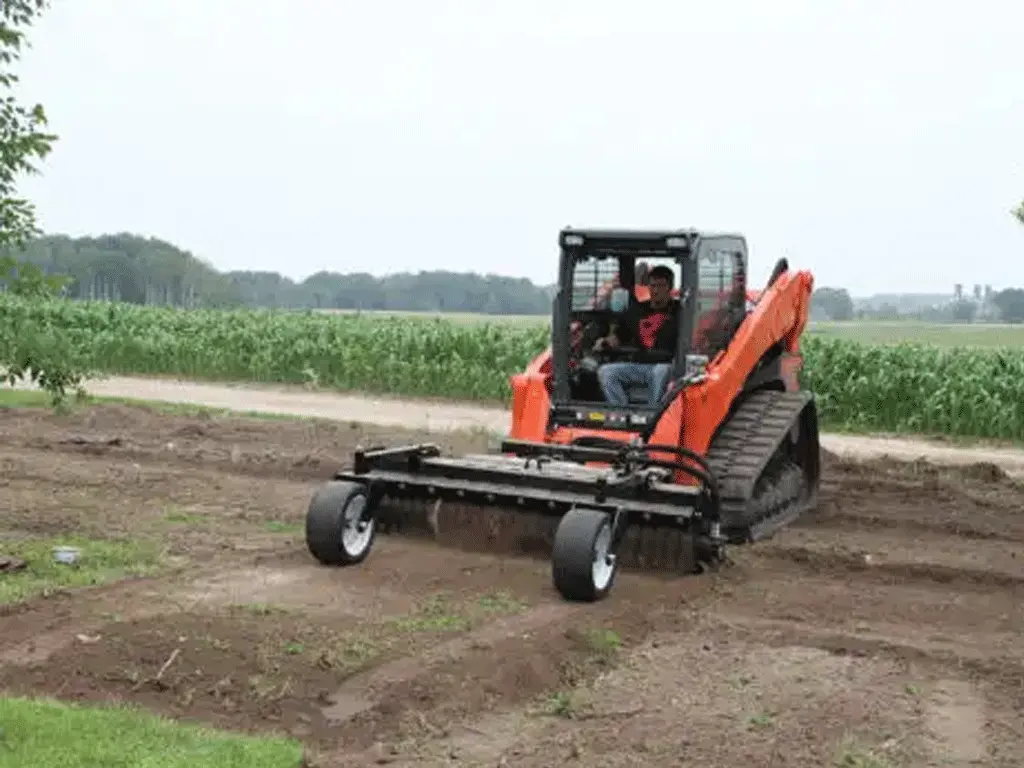

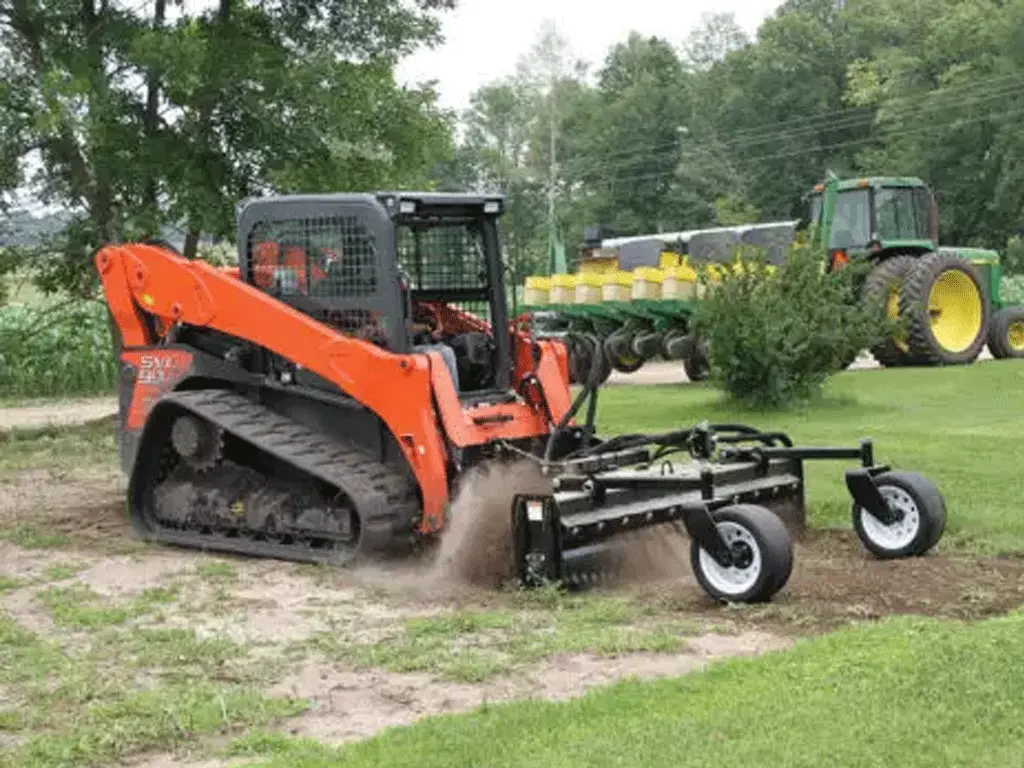

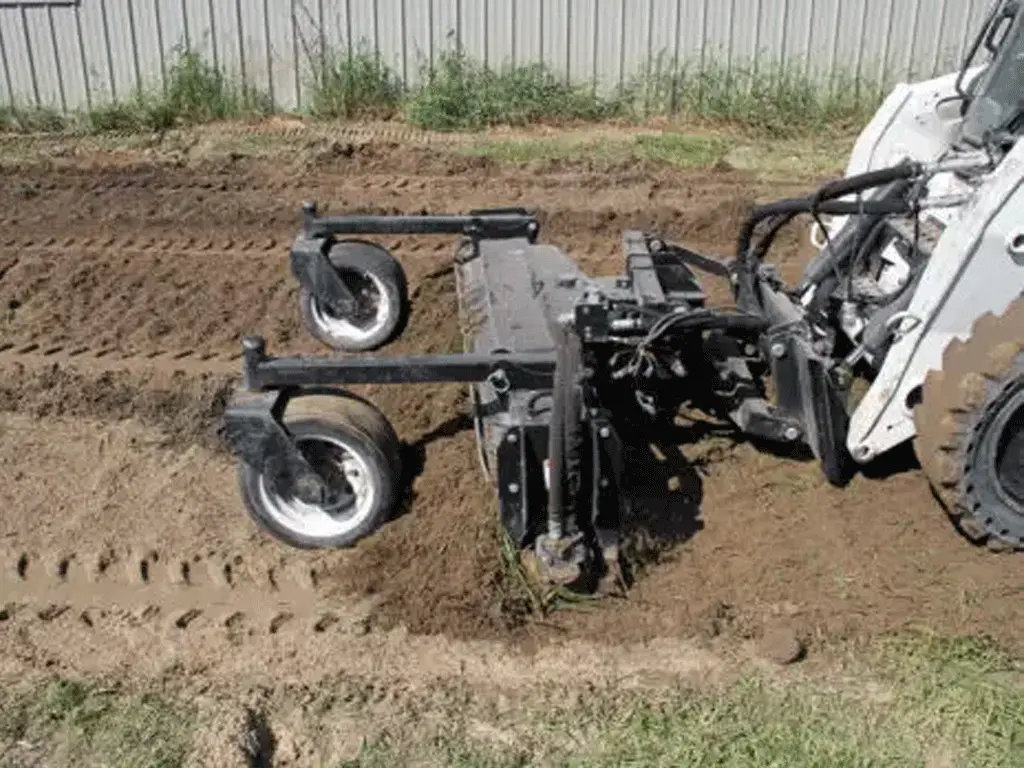

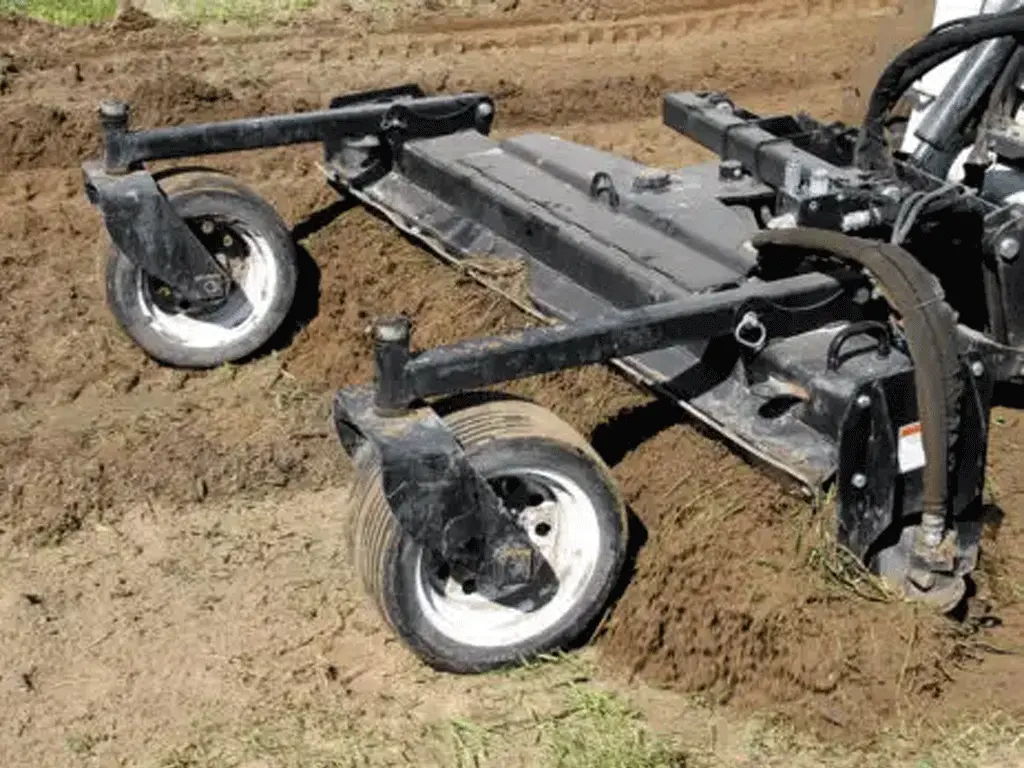

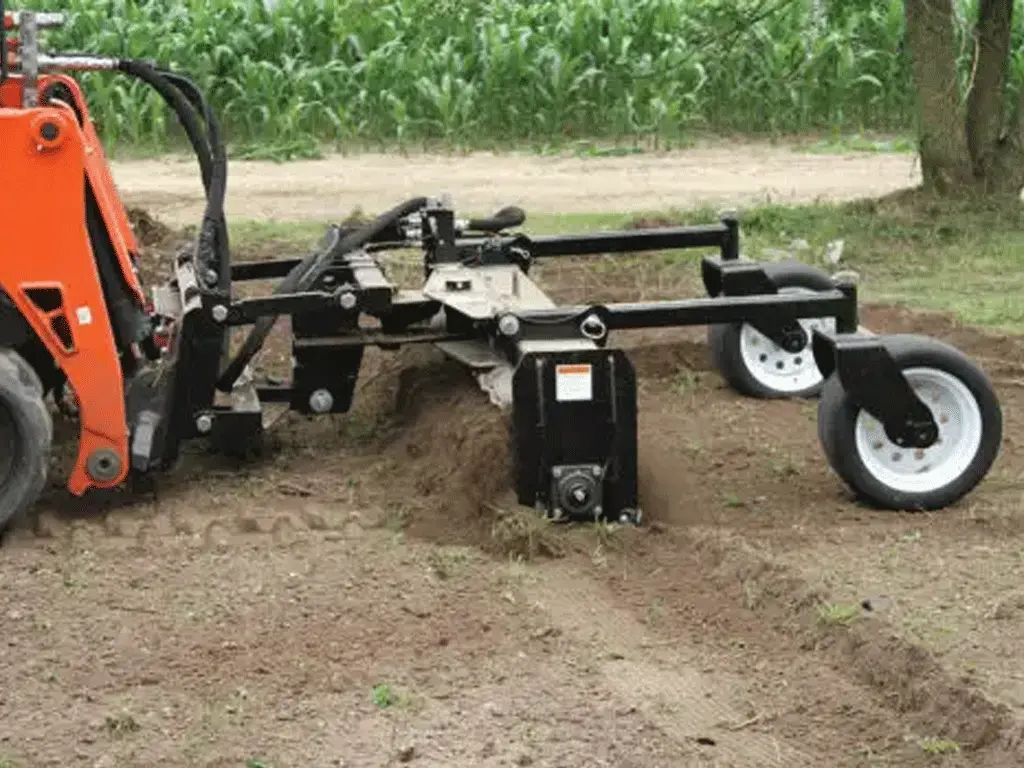

The Floating Soil Conditioner offers all the benefits of our Utility model with a self-leveling float system for superior ground contouring. Its 10” direct-drive rotor with tungsten-carbide teeth pulverizes soil, removes rocks, and levels terrain in one pass. Power angling and optional box end plates enhance performance, while large rubber tires ensure smooth operation. Rake, till, and prepare seedbeds up to 4” deep with precision and efficiency—ideal for landscaping, grading, and site prep.
Features
- Direct-drive motor turns large 10” rotor

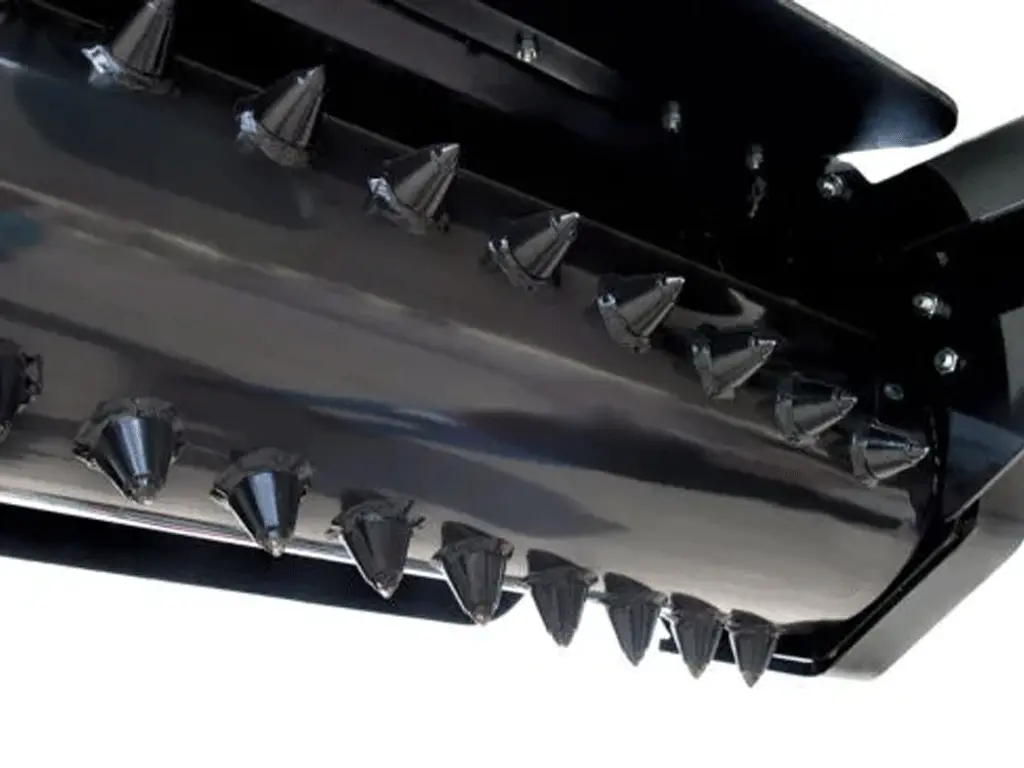

- Tungsten – carbide teeth

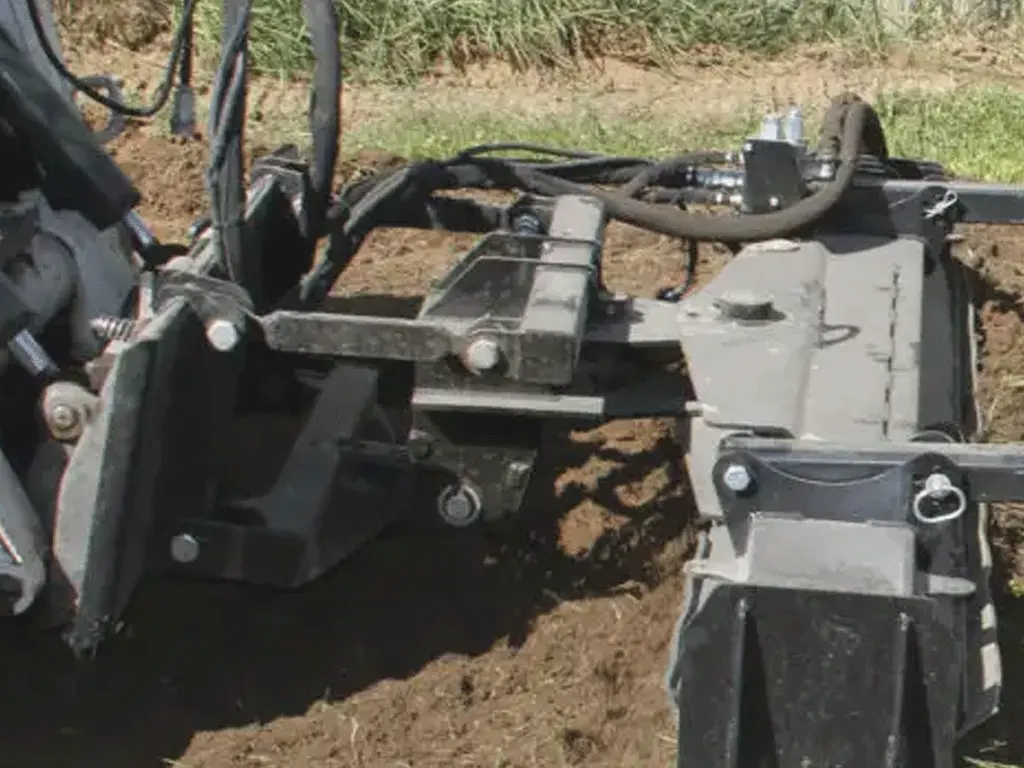

- Power angling (optional)
- Large solid rubber tires
- Optional box end plates (Wing Kit)
SPECS
| Model | FSC72 | FSC84 | FSC96 |
|---|---|---|---|
| Part Number | 900534 | 900536 | 901382 |
| Rotor Width | 72” | 84” | 96” |
| Overall Width | 79.5” | 91.5” | 103.5” |
| Angling | Manual 25° | Manual 25° | Manual 25° |
| Angled Rotor Width | 65.25″ | 76″ | 87″ |
| Wheels/Tires | 18″ x 8.5″ | 18″ x 8.5″ | 18″ x 8.5″ |
| Solid Rubber | Solid Rubber | Solid Rubber | |
| Teeth | 88 Carbide Tipped | 104 Carbide Tipped | 120 Carbide Tipped |
| Recommended Hyd. Flow | 15 – 41 GPM | 15 – 41 GPM | 15 – 41 GPM |
| Mounting Plate | Universal | Universal | Universal |
| Operating Weight (FSC) | 1,150 lb. | 1,250 lb. | 1,350 lb. |
| Options | |||
| Hydraulic Power Angling | |||
| Wing Kit | |||
| Pistol Grip Control Harness* | |||
| Loader Specific Wire Harness* | |||
| Factory Installed Couplers | |||
| *Applies to Hydraulic Model Only |
