Snowwolf QuattroPlowHD Automatic Wing Plow for Wheel Loaders — 15,000 to 30,000 lbs Capacity

Description

DESCRIPTION

10/25

QuattroPlowHD™ – Built for Big Machines, Made for Big Jobs

The QuattroPlowHD™ is the ultimate 4-in-1 snow plow attachment for wheel loaders and heavy equipment weighing 15,000 to 30,000 lbs. Designed for high-capacity snow clearing, it combines angle plowing, wide-angle plowing, pushing, and backdragging into one powerful, efficient tool.

With 165° wing rotation and 30 inches of bonus plow width per side, this heavy-duty plow delivers maximum containment, control, and speed. It operates using just two hydraulic hose connections for basic functionality, and is available with an optional Wired Universal Machine Controller for enhanced control directly from the cab.

---

Top Features:

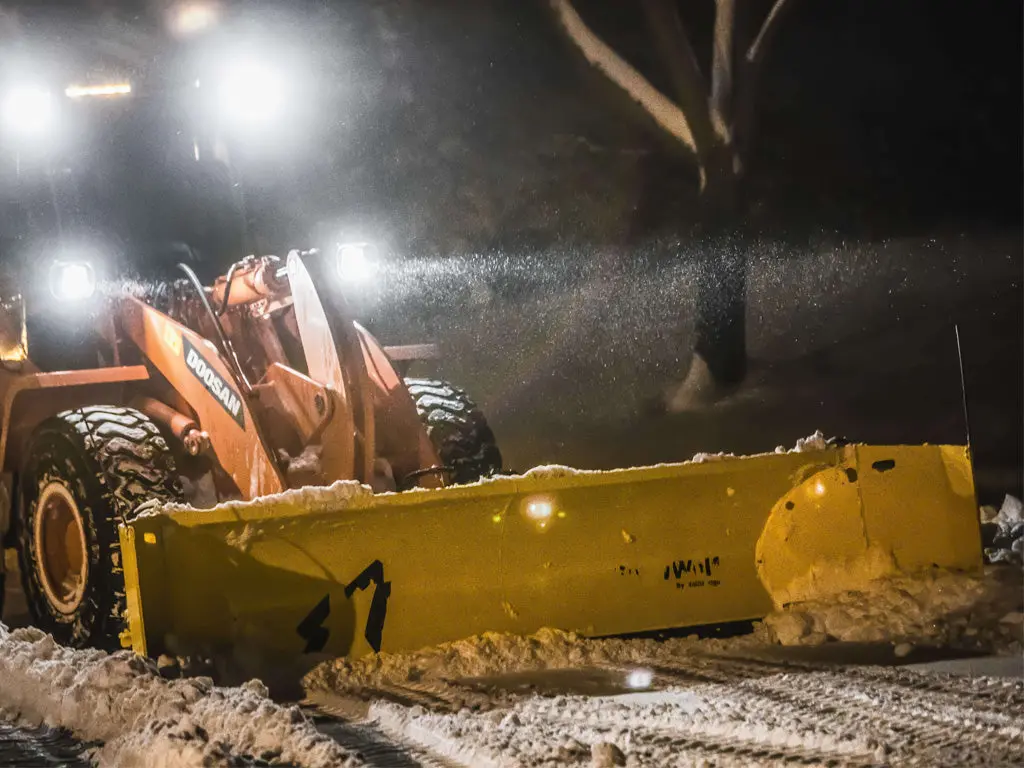

• 4-in-1 Functionality: Angle, push, wide-angle, and backdrag in one attachment

• Heavy-Duty Design: Built for 15,000–30,000 lb wheel loaders

• Hydraulic Simplicity: Two-hose plug-and-go operation out of the box

• Optional Wired Controller: Add 12V hardwired cab controls for added convenience

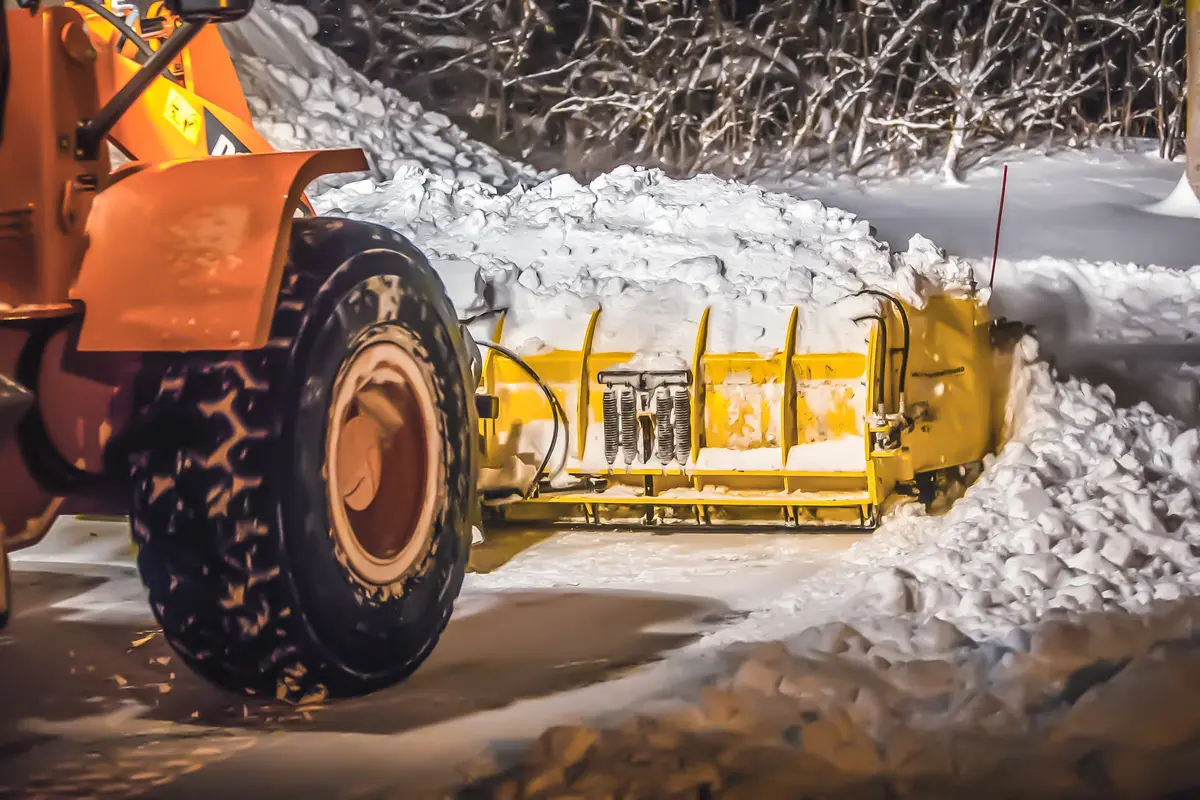

• Roll Snow Like a Pro: 35° moldboard angle reduces resistance, boosts efficiency

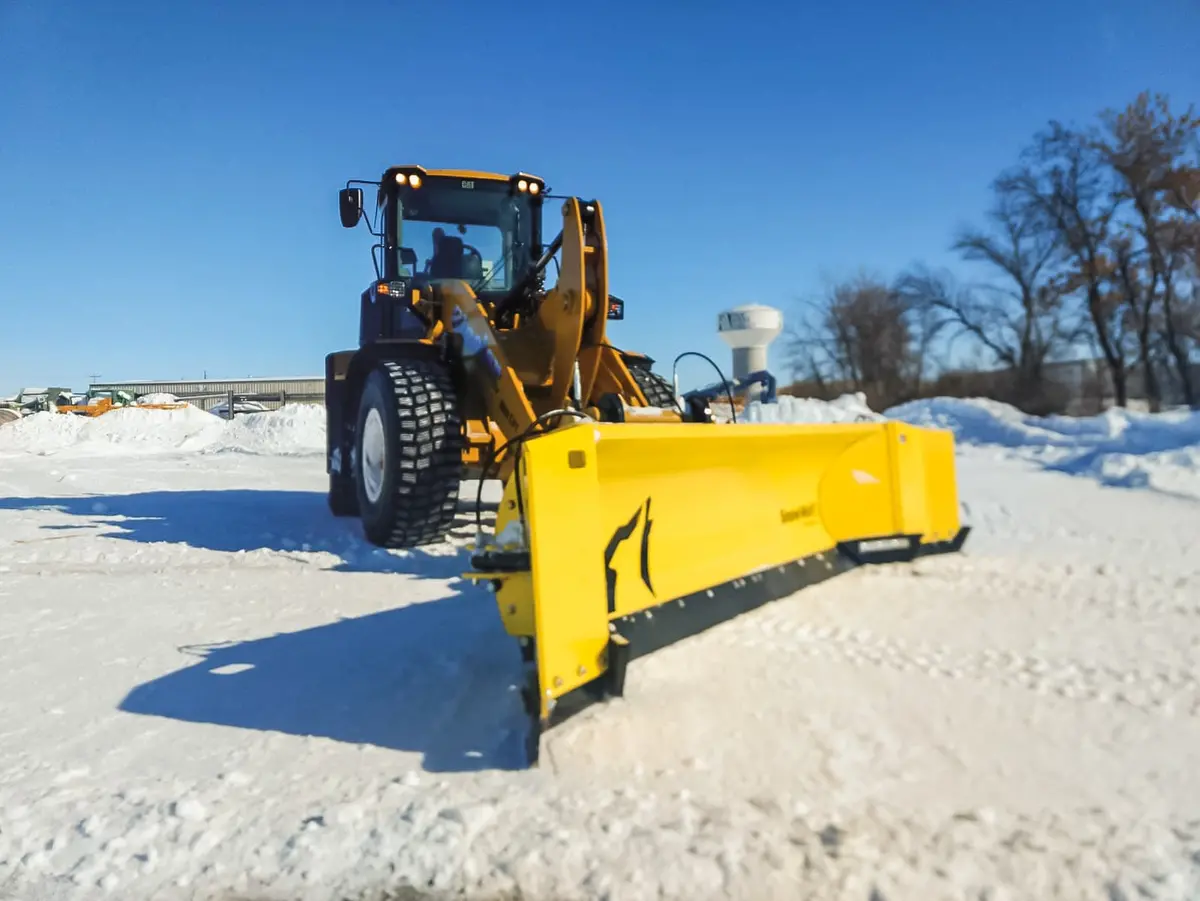

• Massive Snow Control: Wings rotate 165° and extend 30″ extra on each end

---

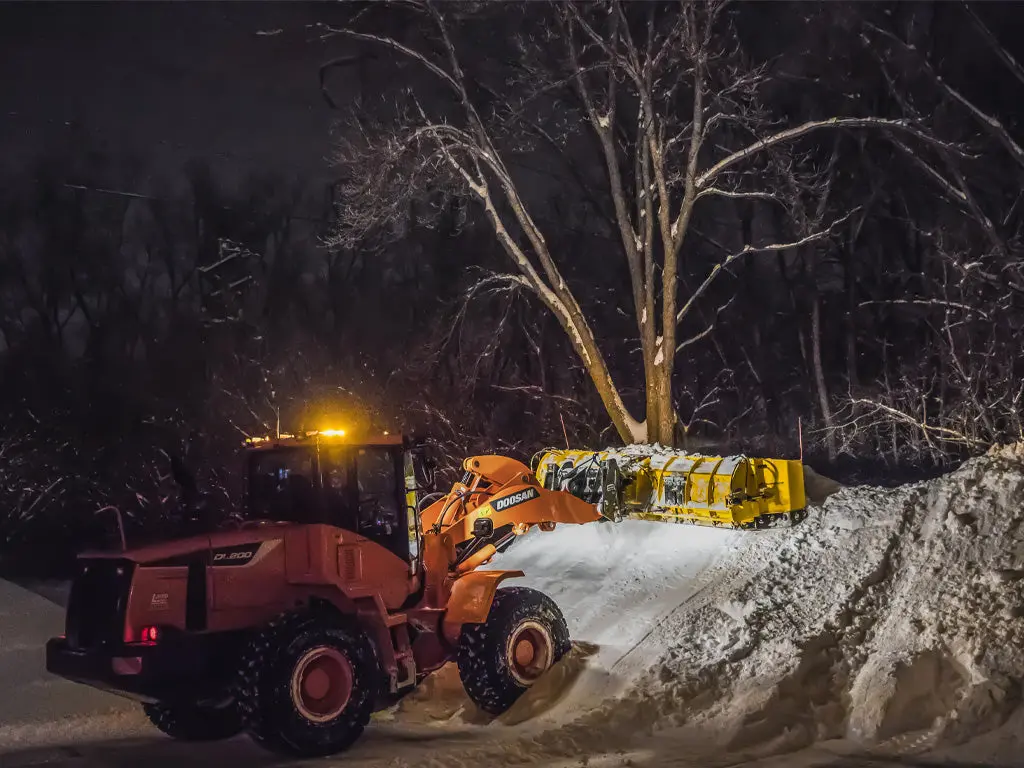

Operators report major increases in productivity—some cutting machine hours by up to 40% and replacing two machines with one. From municipal routes to commercial lots, the QuattroPlowHD™ is your go-to tool for serious snow removal.

CALL FOR A QUOTE INCLUDING THE SPILL GUARD

BLADE MODEL	COMPATIBLE SPILL GUARD	DESCRIPTION
QPHD-146	MODEL #P80102-K	10′ SpillGuard, Perforated Steel 12″ Blade Height Extension
QPHD-170	MODEL #P80103-K	12′ SpillGuard, Perforated Steel 12″ Blade Height ExtensioN

ACCESSORIES

ActivEdge

SpillGuard

Loader Mount Options

PowerWing Upgrade

Wired Universal Machine Controller

SPECIFICATIONS

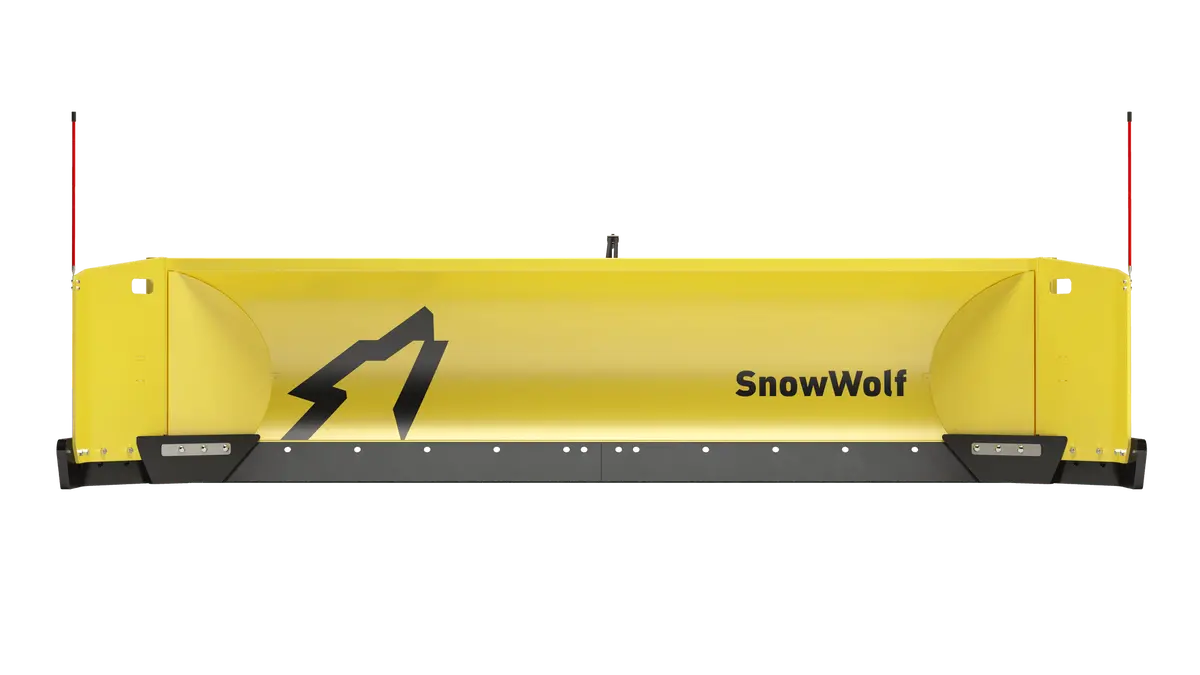

Model Number	QPHD-146	QPHD-170
Blade Width (A)	10.0′	12.0′
Width In Pusher Position (B)	146” (12′-2″)	170” (14′-2″)
Maximum Width (C)	176” (14′-8″)	200” (16′-8″)
Width In Backdrag Position (D)	146” (12′-2″)	170” (14′-2″)
Clearing Width at Wide Angle (E)	144″ (12′)	164″ (13′-8″)
Width In Angled Backdrag Position (F)	132” (11′)	151” (12′-11″)
Blade Height	38”	38”
Unit Weight (lbs.)	2,995	3,385
Moldboard Gauge	10 Ga.	10 Ga.
Trip Springs	8 Ext.	8 Ext.
Moldboard Cutting Edge	3/4″ X 8″ Top Punch High Carbon Std (Carbide Insert opt.)
Angle Rams	3″ x 13″ Nitro Steel – double acting
Vertical Ribs	8	10
Moldboard Radius	19”	19”
Full Down Pressure	Yes	Yes
Universal Skid Steer Compatible	N/A
Crossover Relief Valve	Standard
Wing Thickness	5/8” Grade 50
Wing Wear Shoes (Urethane)	N/A
Wing Wear Shoes (standard)	AR400 Floating Steel
Wing Hinge Pin	1 7/8” x 29-3/4”
Wing Cylinder	2-1/2″ x 8″  double acting
PowerWing Upgrade	Optional
