Description
DESCRIPTION
10/25

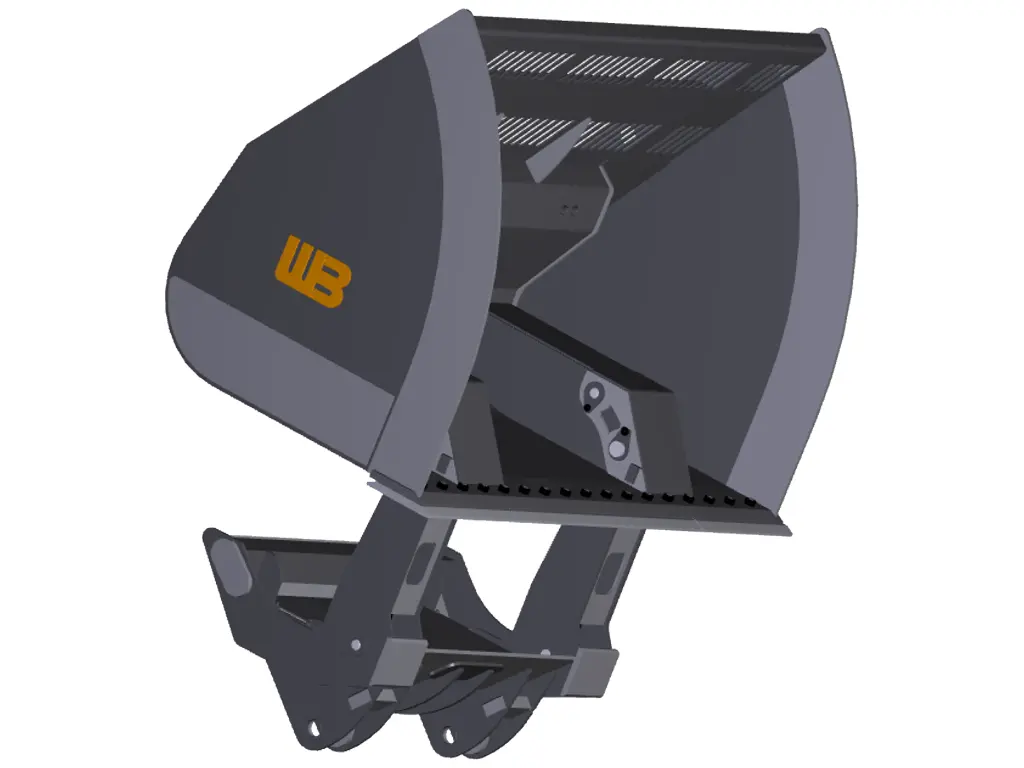

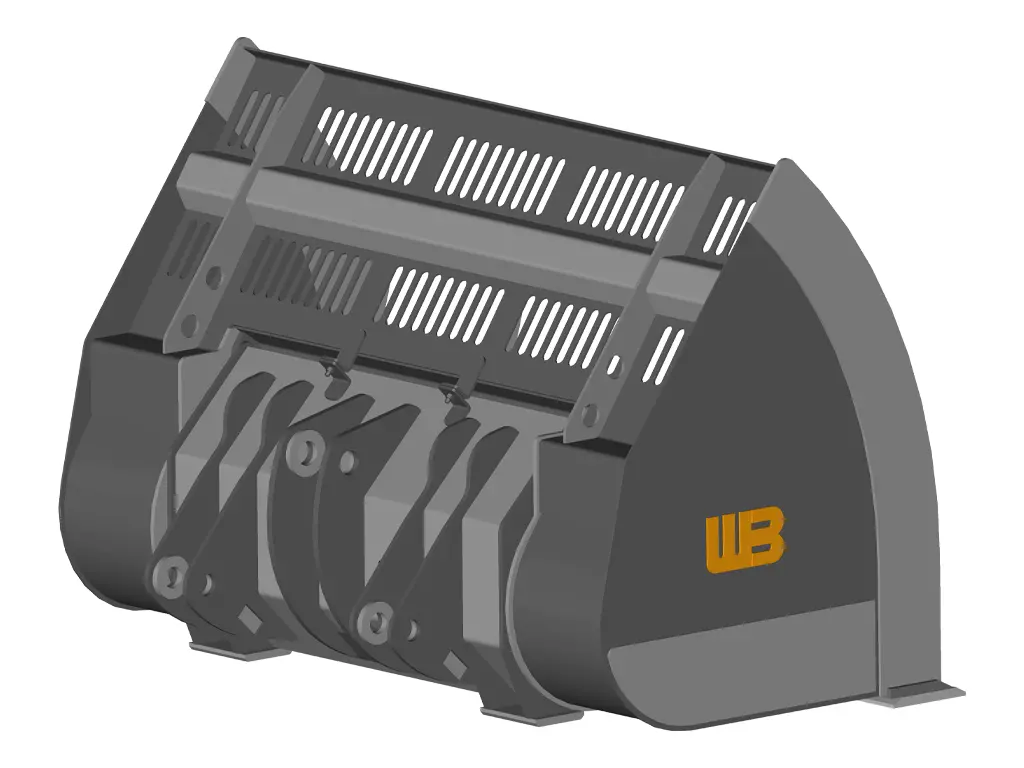

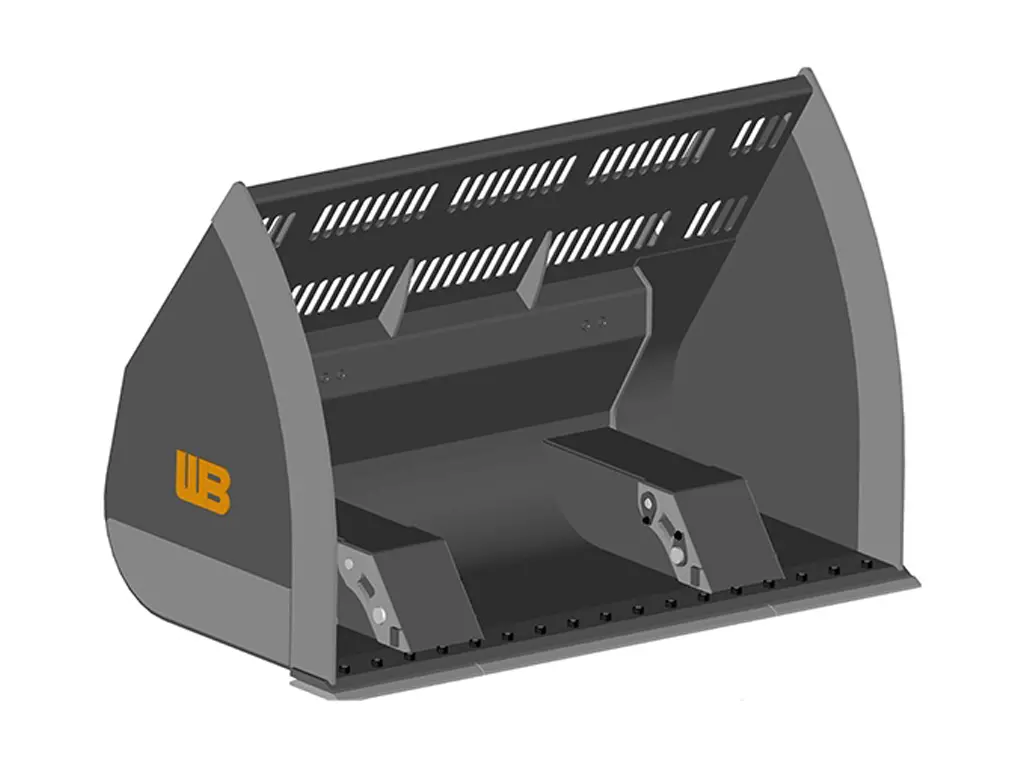

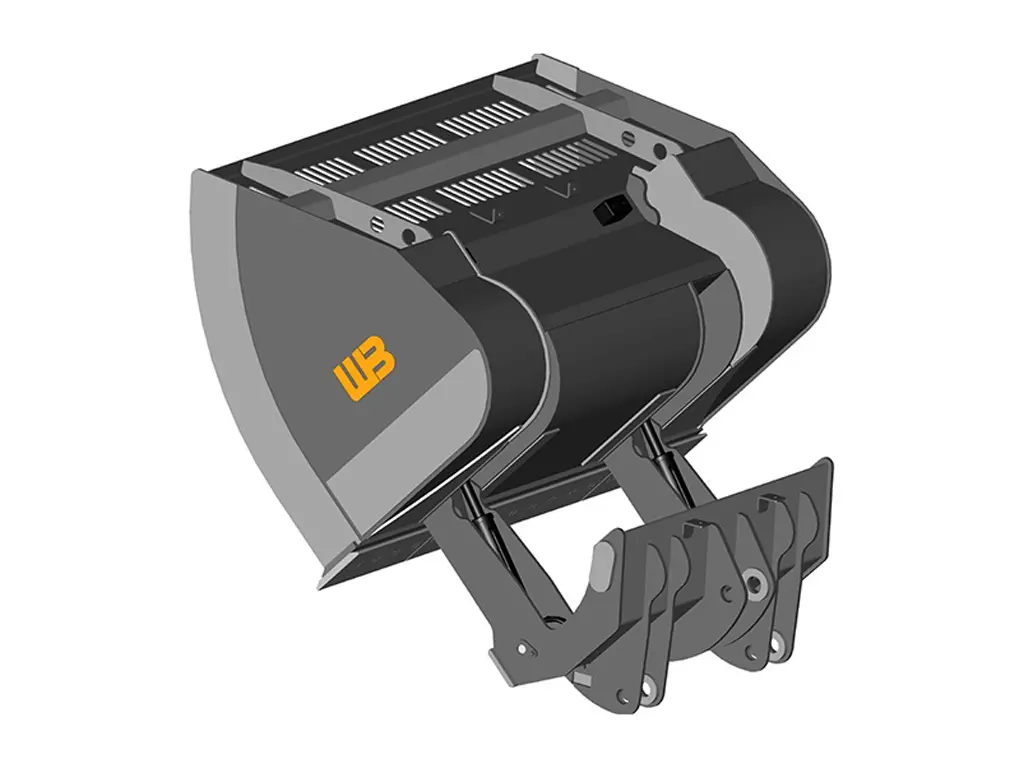

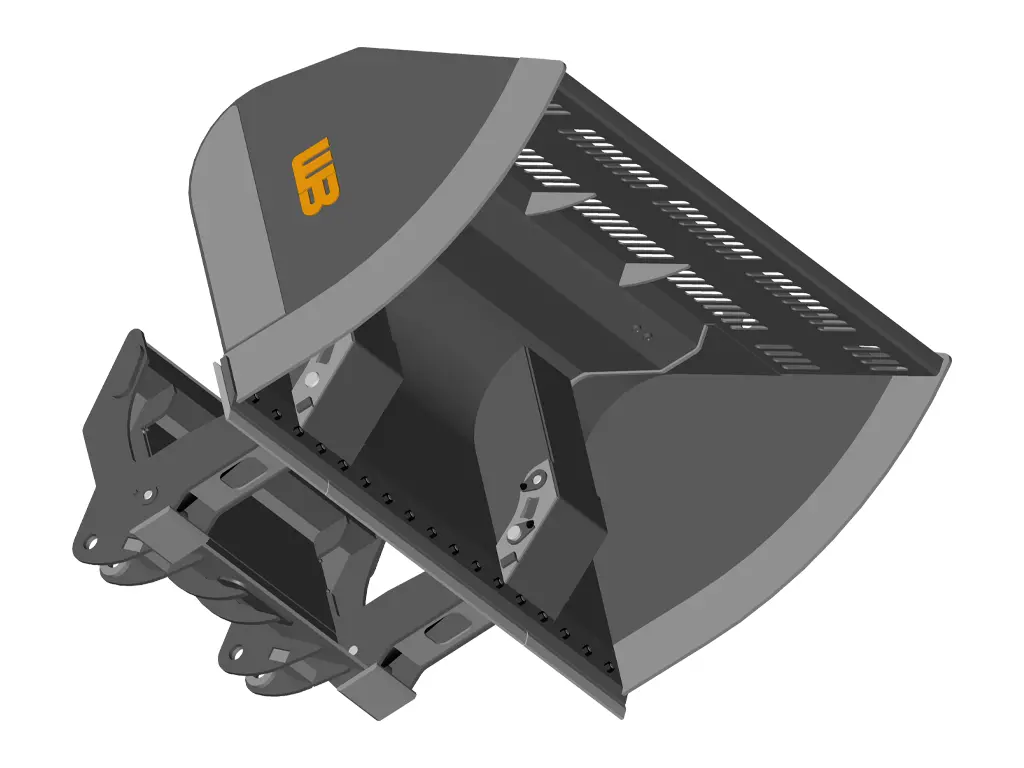

HIGH TIP / ROLL OUT BUCKET
Recommended Applications
Specifically designed for increased dump height 24″+ which is perfect for backfilling or loading trucks and re-handling light materials up to 2,000 lbs.
Additional Features
Bucket design incorporates a recessed carriage design to improve center of gravity. This mean less tippyness and less stress on the loader and bucket. Visibility slots come standard along with dual cushioned cylinders and performance side plates for increased material retention.
- Dual cylinders
- Over 93° of dump action
- versatile design
- designed for overhead loading, vertical piling, & back filling
- High performance light material profile loader bucket
- includes bolt on cutting edge
- does not include hose kit
- designed for materials up to 2,000 lbs.
SPECIFICATIONS
| PART # | WIDTH | CAPACITY | WEIGHT |
| WL6HTV144-10 | 144″ | 10.00 | 10,498 |
| WL6HTV144-12 | 144″ | 12.00 | 12,255 |
| WL6HTV144-14 | 144″ | 14.00 | 14,000 |
FITS
| CLASS 5 (43,000 – 51,000 LBS) | MODEL |
| CASE | 1021G, 1121G |
| CAT | 966, 970 |
| DEVELON | DL420-5, DL420-7, DL450-5, DL450-7 |
| HITACHI | ZW310, ZX330 |
| HYUNDAI | HL970, HL770 |
| JCB | |
| JOHN DEERE | 744, 824 |
| KOMATSU | WA470, WA480 |
| KUBOTA | |
| LIEBHERR | L566X |
| LINK-BELT | |
| NEW HOLLAND | LW230 |
| SANY | |
| TAKEUCHI | |
| VOLVO | L150 |
| WACKER NEUSON | |
| YANMAR |
