Description
DESCRIPTION
MULCHERS FOR EXCAVATORS

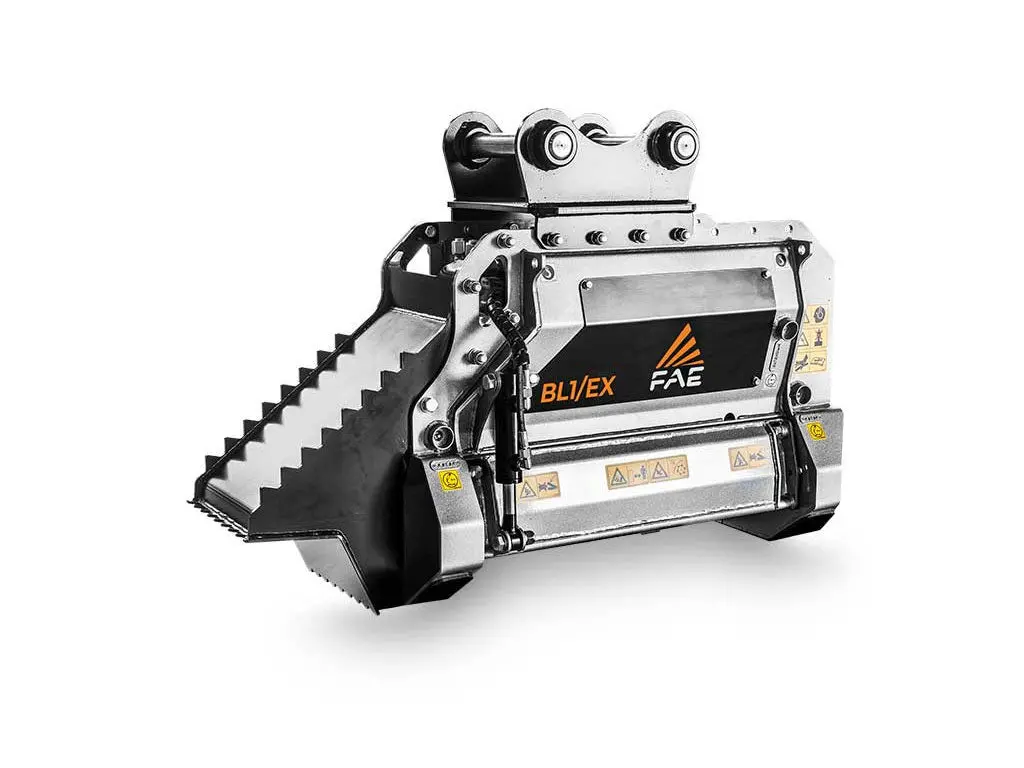

BL1/EX – BL1/EX/VT/HY
Forestry mulcher with Bite Limiter technology.
FAE introduces a new line of professional mulchers for excavators equipped with Bite Limiter technology.
Special steel limiter rings limit the depth of blade action, reducing the demand for power, guaranteeing speed and exceptional performance.
The BL1/EX – BL1/EX/VT (for 4-7.5 t excavators) has a 31 in working width and can mulch logs up to 5 in diameter.
- The piston engine (with manually controlled variable displacement) makes it easy to use this mulcher on different excavators with different oil flow rates.
The BL1/ EX-BL1/EX/VT has a rotor equipped with a heat-treated forged steel tooth holder, together with Type Mini BL blades.
This light, compact mulcher is easy to maneuver and perfect for various types of forestry work.
APPLICATIONS:
- FORESTRY MAINTENANCE
- ENVIRONMENTAL, WILDLIFE HABITAT PROTECTION & FOOD PLOTS
STANDARD EQUIPMENT
- Motor enclosed in the frame
- Bulkhead for hydraulic connections
- Transmission with belts
- 55/38cc variable torque hydraulic piston motor (VT)
- 17/34cc variable manual displacement hydraulic piston motor with relief and anti-cavitation valve (BL1/EX)
- Bite Limiter Rotor
- Flow control system valve
- Safety and anti-cavitation valve
- Front hood with mechanical adjustment
- Dedicated rear hood (deflector)
| TOOLS | BL | C3 |
| EQUIPPED | STANDARD | OPTIONAL |
| APPLICATION |
HARDWOOD TREES SOFTWOOD TREES EXPOSED STUMPS |
HARDWOOD TREES BRUSH & BRANCHES EXPOSED STUMPS |
| PHOTO |  |
 |
OPTIONS
- MULTIPLE TOOTH OPTIONS
- CUSTOMIZED SETTING HYDRAULIC MOTOR
- HYDRAULIC FRONT HOOD FOR EXCAVATOR AUX LINE
- HYDRAULIC FRONT TRAP DOOR
- FRONT FIXED THUMB BRACKED
- CUSTOMIZED ATTACHMENT BRACKET WITH PINS
- DIVERTER VALVE (PLUG IN AND PLAY)
SPECS
| MODEL | BL1/EX-75 | BL1/EX/VT-75 |
| Flow rate (gal/min) | 13-34 | 17-37 |
| Pressure (PSI) | 2600-5080 | 2600-5080 |
| Excavator weight (t) | 4-7.5 | 4-7.5 |
| Working width (in) | 31 | 31 |
| Weight (lbs) | 783 | 783 |
| Rotor diameter (in) | 11.8 | 11.8 |
| Max shredding diameter (in) | 5 | 5 |
| No. of blades | 14 | 14 |
