DESCRIPTION

MULCHERS FOR EXCAVATORS

PMM/HY

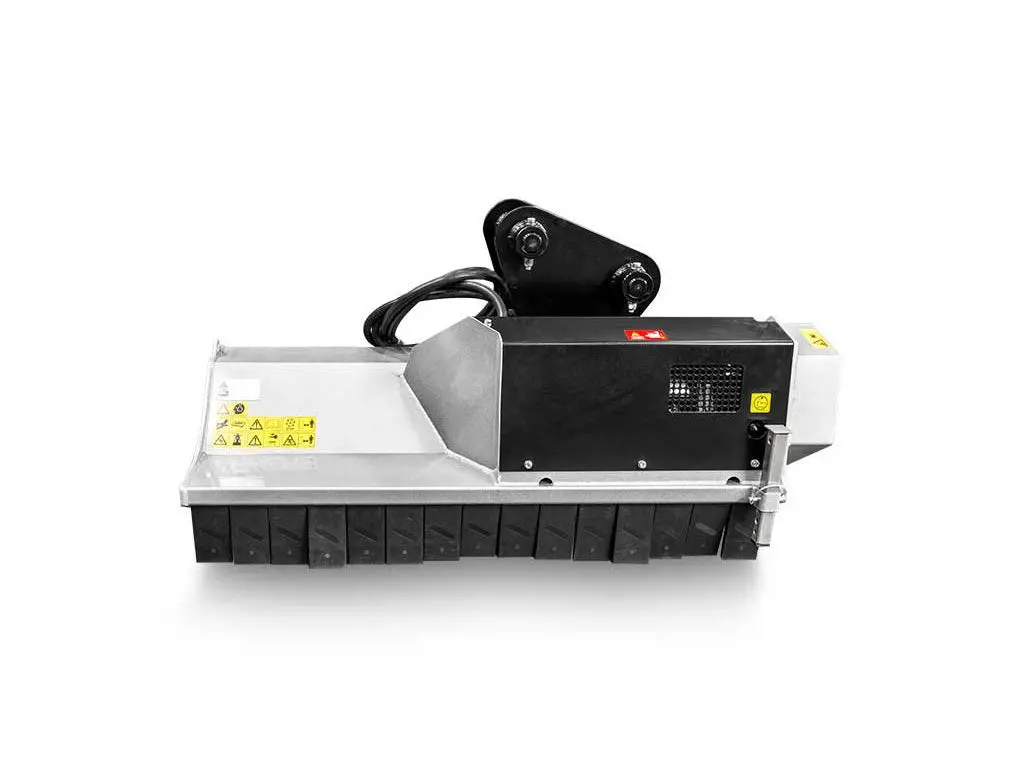

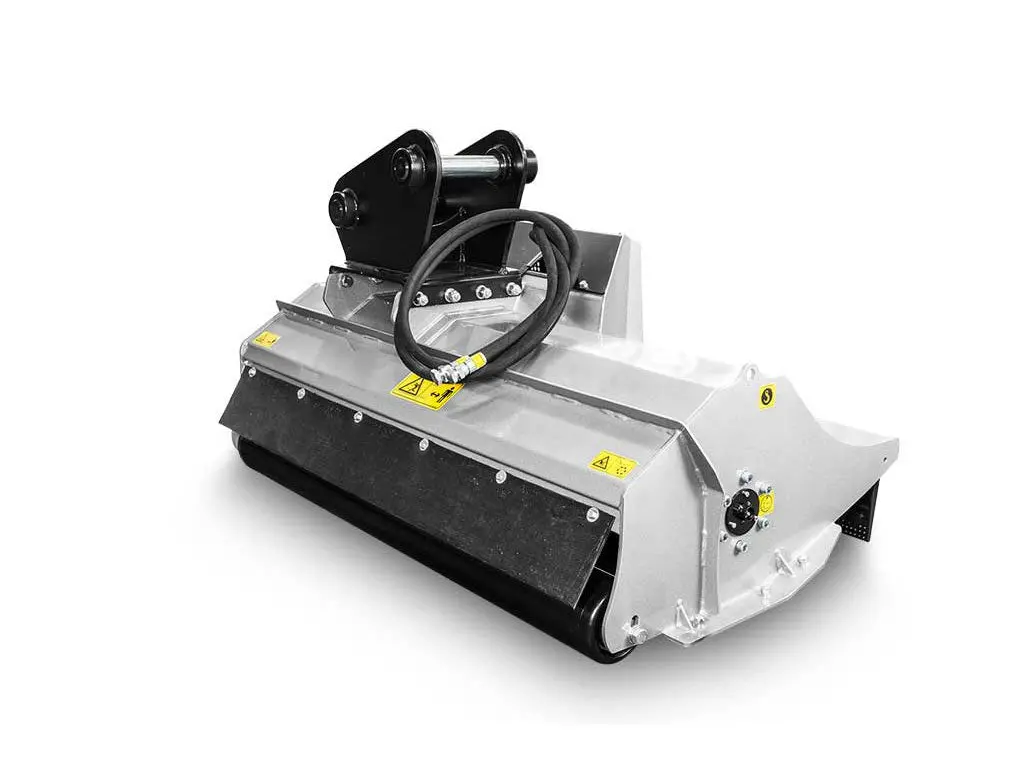

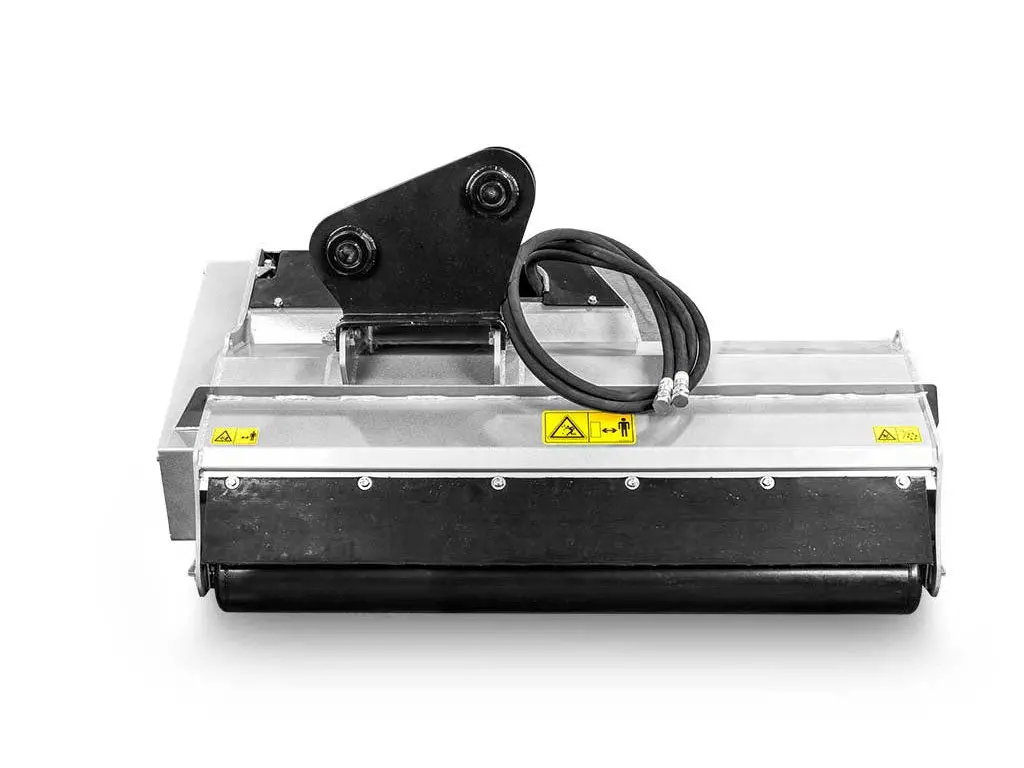

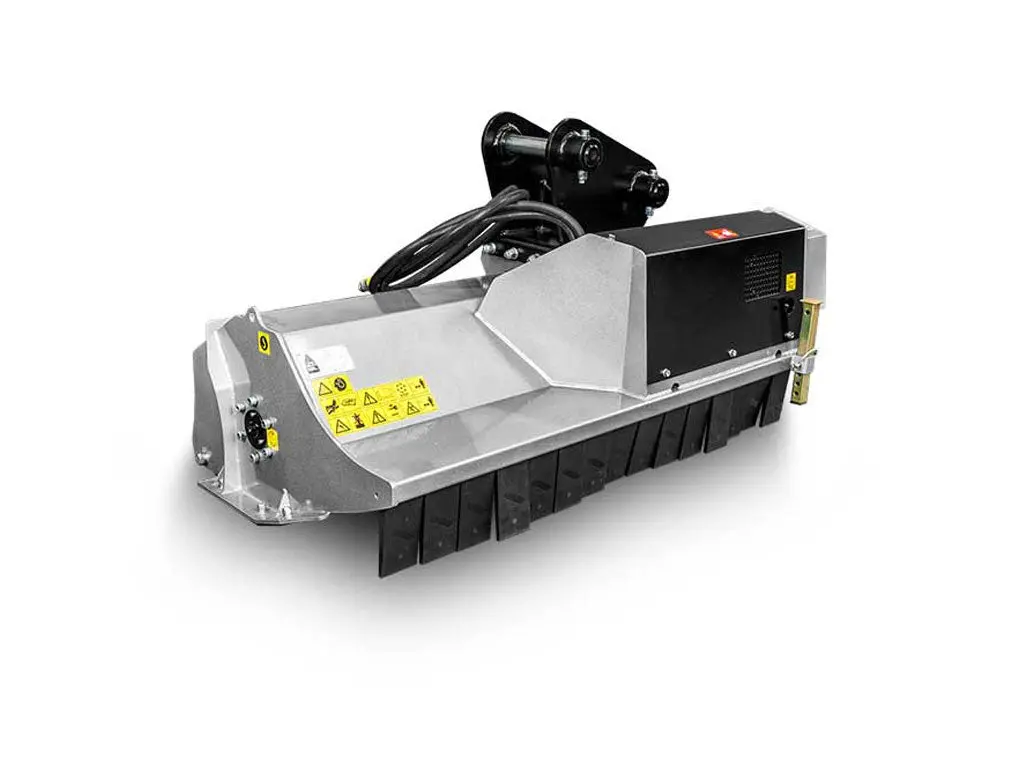

Mulcher with hammer/flail rotor for excavators.

Thanks to its compact dimensions and versatility, the PMM/HY is the most requested model for grass and brush mulching in FAE’s small mulcher lineup.
The mulcher can be equipped with a standard 16cc motor or an optional 27cc motor for mounting on 3.5 to 5.5 ton excavators.
The flow control valve ensures an easy and rapid mounting of the mulcher without adjustments or modifications to the hydraulic system of the excavator.

APPLICATIONS:

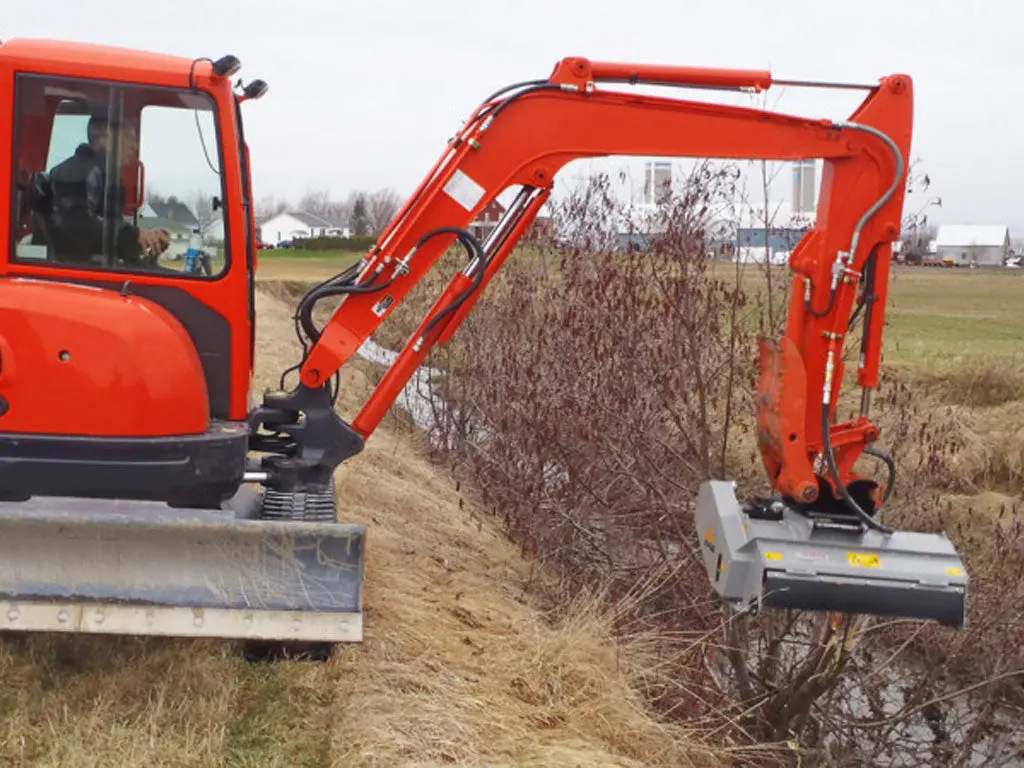

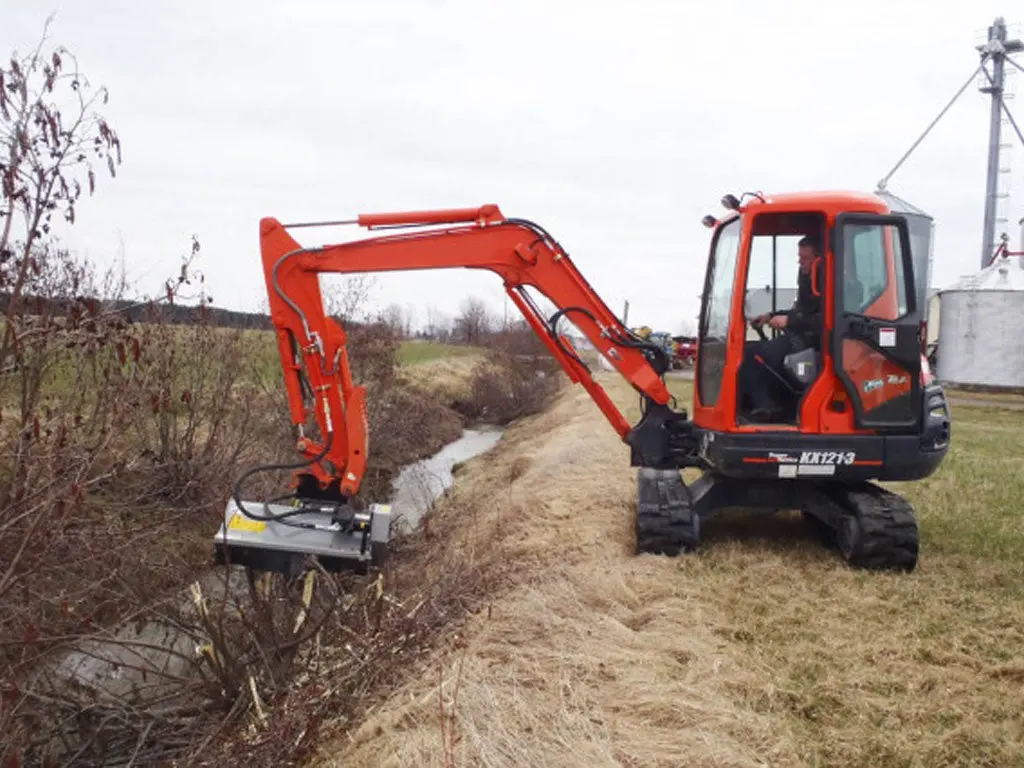

• ROADSIDE AND RAILWAY VEGETATION MAINTENANCE
• CANALS, RIVERS, PONDS OVERGROWTH CLEANUP
• ENVIRONMENTAL, WILDLIFE HABITAT PROTECTION & FOOD PLOTS

STANDARD EQUIPMENT

• Enclosed/anti dust machine body
• Welded steel counter-blades
• Motor enclosed in the frame
• Hydraulic hoses
• Self levelling protection rubber
• Supporting service leg
• Transmission with belts
• 16cc gear motor with integrated anti-cavitation valve
• Flow control system valve
• Rear roller

TOOLS	Hammer PML	Blade Y/2
EQUIPPED	STANDARD	OPTIONAL
APPLICATION	Bushes and branches	Bushes and branches

OPTIONS

• 27CC GEAR MOTOR WITH INTEGRATED ANTICAVITATION VALVE
• 17/34CC VARIABLE MANUAL DISPLACEMENT HYDRAULIC PISTON MOTOR WITH RELIEF AND ANTICAVITATION VALVE – requires case drain line
• CUSTOMIZED SETTING HYDRAULIC MOTOR

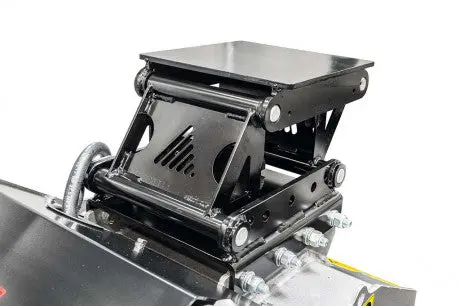

• CUSTOMIZED ATTACHMENT BRACKET WITH PINS

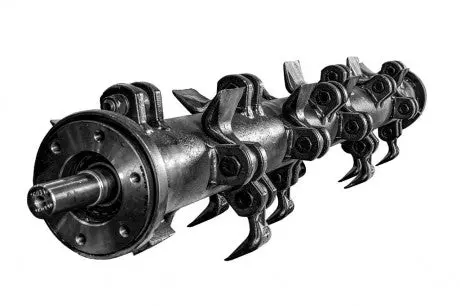

• POSSIBILLITY TO HAVE THE ROTOR EQUIPPED WITH PML HAMMERS OR Y-FLAILS

SPECS

MODEL	PMM/HY 100	PMM/HY 125
Flow rate (gal/min)	10-31.7	10-31.7
Pressure (PSI)	2200-3050	2200-3050
Excavator weight (t)	3.5-5.5	4.0-5.5
Working width (in)	40	49
Weight (lbs)	551	639
Rotor diameter (in)	14.2	14.2
Max shredding diameter (in)	2	2
No. hammers type PML	16	20
No. flails type Y/2	16	20
