DESCRIPTION

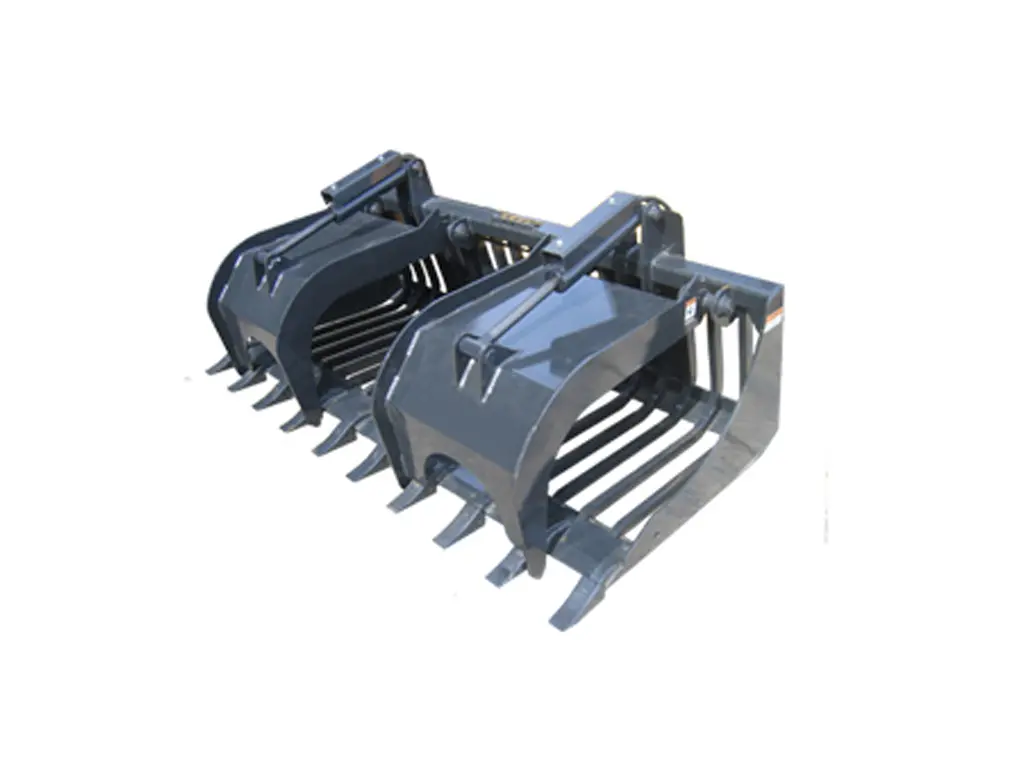

Rod Grapples
The rod grapple is designed for handling rocks and brush. It has independent twin grapples and industrial grade cylinders. Available sizes are 60″, 68″, and 76″
Features
- Weld-on Tooth bar with replaceable teeth
- All pivot points are greaseable
- Excellent hose routing and abrasion sleeves to protect the hoses from damage
- 3 inch spacing between the rods
- 7/8″ round rods (great for cleanout)
- Double cylinder grapple with independent claws
- Industrial 2.5″ x 10″ cylinders
- Powder Coat Finish
- Many sizes available
Options
- Euro/global style mount
- Other Tractor mounts available
__________________________________________________________________________________________________________________________________________________________________________________________

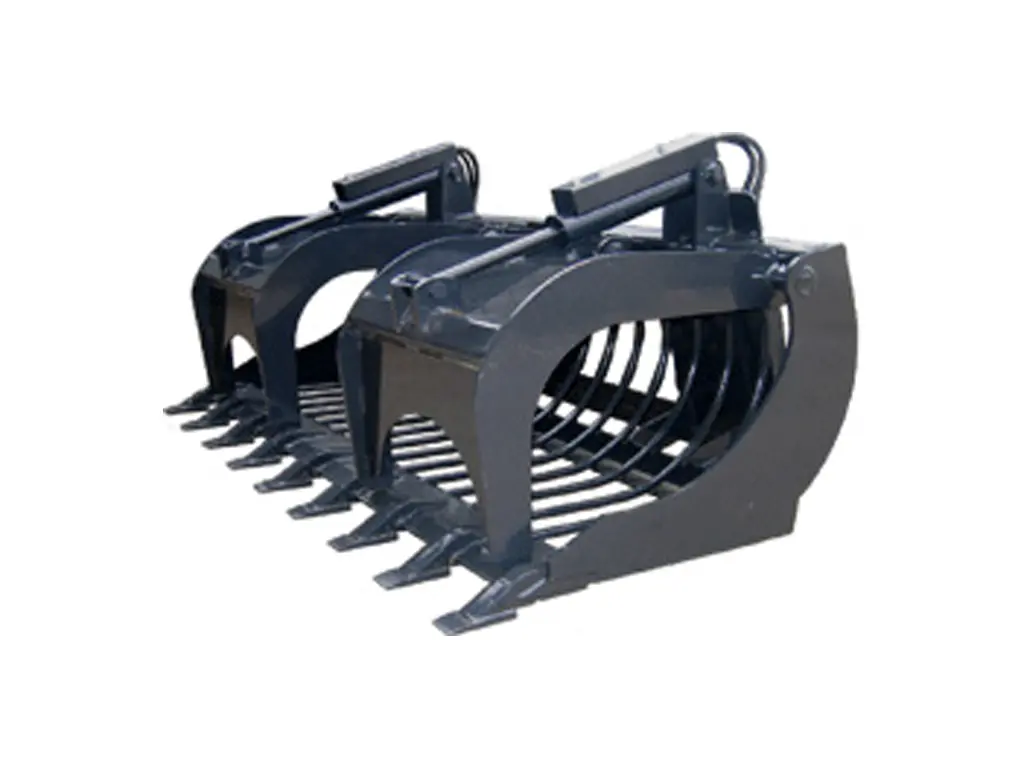

Industrial Rod Grapples
The Industrial rod grapple is designed for handling rocks and brush. It has independent twin grapples and industrial grade cylinders. Available sizes are 76″,and 84″
Features
- Weld-on Tooth bar with replaceable teeth
- All pivot points are greaseable
- Excellent hose routing and abrasion sleeves to protect the hoses from damage
- 3 inch spacing between the rods
- Heavy duty Tines are made of 1′ x 1 1.2′ curved flat bar
- Double cylinder grapple with independent claws
- Industrial 2.5″ x 10″ cylinders
- Powder Coat Finish
- Many sizes available
SPECIFICATIONS
Rod Grapples
| Spec | HRDG 60 | HRDG 68 | HRDG 76 |
|---|---|---|---|
| Bucket Width | 60.5″ | 68.5″ | 76.5″ |
| Depth of Bucket | 39″ | 39″ | 39″ |
| Height of Bucket Back | 24″ | 24″ | 24″ |
| Height w/ Grapple closed | 31″ | 31″ | 31″ |
| Overall Grapple Width | 54.5″ | 62.5″ | 70.5″ |
| Grapple Width each | 21.5″ | 21.5″ | 21.5″ |
| Grapple Opening | 37″ | 37″ | 37″ |
| Weight | 890 lbs. | 940 lbs. | 990 lbs. |
| Rod Size/Flat Bar Size | 7/8″ | 7/8″ | 7/8″ |
| Tine Spacing | 3″ | 3″ | 3″ |
| Cast Tooth w/ replaceable Tip | 8 | 9 |
10 |
Industrial Rod Grapples
| Spec | HIRG 76 | HIRG 84 |
|---|---|---|
| Bucket Width | 76″ | 84″ |
| Depth of Bucket | 42″ | 42″ |
| Height of Bucket Back | 25″ | 25″ |
| Height w/ Grapple closed | 32″ | 32″ |
| Overall Grapple Width | 63″ | 71″ |
| Grapple Width each | 21.5″ | 21.5″ |
| Grapple Opening | 40.5″ | 40.5″ |
| Weight | 1,230 lbs. | 1,330 lbs. |
| Rod Size/Flat Bar Size | 1″ x 1.5″ | 1″ x 1.5″ |
| Tine Spacing | 3″ | 3″ |
| Cast Tooth w/ replaceable Tip | 10 | 11 |
