Description

Wire Mesh Handlers

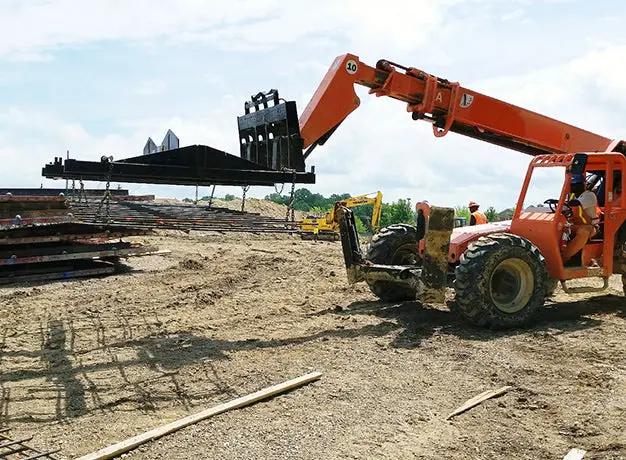

The Star Industries Wire Mesh Handler is primarily designed for use with a forklift; however, pick up points have been provided for use with a crane.

Empty weight — 1025 lbs.
Effective length — 13 ft
Effective width — 7 ft. 5 in.
Lifting chain — 5/16” grade 100 rated for lifting
Accepts forks up to 2-3/8 inches thick x 7 inches wide
Complies with ASME BTH-1-2008, design of below the hook lifting devices design category B service class 1
Designed to a safety factor of 3:1

Model	Description	Size	Capacity	Weight
1155	Fork Pockets 39″ OC. Requires 48″ or wider Carriage. Handles up to 8 ft. X 20 ft. wire mesh bundles.	13′	7000 lbs	1025 lbs.
1155-36CCFP	Fork Pockets 36″ OC. Requires 44″ or wider Carriage. Handles up to 8 ft. X 20 ft. wire mesh bundles	13′	6500 lbs.	1025 lbs.
1155-24CCFP	Fork Pockets 24″ OC. Requires 32″ or wider Carriage. Handles up to 8 ft. X 20 ft. wire mesh bundles.	13′	6500 lbs.	1025 lbs.

Explore more from our collection.

Carriage size	48"+, 44"+, 32"+
